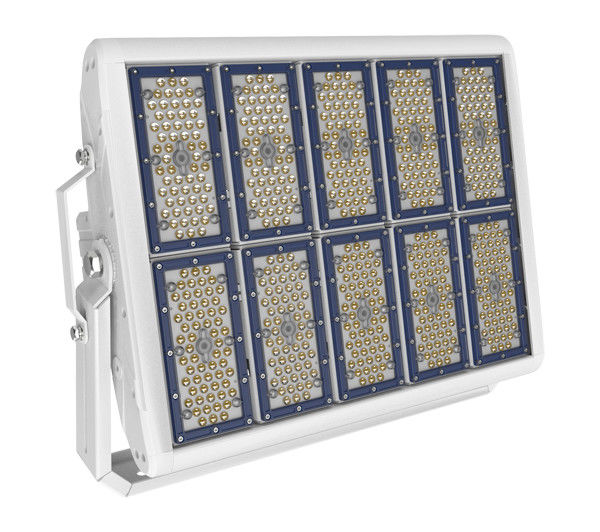

500W LED Area lights, 160lm/W,LED flood light, with IK10, 10KV surge protection

Minimum Order Quantity : 1PCS Price : Factory price !!
Packaging Details : 690(L)X 600(W)X 223(H)MM/1PCS/CTN, N.W: 20.6Kg G.W: 22.5kg. 306 CTN/20ft Delivery Time : 1 week for sample, 2 weeks for bulk order
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS, ETL,SAA CB,DLC, TUV Model Number: MF-FL-500S

Detail Information

Power: 500Watt Input: 90-305Vac, 50/60Hz
Chip Brand: Lumileds 3030 Or Lumileds 5050 LED Driver: Meanwell
Beam Angle: 30°,60°, 90° , 120°,60°x135°,85°x135° IP Grade: IP67

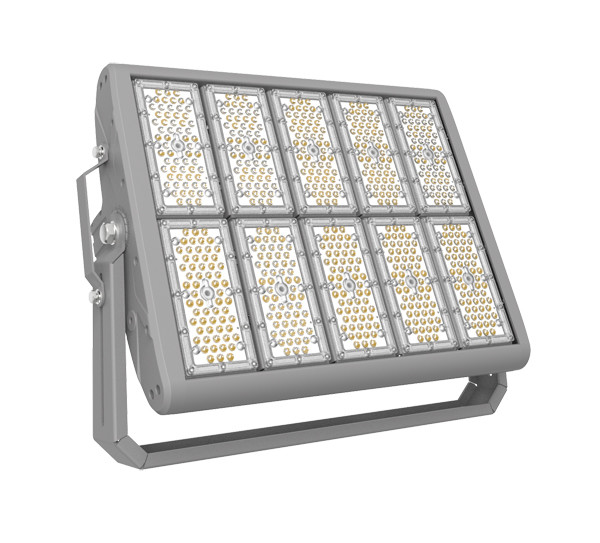

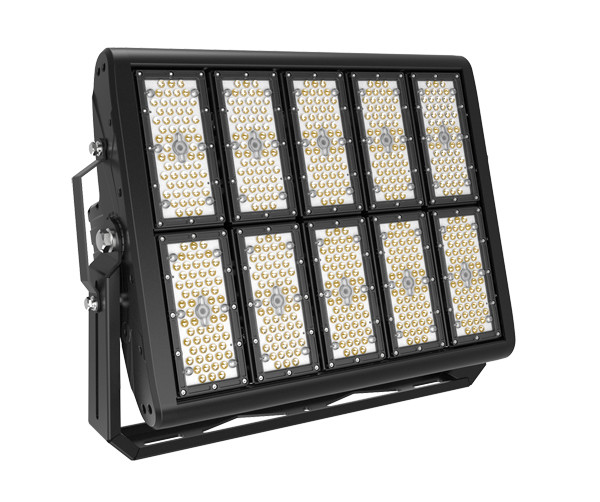

House Color: Black In Stock, Grey,white As Options Efficiency: 130lm/Watt,160lm/W Optional
CCT: 3000K / 5000K / 6000K Dimmable: Zigbee,Microwave,Day Light Sensor, DALi,DMX512
Warranty: 5 Years And10 Years @ Conditions Lifespan: 9 Years@ 15 Hours Daily
Operating Temp: -30℃~+45℃ THC: <15%
High Light:

led flood lights industrial

,

led construction lights

Product Description

500W LED Area lights, 160lm/W,LED flood lamp, IK10, 10KV surge protection



500W LED contruction lights for mining area, sea port,square plaza,garden area,apro,construction zone,outside building.



Download data sheet by clicking MF-FL-500S Tech data sheet.pdf


LED construction lights, LED Flood lights

Product Features:

LED Construction lights, LED flood lightsLED construction lights, LED flood lights, LED flood light



material is made of PC , Japan brand raw material. UV-resistance, high light transmittance 92%+

LED construction lights, LED Flood lights

Symetric lens of beam angle 30°,60°, 90°, 120° and asmytric lens beam of 60°x135° and 85°x135° for various applications.



LED construction lights, LED flood lights, LED flood light

With the help of different mounting brackets and light distributions.



LED construction lights, LED flood lights, LED flood light

Certified by CE,CB, ENEC, GS, RoHS, and UL listed, DLC, SAA, EMC, LM-79,PSE certificates are available, this family is an universal version for all around the world.



.LED Construction lights, LED flood light, LED flood lights

Little fuse SPD is available for 10KV and 20KV, work stable even in unstable power grid.

LED construction lights, LED Flood lights,LED flood light

water-proof connector with the rubber ring inside





LED Sports Lights Powder Coating

Top brand powder coating workman ship--AkzoNobel.

LED Sports Lights Dialux SimulationsLED Construction Lights, LED flood lights



IES files and photometric test reports are vailable, highly skilled engineer and designer team can provide light calculations and solutions for all kinds of applications.



LED construction lights, LED flood lights, LED flood lightLED Construction lights, LED flood lights, LED flood light



Top class chip brand, Lumileds 3030 and 5050 chips acheives at 130lm/w and 160lm/w, top class driver-meanwell brand secure the life-span of the luminaire.







280° angle adjustable bracket, heavy duty design.



LED construction lights, LED flood lights, LED flood light



Pole installation bracket is available as well, which enable lamp 360° rotational.

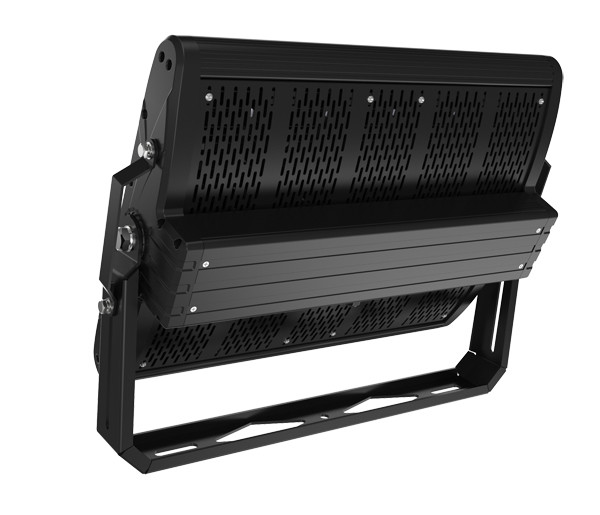

Fishing net allow heat releasing in good performance while reducing the weight of luminaire.



LED Construction lights, LED flood light, LED flood lights

lamp can be easily controlled via Zigbee, Microwave, daylight sensor, DALi, DMX512, contact with our sales engineers for more details.



The IK rate is IK10, can be wildly used in harsh conditions,such as mine area, tunnels,bridges,sea seaside and so on.


Specifications:



Item

MF-FL-500S

Input voltage

85-265Vac  50Hz/60Hz

LED Power

494W

System Consumption

500W

Delivered Flux

500x130lm,500x160lm

IP Rating

IP67

Beam Angle

30°,60°, 90° and 120° ,asymetric lens 135°x60° and 135°x85°

Color temperature

3000K / 5000K / 6000K

LED Chip

Lumileds

LED Driver

Meanwell

Color Rendering Index

Ra>80,70 as options

Power Factor

0.90

Color of Housing Black in stock, grey, white as options

Lifespan

1000,000hrs @ conditions, regular life span:50,000 hours, 9 years.

Operation Environment

Temperature:-30°C~45°C/Humidity:10%~90%

Storge Temperature -40°C~+50°C(@25°C)

Material

Anti-corrosion Die Cast Aluminum Alloy

Product Size(mm)

654(L)x 506(W)x 148(H)

Net Weight

20.6 Kg/PCS. 1PCS/CTN

Certificate

CE/RoHS/TUV/ETL/GS/SAA/FCC/DLC

Warranty Period

5 years,and 10 years @ conditions



Competitive Advantage:

1.Lumileds chips, 130lm/w or 160lm/W, CRI up to Ra80. Junction temperature <75°C.
2.World Calss Brand, MeanWell LED Drivers, wide AC90V~305V, PF>0.98, low THD<15%.Built-in Mean well drivers, make the lamp safer for operation.
3.L70>80,000hrs. Design lifespan 100,000hrs @ conditions.9 years @ 15 hours/day.
4.Adjustable to project aimed lighting area accurately.
5. Constant current design, much more reliable in life-span.
6. Japan secondary optical DIWL lens, light transmittance up to 92%.
7. Intelligent dimming system, 1-10V, Dali, PWM dimming models are available

 8. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC

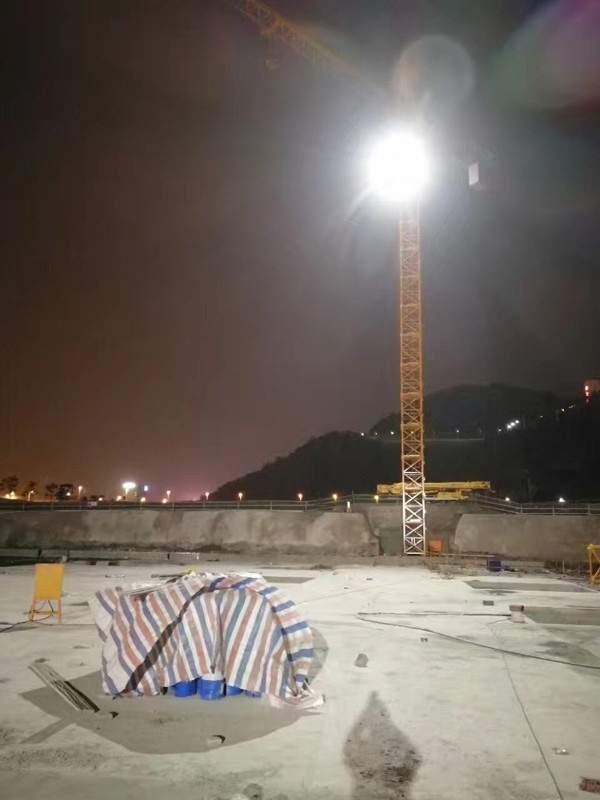

 Application photos



500W LED Area lights, 160lm/W,LED flood light, with IK10, 10KV surge protection 15
