100W 150W 200W LED High Bay Lights, IP65, 0-10V/Dali dimmer , Sensor, Emergency kit
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 50pcs | Price : | Ex-work price |
---|---|---|---|
Packaging Details : | 305*305*205mm, G.W:3.5±0.2KG | Delivery Time : | 2 weeks |
Payment Terms : | T/T, Western Union, L/C,Paypal | Supply Ability : | 10,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CE,RoHS,CB,TUV,ETL,DLC | Model Number: | 150W LED Hi-bay light |
Detail Information |
|||
Item :: | 150W LED Highbay Light | Power:: | 150W |
---|---|---|---|
Input Voltage:: | AC100-277V | LED Chip:: | SAMSUNG/ |
LED Driver:: | LIFUD/MeanWell/Lonsng | Luminous Flux(lm):: | 19500lm / 21500lm |
CRI:: | >80Ra | Beam Angle: | 60°, 90°, 105° |
Warranty: | 5 Years | Certifcated: | CE,RoHS,CB,TUV,ETL,DLC |
Fixture Material: | ADC12 Aluminum Alloy | Use Environent: | Dry Or Damp Or Wet |
Operating Humidity: | 15-90%RH | Export Carton Size: | 305*305*205mm |
High Light: | led highbay lights,ufo high bay lights |
Product Description
80 100 120 150 Watts LED High Bay Light Power Dimmable Angle Adjustable 60° / 90° / 105° Waterproof IP65
Specifications:
Product Name | LED Highbay light |
Power | 80 100 120 150 Watts(Dimmable&No-Dim) |
LED Type | SAMSUNG |
CCT | 3000K, 4000K, 5000K, 5700K, 6500K |
Beam Angle | 60°, 90°, 105° |
CRI | >80Ra |
System Efficiency | >90 |
PowerSupply | LIFUD/MeanWell/Lonsng |
Input Voltage | AC100-277V |
Power Frequency | 50/60Hz |
OutputVoltage | DC80-150V/DC28.8-48V |
Output Current | 0.73/2.19A 1.09/3.28A 1.45/4.3A(Constant Currrent) |
Power Efficiency | ≥90% |
Power Factor | ≥0.9 |
Total Harmonic Distortion | <15% |
Application | Indoor |
IP Rate | IP65 |
Safety Certification | CE,RoHS,TUV,CB,ETL,DLC |
Fixture Material | ADC12 Aluminum alloy |
Life span | >50000Hrs(Ta=30℃ @LM70) |
OperatingTemperature | -30 ~ 45℃ |
Operating Humidity | 15-90%RH |
Features:
a).The material of heat sink is high thermal conductivity No.ADC12 aluminum, good for heat dissipation.
b).The unique design of housing help to speed up the heat dissipation, futher ensuring the life of the fixture.
c).Power and Beam angle are adjustable, we can have 12 different combinations if we get one light.
150 Watts LED High Bay Light Dimension:
LED High Bay Light Product shows:

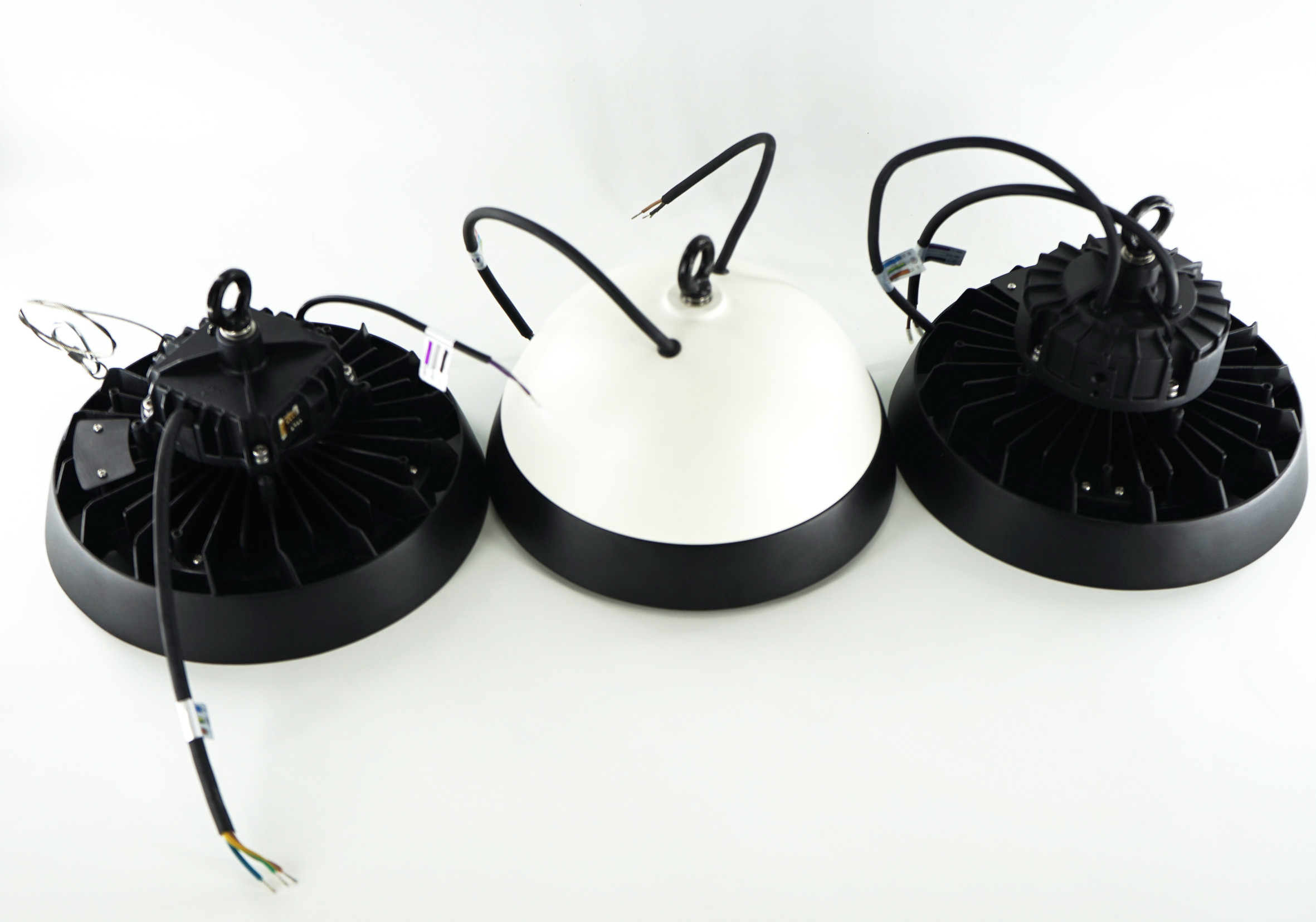

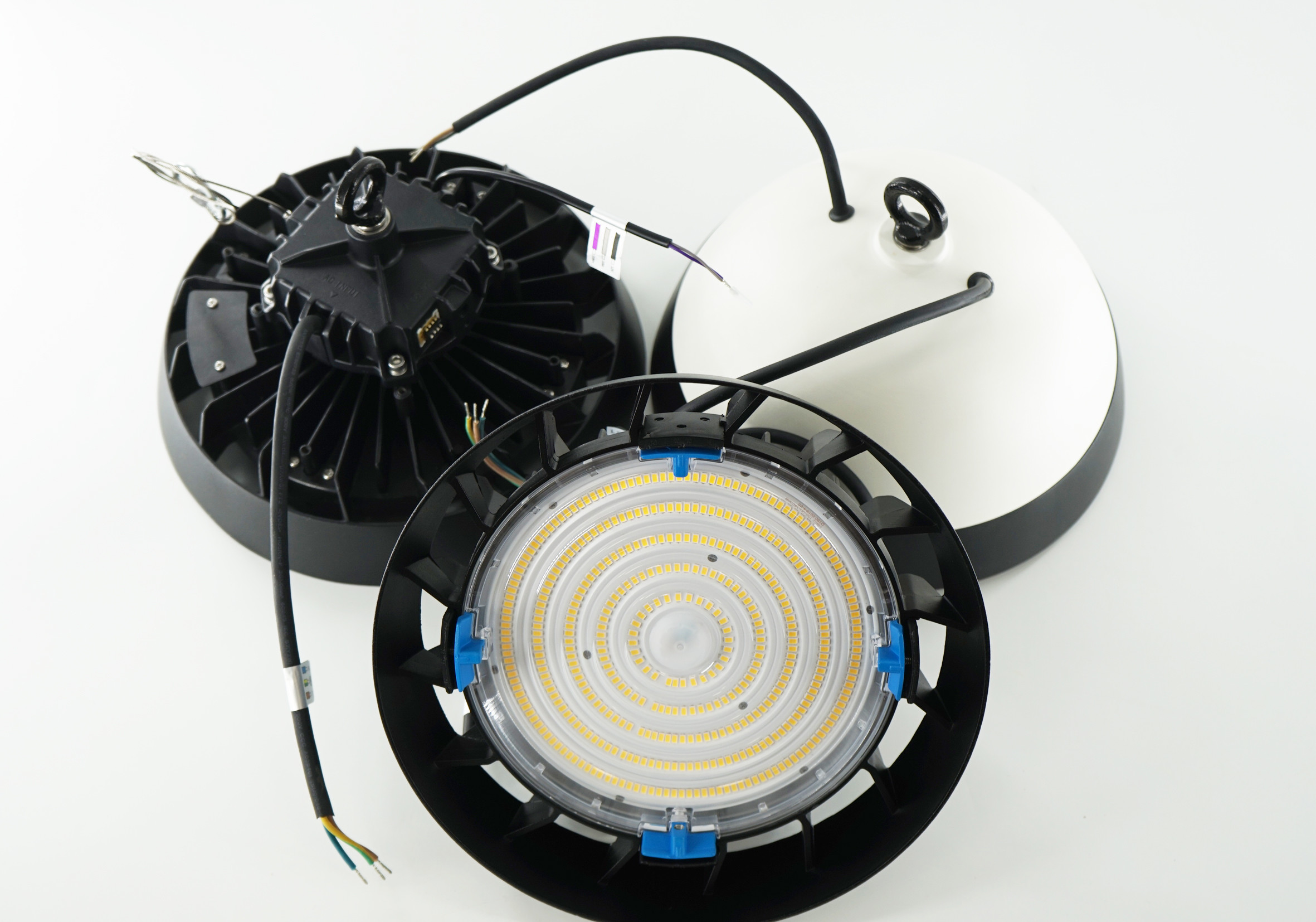

Conventional models & 4 level switch models & Panda design models
Conventional model:
The Beam Angle(60° / 90° / 105° ) can be adjusted to meet the luminescence needs of different sites.
4 level switch model:
Base on the beam Angel adjustable, power ( 80W/100W/120W/150W ) is adjustale also.
Panda model:
A dustproof enclosure is added to the regular model, which is easy to clean for the dusty and
suitable for dusty environment.
Details:
4 level switch: Safety rope:
Beam Angle Adjustable: Custom laser trademark:
Beam Angle:
105° 90° 60°
Carton Package:
Production line:
Main Features & Applications:
1. Pateented Zoomable lens to make beam angle changeable from 60/90/105 deg by simply rotation.
Power is Zoombale also, 80w,120w,150w in one product. Use it in the power that you
2. The housing offixture can withstand 1000Hrs salt spray test, to be used in high corrosive environment.
3. High efficacy SAMSUNG SMD leds with latest package technology.
4. High fixture effiency up to 155LM/W .
5. Heavy-duty anti-corrosion surface treatment to enhance the antic orrosion performance.
6. Available from 3000K, 4000K, 5700K and 6500k.
7. Versatile in mounting with wall mounted, loop hanging, steel chain hanging.
8. For area lighting for interior and exterior applications. e.g, airport, golf coruse, factory, plants, warehouse, exhibition halls, Gym....
