Water Resistant 180 Watt LED Parking Lot Light With Photocell 10KV For Area

Minimum Order Quantity : 10pcs Price : Negotiable
Packaging Details : 631*318*169MM, 1pcs / carton N.W:4.4Kg G.W: 5.6kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C,Paypal Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE,RoHS,TUV,FCC, DLC Model Number: MF-JSL180W

Detail Information

Item: LED Parking Lot Light Fixture Power: 28W To 180W
LED Chip: Lumileds LED Driver: Meanwell Or Or Reventroincs
Efficiency: 140lm/w OR 150lm/w CRI: 80+ Or 70+
IP Grade: IP66 Function: Photocell Sensor / DALI / 1-10V Dimmable
Beam Angle: Type I , Type II, ME1-ME5 Mounting: Pole/wall Mount As Option
High Light:

led parking lot light

,

parking lot led lights

Product Description


Waterproof Super Bright 180 Watt LED Parking Lot Light Fixture With Photocell 10KV For Area



Description:



MF Lighting is an excellent choice for downtown areas, hospital grounds, college campuses, shopping malls, business complexes, and residential neighborhoods. It provides effective security light levels with a significant reduction in cost of ownership, compared to standard HID systems, with dramatic reductions in energy and ongoing maintenance expenses.



Ming Feng Lighting Co.,Ltd, a China manufacturer and supplier of energy efficient luminaries for residential, industrial, and commercial applications.

Our products include LED light bulbs ; LED panel lights ;LED tube lights ; LED ceiling fixtures (ceiling spotlights, parabolic troffers, lensed troffers, recessed lights, track lights); outdoor lights (street lights, floodlights, wall lights, linear lights, inground lights, garden lights, strip lights, spotlights); industrial lighting solutions (LED high bay lights, high power floodlights, explosion roof lamps); CFL lamps and LED drivers.




Specification :



Item Code: MF-JSL180W
Power: 180W
LED quantity : 288pcs
Lumens : 25200lm to 27000lm
Dimension: 731*312*106MM
Input Voltage: AC100-277V 50/60HZ
CRI : >70Ra, >80Ra
Beam Angle : Type II, ME1-ME5
Operating Temperature: -40℃ to 50℃
Lens Material: Clear
Housing Material: Dia-cast Aluminum
Power Range : 28W - 180W
IP Range : IP66
Power Factor : 0.95
Pole diameter : 60mm
CCT : 3000K, 4000K,5000K, 5700K
Dimming(optional) : 1-10V
Driver LPG(Lighting Protection Grade) : 6KVA to 20KVA
Insulation Class : Class I
IK : IK08
Life Time :  ≧50000H




Features:



  1. Perfect replacement for traditional lights
  2. Saves 80% Electricity cost, Better Efficiency, Longer Lifespan
  3. IP66 IK08 Rating.
  4. Optically Optimized Glass Lenses
  5. Uniformity in Light Distribution – Maximizes Efficiency
  6. Fully Operational in Extreme Weather up to -40º Celsius
  7. Low maintenance & Low Power consumption




Product Details :

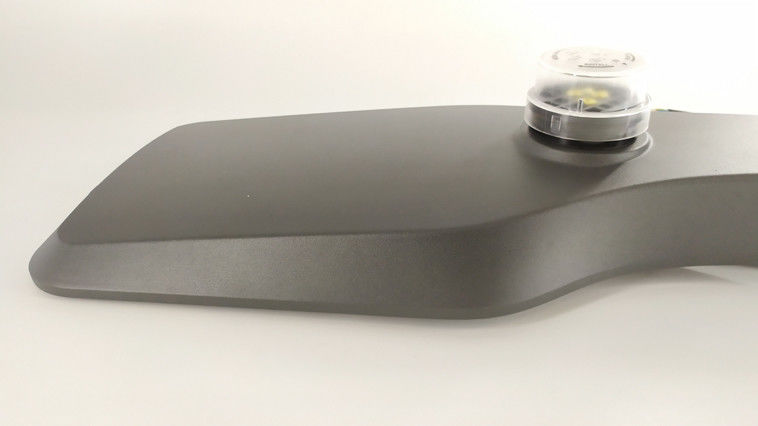

Water Resistant 180 Watt LED Parking Lot Light With Photocell 10KV For Area 0

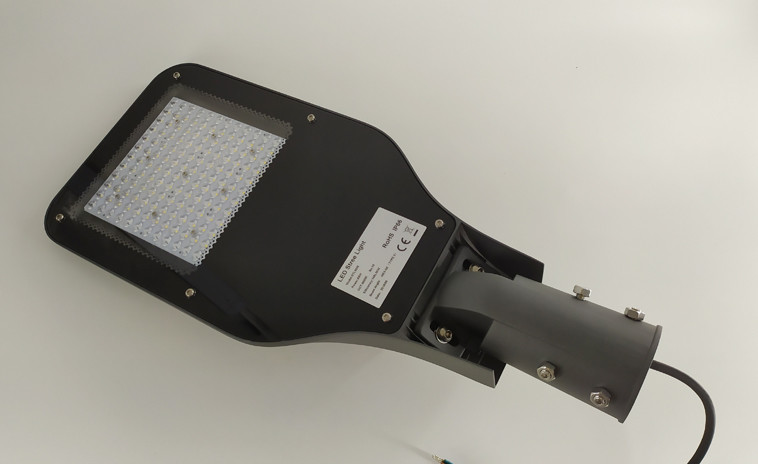

Water Resistant 180 Watt LED Parking Lot Light With Photocell 10KV For Area 1



Technology Support :



We provides a total solution for intelligence street lighting system.



The street light intelligence system is consist of software, concentrator, terminal controller.



The concentrator controller is installed in the distribution cabinet, the terminal controller is installed in the lighting terminal. It proceeds with
communication via GPRS/CDMA/WCDMA wireless network or cable network & monitor center and proceeds with communication via ZIGBEE/PLC.



Concentrator controller can control each terminal controller via receiving, executing, forwarding PC management Zigbee software ,which can control each lamp’s switching on /off or dimming ,then save electric energy. It can also monitor the lamps’ electric energy to achieve failure lamps function. Concentrator controller can built-in DO to achieve street light loop control, it can connect with other equipment to collect local illumination, temperature and other information, feedback to PC management software and achieve to monitor the current information.



Water Resistant 180 Watt LED Parking Lot Light With Photocell 10KV For Area 2




Application:



Outdoor areas - streets, cross roads, tunnels, car parks, industrial facilities etc.
