IP66 LED Tri - Proof Lights 60cm 90cm 120cm 150cm 12W - 80W With CE SAA CB Approval

Product Description

IP66 LED Tri-proof Lights,With CE SAA CB Approval,60cm/90cm/120cm/150cm 12W to 80W



Description of IP66 LED Tri-proof Lights:

MF Tri-proof light is kind of tube shape of LED tri-proof lights, made of special protective materials, has waterproof, dust-proof, anti-oxidation characteristics, energy saving and environmental protection, high safety performance, long service life.It can be used in railway, power, metallurgy, Lighting for large places such as workshops and stations and so on.



MF Tri-proof Light has passed the SAA,CE and CB certifications. It has international quality assurance.

It is available in various lengths. 600mm, 900mm,1200mm,1500mm are available.

And offer 12W,18W,20W,24W,32W,35W,45W,50W,80W.

Can make Tri-proof Lights in red, green, blue and other colors.

For its simple structure, it is easy to be installed.



Specifications:

MF IP69K Tri-proof Datasheet.pdf

MF-LL series IP66 LED Tri-proof Lights data sheet :

Model No.	Power (w)	LED Qty (pcs)	Size (mm)	Lumen Efficiency (Lm/w)	Lumen (Flux)	CRI	CCT	Beam Angle
MF-LL015032-XBF	32	240	D48*L1500	130	4160	>80	3000k/4000K/5000K	120 Deg
MF-LL015045-XBF	45	312	D70*L1500	130	5850	>80	3000k/4000K/5000K	120 Deg
MF-LL015080-XBF	80	600	D100*L1500	130	10400	>80	3000k/4000K/5000K	120 Deg
MF-LL012024-XBF	24	168	D48*L1200	130	3120	>80	3000k/4000K/5000K	120 Deg
MF-LL012035-XBF	35	264	D70*L1200	130	4550	>80	3000k/4000K/5000K	120 Deg
MF-LL012050-XBF	50	432	D100*L1200	130	6500	>80	3000k/4000K/5000K	120 Deg
MF-LL090018-XBF	18	126	D48*L900	130	2340	>80	3000k/4000K/5000K	120 Deg
MF-LL060012-XBF	12	84	D48*L600	130	1560	>80	3000k/4000K/5000K	120 Deg
MF-LL060020-XBF	20	132	D70*L600	130	2600	>80	3000k/4000K/5000K	120 Deg
MF-LL060024-XBF	24	216	D100*L600	130	3120	>80	3000k/4000K/5000K	120 Deg

























































"X" in model ID presents CCT in the model,30/40/50 means 3000K/4000K/5000K



Compared with others Tube Lights, our LED Tri-proof light has great advantages as below :



1. LED environmental protection:

There is no ultra violet and infrared in the LED spectrum, low heat and no flicker, no flicker can protect eyesight, and the waste can be recycled, there is no pollution without harmful elements such as mercury, it can be safely touched, and true green lighting light source.



2. LED Tri-proof light has a very long lifespan:

There is no loose part in the lamp body, so there is no phenomenon that the filament glows and heats easily. Therefore, the service life of the LED tri-proof lamp can reach 50,000 to 100,000 hours, which is more than ten times longer than that of the traditional light source and greatly reduced the cost of replacement and maintenance.



3. LED Tri-proof Light is very energy-saving:

It belongs to DC drive and consumes very low power. Under the same lighting effect, LED Tri-proof Light is more than 80% more energy-saving than traditional light sources.





Features Details:



1. Our LL series IP66 LED tri-proof lights can reach IP66 and IP69K, with powerful waterproof functions, it also have charateristic of UV resistance, corrosion resistance.





2. Our LL series IP66 LED tri-proof lights have two kinds of brackets. one is made of plasic and another is 304 stainless steel, it is good for customers to choose.

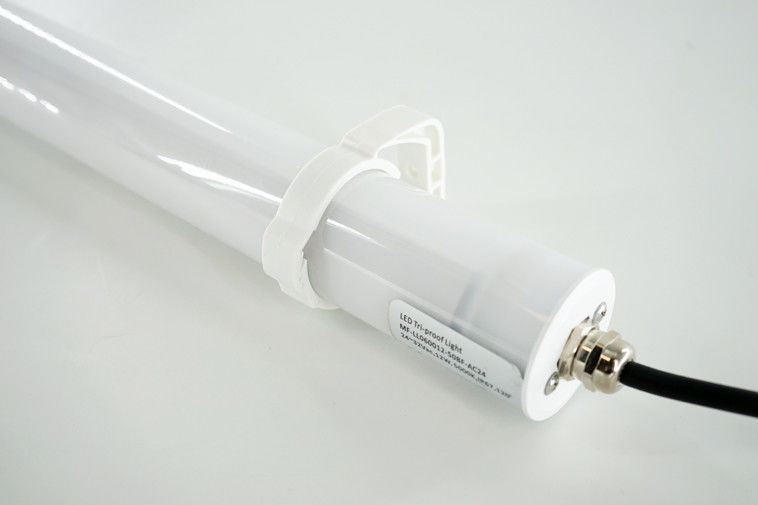

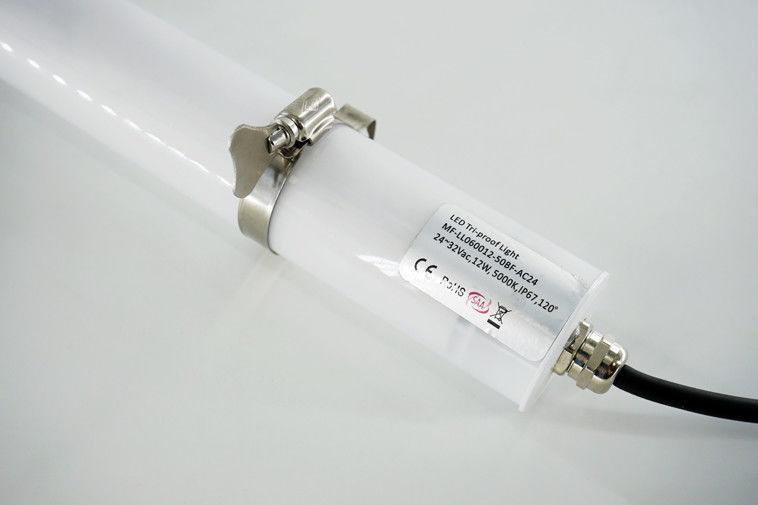

                       Plastic Clamp                                             SS#304 Clamp



3. Our LL series IP66 LED tri-proof light has different lengths and wattages for usage, 600mm(12W,20W,24W),900mm(18W),1200mm(24W,35W,50W),1500mm(32W,45W,80W).





4. Green, Red, Amber and Blue Color temperature are available.





5. Our LL series IP66 LED tri-proof lights have passed CE, CB,SAA certificates. It is a very favorable quality assurance.







Applications:

Car washing yard,Parking Lot ,Meat processing ,Farm, Food processing yard,Low temperature storage room , Department store ,

Railway stations, Bus stations, Tunnels .......
