Food Factory Ra80 120° 200W LED High Bay Lighting

Minimum Order Quantity : 100PCS Price : EX-WORK/FOB
Packaging Details : 470*470*215mm(1PCS), N.W: 5.0±0.2KG, G.W: 5.5±0.2KG Delivery Time : 1 week for sample order, 2 weeks for bulk order
Payment Terms : T/T, Western Union,L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: NSF / ETL / DLC/ CE / RoSH Model Number: MF-HB10-50/80/100/120WD-M

Detail Information

LED Chip: Lumileds Power Supply: CE Driver(Osram OEM Factory)
Lamp Power: 50W/80W/100W/120W/150W/200W/240W Input: AC100-277V, 50/60Hz
Beam Angle: 60°,90° Of PC , 120° Of Glass Warranty: 5 Years
CRI: Ra 80+ System Efficiency: 130Lm/W,150lm/W
High Light:

277V LED High Bay Lighting

,

5700K LED High Bay Lighting

,

IP65 Ra 80 High Bay light

Product Description

Food Factory Dustproof IP65 LED Waterproof High Bay Light

Technical Parameter:



Product Name MF-HB10-xxWD-57-130A (xx:watt)
System Power 150W/200W/240W
System Effiency 130Lm/W,150LM/W
LED Brand Seoul2835
CCT 3000K, 4000K,5000K, 5700K,6500K
Beam Angle

60°, 90°,120°

CRI ≥80Ra
Power Supply Sosen
Input Voltage AC100-277V,50/60Hz
Power Factor ≥0.9
THD <15%
Material Aluminum Alloy
Ingress Protection IP65
Certificate CE,RoHS
Operating Temp. -30℃-45℃
Operating Humidity 15%-90%RH
Storage Temp. -40℃-70℃,
Storage Humidity 10%-95%RH
Warranty Period 5 years


150W/200W/240W LED Industrial High Bay lights Dimensions:


             Food Factory Ra80 120° 200W LED High Bay Lighting 0Food Factory Ra80 120° 200W LED High Bay Lighting 1

ECO UFO LED Industrial High Bay lights Special Characteristic:

1. Anti-glare ; intergrated design of housing , pure aluminum body.
2. Optical lens ; An-ti UV; transmittance > 94%.
3. Professional light distrbution : 60°, 90°,120°

4. Lumileds 3030 LEDs 130LM/W or 150 LM/W
5. 5 Years warranty,Meanwell ; Sosen Drivers options.
6. IP65 water proof rate.

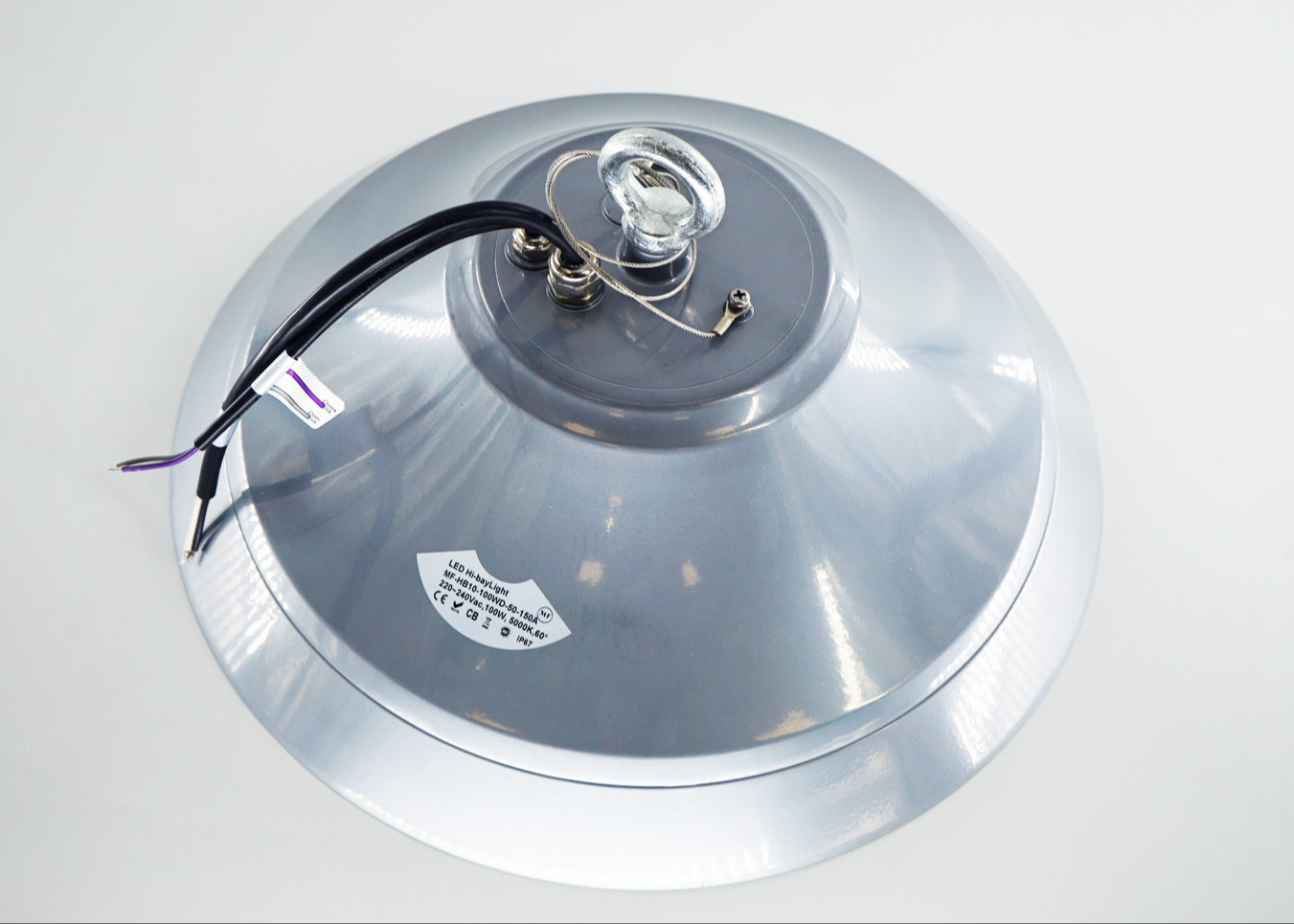

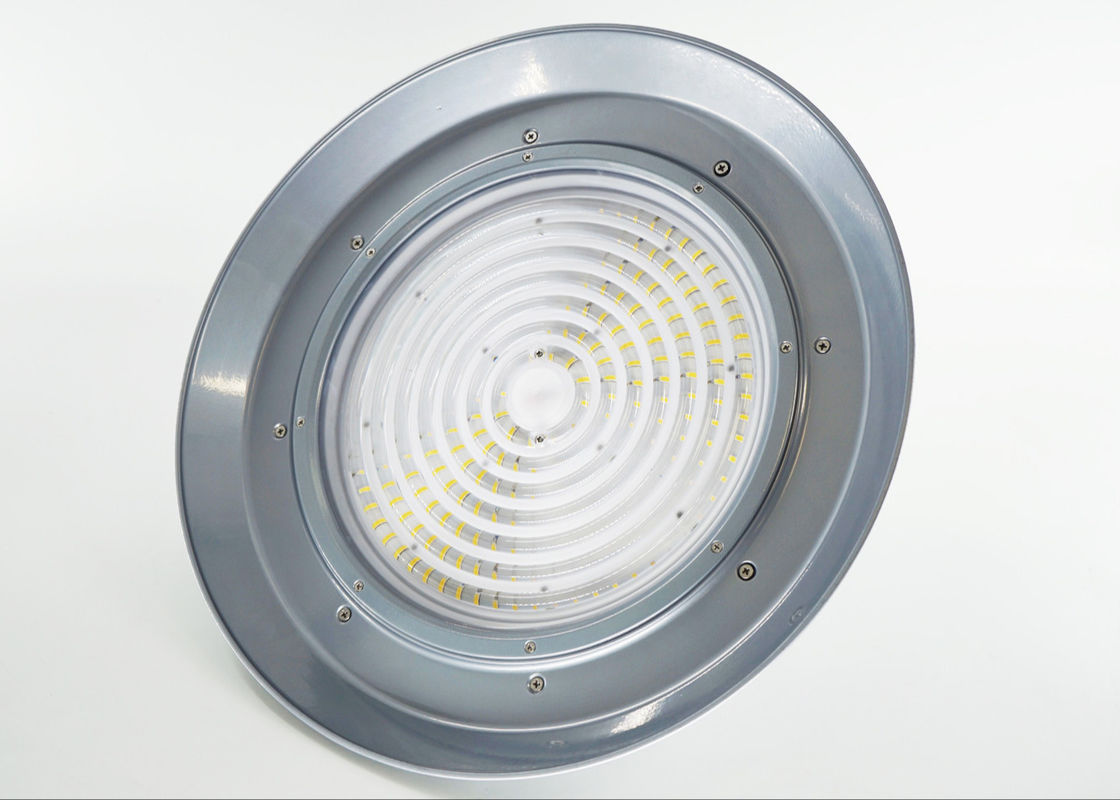

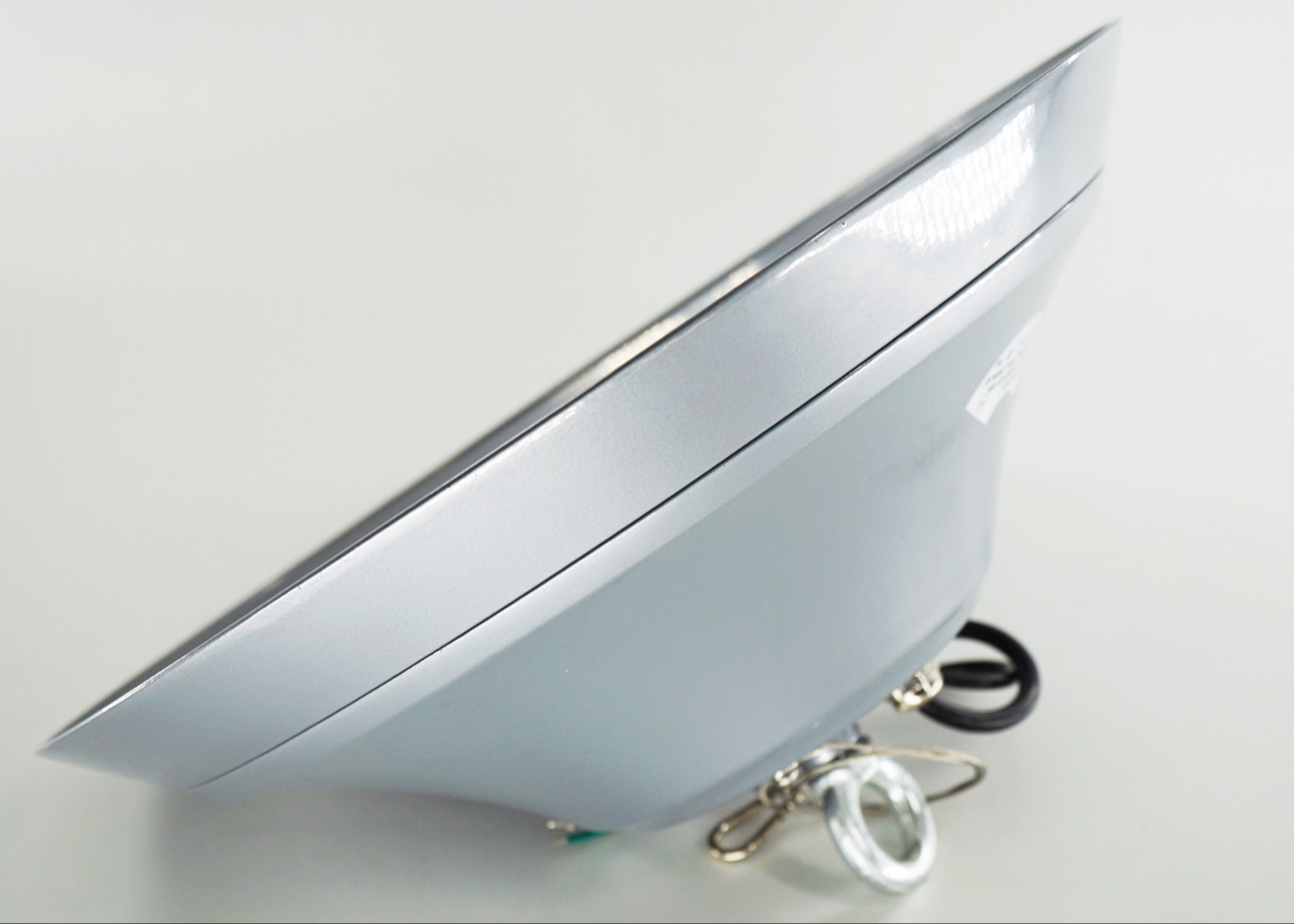

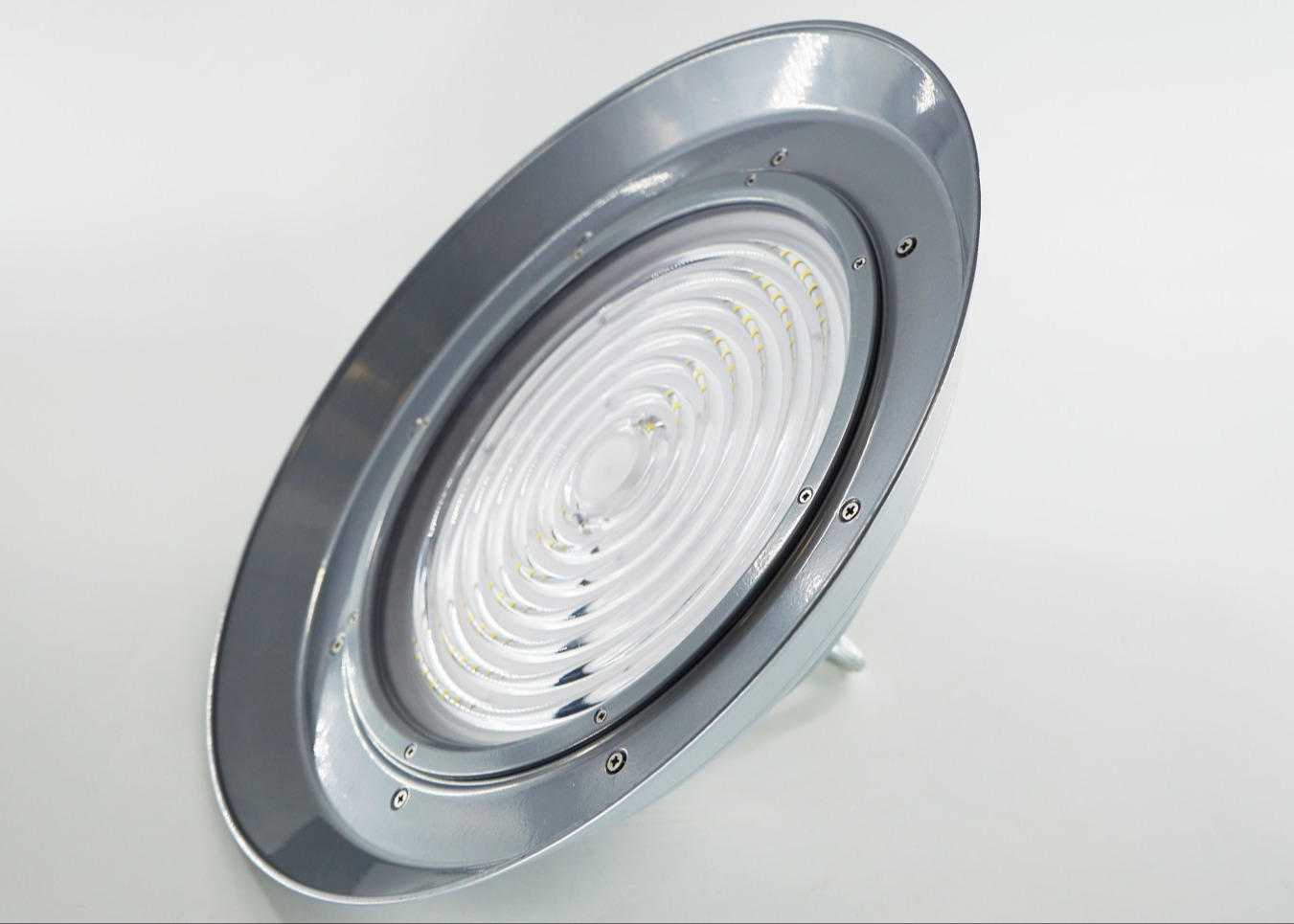

Product details:



Food Factory Ra80 120° 200W LED High Bay Lighting 2 Food Factory Ra80 120° 200W LED High Bay Lighting 3

Food Factory Ra80 120° 200W LED High Bay Lighting 4 Food Factory Ra80 120° 200W LED High Bay Lighting 5

The smooth outer shell is designed to prevent accumulation of dust and facilitate cleaning.




Our Competitive:

1. Competitive Factory price
2. 2 weeks lead time
3. 5 years warranty
4. OEM & ODM welcome



UFO Industrial high bay light application instructions:



Hook Mount

Food Factory Ra80 120° 200W LED High Bay Lighting 6



Pendant Mount

Food Factory Ra80 120° 200W LED High Bay Lighting 7



Multiple mounting options tomeet different usage of the product.




Package :


Item Packing Size(mm) N.W(KG) G.W(KG)
50W/80W/100W/120W/150W/200W/240W 470*470*215mm(1PCS) 5.0±0.5kg 5.5±0.5kg



Application:


Food Factory Ra80 120° 200W LED High Bay Lighting 8


With unique high-quality, die-cast aluminum heat sink,high-brightness SMD chip, high-effciency constant current constant voltage power driver,Our intelligent control LED High bay is designed for food processing, warehouse, shopping mall, exhibition centers and similar applications.


Description:


Ming Feng Lighting Co., Ltd developed a new kind of UFO IP65 LED high bay light, can Change different beam angle lens as 60°/90°/110° , This ECO UFO LED industtrial high bay light apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required. With ADC12 Aluminum alloymaterials radiator, with air duct design principle of both inside and outside ventilation, and better heat dissipation performance. Varities of Joint, include ring, sling chain, U shapre bracket installation type. Unique design for CE driver(Sosen) / Meanwells driver, to keep low temperature when operating. Beautiful appearance, own high light efficiency, can achieve more than150LM / Watt. Power 100W, 150W for your choice. Input voltage 100-277Vac suitable for both USA and EU market.
