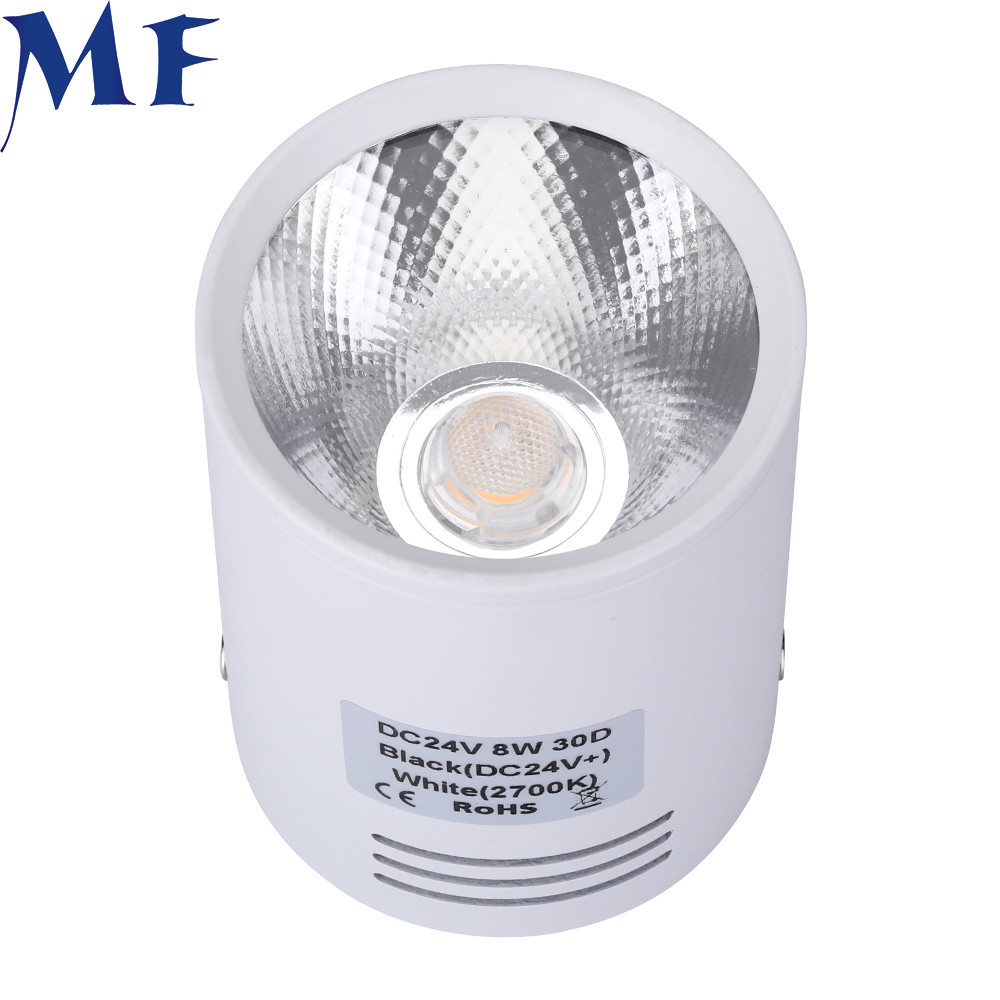

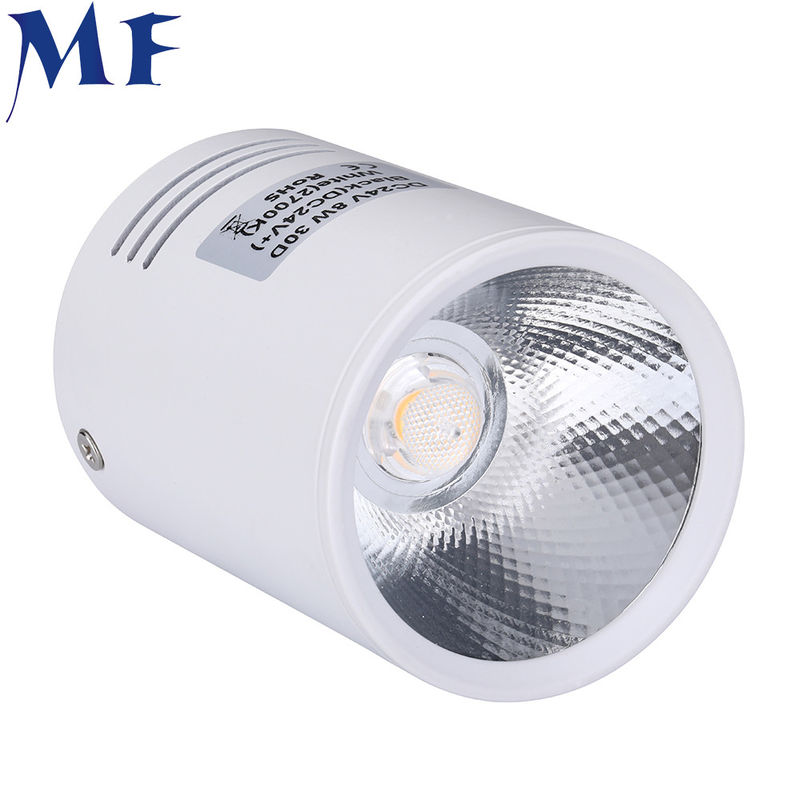

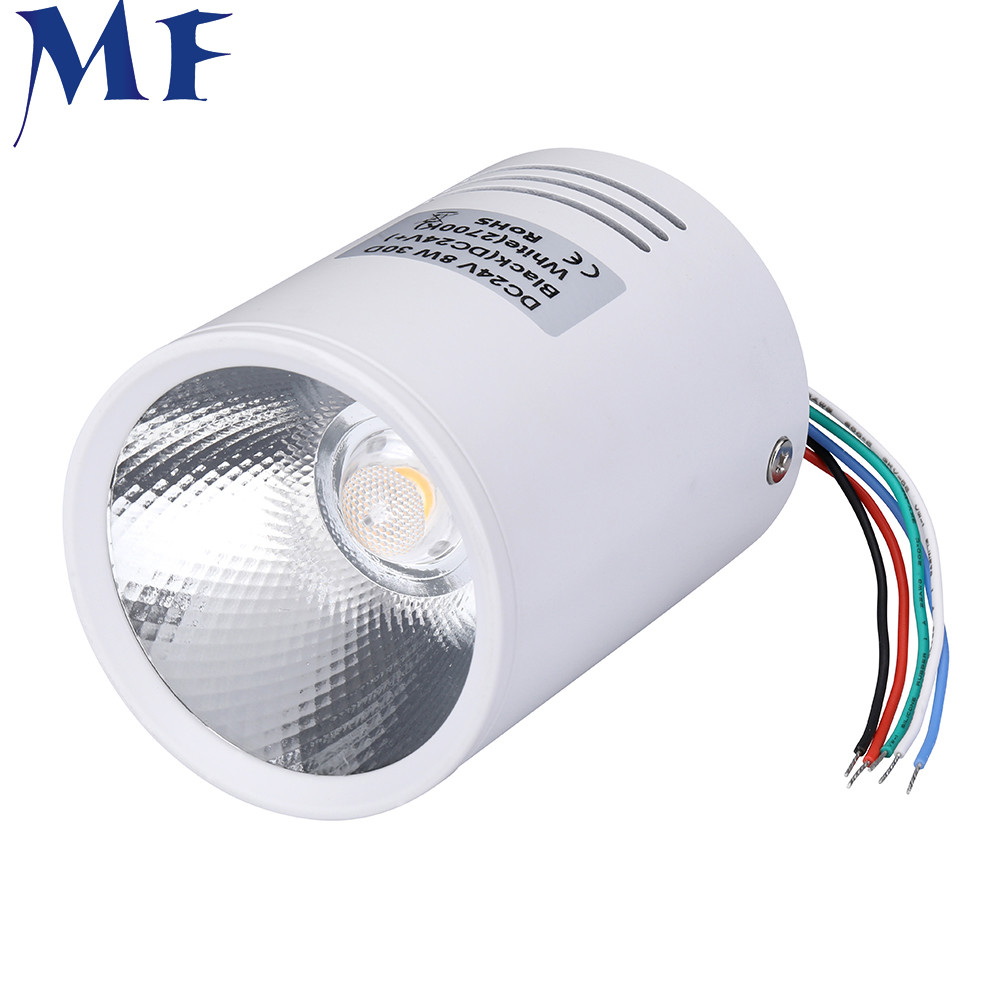

Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable

Minimum Order Quantity : 50PCS Price : Factory price
Packaging Details : 54*29*15.5cm/50pcs, G.W: 8.0KG,N.W:7.5 Delivery Time : 1 week for sample order, 2 weeks for mass order
Payment Terms : T/T, Western Union, Paypal, L/C Supply Ability : 5000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-SP08CW-SMD

Detail Information

Power: 8W Input Voltage: DC24V
Dimensions: D75*H115mm Beam Angle: 30°
CRI: >80Ra Material: Die-Cast Aluminum
Tunable White: 3 Options Adjustable Dimmable: Yes
Housing Color: White/Black Warranty: 2 Years
High Light:

CCT Adjustable LED Downlights

,

DC24V Smart downlight

,

Dimmable LED Downlights

Product Description



DC12V/24V Tunable white Smart Surface Mounted Downlight, 2700K-6500K CCT adjustable



Introduction:



DC24V Surface mounted Downlight adopts brand SMD and high reflective (more than 88%) reflector which make sure the high luminous, the die-casting aluminum heat sink and multi-layer structure provide excellent thermal dissiption;



Internal driver solution with DC24V constant voltage input compatible with

KNX or Dali Dimmer
or PWM Loxone Dimmable
or DMX512 Controller
or 0-10/1-10V dimmable driver

or 2.4G RF Remote controller



Can be surface mounted, suspending mounted for hotel, home, office, shop etc. It is also widely used for public areas such as stairway, lobby, reception, corridors etc.



Installation Warning: 1. Switch off before installation. 2. Switch on only after complete installation andexamination of the circuit. 3. Professional electrician for installation and  maintenance only.


 Technical data:


Input voltage DC24V
Product Size ¢75*H115mm
Power(watt) 8W
Color temperature Tunable white(2700K-6500K, 2000K-6000K, 1800K-4500K 3 options adjustable)
LED Chip Epistar COB
Housing Colour White/Black
CRI(Ra) >80
Lifespan 50000hrs
Beam Angle 30°
Material Die-cast Aluminum
Operating Temperature -200C ~500C
Mounted type Surface/Suspending
IP IP20
Certificate CE/ RoHS
Warranty Period 2 years



Also can RGBW(2700K) Or RGBW(6000K) with 5 separate connecting cables.

compatible with :
KNX or Dali Dimmer
PWM Loxone Dimmable
or DMX512 Controller
or 2.4G RF Remote contorller






DATA SHEET DOWNLOAD: MF-SP08CW-SMD Surface mounted Led downlight Tunab...



DC24V Surface mounted CCT adjustable donwlight​ dimensions:

Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable 0



DC24V Surface mounted CCT adjustable donwlight​ package:



Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable 1



Inner box L90*W90*H60mm
Carton box L540xW290xH155mm
Qty/ctn 50pcs
G.W 8.00kg/ctn





DC24V Surface mounted CCT adjustable donwlight​ Connection:



Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable 2



Application:



Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable 3



Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable 4
