60W 5850 Lumen Waterproof IP66 LED Roadway Lights With CE ROHS Certificated

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 52*36.5*18.5cm/1pcs, G.W: 7.5Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal,L/C Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-Y065W

Detail Information

High Light:

exterior led lighting

,

led street light

Product Description

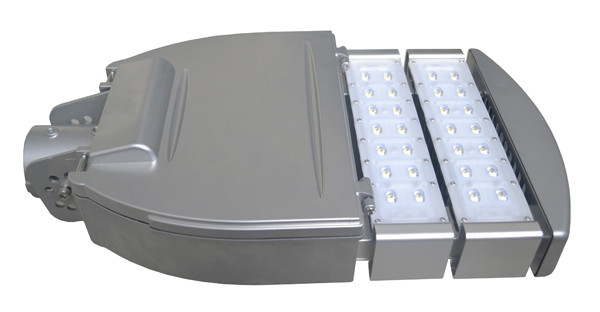

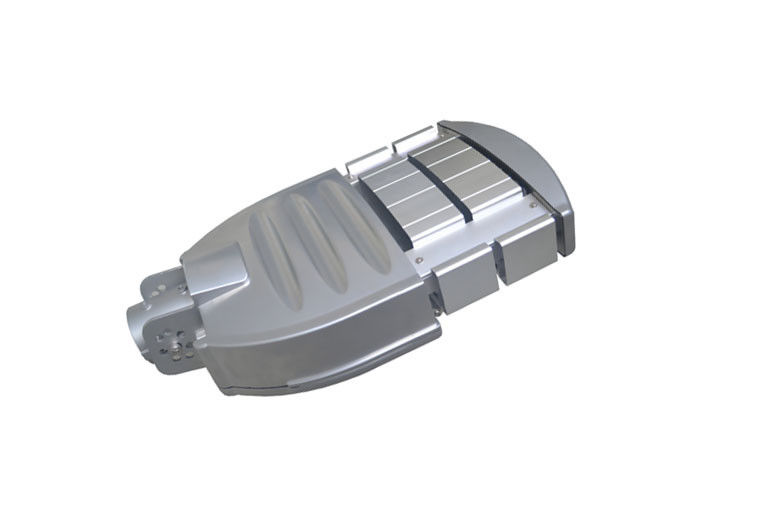

60W 5850 Lumen Waterproof IP66 LED Roadway Lights CE ROHS Certificated



Quick Detail:



1.      65W LED Modular roadway lights

2.      Input: AC 85V-265V, 50/60Hz

3.      Luminous Flux:≧5850Lm

4.      CRI: 70

5.      Brand chip:

6.      LED Driver: Meanwell

7.      Adjustable: -15 to +15

8.      IP:66





Description:



LED Roadway lights embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.



These LED roadway lighting series combines all street LED lighting features together including economic, long lifespan and environment protection. Applied with the best LED from , the street light attains over 90 lm/w illumination efficiency. Accelerated by Professional Unique Optical Lens, Ming Feng LED Street light distribute all the light onto road with maximum effect.





Specifications:





Item

MF-Y065W

Input voltage

85-265Vac  50Hz/60Hz

LED Power

60W

Rated Power

65W

Delivered Flux(Tj80°c)

5850lm

IP Rating

IP66

LED QTY

28 pcs

Color temperature

3000K-6500K

LED Chip

LED Driver

Meanwell

Color Rendering Index

Ra>70

Power Factor

>0.9

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

461(L)*307(W)*127(H)

Net Weight

5.5Kg

Certificate

CE/RoHS

Warranty Period

5 years





Competitive Advantage:



1. Modular design, the light efficient reach 90lm/W

2. The light source use 120M/W rebels, the luminaire reach 90M/W

3. Non-image optics system, improves lumen output ratio

4. High efficiency driver system from Meanwell

5. Power box free tool to open, easy installation and maintenance

6. Elegant appearance, open air ventilation design, good heat dissipation function

7. “Tool free” locking design to open and close the driver compartment simply, easy installation and maintenance

8. The installation angle can be adjustable from -15 to +15





Product Dimensions(mm):



60W 5850 Lumen Waterproof  IP66 LED Roadway Lights With  CE ROHS Certificated 0





Applications:



Wildly use for Free way, Main road, Secondary main road and so on.
