1W Mini Ground Light DC12V IP67 Waterproof LED Underground Outdoor Landscape Lighting

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 42X42X25cm/288pcs, G.W: 13Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal,L/C Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-01WC-15

Detail Information

Product Code: MF-01WC-15 Power: 1W
Luminous Flux: 87Lm CRI: >80Ra
LED Brand: Epistar Chip LED Input Voltage: DC12V/3V
Beam Angle Is Optional: 120° Ingress Protection: IP67
High Light:

led deck lights

,

outdoor led floor lights

Product Description


1W Mini Ground Light DC12V IP67 Waterproof LED Underground Outdoor Landscape Lighting

Quick Detail:


Product Code:MF-01WC-15
Power:1W
Luminous flux:87Lm
CRI : >80Ra
LED Brand:Epistar Chip LED
Input voltage: DC12V
Beam angle is optional:120°
Color temperature options: warm white (2700-3000K), neutral white (4000-4500K),
cool white (6000-6500K)
Other light color options: red, green, blue
Ingress Protection:IP67
Light body material: surface ring (stainless steel), the main (6063 aluminum)
Service life: 35000 hours

Description:




Mini finger size (0.79 * 1.5 inches high/Φ Φ * H38mm) 20, 304 stainless steel cover + 6063 aluminum radiator.

Compact structure, reliable performance, IP67 rating, weatherproof.

Low power consumption, long life, better color.

12 v dc safe working voltage, outdoor/indoor atmosphere decorative lighting.

High quality accessories (optional and sold separately) : (1) 12V DC deformation gold (power supply) : search ASIN "B07DYQMKCY ";(2) extension line: search ASIN "B07CPVJXFV".

Specifications:


Model No

 MF-01WC-15

Input voltage

DC12V/3V

Power(watt)

1W

Product size(mm)

¢20xH38mm

Color temperature

2700K/3000K /4000K/ 5500K/6500K

LED Chip

Epistar Chip LED

Housing Colour

Silver

Luminous Flux (lm)

87Lm

CRI(Ra)

>80Ra

Lifespan

≥35000hrs

Beam Angle

120°

Material

surface ring (stainless steel), the main (6063 aluminum)

Ingress Protection

IP67

Other light color optionS

red, green, blue

Certificate

CE/RoHS

Warranty Period

3 years



 Competitive Advantage:


◆Self-developed, private mold products, elaborately carved, light body compact, flexible and extensive application;
◆The light color is rich and optional, with amber light, warm white light, white light, cold white light, red, green, blue and so on;
◆Asingle tonal light;
◆The protection grade IP67 can be used under one meter of water;
◆The surface of the main body can bear the pressure above 300KG;
◆The lamp body adopts 304 stainless steel surface ring, which has anti-corrosion, high temperature resistance, never discolored, and is really durable.


Product detail:

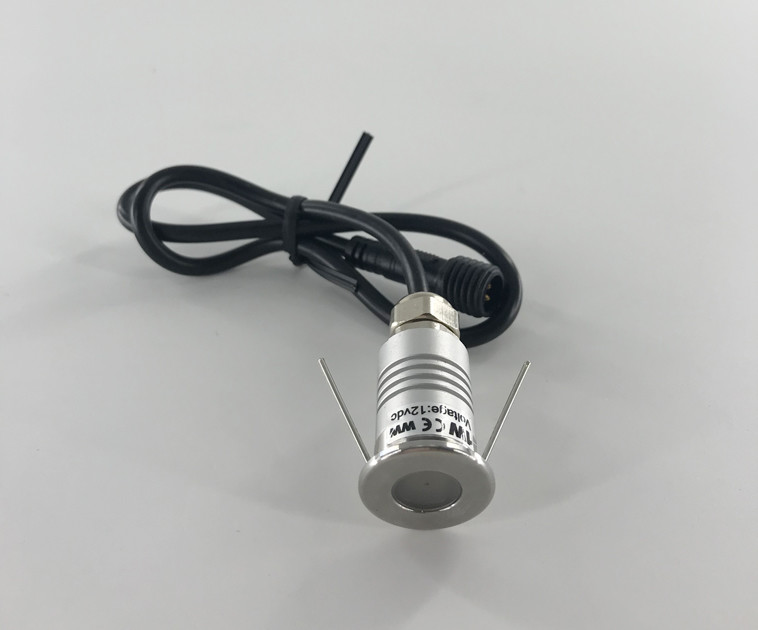

 1W Mini Ground Light DC12V IP67 Waterproof LED Underground Outdoor Landscape Lighting 0

Installnation:
 1W Mini Ground Light DC12V IP67 Waterproof LED Underground Outdoor Landscape Lighting 1

1W Mini Ground Light DC12V IP67 Waterproof LED Underground Outdoor Landscape Lighting 2

Package:
1W Mini Ground Light DC12V IP67 Waterproof LED Underground Outdoor Landscape Lighting 3

Model NO.

N.W/pcs

G.W/pcs

QTY/CTN

N.W/CTN

G.W/CTN

Size/CTN

MF-01WC-15

0.045kg

0.055kg

288pcs

12kg

13kg

42X42X25cm



Applications:


1W Mini Ground Light DC12V IP67 Waterproof LED Underground Outdoor Landscape Lighting 4

Room decoration lighting, KTV room, stair step indicator lighting,porch wall foot,Roads, squares, sidewalks, gardens, swimming
pools, Bridges and other outdoor Spaces.Other DIY designs, such as starlight effects...
