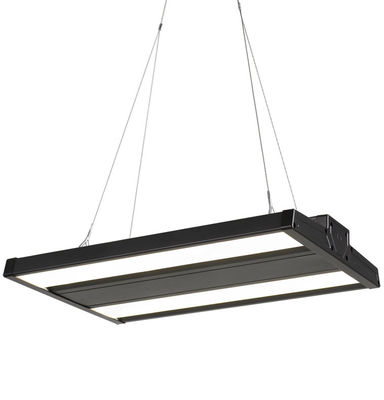

100Watt LED linear high bay, 130LM/W, 100-277Vac input voltage,for industrial warehouse

Minimum Order Quantity :	100PCS	Price :	EX-WORK, FOB
Packaging Details :	661551cm/1pcs, N.W: 7.2KG, G.W: 10.5Kg	Delivery Time :	2 weeks for bulk order
Payment Terms :	T/T, Western Union, L/C, Paypal	Supply Ability :	5,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS	Model Number:	MF-LH-100W

Detail Information
Power:	100W	Input:	100-277Vac
Lumen:	13000LM	CRI:	>80
Dimensions:	60042076mm	Light Source:	Samsung Leds
LED Driver:	Meanwell	CCT:	4000K 4500K 5000K 5700K
High Light:	led industrial high bay lights , ufo high bay lights

Product Description

100Watt LED linear high bay, 130LM/W, 100-277Vac input voltage,for industrial warehouse

Product Description:

Ming Feng commercial linear high bay led fixtures are designed for 12 foot and higher ceiling applications in warehouses,gymnasiums, manufacturing, and other general task areas. With an enclosed power supply housing and covered optics, these units are designed for durability in difficult installation locations. This is an excellent option for converting conventional metal halide highbay fixtures, or fluorescent fixtures with LED. This product accepts 100-277Volt input and comes with aircraft cable hangers.

This 100Watt LED linear high bayenergy effcient operation of 130lm/wdelivers significant light output at the lowest power use. Compact design with maximum heat dissipation allows for versatility in installation locations. Meanwell driver with samsung 2835 led chipsets provides quality and reliability. Dimmable driver for use with daylight harvesting/ motion ssensors/ Advanced lighting controls.

Applications:

This 100Watt LED linear high bay is most often used in Warehouse, Cold storage, Manufacturing, Transportation, Sports facilities, Agriculture, Retail and other areas where a focused lighting application is required at heights greater than 10 to 14 feet.
100Watt LED linear high bay, 130LM/W, 100-277Vac input voltage,for industrial warehouse 0

Technical Parameter: MF Linear LED High Bay data sheet.pdf

Item	MF-LH-100W
Input voltage	100-277Vac 50Hz/60Hz
Power	100W
Delivered Flux	13000lm
IP Rating	IP40
Beam Angle	120°
Color temperature	4000K 4500K 5000K 5700K
LED Chip	Samsung 2835 SMD
LED Driver	Meanwell
Color Rendering Index	Ra>80
Power Factor	>0.95
Lifespan	≥50,000hrs
Mounting height	25-35cm
Material	Aluminum Alloy
Dimmable	1-10V dimmable
Certificate	CE/RoHS/DLC
Warranty Period	7 years

Features:
1. Full polycarbonate lenscover
2. Aluminum housing and heat sink fins
3. Extremely light weight
4.1-10V dimmable
5. Enclosedwiring and driver compartment
6. Aircraft cable hangers provided
7. Indoor/outdoorrated(IP40)
8. 7 years warranty

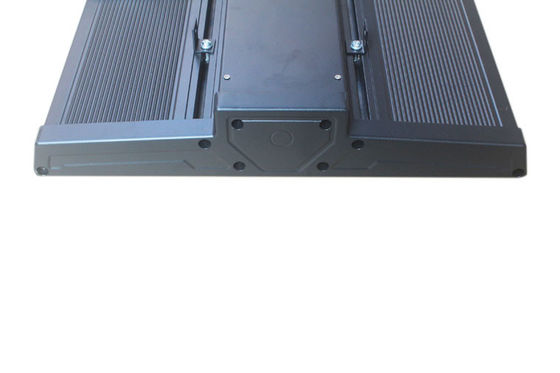

Radiator Processing:

100Watt LED linear high bay, 130LM/W, 100-277Vac input voltage,for industrial warehouse 2

Packaging Method:

Model NO	Pack Qty	Net Weight	Gross Weight	Volume Weight	CTN Size
MF-LH-100W	1PCS	7.2KG	8.5KG	10.5KG	661551cm
