ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming

China ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming supplier
ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming supplier ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming supplier ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming supplier ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming supplier

Large Image :  ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming

Product Details:

Place of Origin: China
Brand Name: MF
Certification: CE, RoHS
Model Number: MF-LH-200W

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: EX-WORK or FOB
Packaging Details: 93*15*51cm/1pcs, N.W: 9.9KG, G.W: 12.5Kg
Delivery Time: 7 days for samples, 15 days for mass production
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 5,000pcs/Month
Contact Now
Detailed Product Description
Dimension: 900x420x76mm Product Name: Linear High Bay Light
Warranty: 5+2 Years Lamp Luminous: >130lm/w
CRI: >80 IP Rating: IP40
Mounted: Surface/suspend Housing Color: Black/Grey

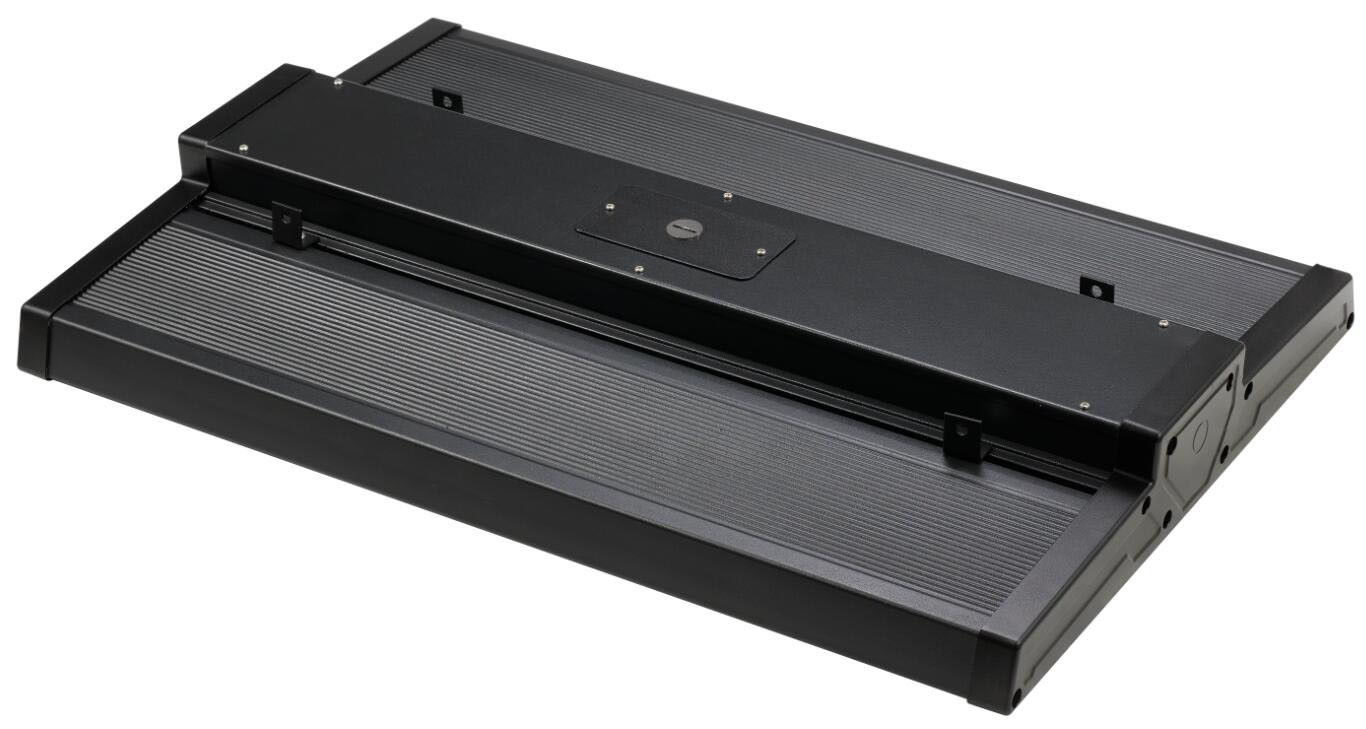

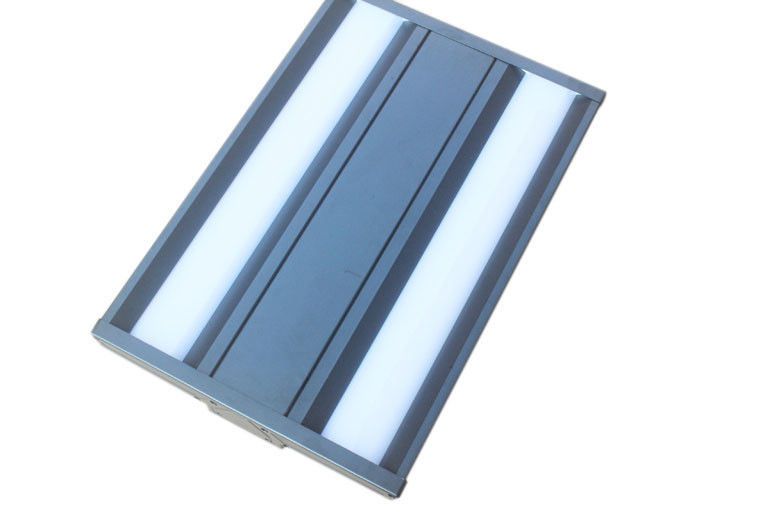

ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming

Description:

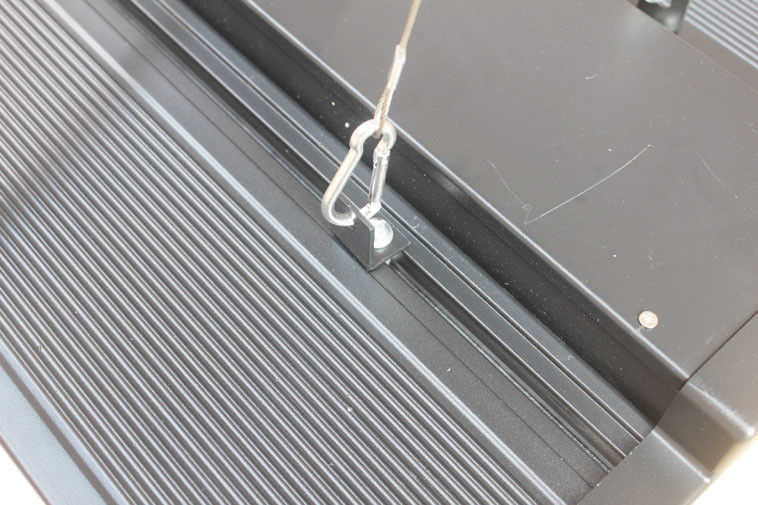

Ming Feng industrial linear high bay led fixtures are designed for 12 foot and higher ceiling applications in warehouses,gymnasiums, manufacturing, and other general task areas. With an enclosed power supply housing and covered optics, these units are designed for durability in difficult installation locations. This is an excellent option for converting conventional metal halide highbay fixtures, or fluorescent fixtures with LED. This product accepts 100-277Volt input and comes with aircraft cable hangers,AC200-480V optional.CCT 4000K 4500K 5000K 5700K available.


This LED linear high bayenergy effcient operation of 130lm/wdelivers significant light output at the lowest power use. Compact design with maximum heat dissipation allows for versatility in installation locations. Meanwell driver with samsung 2835 led chipsets provides quality and reliability. Dimmable driver for use with daylight harvesting/ motion ssensors/ Advanced lighting controls.


Application:



1. Warehouse/Factory/ Garage/ Workshop/Supermarket/Store Lighting
2. Outdoor Area lighting, high-mast/Tunnel/ Bridge lighting
3. Gas station lighting


Techincal data :



Model MF-LH-100W MF-LH-150W MF-LH-200W MF-LH-240W MF-LH-320W MF-LH-400W
Watt 100W 150W 200W 240W 320W 400W
Lumens 13000LM 19500LM 26000LM 31200LM 41600LM 52000LM
LED Chips Samsung / Epistar 2835smd Samsung / Epistar 2835smd Samsung / Epistar 2835smd Samsung / Epistar 2835smd Samsung / Epistar 2835smd Samsung / Epistar 2835smd
Efficacy (IES) 130LM
Input Voltage AC100-277V, 50-60Hz
Color Temperature 4000K , 4500K,  5000K,  5700K
CRI >80
Power Factor >0.95
Beam Angle 120°
Lumen Maintenance >50,000 hrs
Material Aluminum alloy
Dimension 600*420*76mm 600*420*76mm 900*420*76mm 1200*420*76mm 1200*420*76mm 1200*420*76mm
IP Grade IP40





Specificaiton download: MF Linear LED High Bay data sheet.pdf

Highlights:

1. This 200Watt LED linear high bayenergy effcient operation of 130lm/w delivers significant light output at the lowest power use.
2. Compact design with maximum heat dissipation allows for versatility in installation locations.

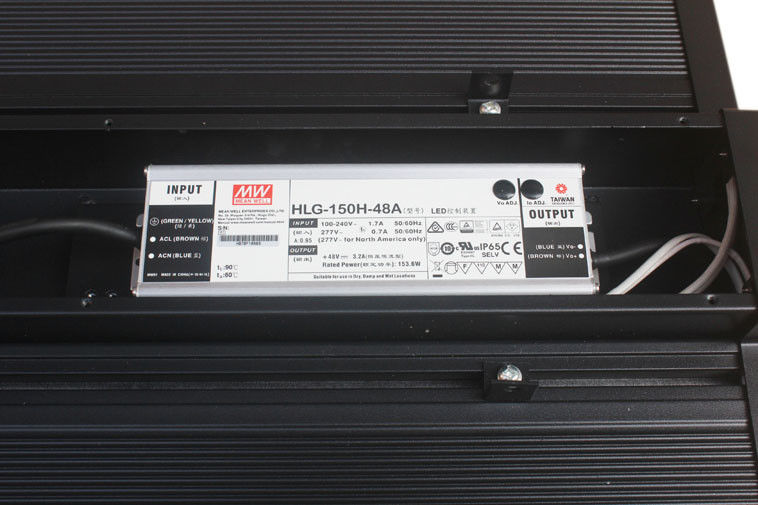

3. Meanwell driver with samsung 2835 led chipsets provides quality and reliability.
4. Dimmable driver for use with daylight harvesting/ motion ssensors/ Advanced lighting controls.

5. 7 years warranty.

6. lead time: 7 days for sample order, 15 days for bulk order.

ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming


Recommended installation height:

ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming



ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming  ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming



ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming  ETL DLC Listed 100W 150W 200W LED Linear High Bay Light, 1-10V dimming



Model NO Pack Qty Net Weight Gross Weight Volume Weight CTN Size
MF-LH-200W 1PCS 9.9KG 12.5KG 14.5KG 93*15*51cm
