LED Street Light Luminaires 3000lm 30Watt LED Courtyard Light Bridgelux Chips Cobra Cob

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 460*390*390mm/pcs, G.W:7.0Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-CS030W

Detail Information

High Light:

samsung led light

,

Outdoor LED light

Product Description

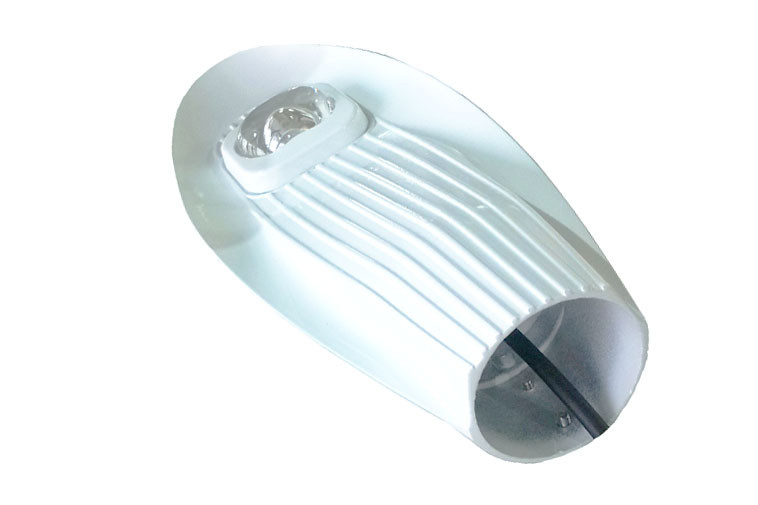

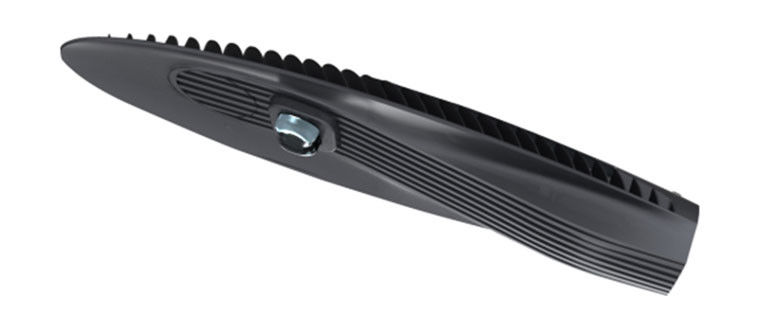

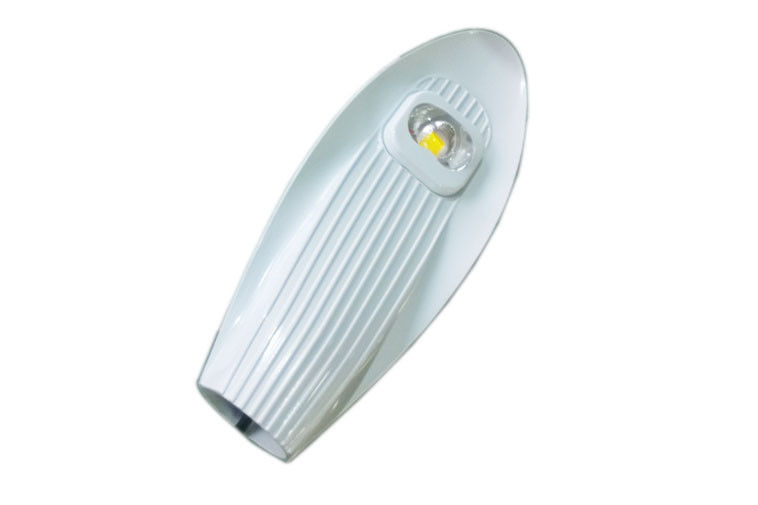

LED Street light luminaires 3000lm 30Watt Bridgelux Chips Cobra Cob LED Courtyard Light





Quick Detail:



  1. 30W Cobra COB LED courtyard light
  2. Input: AC 90V-264V, 50/60Hz
  3. Luminous Flux:≧3000 Lm
  4. CRI: 70
  5. Brand chip: Bridgelux
  6. LED Driver: Meanwell
  7. Adjustable: -15 to +15
  8. IP:65
  9. CE, RoHS certificated





Description:



Excellent manufacturers of LED street lights in china, Ming Feng Come out Cobra COB LED courtyard light series in 2014. These LED street lighting series combines all street LED lighting features together including economic, long lifespan and environment protection. Applied with the best LED from Bridgelux , the street light attains over 80 lm/w illumination efficiency. Accelerated by Professional Unique Optical Lens, Ming Feng LED street light distribute all the light onto road with maximum effect.



Cobra COB LED courtyard light embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.





Specifications:



Item

MF-CS030W

Input voltage

90-264Vac  50Hz/60Hz

LED Power

30W

Rated Power

35W

Delivered Flux(Tj80°c)

3000lm

IP Rating

IP65

Luminous Efficiency

86LM/W

Color temperature

3000K-6500K

LED Chip

Bridgelux

LED Driver

Meanwell

Color Rendering Index

Ra>70

Power Factor

>0.9

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

402(L)*149(W)*88(H)

Packing Size(mm)

460(L)*390(W)*390(H)/pcs

Net Weight

1.2Kg

Certificate

CE/RoHS

Warranty Period

5 years







Competitive Advantage:



1. Epistar or Bridgelux chip

2. The light source use 100M/W Bridgelux chip, the luminaire reach 85M/W

3. Beautiful appearance for the shell

4. High efficiency driver system from Meanwell

5. The product is suitable for use in the streets, walkways, park, garden light, etc

6. Warranty:5 years





Light Distribution Curve:





LED Street Light Luminaires 3000lm 30Watt LED Courtyard Light Bridgelux Chips Cobra Cob 0





Product Size:





LED Street Light Luminaires 3000lm 30Watt LED Courtyard Light Bridgelux Chips Cobra Cob 1





Installation



LED Street Light Luminaires 3000lm 30Watt LED Courtyard Light Bridgelux Chips Cobra Cob 2





Applications:



The product is suitable for use in the streets, walkways, park, garden light, etc.
