IP67 Anti-glare, waterproof mini led downlights, star light, CE, Rohs certificated

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 20*20*15.5cm/18pcs/inner box 1.44KG/inner box , 42*42*33cm/12 inner box/carton 17.3KG/carton Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-TF1W

Detail Information

Power: 1W Product Size: Ф33×H28mm Cutting Hole Size: 25mm
LED Chip: Epistar 5050 IP Gregee: IP67
CCT: WW/NW/CW/R/G/B Luminous Flux: 95Lumen
Input Voltage: DC12V Beam Angle: 180 °
CRI: 80 Ra Dimmable: NO
High Light:

cob led downlights

,

recessed led downlights

Product Description


IP67 Anti-glare, waterproof mini led downlights, star light, CE, Rohs certificated




Description:

As a professional LED lighting products manufacturer, MingFeng are specializing in providing energy saver led down lights. The IP67 Anti-glare, waterproof mini led downlights with 95LM Per wattage, using brightness Epistar LED,Input voltage DC12V. beside Warm white, pure white, cool white, the RED, GREEN, BLUE color available too.

This IP67 Anti-glare, waterproof mini led downlights body with high quality 6063 aluminum, lifetime more than 35000Hrs. Two kinds of wiring installation, one is 1pcs waterproof led downlight one driver, another is series IP67 Anti-glare, waterproof mini led downlights connected together with one driver . The IP67 Anti-glare, waterproof mini led downlightsWith color box package, nine pieces lamp each one package.

Easy to install, widely use Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc


Specifications:



Model No:

MF-TF1W

Input voltage

DC12V

Power(watt)

1W

Dimension

Ф33×H28mm  Cutting hole size: 25mm

Color temperature

WW(2700-3000K) ,NW(4000-4500K) ,CW(5500-6500K), R, G, B

LED Chip

Epistar

PF

>0.92

Luminous Flux (lm)

95lm

CRI(Ra)

≥80

Lifespan

≥35000hrs

Beam Angle

180°

Material

Aluminum Alloy

Operating Temperature

-200C ~450C

Dimmable

NO

IP

67

Dimension Package

20*20*15.5cm/18pcs/inner box

Carton Size 42*42*33cm/12 inner box/carton

Weight Package

17.3KG

Certificate

CE/RoHS

Warranty Period

3 years



Competitive Advantage:

  1. Use brightness EPISTAR 5050 LEDS, light sense of authentic, high color rendering, effective reduction was illuminated by color.
  2. Independent research and development, private-mode products, uncompromising attention to, light compact ultra-thin, flexible wide range of applications.
  3. Light color rich options, warm white, pure white, cool white, RED, GREEN, BLUE.
  4. Protection class can IP674, available for bathroom, washroom and outdoor application.
  5. Have two dimension for different cut out application. Two kinds of wiring installation, one is access to constant current power transformer in-line mode, another is access to constant voltage power transformer parallel connection
  6. Quality aluminum material and milky cover.
  7. Long lifespan over 35000 hours.

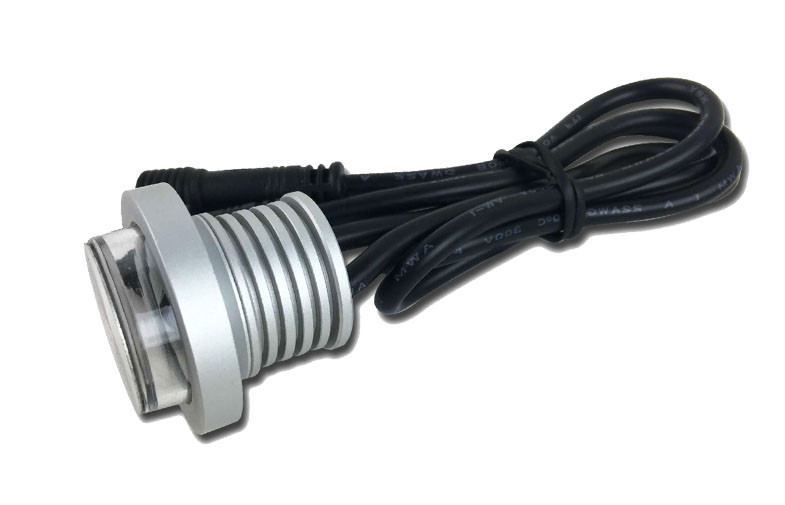

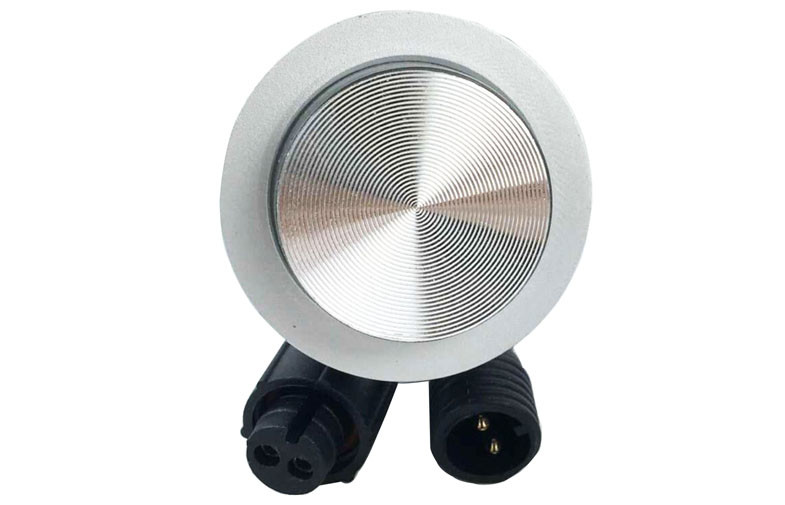

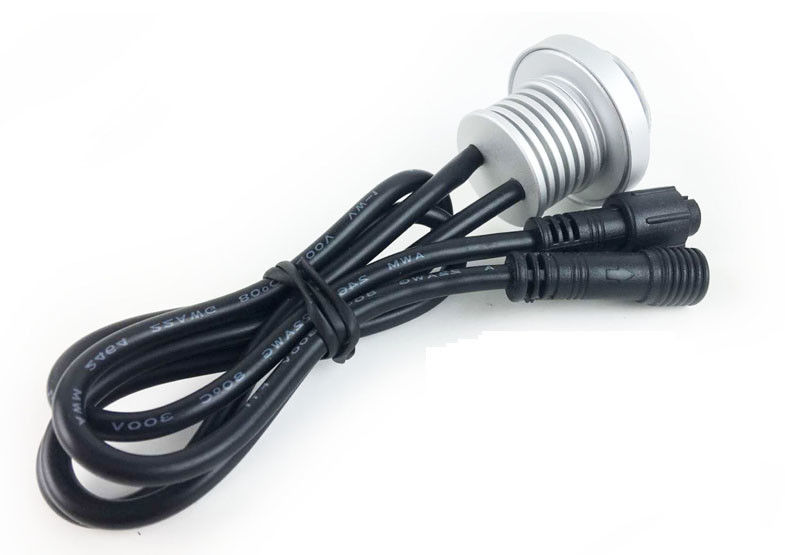

IP67 Anti-glare, waterproof mini led downlights, star light details:



IP67 Anti-glare, waterproof mini led downlights, star light, CE, Rohs certificated 0



IP67 Anti-glare, waterproof mini led downlights, star light, CE, Rohs certificated 1



IP67 Anti-glare, waterproof mini led downlights, star light, CE, Rohs certificated 2



IP67 Anti-glare, waterproof mini led downlights, star light, CE, Rohs certificated 3
