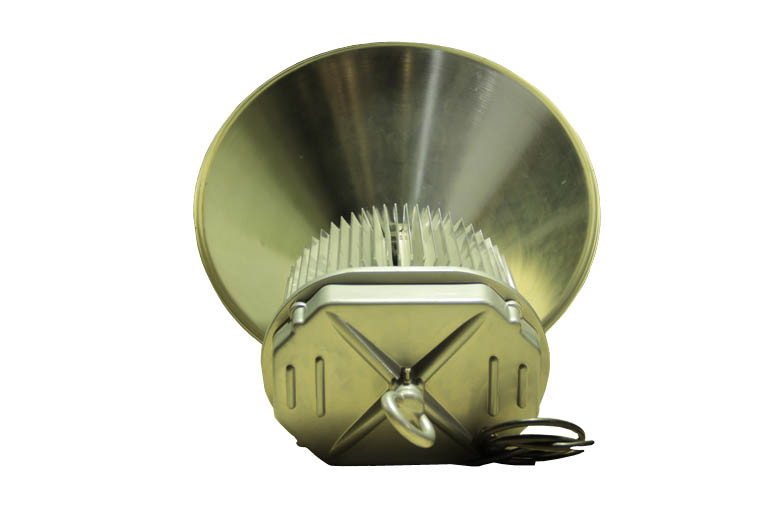

240W COB LED High Bay Lighting IP54 20000lm With PF 0.95 For Industry Lighting

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 36.5*33.5*41.5cm/1pcs, G.W: 17.5Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-HB240

Detail Information

Model No:: MF-HB240 Input Voltage:: AC 85 -265V
LED Power:: 240W LED Chip:: Epistar / Bridgelux
LED Driver:: Meanwell Luminous Flux(lm):: 20000lm
IP Rating:: IP54
High Light:

led industrial high bay lights

,

ufo high bay lights

Product Description



220W COB LED High Bay Lighting 20000lm With Power Factor 0.95 For Industry Lighting





Quick Detail:



  1. 240W LED High bay lighting
  2. Input: AC 85V-265V, 50/60Hz
  3. Luminous Flux:≧20000Lm
  4. Beam Angle:45°,90°,120°
  5. Brand chip: Bridgelux and Epistar
  6. LED Driver: Meanwell
  7. IP:54
  8. Power Factor:>0.9
  9. Reflector: AL/ PC

Energy Saving 240W COB LED High Bay Lighting 20000lm with CE ,RoHS Certificated





Description:



As one of excellent LED lights suppliers in led lighting industry, Ming Feng newly released high bay lighting series products, which are most completely serialized, low pitched, but powerful in leds lighting industry.



LED high bay lighting heat dissipation management system is triple effect of heat dissipation and enhancing luminaries performance to elongate lifespan. High vertical illumination, high uniformity of luminance, meet requirements of large space lighting. Plug-play structure is convenient for installation/maintenance. Multiple features of this model such as accurate light distribution, anti-glaring, uniform light color, etc.





Specifications:



Item

MF-HB220

Input voltage

85-265Vac  50Hz/60Hz

LED Power

220W

System Consumption

240W

Delivered Flux

20000lm

IP Rating

IP54

Beam Angle

45°,90°,120°

Color temperature

3000K-6500K

LED Chip

Bridgelux / Epistar

LED Driver

Meanwell

Color Rendering Index

Ra>70

Power Factor

>0.9

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Lens

Glass or PC

Net Weight

15Kg

Certificate

CE/RoHS

Warranty Period

3 years







Competitive Advantage:



1. The heat sinker is using high quality 250*160 mm diameter sun flower pure aluminum, anodic oxidation for the surface heat sinker

2. The anodic oxidation spinning reflector can be separated from the main body part, easy to transport

3. High light transmittance PC cover used upon the LED

4. Using Epistar or Bridgelux COB LED, make the light even

5. 45°,90°and 120°,three beam angles can be optional





Light Distribution Curve:

240W COB LED High Bay Lighting IP54 20000lm With PF 0.95 For Industry Lighting 0240W COB LED High Bay Lighting IP54 20000lm With PF 0.95 For Industry Lighting 1



240W COB LED High Bay Lighting IP54 20000lm With PF 0.95 For Industry Lighting 2







Dimension:



240W COB LED High Bay Lighting IP54 20000lm With PF 0.95 For Industry Lighting 3





Applications:



Factory, warehouse, exhibition hall, airport, shopping mall, train station, lobby etc.
