IP44 High Power COB Led Downlights Cut out 175mm With Tridonic Driver

China IP44 High Power COB Led Downlights Cut out 175mm With Tridonic Driver supplier

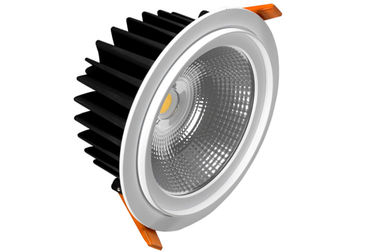

Large Image :  IP44 High Power COB Led Downlights Cut out 175mm With Tridonic Driver

Product Details:

Place of Origin: China
Brand Name: MF
Certification: CE, RoHS
Model Number: MF-175D027

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 75*50*24cm/10pcs, G.W: 16.6KG
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 10,000pcs/Month
Detailed Product Description
Power: 27W Luminous Flux: 1150lm
Beam Angle: 45 Deg. Lamp Luminous Efficiency(lm/w):: 100LM/W
CRI: >83 Warranty: 3 Or 5 Years Optional
LED Brand: CITIZEN PF: >0.92





IP44 High Power COB Led Downlights Cut out 175mm With Tridonic Driver



Quick Detail:



  1. 27W at 2150lm COB LED Down light
  2. Input: AC 200V-240V, 50/60Hz
  3. Luminous Flux:≧2150Lm
  4. CRI: >83
  5. Beam Angle: 450
  6. Lifespan: ≧40000Hrs
  7. Protection Against Shock: IK01
  8. IP: 44
  9. Dimmable: Yes



Description:

MingFeng, as a prominent China LED down light manufacotry, devotes himself to providing high quality COB LED downlights for the replacement of traditional down lights in residential, museum, office and commercial applications.
MingFeng D Series COB led downlights is the most comprehensive architectural LED downlights in the market to replace CFL downlight, Cut out are 105mm, 145mm, 175mm, power are 13W/19W/27W,
Luminous Flux efficiency up to 100lm/w,Also CRI>90 is available, the whole series provide a collection of intelligent led lighting solutions,

 A reliable heat management and different optical systems based on the size of the lamps help exploit at the best characteristics of every luminaires, D series COB LED DOWN LIGHT maximize efficacy with minimum maintenance,making surroundings more dynamic. Advanced optic design precisely control the beam angle to achieve an ideal lighting effect. Anti-glare strcuture brings pleasant and comfortable visual experience.


Specifications:


Model No

MF-175D027

Input voltage

200-240Vac/220Vac, 50hz/60hz

Power(watt)

27W

Dimension

Product Size: Dia195*88mm  Cutting hole size: 175mm

Color temperature

3000K /4000K

LED Chip

CITIZEN

PF

>0.92

Housing Color

Matt White(RAL9003)

Luminous Flux (lm)

2150LM

CRI(Ra)

≥83

Lifespan

≥40000hrs

Beam Angle

450

Material

Die-casting Aluminum

Operating Temperature

-200C ~400C

Dimmable

Y

IP

44

Protection Against Shock

IK01

Dimension Single Package

230x145x200mm,

Weight Single Package

1.56KG

Certificate

CE/RoHS

Warranty Period

3 /5 years




Competitive Advantage:



  1. Die-casting aluminum heatsink, advanced cooling system.
  2. High output CITIZENCOB LED Chips.
  3. Super high efficiency, up to 2150lm at 27W.
  4. 45 degree flood beam angle, soft light effect.
  5. Excellent reflector, complete visual comfort.
  6. IP44 design suitable for damp environment.
  7. Both CRI>80 and CRI>90 for option.
  8. Kn<10 driver, reliable performance.
  9. Smooth dimming on most dimmers.
  10. Life to 70% lumen maintenance, 45,000 hours.
  11. High power factor>0.92.
  12. 3 or 5 years guarantee.

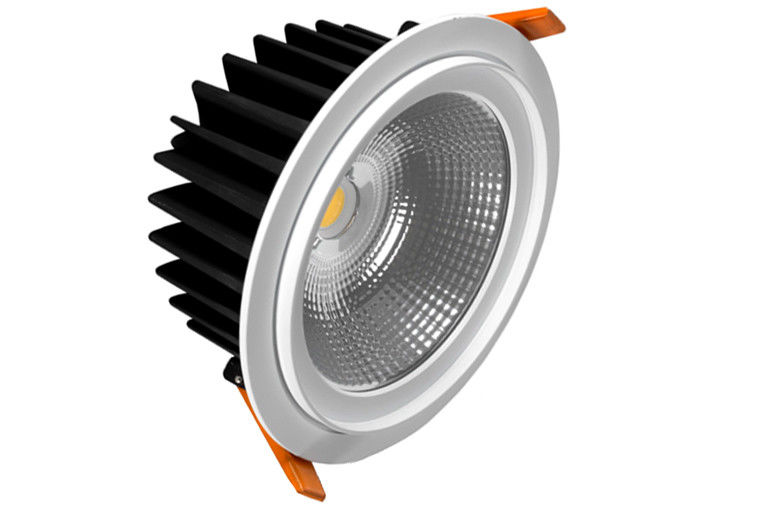

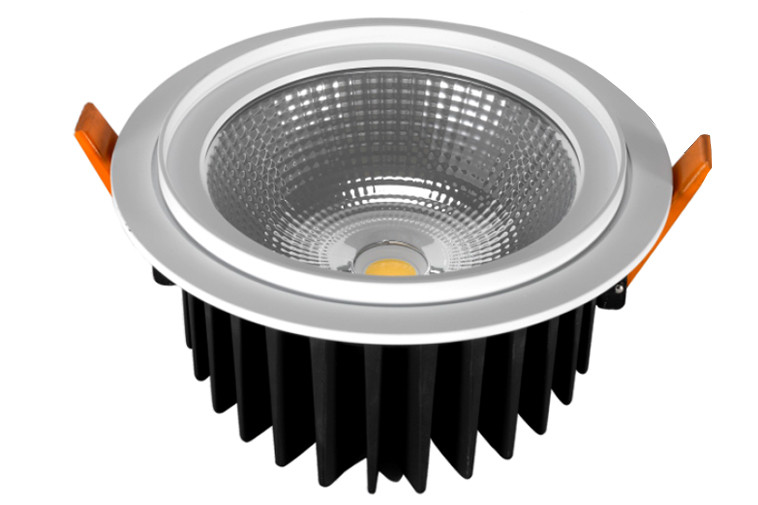

 27Wattage at 2150 Lumen COB LED DOWN LIGHT SHOW:



IP44 High Power COB Led Downlights Cut out 175mm With Tridonic Driver



Dimension:



IP44 High Power COB Led Downlights Cut out 175mm With Tridonic Driver






Light distribution curve Of 27Wattage COB LED DOWNLIGHTS:



IP44 High Power COB Led Downlights Cut out 175mm With Tridonic Driver




Applications:

Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc.
