Waterproof Led Shoebox Light 160 W 20800 Lumen Meanwell Led Driver

Minimum Order Quantity : 50pcs Price : Negotiable
Packaging Details : 828*395*115mm/pcs, Net Weight: 9.5Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C,Paypal Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE,RoHS,TUV,FCC, DLC Model Number: MF-P160

Detail Information

Item No:: MF-P160 Power:: 160W
Input Voltage:: AC85-305V LED Chip:: Cree / SAMSUNG
LED Driver:: Meanwell Luminous Flux(lm):: 208000lm
CRI:: 80+ IP Grade:: IP67
Warranty: 5 Years Certifcated: CE,RoHS,TUV,FCC, DLC, ETL
High Light:

Car parking lot lights

,

parking lot led lights

Product Description

Waterproof Led Shoebox Light 160 W 15200 Lumen Meanwell Led Driver




Description:

LED Parking Lot Lighting is the latest released product for Parking lot lighting from Ming Feng in 2014. This light is allocated with top grade LED from Cree and driver from Meanwell, which guarentees a working lifetime over 50,000h hours and a warranty of 5 years. Ming Feng LED Parking Lot Lighting could be adjustable bracket for installtion, With Module lens design make the lamp with well suited lighting distribution, the hollow out heat sink design make the lamp weight lighter and have good heat dissipation, 5 kinds of installation brackets. this LED light could be easily installed and operated and suits different demands for various car park.

With the elegant and fashion design, hight illumination performance, various lighting distribution, it is one of our star product and the first choice to our professional clinets in the project application.


Specifications: MF-P160 Parking Light Data Sheet.pdf



Item

MF-P160

Input voltage

85-305Vac  50Hz/60Hz

LED Power

160W

Rated Power

168W

Delivered Flux(Tj80°c)

20800lm

IP Rating

IP67

Luminous Efficiency

110LM/W

Color temperature

3000K / 4000K / 5000K

LED Chip

Cree/SAMSUNG

LED Driver

Meanwell

Color Rendering Index

>80

Power Factor

>0.98

Lifespan

≥100,000hrs

Operation Environment

Temperature:-40°C~50°C / Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

670(L)*432(W)*176(H)

Packing Size(mm)

828(L)*395(W)*115(H)/pcs

Net Weight

9.5Kg

Certificate

CE,RoHS,TUV,FCC, DLC

Warranty Period

5 years



Competitive Advantage:


1. Light Source: We are use 150LM/W SAMSUNG 351B Chip / CREE XTE Chip options, efficiency acheives 130LM/W.
2. Driver:Taiwan Meanwell LED Driver, Wide AC90-305V, PF>0.98,low THD<9%.
3. Waterproof Grade: IP65.

4. Beam Angle: 90°, 120°, 90*120°, 85*135°

5. Functions: Dimmable, Photocell available.

6. Warranty: Five years

7. Material: Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.

8. Body color : Grey/ Black/Silver




Light Distribution Curve:

Waterproof Led Shoebox Light 160 W 20800 Lumen Meanwell Led Driver 0


Dimension:

Waterproof Led Shoebox Light 160 W 20800 Lumen Meanwell Led Driver 1


Instruction of installation:

Waterproof Led Shoebox Light 160 W 20800 Lumen Meanwell Led Driver 2

Waterproof Led Shoebox Light 160 W 20800 Lumen Meanwell Led Driver 3

Waterproof Led Shoebox Light 160 W 20800 Lumen Meanwell Led Driver 4

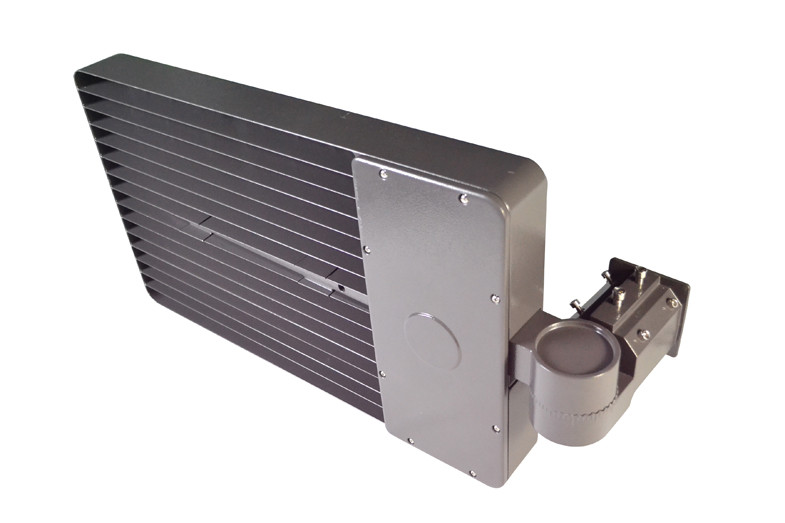

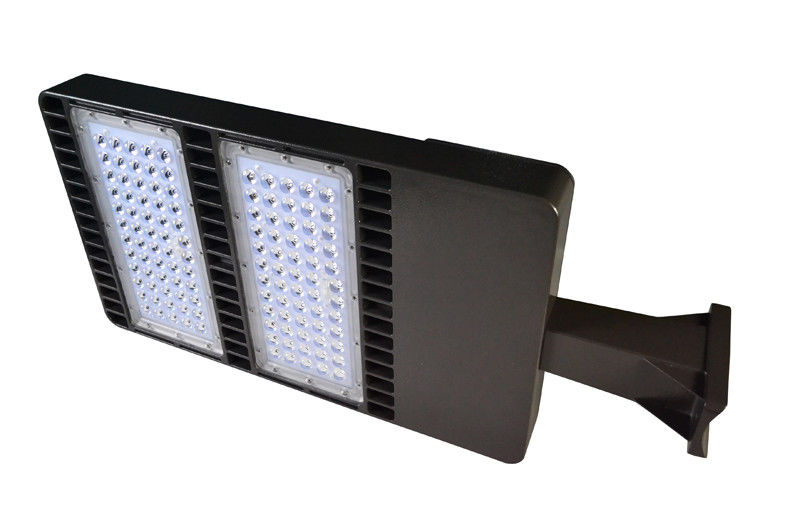

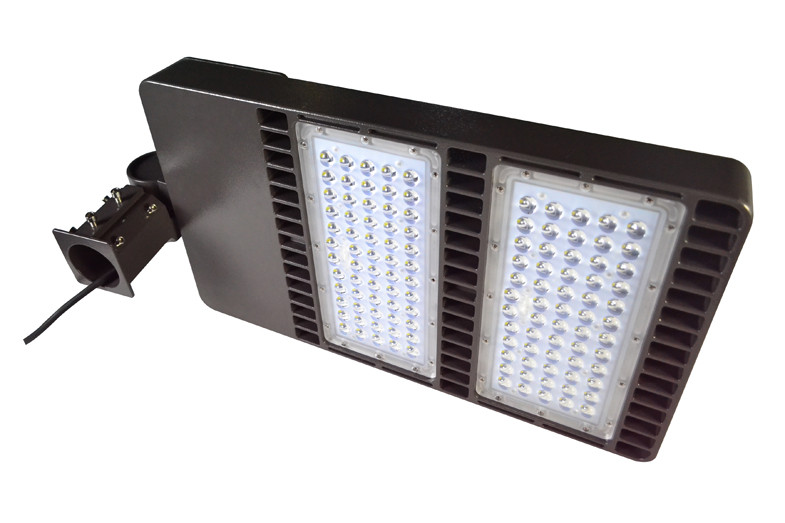

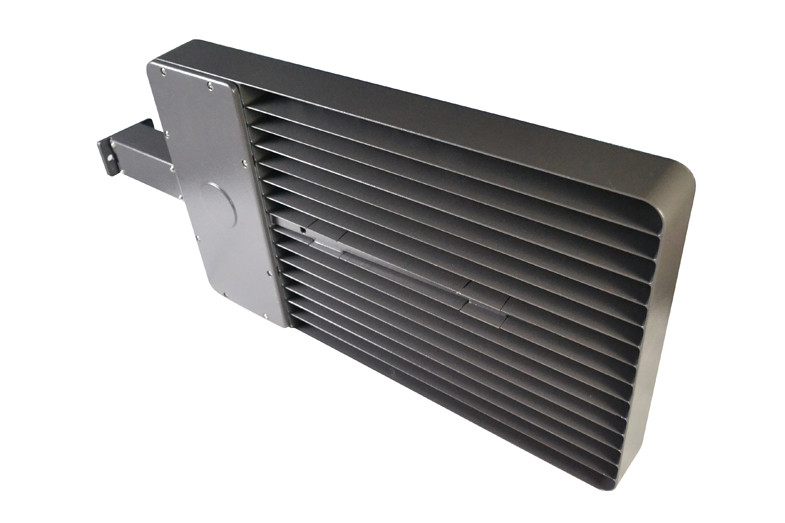

Product shows:

Waterproof Led Shoebox Light 160 W 20800 Lumen Meanwell Led Driver 5

Waterproof Led Shoebox Light 160 W 20800 Lumen Meanwell Led Driver 6
 Waterproof Led Shoebox Light 160 W 20800 Lumen Meanwell Led Driver 7

Application:

Parking Lot lighting, wall lighting area, street lighting...etc.

Waterproof Led Shoebox Light 160 W 20800 Lumen Meanwell Led Driver 8
