6 Inch Die Casting RA83 COB Led Down Light 22w CE ROHS Certificated

China 6 Inch Die Casting RA83 COB Led Down Light 22w CE ROHS Certificated supplier

Large Image :  6 Inch Die Casting RA83 COB Led Down Light 22w CE ROHS Certificated

Product Details:

Place of Origin: China
Brand Name: MF
Certification: CE, RoHS
Model Number: MF-604E022

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 51*49.5*38.5cm/12pcs, G.W: 17.9KG
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 10,000pcs/Month
Detailed Product Description
Power: 22W Luminous Flux: 1750lm
Beam Angle: 60 Deg. IP Grade: IP20
CRI: >83 Warranty: 3 Years Optional
LED Brand: COB CREE PF: >0.92
Color: RAL9003 CCT: 3000K /4000K /5000K/ 6500K



6 Inch Die Casting RA83 COB Led Down Light 22w CE ROHS Certificated

Description:

MingFeng, as a prominent China LED down light manufacotry, devotes himself to providing high quality COB LED downlights for the replacement of traditional down lights in residential, museum, office and commercial applications.
MingFeng COB led downlights is the most comprehensive architectural LED downlights in the market to replace CFL downlight, Cut out are 93mm, 125mm, 165mm, 195mm power are 9W / 15W / 22W /
30W

Luminous Flux efficiency up to 85lm/w, Also CRI>80 is available, the whole series provide collection

of intelligent led lighting solutions,

 A reliable heat management and different optical systems based on the size of the lamps help exploit at the best characteristics of every luminaires, COB LED DOWN LIGHT maximize efficacy with minimum maintenance,making surroundings more dynamic. Advanced optic design precisely control the beam angle to achieve an ideal lighting effect. Anti-glare strcuture brings pleasant and comfortable visual experience.


Specifications:


Model No

MF-604E022

Input voltage

200-240Vac/220Vac, 50hz/60hz

Power(watt)

22W

Dimension

Product Size: Dia190*59mm  Cutting hole size: 165mm

Color temperature

3000K/4000K/5000K/6500K

LED Chip

CREE

PF

>0.92

Housing Color

Matt White(RAL9003)

Luminous Flux (lm)

1750LM

CRI(Ra)

≥83

Lifespan

≥40000hrs

Beam Angle

60°

Material

Die-casting Aluminum

Operating Temperature

-200C ~400C

Dimmable

N

IP

20

Protection Against Shock

IK01

Dimension Single Package

240x230x116mm

Weight Single Package

1.6KG

Certificate

CE/RoHS

Warranty Period

3  years




Competitive Advantage:



  1. Die-casting aluminum heatsink, advanced cooling system.
  2. High output CREE COB LED Chips.
  3. 60 degree flood beam angle, soft light effect.
  4. Excellent reflector, complete visual comfort.
  5. IP20 design suitable for damp environment.
  6. CRI>80.
  7. Kn<10 driver, reliable performance.
  8. Smooth dimming on most dimmers.
  9. Life to 70% lumen maintenance, 45,000 hours.
  10. High power factor>0.92.
  11. 3  years guarantee.

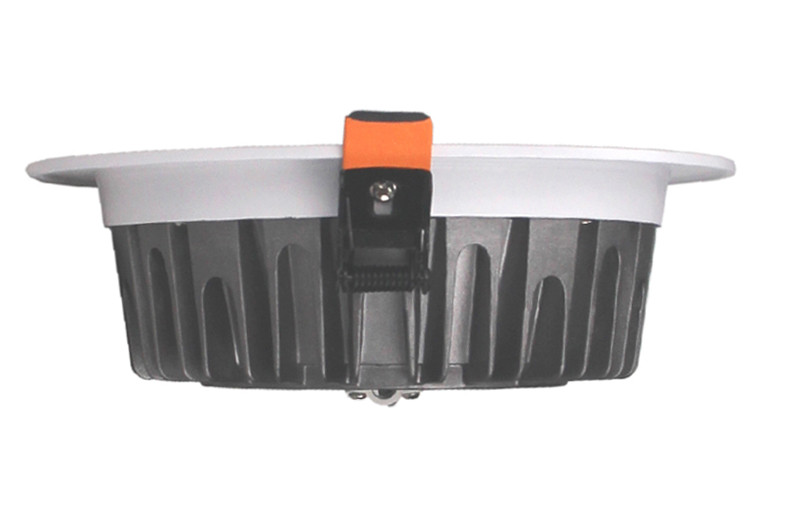

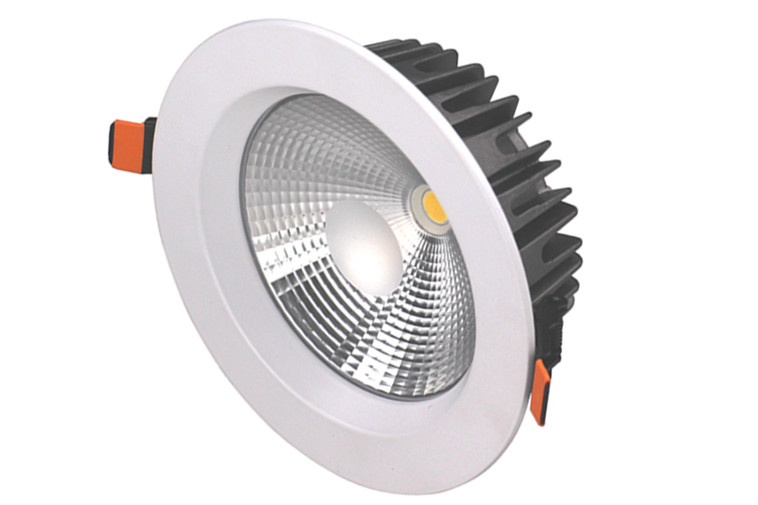

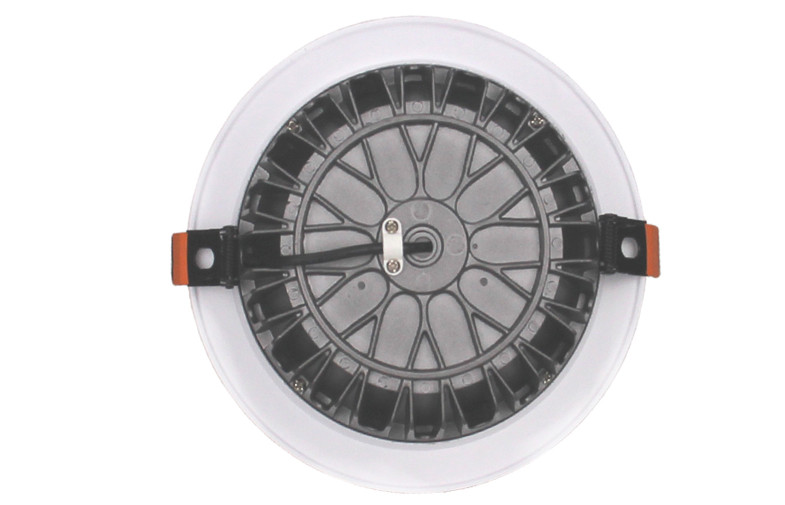

 COB LED DOWN LIGHT SHOW:



6 Inch Die Casting RA83 COB Led Down Light 22w CE ROHS Certificated



Dimension:



6 Inch Die Casting RA83 COB Led Down Light 22w CE ROHS Certificated




Packing:



6 Inch Die Casting RA83 COB Led Down Light 22w CE ROHS Certificated

Applications:


Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc.
