200W LED Flood Light For Tennis Court Ra80 / Ra90 IP67 and Dimmable

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 610*510*310mm/2pcs, G.W: 27.0kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 1,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS, FCC, CB,DLC, TUV,SAA,ETL Model Number: MF-FL-200W

Detail Information

Power: 200Watt Input: 90-305Vac, 50/60Hz
Chip Brand: CREE LED Driver: Meanwell
Beam Angle: 10°, 24°, 38°, 60°, 90° , 120° CRI: 80+/ 90+
IP Grade: IP67 House Color: Sliver / Black/Grey
Efficiency: 130-150lm/Watt CCT: 3000K / 4000K / 5000K / 6500K
Dimmable: 0-10V, DALI, DMX512 Lifespan: 100,000Hrs
High Light:

led high mast lights

,

led sport lights

Product Description

IP67 200W LED Flood Light for tennis court Ra 80 & Ra 90 available 0-10V, DALI dimmable


Description:

Ming Feng lighting co.,ltd has strong R&D and lighting design capabilities. Free DIALUX simulations for all kinds of projects. Our IP67 High power led flood light use USA CREE LED, Customized higher efficiency 130-165lm/w are available.Biggest cooling area. Japan calculusoptical lens improve theutilization of led fllood light chips effictively. Unit-design approach improve the luminous area of led floodlight greatly.

Four-dimensional cooling structure,best heat dissipation in the market.  Design lifespan 100,000hrs, No flickering for slow-motion image. Applicable to HDTV live broadcasting Real anti-corrosion.



Ming Feng Dimmable led stadium light perfectly support DALI. The DALI decoder and power supply are built-in. Making the installation quicker and easier. Also can reduce the costs effectiverly. Then brightness can be controlled by switch, remote controller and computer.it's very easy, convenient and energy-saving.






Specifications: MF-FL-200W Spec.pdf



Item

MF-FL-200W

Input voltage

90-305Vac  50Hz/60Hz

LED Power

200W

System Consumption

200±10W

Delivered Flux

27300-31500lm

IP Rating

IP67

Beam Angle

10°, 24°, 38°, 60°, 90° , 120°

Color temperature

3000K / 4000K / 5000K / 6500K

LED Chip

CREE

LED Driver

Meanwell

Color Rendering Index

Ra>80, Ra>90

Power Factor

0.95

Color of Housing Silver / Gery / Black

Lifespan

100,000hrs

Operation Environment

Temperature:-40°C~65°C/Humidity:10%~90%

Storge Temperature -40°C~50°C(Best 25°C)

Material

Anti-corrosion Die Cast Aluminum

Product Size(mm)

520*350*104mm

Net Weight

10.0Kg

Certificate

CE/RoHS/TUV/GS/SAA/FCC/DLC/ETL

Warranty Period

5 years


 IP67 LED Flood Light for tennis court Ra 80 & Ra 90 available, lifespan 100,000H



Competitive Advantage:


1.200W led floodlight with customized USA CREE LED,130-150LM/W,CRI Ra80&90 available, Juction temperature<70°C;

2. SONY 4D active heat dissipation technology. Unitized module design. biggest colling area.

3. Constant current and constant voltage design, much more reliable than other LED floodlights.

4. Japan Calculus optical lens, light transmittance of PMMA up to 98%.

5.Working life up to 100,000 hours;

6.Certifications: CE/RoHS/TUV/GS/SAA/FCC/DLC/ETL 80w led floodlight;

7.The IP67 80w high power led floodlight rating is applicable to outdoor environment. Led construction sites lighting,led golf course lighting, led sport field light.

8. Intelligent dimming system, 0-10V, 1-10V, Dali, DMX512 dimming models are available

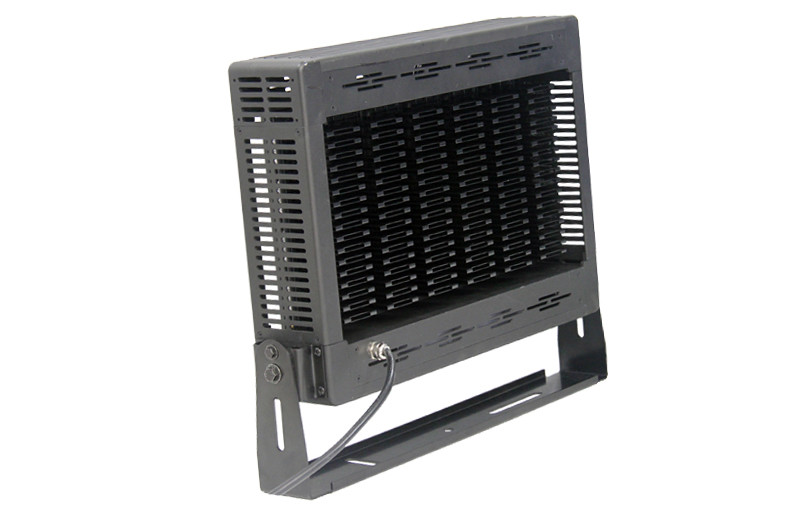

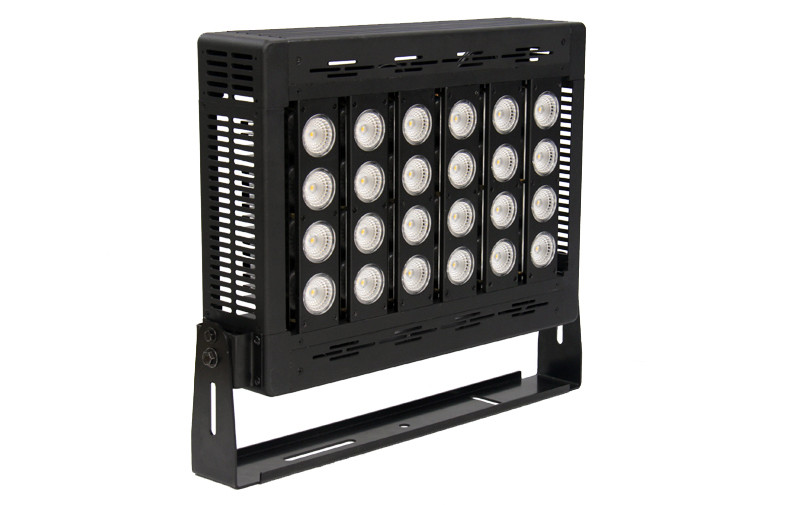

200W LED Flood Light For Tennis Court Ra80 / Ra90 IP67 and Dimmable 0

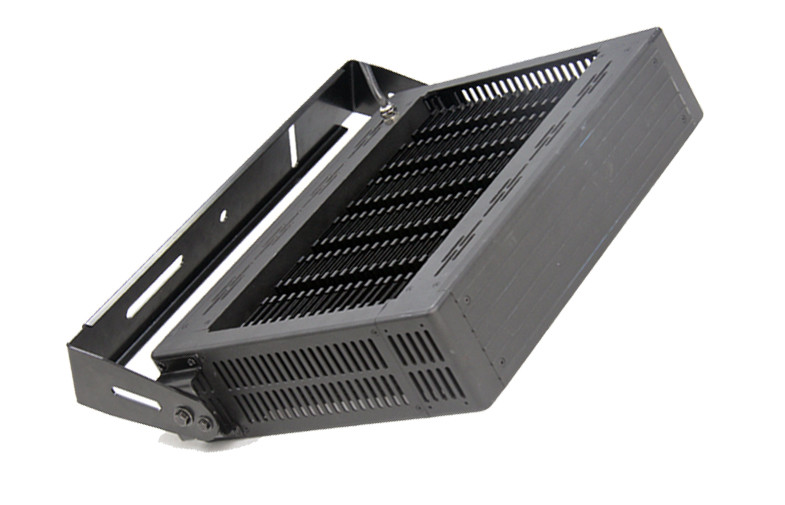

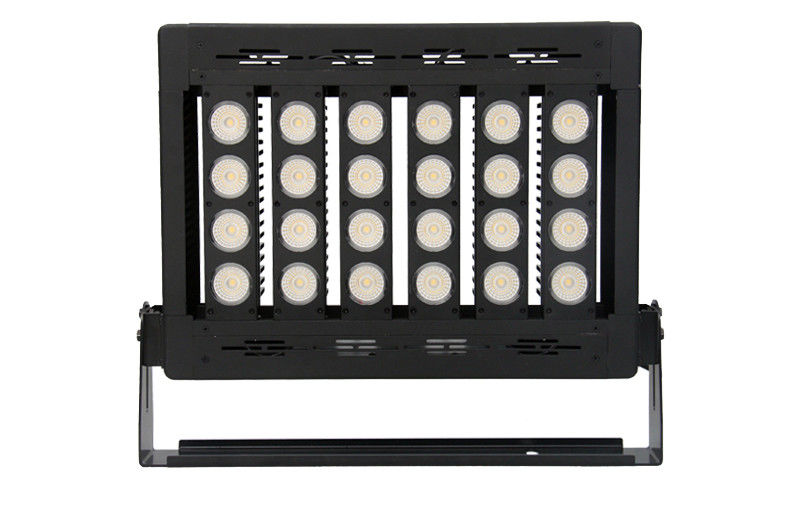

200W LED Flood Light For Tennis Court Ra80 / Ra90 IP67 and Dimmable 1
