Waterpoof IP65 Recessed LED Down lights 8 INCH Cut Out 208mm 40W Warm white

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 57*51*29.5cm/8pcs, G.W: 15.8KG Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal, L/C Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-E800208

Detail Information

Power: 40W Color: White RAL9003
Luminous Flux: 4200lm IP: 65
Beam Angle: 40 Deg. CCT: 3000K / 4000K / 6000K
Input: 220-240Vac, 50/60Hz LED Brand: COB CREE
LED Driver: IP67 MEAN WELL LED Driver Certificated: CE, RoHS
High Light:

recessed led light

,

led down light

Product Description

Waterpoof IP65 Recessed LED Down lights 8 INCH Cut Out 208mm 40W Warm white



Description:


MingFeng, as a prominent China LED down light manufacotry, devotes himself to providing high quality IP65 Waterproof COB LED down lights for the replacement of traditional down lights in residential, museum, office and commercial applications.


MingFeng IP65 waterproof COB led down lights use USA COB CREE LEDS, IP67 MEANWELL DRIVER, whole lamp waterproof protection up to IP67, power are 12W/16W/22W/30W/40W/50W from 3inch to 8inch,Luminous Flux efficiency up to 90lm/w,Also CRI>80 is available.


The IP65 COB LED DOWN LIGHTS maximize efficacy with minimum maintenance,making surroundings more dynamic. Advanced optic design precisely control the beam angle to achieve an ideal lighting effect. Anti-glare strcuture brings pleasant and comfortable visual experience.



Our this IP65 waterproof COB LED DOWNLIGHTS widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and some outdoor place.




Specifications: MF-E800208 Spec -40 & 50W.pdf



Model No

MF-E800208

Input voltage

200-240Vac, 50hz/60hz

Power(watt)

40W

Dimension

Product Size: Dia230*102mm  Cutting hole size: 208mm

Color temperature

3000K /4000K/5000K/6000K

LED Chip

COB CREE

LED Driver  IP67 MEANWELL

PF

>0.92

Housing Color

Matt White(RAL9003)

Luminous Flux (lm)

4000LM

CRI(Ra)

≥80

Lifespan

≥40000hrs

Beam Angle

400

Material

Die-casting Aluminum

Operating Temperature

-200C ~400C

Dimmable

Y

IP

IP65

Protection Against Shock

IK01

Dimension Single Package

270x240x130mm,

Weight Single Package

1.83KG

Certificate

CE/RoHS

Warranty Period

3 /5 years




Competitive Advantage:

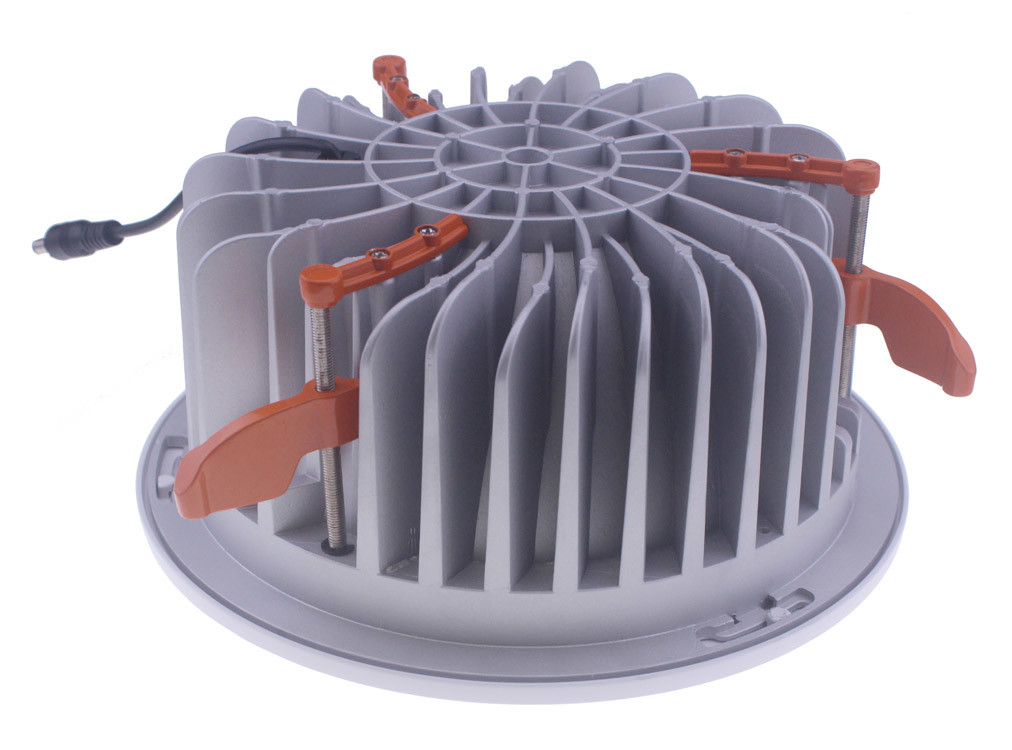

  1. Die-casting aluminum heatsink, advanced cooling system.
  2. High output CREE COB LED Chips.
  3. Stable performance IP67 waterproof driver.
  4. 40 degree flood beam angle, soft light effect.
  5. Excellent reflector, complete visual comfort.
  6. IP65 design suitable for outdoor application.
  7. Both CRI>80 and CRI>90 for option.
  8. Kn<10 driver, waterproof meanwell led driver, reliable performance.
  9. Smooth dimming on most dimmers.
  10. Life to 70% lumen maintenance, 45,000 hours.
  11. High power factor>0.92.
  12. 3 or 5 years guarantee options.





 Applications:

Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc.






Waterpoof IP65 Waterpoof  Recessed LED Down lights ​ SHOW:

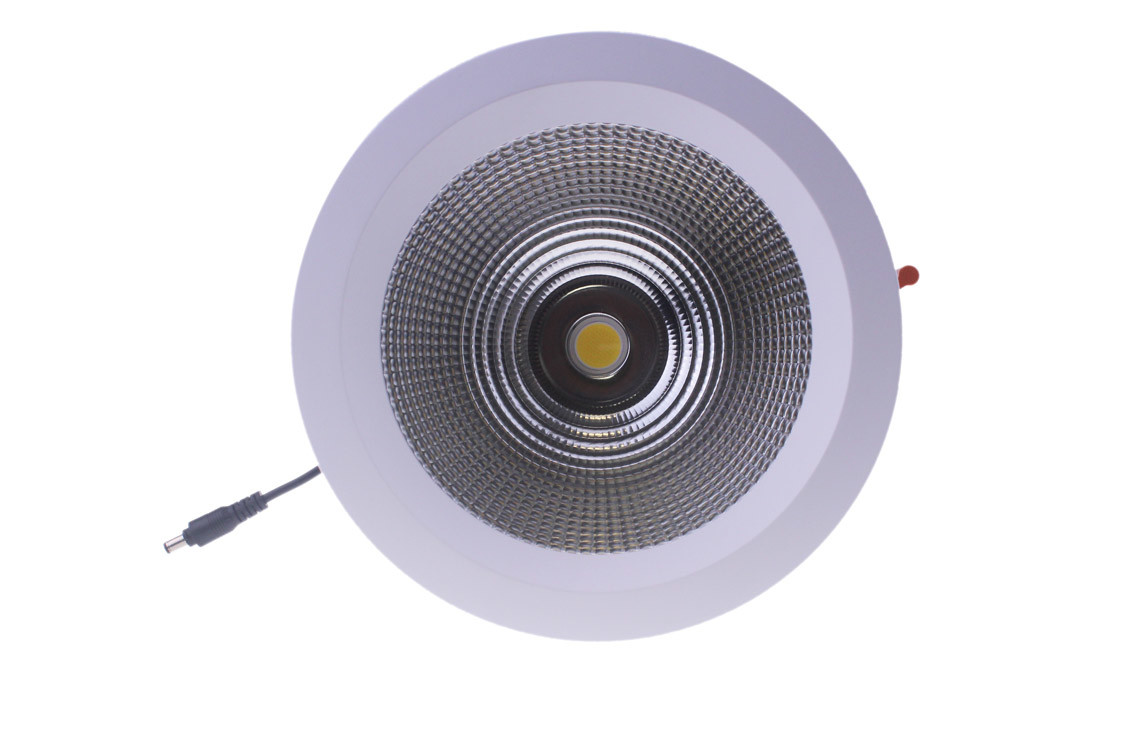

Waterpoof IP65 Recessed LED Down lights 8 INCH Cut Out 208mm 40W Warm white 0

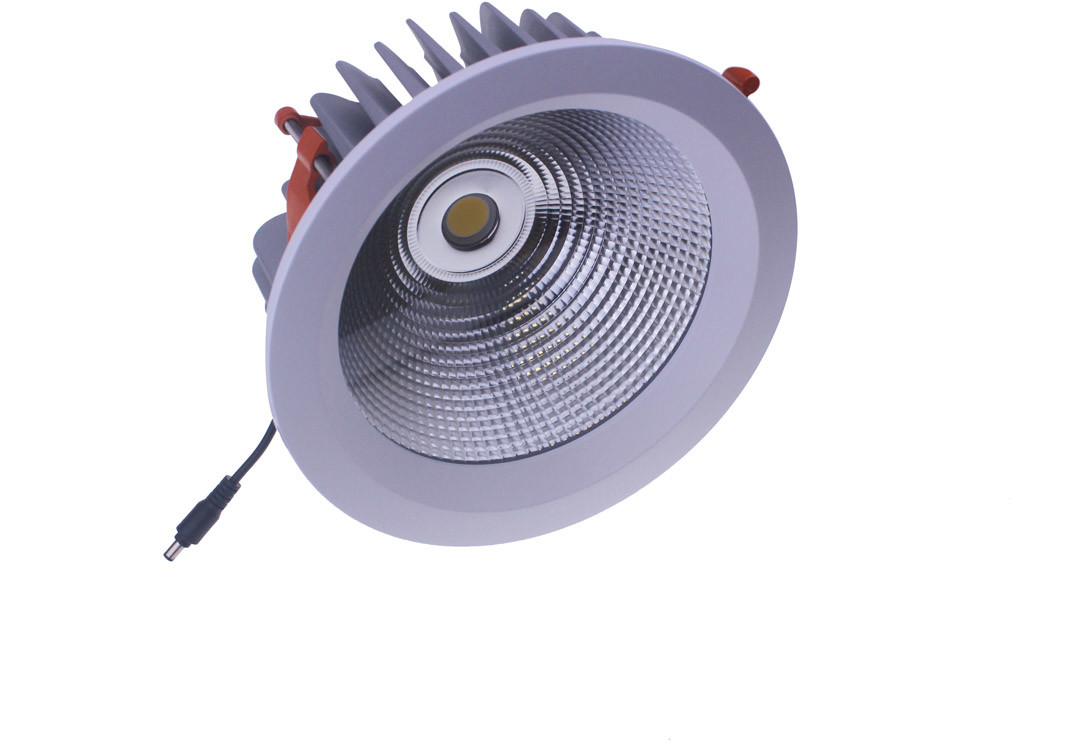

Waterpoof IP65 Recessed LED Down lights 8 INCH Cut Out 208mm 40W Warm white 1



Waterpoof IP65 Waterpoof IP65 Recessed LED Down lights connection drawing

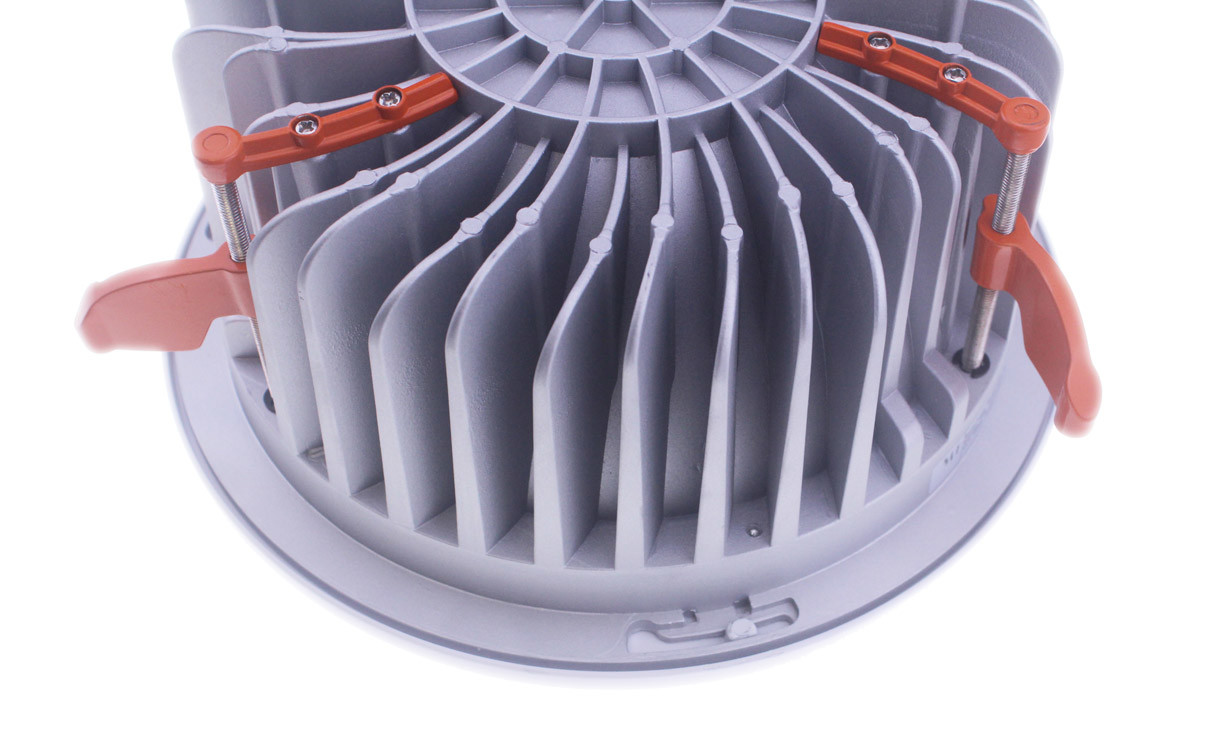

 Waterpoof IP65 Recessed LED Down lights 8 INCH Cut Out 208mm 40W Warm white 2
