IP65 Waterproof LED High Bay Lighting 200 W 0-10V , PWM Dimming UFO LED Industrical Lighting

China IP65 Waterproof LED High Bay Lighting 200 W 0-10V , PWM Dimming UFO LED Industrical Lighting supplier

Large Image :  IP65 Waterproof LED High Bay Lighting 200 W 0-10V , PWM Dimming UFO LED Industrical Lighting

Product Details:

Place of Origin: China
Brand Name: MF
Certification: CE,RoHS
Model Number: MF-UFO-200W-5A

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: 45*45*22cm/1pcs, N.W: 6.8KG, G.W: 8.9KG
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5,000pcs/Month
Detailed Product Description
Lamp Power: 200W Lamp Luminous Efficiency: ‰26000LM
Lamp Body Material: 6063 Die-casting Aluminum Alloy CRI: >80Ra
Warranty: 5 Years Input Voltage: 85-265Vac, 50/60Hz
IP Rating: IP65 Beam Angle: 60°/90°/ 120°
CCT: 3000K/ 4000K / 5000K PF: > 0.97
THD: <20% Replacement: 200W Replace 500W HID/HPS


IP65 waterproof LED High bay, 200 W 0-10V,PWM dimming UFO industrical lighting

Description:

Ming Feng Lighting Co., Ltd developed  UFO IP65 LED  LED high bay light,

Using 130-140LM/W Samsung3030 leds, the whole lamp luminous efficiency can reach 110lm/w. Using Meanwell LED driver, With 5 years guarantee.Protection Grade: IP65The led driver is installed away from the heat sink. This separation of the led driver creates a lower heat working environment giving the lamp longer life span. Beam angle : 60°/90°/ 120° Lens optional. Installation: Suspended / Ceiling Mounted / Wall Mounted.6060 Die-casting aluminum alloy materials radiator, with air duct design principle of both inside and outside ventilation, and better heat dissipation performancde. Varities of Joint, include ring, sling chain, U shapre bracket installation type. Unique design for Meanwell driver, to keep low temperature when operating.


Widely used in industrial and commercial lighting like factory workshop, warehouse, logistic center, exhibition hall, stadium, toll station, gas station, supermarket asnd farmers' market.


Specifications:

Item

MF-UFO-200W-5A

Input voltage

85-265Vac  50Hz/60Hz

LED Power

200W

Luminaire Efficiency

130lm/W

Delivered Flux(Tj80°c)

26000lm

IP Rating

IP65

Color temperature

3000K/4000K/5000K

LED Chip

PHILILPS 3030

LED Driver

Meanwell

Color Rendering Index

>80 Ra

Power Factor

>0.97

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

 6063 Die-casting Aluminum Alloy

Product Size(mm)

Dia 400 * 196mm

Packing INFO 45 * 45 * 22cm/Carton

Net Weight

6.8Kg

Gross Weight 8.9Kg

Certificate

CE/RoHS

Warranty Period

5 years




LED High bay light features:

1. Customize brand led driver and led chip available.
2.Light and small UFO structure greatly shorten the packing space and save the freight.
3. 6063 die-casting aluminum radiator, with air duct design principle of both inside and outside ventilation,and better heat dissipation performance.
4. Protection Grade: waterproof IP65
5. Use high quality PHILIPLS3030 LED AND MEANWELL LED power supply, to ensure the product reliability and life expectancy.
6.  Beam angle : 60°/90°/ 120° Lens optional.
7. More cost-effective than similar productsto meet customers various needs.
8.  Kinds of installed bracket for options: rings, sling chain, U shape bracket.


Dimensions of 200 Watt LED Highbay light(mm):

IP65 Waterproof LED High Bay Lighting 200 W 0-10V , PWM Dimming UFO LED Industrical Lighting

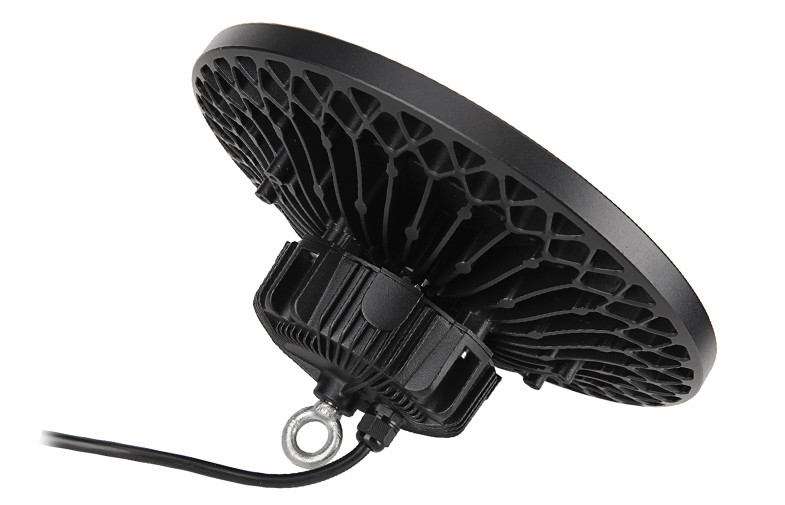

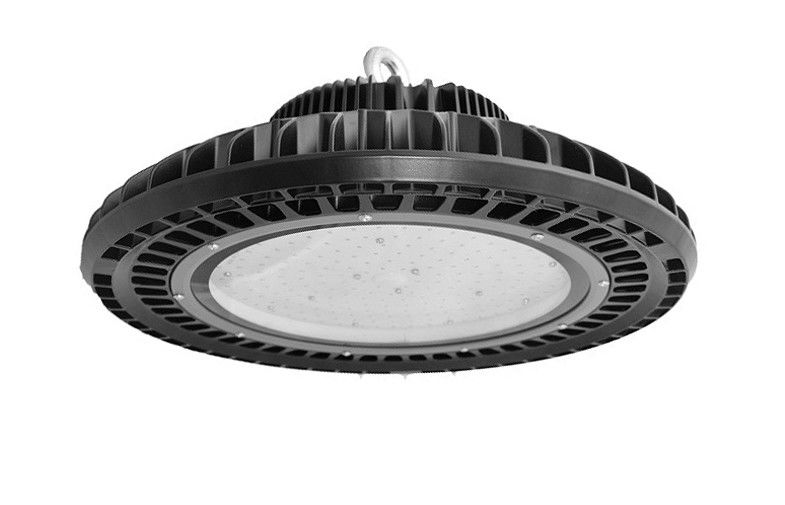

Photos show of 200 Watt LED Highbay light:

IP65 Waterproof LED High Bay Lighting 200 W 0-10V , PWM Dimming UFO LED Industrical Lighting



Package:



IP65 Waterproof LED High Bay Lighting 200 W 0-10V , PWM Dimming UFO LED Industrical Lighting
