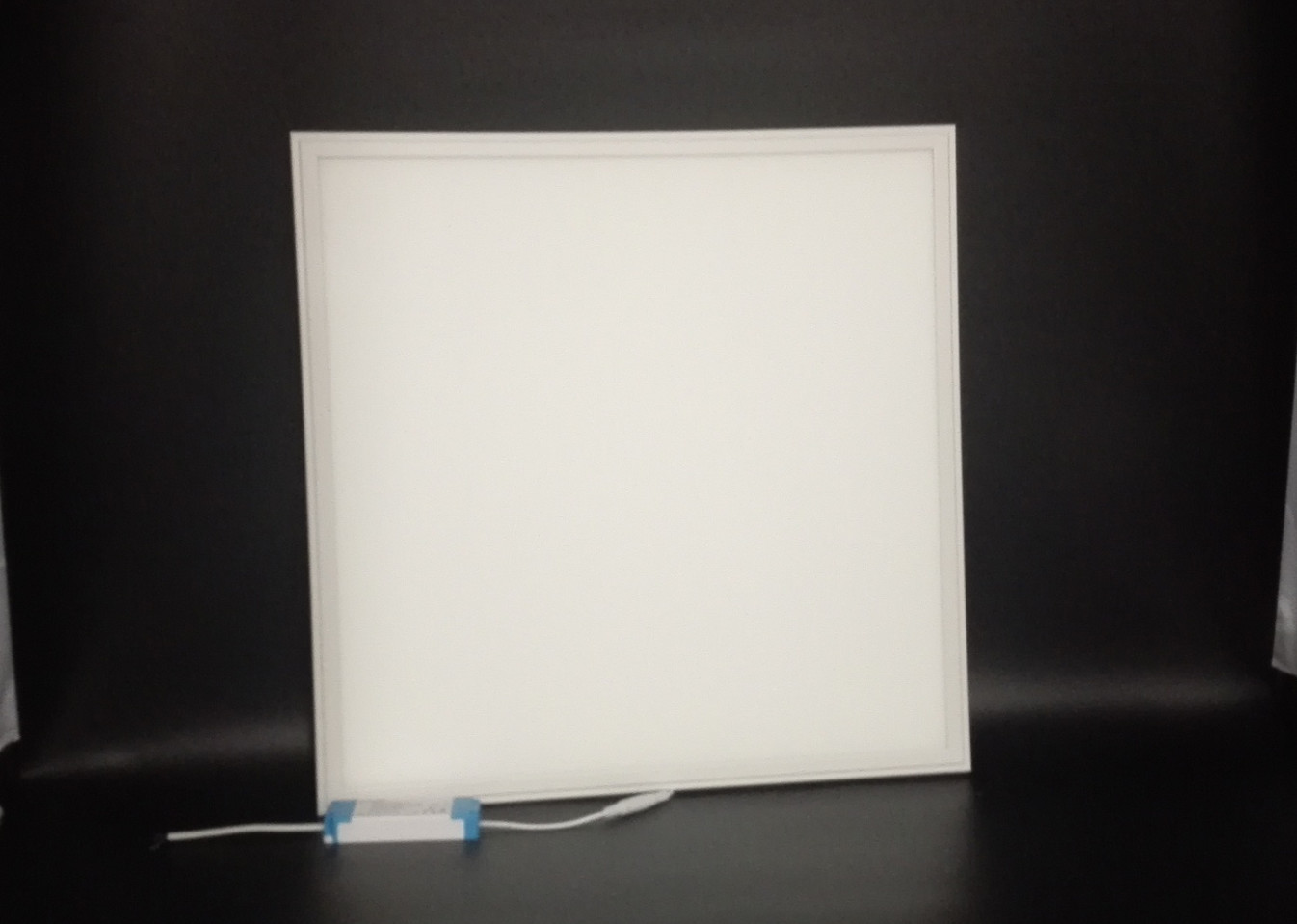

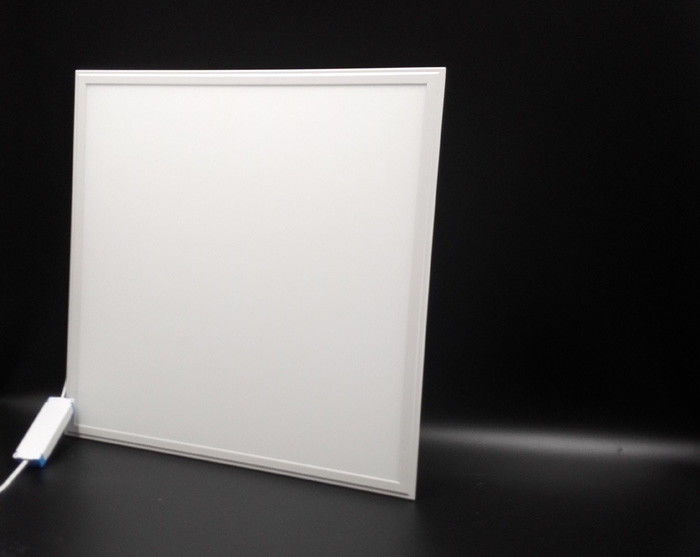

|Product Name::||36W LED Panel Light||Material::||PC And Aluminum|
|Input Voltage::||100~240V AC,50/60 Hz||Power::||36W|
|Driver::||Lifud||Beam Angle::||120 Degree|
led frame lights,
led frame panel lights
Specifications: flat led light / 600x600 led panel / led panel design
2700K/3000K /4000K/ 5500K
Luminous Flux (lm)
Aluminum + PC
Installation Steps :
1. Panel lights should be installed by trained electronic technician.
2. Please check all the accessories when open the cartons.
3. The distance between the light and any flammable materials must be more than 0.2m. The distance between the upper part of the installed light and the ceiling must not be less than 2 cm. Do not install into ceilings or walls that contain heat source. The main cable must not connect with the low voltage cable or the surface-mounted lights.
4. Guide the lights' connecting cables through the drilled hole, and fix the surface-mounted lights with the pre-fitted clips. Make sure that these are securely connected to the base material.
5. When laying the cables, make sure that the cables and plugs are not subjected to any tensile or twisting forces. Do not kink cables. Output cables should be laid separately and at a distance from other cables.
6. After installation, connect the transformer to the mains supply
7. Proceed by connecting the wiring cables to the lights. Usually, the brown (or black) wire is the Live wire, connect it with the terminal marked "L". The blue wire is Naughty wire; connect it with the terminal marked "N".
8. Use the dedicated LED drivers only, do not connect to other loads
9. Do not remove the label of the lights and drivers.
2. Hospital , Schools
