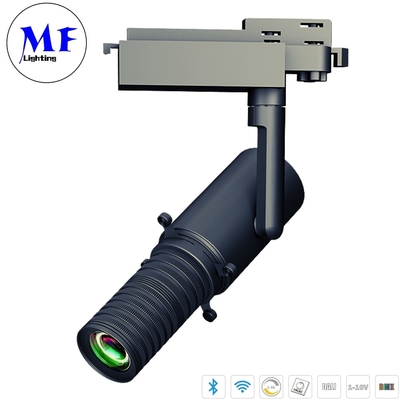

8W 10W 20W 28W 37W Shapeable Spotlight LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CCC, CE, ETL, FCC, RoHS
Model Number: Kingfisher-1
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 5,000pcs/Month

Detail Information

Input Voltage: 220-240V Power: 8W 10W 20W 28W 37W
Driver: Tridonic System Illumination: 900-950lm
CCT: 2700K-6000K Zoom Range: 20-36°(6036) / 15-25°(6025)
Ra: 97 Wire: 4/3/2/6 Wires Mono
Support Filter: 58 Color Of Housing: Black White
Installation: Powergear Gobo: Single / Double / Full Color Gobo

Product Description

10W 30W CRI97 CCT Dimming Shapeable Spotlight Dimmable Shaped LED Track Light for Studio and Art Gallery

8W 10W 20W 28W 37W  Shapeable Spotlight  LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery 0



8W 10W 20W 28W 37W  Shapeable Spotlight  LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery 18W 10W 20W 28W 37W  Shapeable Spotlight  LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery 2



Specifications:



Model No.
MF Shapeable track light Kingfisher-1
Power
8W 10W 20W 28W 37W
Luminous Flux
650~1550LM
Ra
≥97
Color Temperature
2700-6000K
Frame size
1:0.8
DIP CCT Single Lamp Dimming Support
Housing Color Black White
Voltage 220-240VAC
Driver
Tridonic





Description:



KP series Magnetic contour spotlight (M1003K) hasequipped with our newly developed 55° fixed-focuswide-angle optical lens and 15~36· constant zoomoptical lens, compatible with p 38mm mini sizeradiator and magnetic track adapter. Ultra-smallsize, excellent performance.



Cold forging integrated radiator design
A radiator made of 1070#pure aluminum and molded by molding pressure.
It has high thermal conductivity, low-temperature differences, low light failure, and long service life.

Thermal conductivity 226W/m.K

KP series stretching embedded contour spotlighthas equipped with our latest developed 55 fixedfocus wide-angle optical lens and 15 ~ 36constant zoom optical lens. compatible with p38mm mini size radiator and 70mm stretchingembedded device. Ultra-small size, excellentperformance.

Ultra-high-definition projection.
Millimeter-level precise Spot shaping, uniform illumination.
Fixed-focus / zoom lens can be switched arbitrarily (lt trulyintegrates fixed-focus optics and zoom optics mutually. Maximizethe optical properties of fixed-focus and zoom lens).
10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight
10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight
KP series stretching embedded contour spotlight has the features offlexible rotation and precisely projection, supporting vertical 90°rotation and horizontal 355°rotation.



High-definition optical lens design
It is formed by a plurality of high-definition coated optical lenses. The whole lamp has the characteristics of high luminous efficiency, high spot uniformity, minor distortion, extensive linear zoom range, good spot cut-off line, etc..

A new optical path specially designed for COB light sources.
10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight







10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight
Optical-grade variable aperture design
An optical diaphragm made of high-precision special material with no
blurring and freezing.
Manual insertion and removal of the light cutting device can freely change the shape of the spot.









Multi-layer dry damping design
The invention is a focusing device not requiring the application of lubricating oil and has a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use.
Rotating the device can change the sharpness of the spot.
10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight









10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight
Multi-layer dry damping design
Short stroke, considerable focal length, high short-focus and long-focus
recognition, visible to the naked eye, linear zoom is enhanced and more
convenient.
Rotate the device to adjust the spot size.





KP series stretching embedded contour spotlighthas equipped with our latest developed 55 fixedfocus wide-angle optical lens and 15 ~ 36constant zoom optical lens. compatible with p38mm mini size radiator and 70mm stretchingembedded device. Ultra-small size, excellentperformance.
10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight



Key Features:



360° Manual Rotation Design
Loosen the manual screw and turn the lens to achieve the 360°spot rotation adjustment function. Device to solve the 360° rotation of the
projection and light spot.

8W 10W 20W 28W 37W  Shapeable Spotlight  LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery 10

High-definition Optical Lens Design

It is formed by a plurality of high-definition coated optical lenses. The whole lamp has the characteristics of high luminous
efficiency, high spot uniformity, minor distortion, extensive linear zoom range, good spot cut-off line, etc. A new optical path specially designed for COB light sources.
8W 10W 20W 28W 37W  Shapeable Spotlight  LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery 11
Optical-grade Variable Aperture Design
An optical diaphragm made of high-precision special material with no blurring and freezing. Manual insertion and removal of the
light cutting device can freely change the shape of the spot.

8W 10W 20W 28W 37W  Shapeable Spotlight  LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery 12

Multi-layer Dry Damping
The invention is a focusing device not requiring the application of lubricating oil and has a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use. Rotating the device can change the sharpness of the spot.

8W 10W 20W 28W 37W  Shapeable Spotlight  LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery 13
Multi-layer Dry Damping
Short stroke, considerable focal length, high short-focus and long-focus recognition, visible to the naked eye, linear zoom is enhanced and more convenient. Rotate the device to adjust the spot size.

8W 10W 20W 28W 37W  Shapeable Spotlight  LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery 14



Installation:

Adjust the aperture to the appropriate size, and facing the center of the irradiated object, adjust the sharpness to a reasonable degree, as shown in Figure 17.
8W 10W 20W 28W 37W  Shapeable Spotlight  LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery 15
Pull the four diaphragm sheets outward to the maximum, and then push one by one vertically inward, to ensure that the cut square spot is smaller than the object to be illuminated, and adjust the sharpness of the aperture again until satisfactory, as shown in Figure 18.
8W 10W 20W 28W 37W  Shapeable Spotlight  LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery 16

If the shape of the spot does not match the object to be illuminated, first loosen the hand screw at the red mark, rotate the blue part of the lens, adjust the edge of the spot to be parallel to the edge of the object to be illuminated, and finally tighten the hand screw. As shown in Figure 19, the LOGO projection direction not matching can also be adjusted to the ideal direction using this method.
8W 10W 20W 28W 37W  Shapeable Spotlight  LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery 17
Stretch the diaphragm sheet one by one outward until the spot size is substantially consistent with the object, as shown in Figure 20.
If you are not satisfied with the effect, it is recommended to repeat the operation according to the above steps to bring up the spot effect you are happy with.
8W 10W 20W 28W 37W  Shapeable Spotlight  LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery 18

Applications:



Track lights are commonly used in various applications such as retail stores, art galleries, residential lighting, hospitality venues, offices and workspaces, and showrooms. They offer adjustable and focused illumination, making them ideal for highlighting products, artwork, architectural features, or creating desired ambiance. The versatility of track lights allows for easy repositioning and adjustments, providing flexible lighting solutions for different environments.



8W 10W 20W 28W 37W  Shapeable Spotlight  LED Track Light CRI97 CCT Dimming Contour Spotlig for Studio and Art Gallery 19



FAQ:



Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
