Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 66*23*24CM/25pcs/CTN, G.W: 12.3Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal Supply Ability : 20,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-WP4E-T8-20W-S

Detail Information

Product Item :: MF-T218-MS/MF-T236-MS/MF-T258-MS Power :: 20W/40W/60W
LED Qty (pcs): 120/240/360 Lumen (Flux): 2600/5200/7800
Lumen Efficiency: 130LM/W IP Rate :: IP65
Beam Angle: 120° CRI: >80
High Light:

led tube lamp

,

t8 led light

Product Description

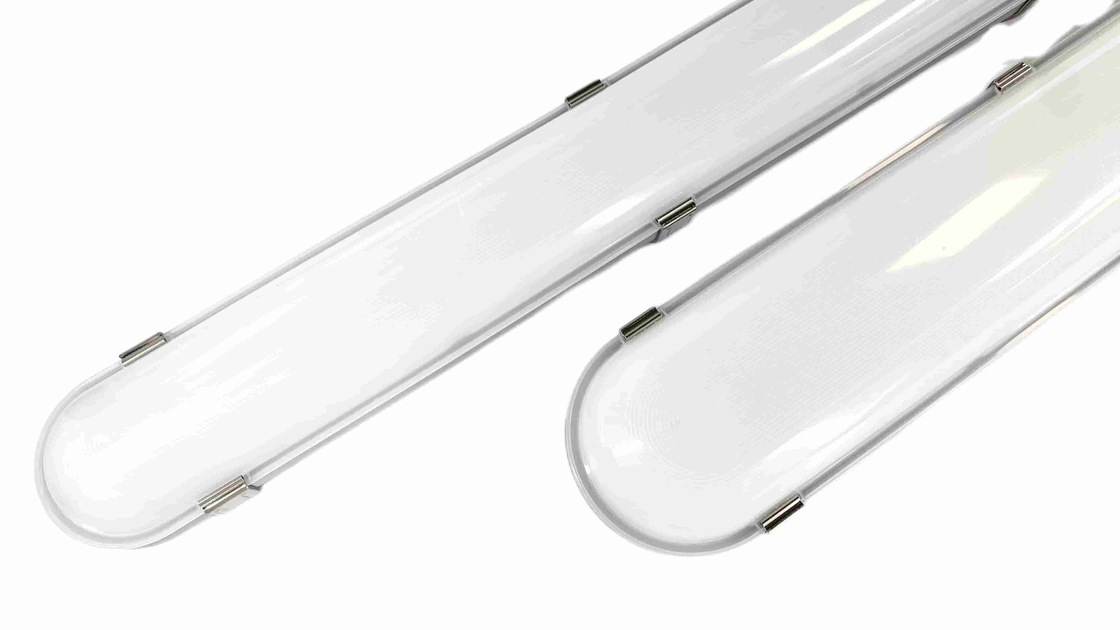

Led Vapor Tight Fixture Ip65 Tri Proof Led Light Waterproof Led Light Led Parking Lot Light Fixtures
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 0

  1. IP65 Tri-proof LED Light Fixture
  2. Input: AC 100-277V, 50/60Hz
  3. Luminous Flux: 140lm/w±10%
  4. CRI: >80
  5. PF: >0.95
  6. Lifespan: ≧50000Hrs
  7. IP rate: IP65
  8. IK rate: IK08
  9. Viewing Angle:120°


Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 1
*Slotted iron Board, excellent heat dissipation.
*Driver: Osram; Philips or other Chinese brand options.
*IP65/IP66, IK08, and 850 degrees glow wire test requirement.
*Microwave sensor and PIR sensors, emergency kits, etc. It can be easily available and installed.
*Modular installation,save labor cost.
*Suitable for supermarket, warehouse, underground parking place, garage, productionplant, suitable for outdoor and wet location lighting application.
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 2


Model NoMF-T218-MS/MF-T236-MS/MF-T258-MS
Input voltageAC100-277Vac 50hz/60hz
Power(watt)20W/40W/60W/80W
Product size(mm)2ft(600mm)/4ft(1200mm)/5ft(1500mm)/6ft(1800mm)
Color temperatureWarm White(3000K-4500K), Pure White(5000K-5500K), Cold White(6000K-6500K)
LED ChipSAMSUNG
Luminous Flux (lm)140LM/W±10%
CRI(Ra)>85
Lifespan≥50000hrs
Beam Angle120°
MaterialAluminum + PC
Operating Temperature-20°C ~40°C
IPIP65
IKIK08
CertificateCE/RoHS
Warranty Period5 years


Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 3
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 4
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 5Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 6Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 7Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 8Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 9
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 10


Product CodeDimentions(LxWxH)(mm)Q'ty/ctnClipsLF(mm)Inner Box(mm)Outer Box(mm)G.W./CTNN.W./CTN
MF-T218600x125x8866260-300660*130*95680*280*3108.5kg1.3kg
MF-T2361200x125x88610800-8601260*130*951280*280*31014.6kg2.16kg
MF-T2581500x125x886121080-11501560*130*951580*280*31017kg2.5kg
MF-T25701800x125x88416860-10501860*130*951860*280*21014kg3.2kg


Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 11
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 12
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 13
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 14 Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 15 Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 16 Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 17 Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 18
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 19
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 20
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 21
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 22
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 23
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 24
Suitable for supermarket, warehouse, underground parking place, garage, productionplant, suitable for outdoor and wet location lighting application.
Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 25Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 26Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 27Led Vapor Tight Fixture Ip65 Tri Proof Led Light Factory Lamp Warehouses Led Lamp led parking light 28
