2 Feet T8 LED Tubes 980lm 9W 120°LED Suspension Light With T8 Tubes Lighting

Product Description

2 Feet T8 LED Tubes 980lm 9W 120°LED Suspension Light With T8 Tubes Lighting

Quick Detail:

1. T8 600mm 9W LED Tube Lights
2. Input: AC 85V-265V, 50/60Hz
3. Luminous Flux: 990lm±10%
4. CRI: >75
5. PF: >0.95
6. Lifespan: ≧40000Hrs

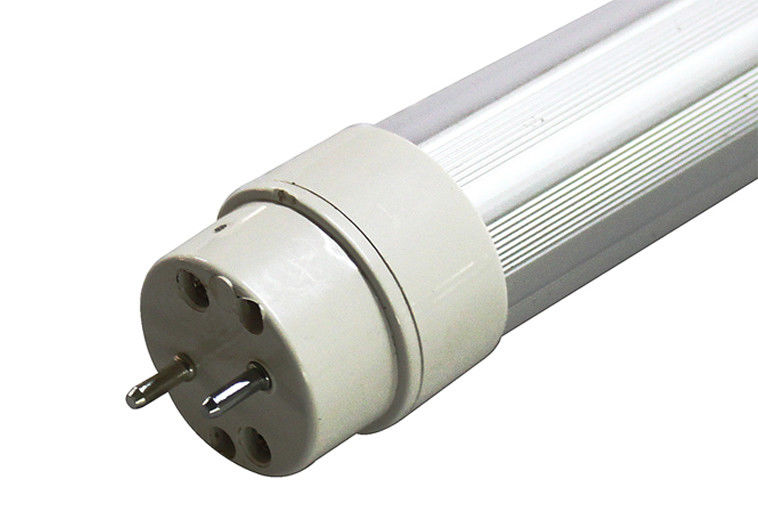

600mm 2” T8 LED Tube Light 980W Clear Cover Internal Driver With Beam Angle 120°

Description:

MingFeng LED T8 tube is used in many places like residential, commercial and so on. These LED tube lightshave gentle and soft light, no flickering, protect eyesight, it can replace the traditional fluorescent light perfectly.

MingFeng 600mm T8 LED Tube Lights with High quality PC material of lampshade, high transmittance. Special heat sink design, excellent performance to ensure LED can work at low temperature. Clear and diffused cover for optional.

Specifications:

Competitive Advantage:

1. Heat dissipation design : adopt high thermal conductivity aluminum shell and excellent heat conducting aluminum PCB board to improve the heat effectively, to achieve low temperature, reduce Lumens depreciation and keep long life span about 30,000-50,000 hrs.

2. LED Chips: With super bright SMD leds, High efficiency, energy saving, environmental protection, under the same condition, led tubes could save 70% energy and electric cost than the traditional tubes.High CRI: 98% visible light, CRI >75 make the color of lighted objects much closer to natural color. And the traditional tube has only 30% visible light.

 3. Driver Design: stably driver, constant-current, PFC circuit, EMC circuit design, the driver with CE, RoHS certification.

4. Others: Adopt aluminum frame, no tube deformation resulted from long time hanging, more safety. With special PC cover and aluminum shell material convenient to transport, difficult break up and anti-vibration.

Installation Instructions:

1) Turn off the electric power firstly, and then take down the tradition fluorescent tube

2) No starter or ballast needed, cut off or directly take off the ballast and starter from the tradition fluorescent tube fixture.

3) Connect the wires: According bellow wiring diagrams to connect the led tube.

4). Make sure everything is correctly, and than turn on the power, the led tube will light.

Packing:

Applications:

Emporium, superstore, school, factory, underground parking, passageway, hospictal, official large building and so on public place lighting.
