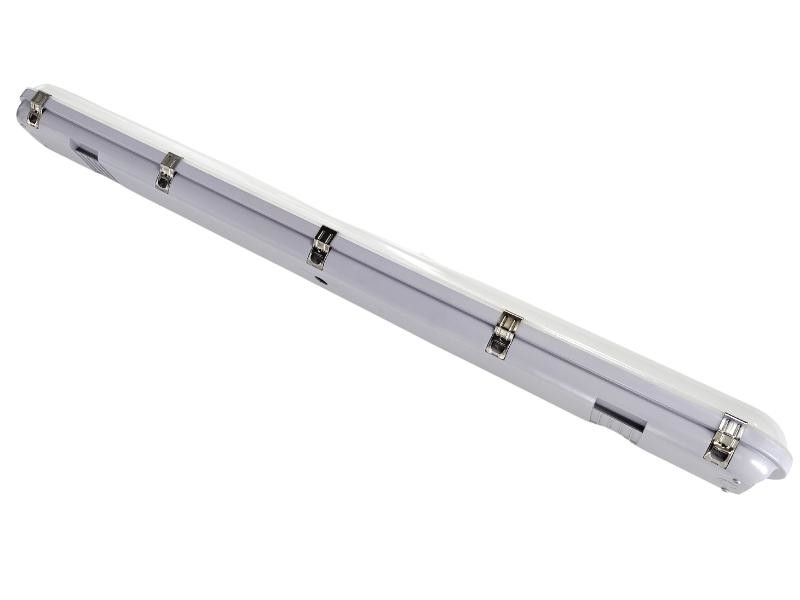

Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE, RoHS
Model Number: MF-T218/MF-T236/MF-T258/MF-T270
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 2450*130*105mm, 5.2kg
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 20,000pcs/Month

Detail Information

Product Code: MF-T118-MS/MF-T136-MS/MF-T158-MS Power: 20W/40W/50W
LED Type: SMD2835 LED Chip: SAMSUNG
Luminous: 140lm/w Viewing Angle: 120 Degree
IP Rate: IP65 IK Rate: IK08
High Light:

LED Tri Proof Light

,

Triproof LED Light

Product Description


Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 0



  1. IP65 Tri-proof LED Light Fixture
  2. Input: AC 100-277V, 50/60Hz
  3. Luminous Flux: 140lm/w±10%
  4. CRI: >85
  5. PF: >0.95
  6. Lifespan: ≧50000Hrs
  7. IP rate: IP65
  8. IK rate: IK08
  9. Sensor: Motion sensor



Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 1

*Slotted iron Board, excellent heat dissipation.
*Driver: Osram; Meanwell or other Chinese brand options.
*IP65/IP66, IK08, and 850 degrees glow wire test requirement.
*Microwave sensor and PIR sensors, emergency kits, etc. It can be easily available and installed.
*Modular installation,save labor cost.
*Suitable for supermarket, warehouse, underground parking place, garage, productionplant, suitable for outdoor and wet location lighting application

*Radar technology automatic control induction, capture your every move in the dark.


Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 2


Model No MF-T118-MS/MF-T136-MS/MF-T158-MS
Input voltage AC100-277Vac 50hz/60hz
Power(watt) 20W/40W/50W
Product size(mm) 2ft(600mm)/4ft(1200mm)/5ft(1500mm)/6ft(1800mm)
Color temperature Warm White(3000K-4500K), Pure White(5000K-5500K), Cold White(6000K-6500K)
LED Chip SAMSUNG
Luminous Flux (lm) 140LM/W±10%
CRI(Ra) >85
Lifespan ≥50000hrs
Beam Angle 120°
Material Aluminum + PC
Operating Temperature -20°C ~40°C
IP IP65
IK IK08
Certificate CE/RoHS
Warranty Period 5 years


Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 3

Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 4


Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 5
       Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 6 Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 7Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 8




Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 9





Product Code Dimentions(LxWxH)(mm) Q'ty/ctn Clips LF(mm) Inner Box(mm) Outer Box(mm) G.W./CTN N.W./CTN
MF-T118-MS 600x125x88 6 6 260-300 660*130*95 680*320*290/9pcs 8.5kg 1.3kg
MF-T136-MS

1200x125x88

6 10 800-860 1260*130*95 1280*280*310/9pcs 14.6kg 2.16kg
MF-T158-MS 1500x125x88 6 12 1080-1150 1560*130*95 1580*280*310/9pcs 17kg 2.5kg


Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 10

Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 11



Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 12

Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 13 Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 14 Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 15 Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 16 Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 17

Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 18

Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 19

Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 20

Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 21
                                                         Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 22
Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 23
Suitable for supermarket, warehouse, underground parking place, garage, productionplant, suitable for outdoor and wet location lighting application.
                                                    Motion Sensor Vapor Tight Light fFixture 4ft Led Tri-proof Linear Tunnel Light 24
