60W 600 x 1200MM 1 - 10V Dimmable Rectangle Thin LED Flat Panel Light

China 60W 600 x 1200MM 1 - 10V Dimmable Rectangle Thin LED Flat  Panel Light supplier
60W 600 x 1200MM 1 - 10V Dimmable Rectangle Thin LED Flat  Panel Light supplier 60W 600 x 1200MM 1 - 10V Dimmable Rectangle Thin LED Flat  Panel Light supplier 60W 600 x 1200MM 1 - 10V Dimmable Rectangle Thin LED Flat  Panel Light supplier 60W 600 x 1200MM 1 - 10V Dimmable Rectangle Thin LED Flat  Panel Light supplier

Large Image :  60W 600 x 1200MM 1 - 10V Dimmable Rectangle Thin LED Flat Panel Light

Product Details:

Place of Origin: China
Brand Name: MF
Certification: GS,TUV,,CE, RoHS,CB.SAA
Model Number: MF-PL-6012-60W

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Price: Factory Price
Packaging Details: 2pcs/inner packing, 6pcs/outer packing
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, Paypal,L/C
Supply Ability: 10,000pcs/Month
Contact Now
Detailed Product Description
Dimension: 595mm*1195mm Power: 60Watt
Lumen: 6000LM Efficiency: 100LM/W,130LM/W To Options
Input: AC 100-240Vac,50/60Hz Dimmable: Yes,1-10V Dimming
Material: AL Frame+ PMMA LGP+PS Diffuser IP Rating: IP40
Beam Angle: 120° CCT: 3000K±300K, 4000K±300K, 5000K±300K
CRI: >80RA Lifespan: >=35,000 Hrs



60W 600*1200MM 1 - 10V Dimmable Rectangle Thin LED Flat LED Panel Light



Panel Light Parameters:





Optical





Light Source SMD4014
CCT 3000K/4000K/5000K
CRI >80Ra
Beam Angle  120°
SDCM <5
Lifespan ≧50,000Hrs



Electrical



Power Input/frequency

220-240Vac,50/60Hz
Dimmable Yes, Traic Dimming
Power Factor(PF) >0.9
Start Time 0.5S



Mechanical



Material AL Frame+ Pmma LGP+ PS Diffuser
IP Rating IP40
Others Working Temperature & Humidity -25~50℃,10%~90%R.H
Storage temperature & Humidity -40~85℃,40%~80%R.H
Cerlificate GS,TUV,CE,RoHS,CB,SAA,ETL




MF Panel Light Features:



LED flat lamp overturns the tranditioal liht emitting properties, with its thin, surface emitting, energy saving, environmental,heath and other characteristics of excellent debut, is the office, family come first on the list, the selected advertisement lamp.



High efficiency and energy saving: energy saving, high brightness, infrared, ultraviolet, no thermal effects, the most efficient constant current drive, improve the heat treatment, the green envrionmental protection.



Bright and uniform light: bright light is completely flat output,emitting angle wider.



Ultra-thin light: special circuit design, to avoid the bad effects of single light overall effect.



Stability and durability: 5 years of term of service, from radio interference, no environmental pollution.



Emergency treatment: on different occasions, in accordance with the requirements of customers, a flat lamp installation matching with emergency function, power still sustainable supply 3 hours.



Driwer: Fire retardant plastic or waterproof to option.Unique design, constant IC driver, Stable project,Long lifespan ensurence.



Back cover: Duct proof, avoid light leak, the light effective rate:99% ,waterproof standard:IP 40.



Usable Range:Commercial, Decorative, Residential Sales areas, shop windows, office and corridors museums, exhibitions and galleries reception rooms, lobbies and hotel rooms, bathroom, kitchens and living areas.





Panel Light Description:



60W 600 x 1200MM 1 - 10V Dimmable Rectangle Thin LED Flat  Panel Light


As a professional LED light manufacturer, MingFeng are specializing in providing energy saver light.



The 60W LED flat panel light, using the newest LED technology, is a excellent LED indoor lighting product developed by MingFeng. It has special art design,90% light transmittance, 6000LM and dimmable switch. Featured with energy efficient, economic and eco-friendly, MingFeng led flant panel light has a long lifespan of more than 35000 hours.




Other Characteristic:



1. Alu body: Excellent design,30% heavier than common product,better heat dissipation.

2.Light Guide Plate(LGP): Mitsubishi LGP, 90%Light Transmittance, Good light distribution.

3.LED Chip: Epistar or LumenMax Chip, high lumen, high CRI, Long life span

4.PCB Board: Alu PCB board, longer lifespan and better dissipation than FPC PCB.

5.LED Driver:Unique design, Constant IC driver, Stable, Long lifespan.

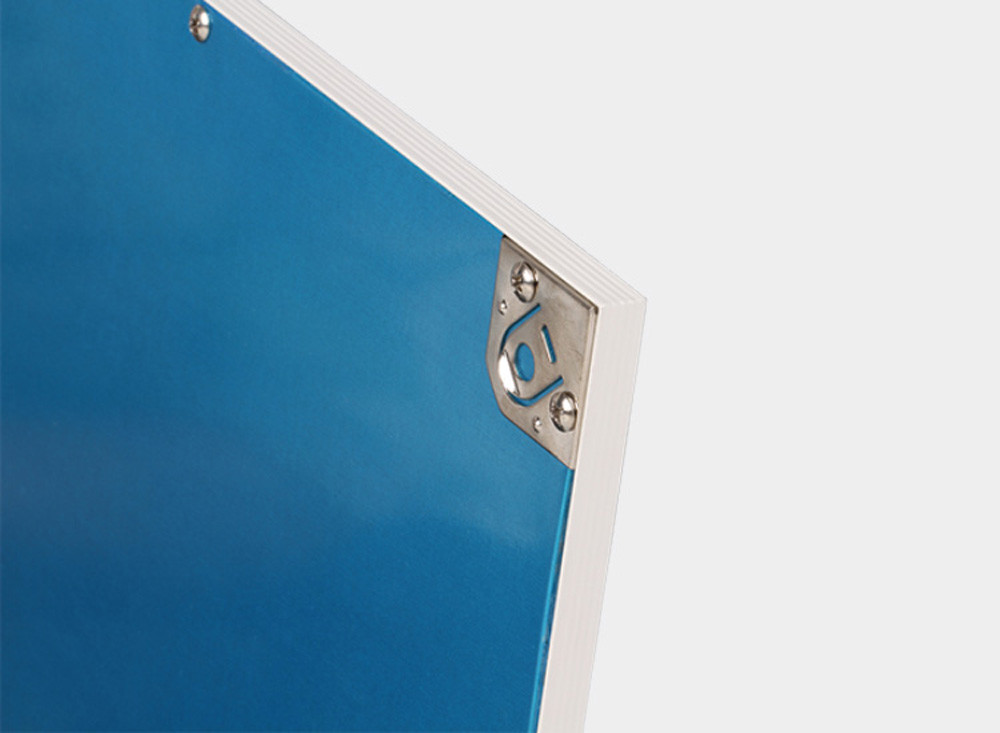

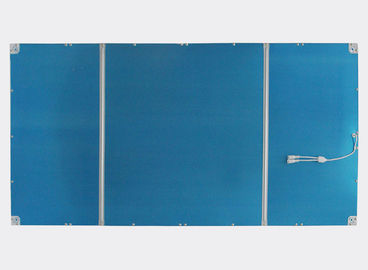

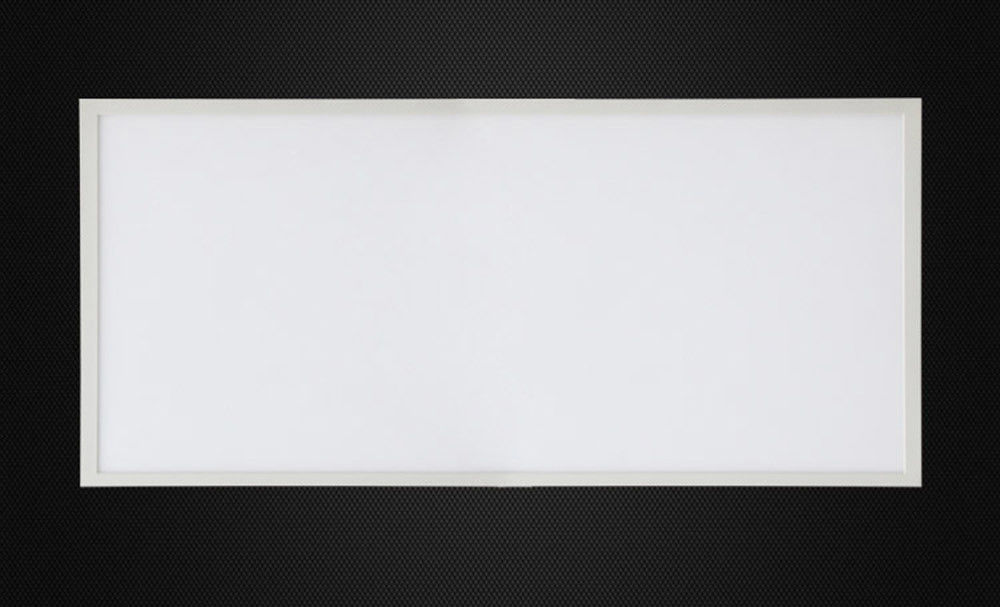

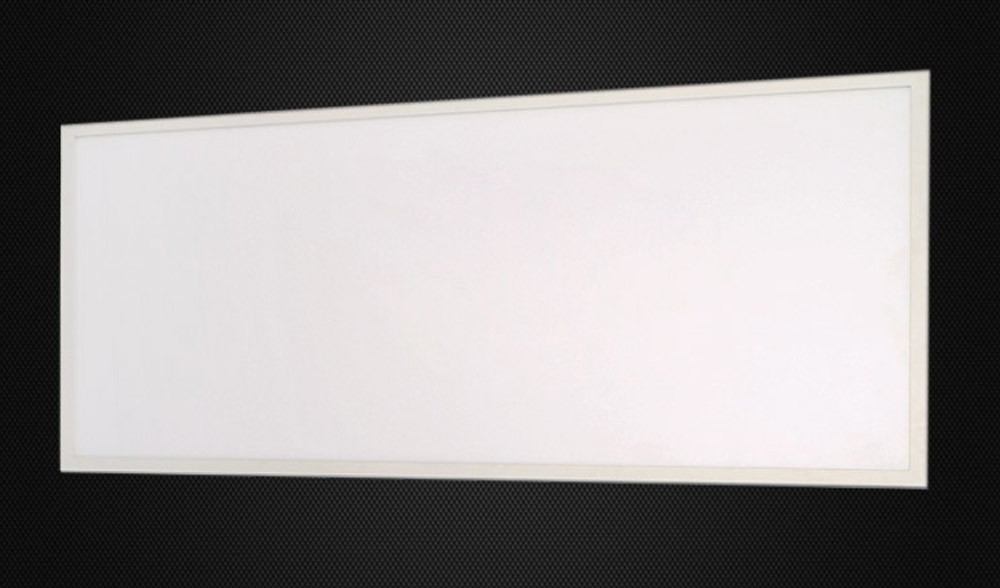

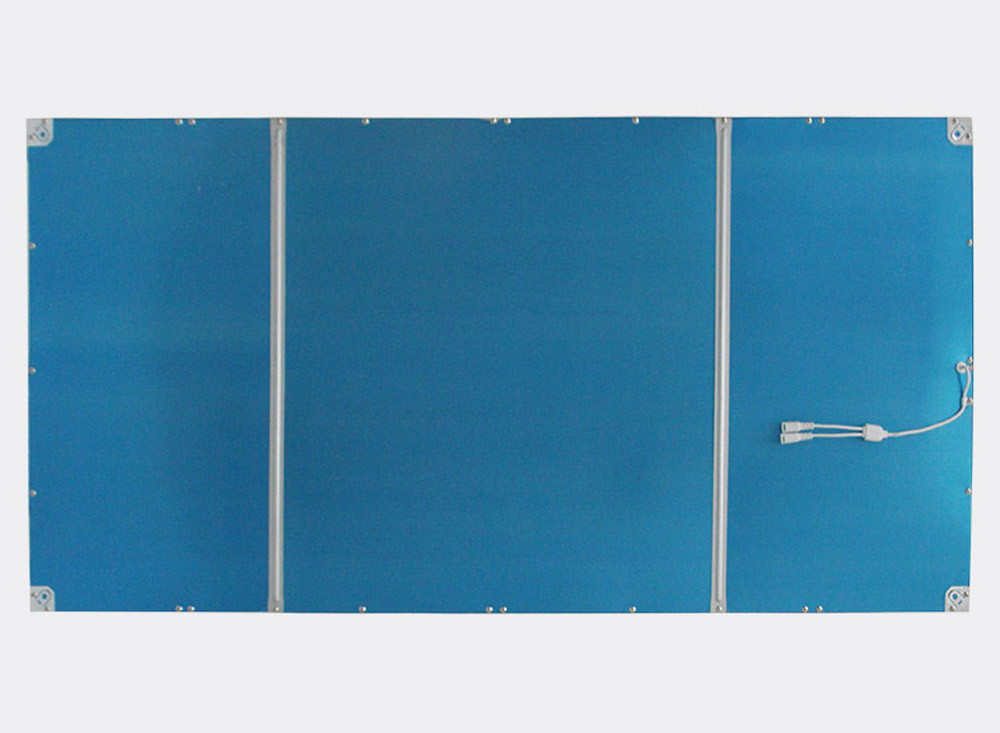

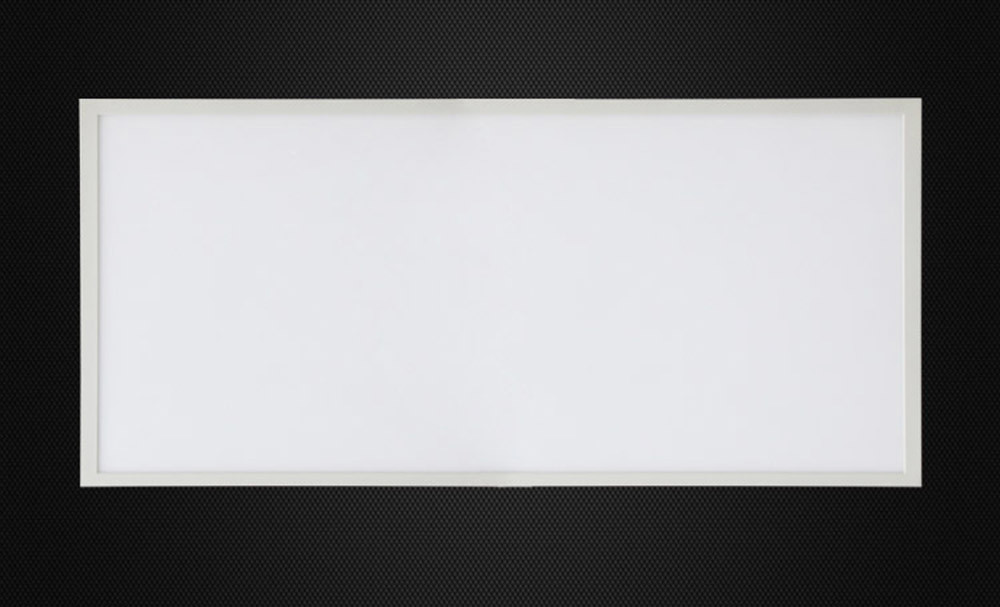

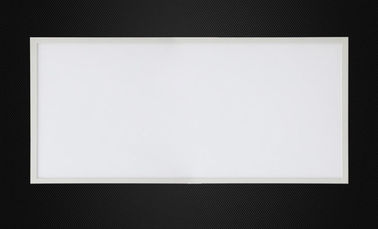

Product Picture:

60W 600 x 1200MM 1 - 10V Dimmable Rectangle Thin LED Flat  Panel Light60W 600 x 1200MM 1 - 10V Dimmable Rectangle Thin LED Flat  Panel Light





Package:



With Shock absorption packaging







60W 600 x 1200MM 1 - 10V Dimmable Rectangle Thin LED Flat  Panel Light
