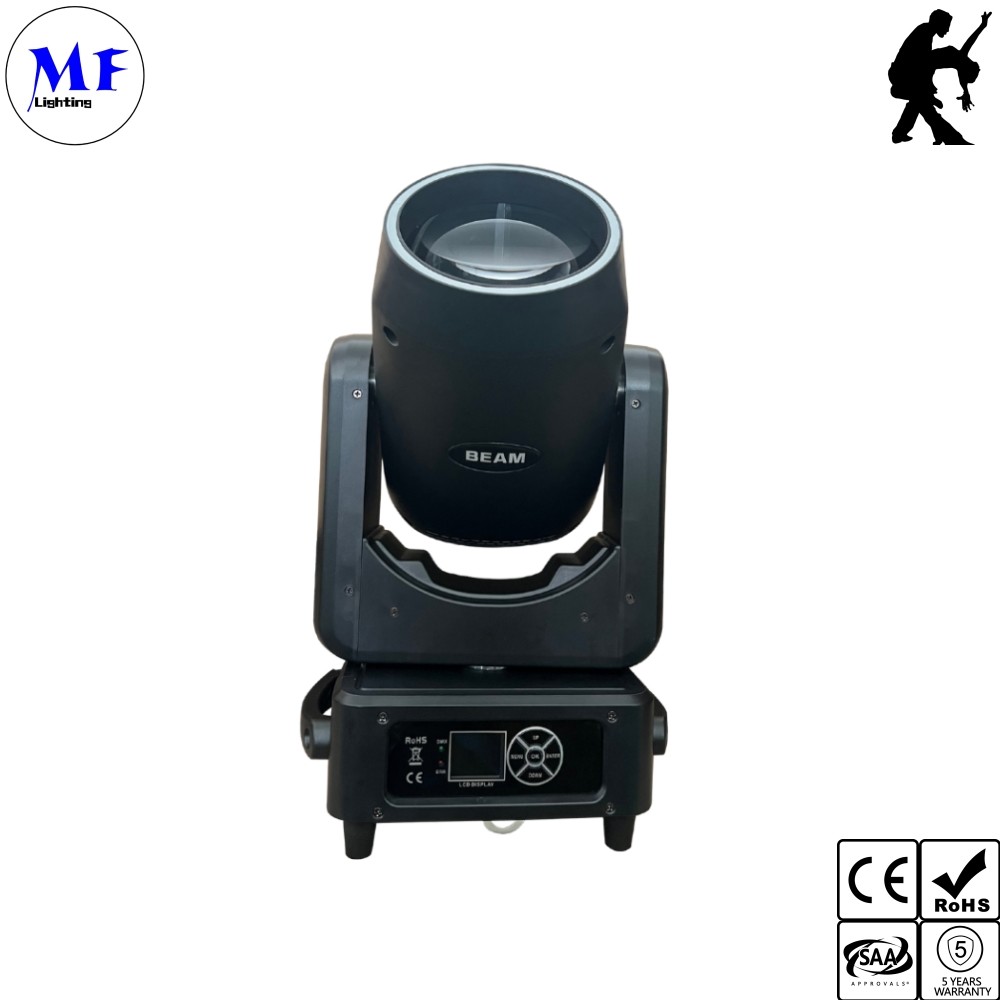

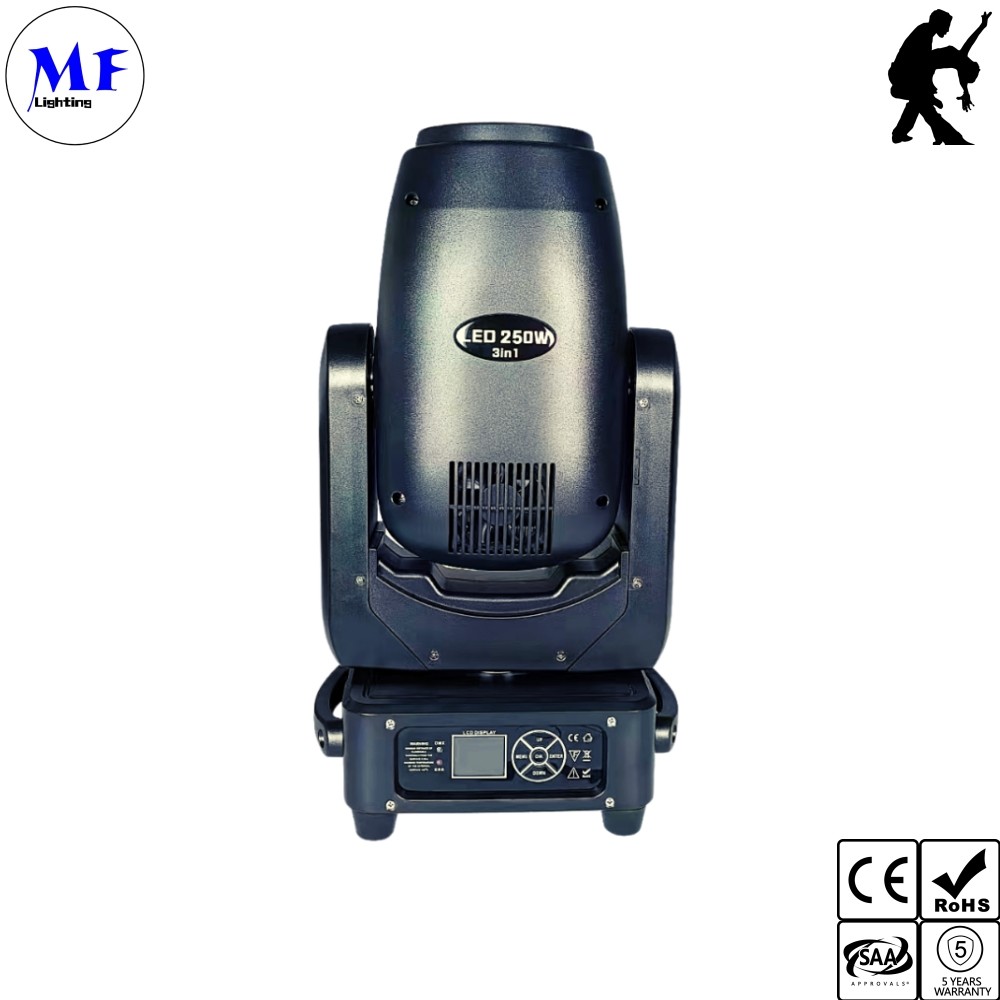

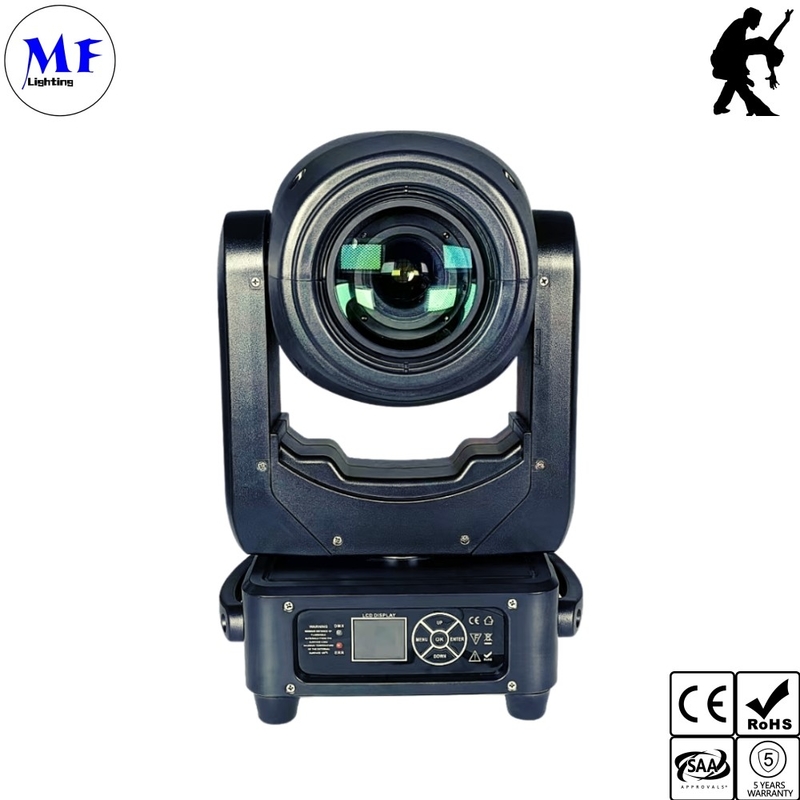

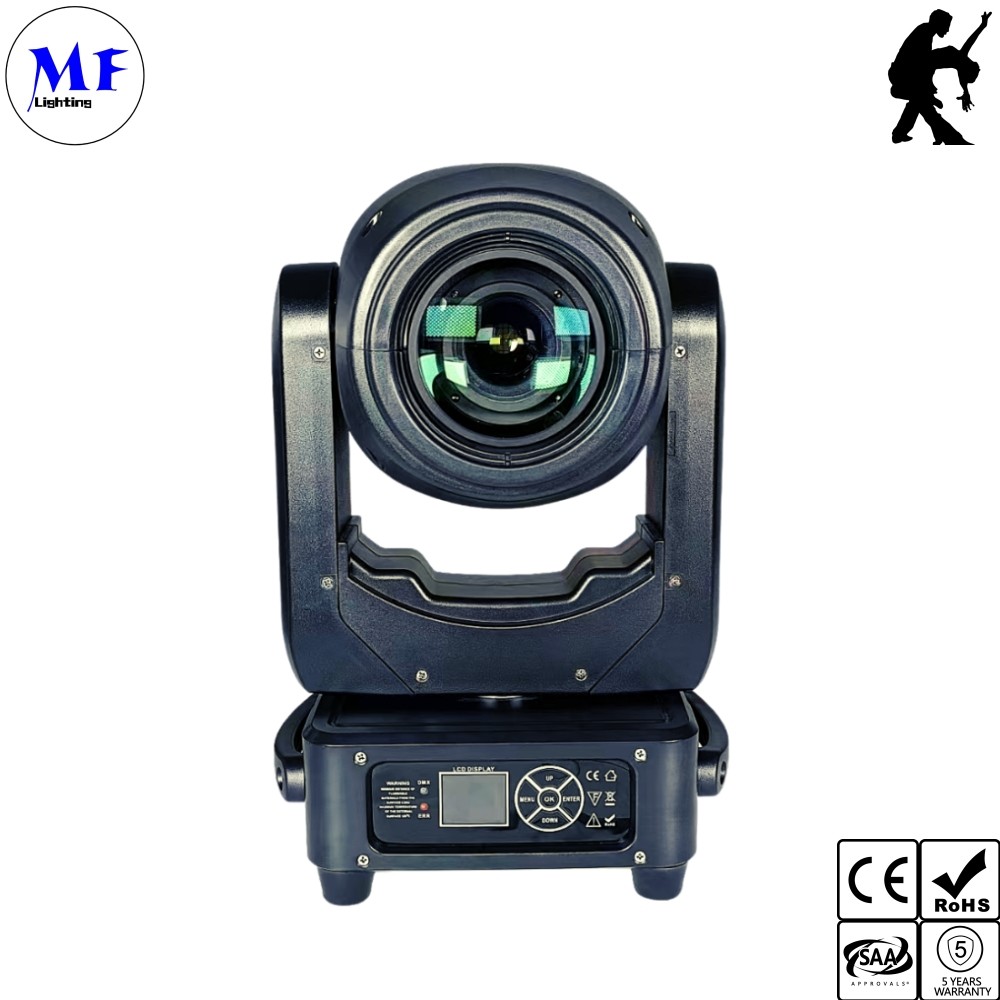

250W BSW LED Moving Head Stage Light With DMX Voice Sound Control For DJ Concert Live Music Festival Show

Product Description

250W BSW LED Moving Head Stage Light With DMX Voice Sound Control For DJ Concert Live Music Festival Show

Operating instruction:

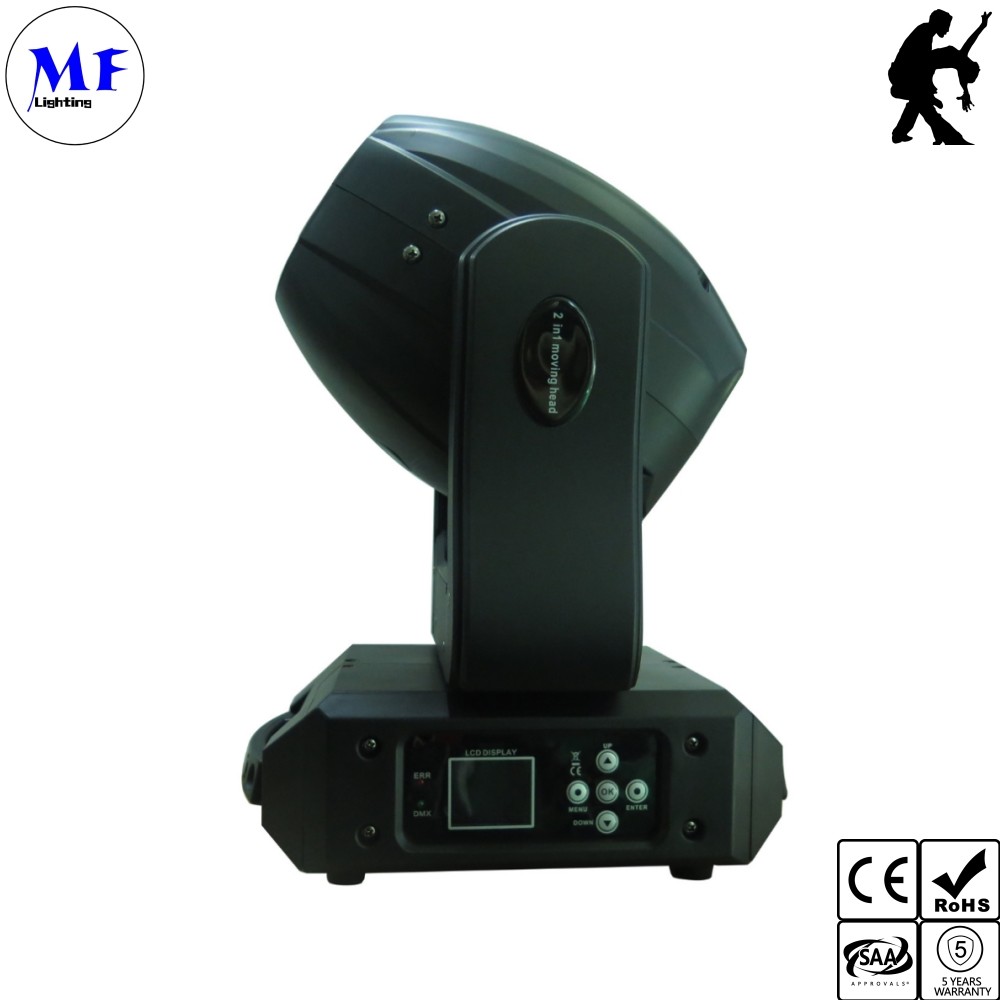

Description of operation panel

Set up:

Signal cable connection:

Light fixtures feature standard DMX input and output 3-core or 5-core XLR sockets.Use a shielded twisted-pair signal cable designed for DMX 512;The signal line is generally connected at 150 meters, and the DMX512 signal amplifier must be added for long distance signal transmission. Connect a shielded twisted-pair signal line from the DMX outlet of the controller to the DMX input of the first device, and from the DMX outlet of the first device to the DMX input of the second device, and so on, until all lights have been connected. Then install a terminal plug on the last connected light outlet 3-core jack on each circuit.(Weld a 4/1W, 120Ω resistor between the 2 and 3 pins of the 3-core pin cannon plug). Important: The wires should not touch each other or the metal housing.

Calculation method of starting address code of luminaire: The initial address code of the current luminaire is equal to (the initial address code of the previous luminaire)+(the number of channels of the luminaire) 1: Start address code value A001 of the first luminaire. 2: The basic channel number of the controller, should be greater than or equal to the total number of channels used by the lamp. 3: Note: when using any controller, each lamp should have its own initial address code, if the initial address code of the first lamp is set A001, the number of lamp channel pass is 16CH;Then the start of the second lamp address code is set to A017;The initial address code of the third lamp is set to A033;And so on,(this setting also needs to be determined according to different control platforms)

Key instruction:

The following takes "Modify DMX address code" as an example to describe the use of keys:
1, if the current is not the main interface, press the "left" key (one or more times) to return to the main interface
2, in the home screen, press the "up" key or "down" key to select the "Settings" button
3. Press the "OK" key to enter the "Settings" interface
4, in the "Settings" interface, press the "up" key or "down" key to select "DMX address"
5, press the "OK" key to enter the editing state
6, press the "up" key or "down" key to modify the DMX address code
7, press the "OK" key to exit the editing state

LED stage lights have a wide range of applications in the entertainment industry. Here are some key areas where LED stage lights are commonly used:
Concerts and Live Music Performances: LED stage lights create dynamic lighting effects that enhance the atmosphere and visual impact of live music events.
Theater Productions: LED stage lights are utilized to set the mood, highlight actors or scenes, and create captivating lighting designs that complement the storytelling.
Dance Performances: LED stage lights are employed to accentuate dance movements, create vibrant color palettes, and add visual excitement to dance performances.
Corporate Events and Conferences: LED stage lights are used to provide professional lighting setups for keynote speeches, presentations, and product launches, enhancing the overall visual experience.
Fashion Shows: LED stage lights are utilized to create dramatic and evocative lighting designs that enhance the runway and showcase the clothing creations.

Television and Film Productions: LED stage lights are incorporated into studio setups to provide versatile and controllable lighting solutions for TV shows, movies, and commercials.
Theme Parks and Attractions: LED stage lights are used to illuminate rides, shows, and themed areas in theme parks, providing immersive lighting experiences for visitors.
Nightclubs and DJ Performances: LED stage lights are employed to create vibrant, energetic lighting displays that synchronize with the music and enhance the clubbing experience.
Exhibitions and Trade Shows: LED stage lights are utilized to highlight products, create visually appealing displays, and draw attention to exhibition booths.
Architectural Lighting Installations: LED stage lights are used to illuminate iconic buildings, monuments, and landmarks, enhancing their visual appeal and creating stunning nighttime displays.
These applications demonstrate the versatility and impact of LED stage lights in various entertainment, commercial, and architectural settings, ensuring captivating visual ex
