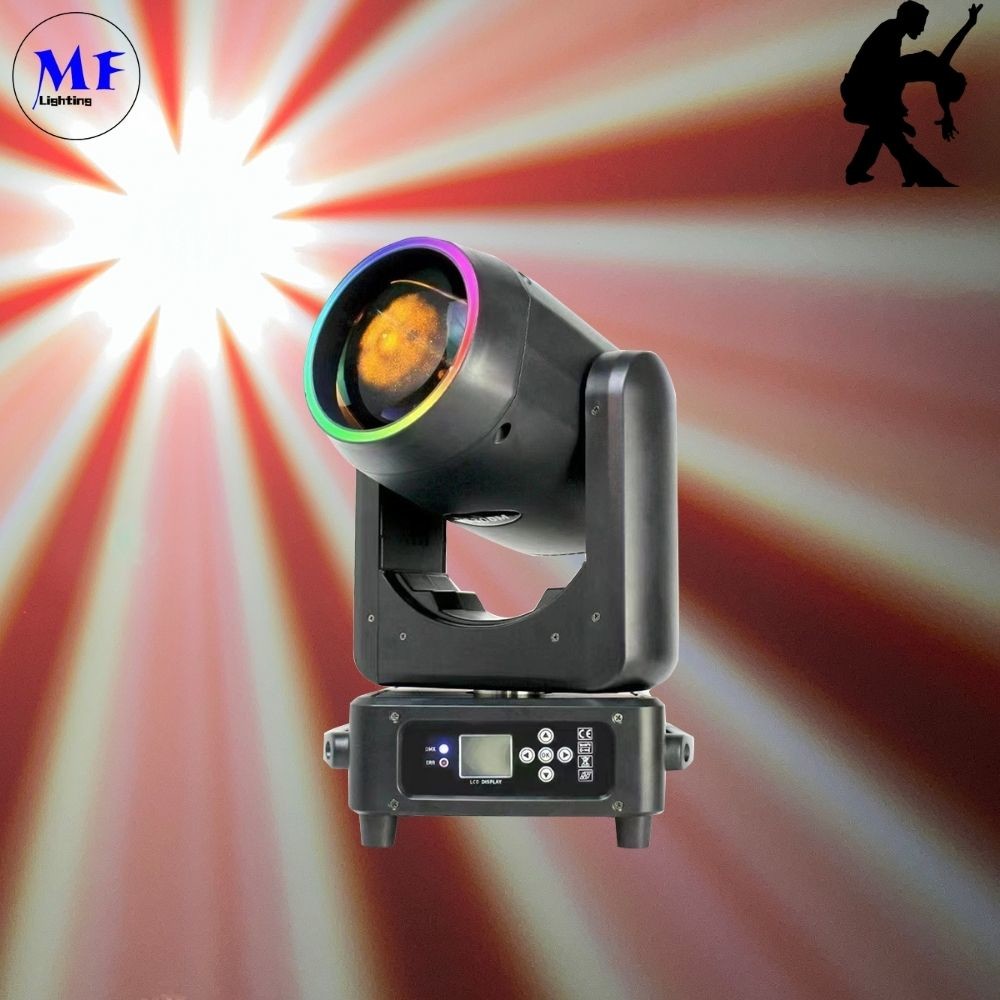

Overheat Protection DMX512 200W IP20 Sharpy Beam Stage Lighting LED Moving Head Light

Contact Now

Overheat Protection DMX512 200W IP20 Sharpy Beam Stage Lighting LED Moving Head Light

Name: Overheat Protection DMX512 200W IP20 Sharpy Beam Stage Lighting LED Moving Head Light
Brand: MF
SKU: MF-DM200W LMB
Rating: 4.5 (185 reviews)

Minimum Order Quantity :	100PCS	Price :	Negotiable
Delivery Time :	Depends on orders	Payment Terms :	T/T, Western Union, L/C, Paypal
Supply Ability :	5,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS	Model Number:	MF-DM200W LMB

Detail Information
Input Voltage:	AC 200V~240V/50~60Hz	Power:	200W
Tilt:	270°tilt	Pan:	540° Translation
Pattern Plate:	Fixed 55°/Zoom 15-36°	Light Source:	LED
Material:	Aluminum	Control Channel:	DMX512/ Master-Slave/Automatic
Control Mode:	DMX Signal Control
High Light:	Overheat Protection LED Downlight , DMX512 LED Moving Head Light , 200W Moving Head Stage lights

Product Description

MF-DM200W LMB BEAM SHARPY MOVING HEAD LED STAGE LIGHT

Specifications:

CHANNEL TABLE

CHANNEL	24 CHANNEL PATTERN
1	Color
2	Strobe
3	Dimming
4	Gobo
5	Prism 1
6	Prism 2
7	Prism 1 Rotate
8	Prism 2 Rotate
9	Frost & Colorful
10	Focus
11	X
12	X Fine
13	Y
14	Y Fine
15	XY Speed
16	Reset
17	LED Dimming
18	LED Strobe
19	LED Red
20	LED Green
21	LED Blue
22	LED Color Macro
23	LED Scene
24	LED Scene Speed

TECHNICAL SPECIFICATION

Voltage	AC200-240v 50/60Hz
Power of Light Source	200W
Color Disk	Each color disk consists of 14 color plates + white light
Pattern Plate	10 gobos with 3 glasses gobos+ white
Control Mode	DMX512/ master-slave/Automatic
IP	20
Protection	Overheat Protection
540° translation, 270° tilt

Common Fault:

According to some common faults, the corresponding solutions are put forward.Any unsolvable problems should be dealt with by professionals.Disconnect the light fixture before maintaining it.

1. Light bulb is not on

Check that the voltage that matches the light fixture is installed;

Check whether the lamp supply power connection or control switch is in bad contact;

Check if the power supply is insufficient;

Check that the DMX512 controller is sending instructions.

2. The light fixture does not accept control from the console after normal reset

Check luminaire digital start address value and function options are correct;

Check whether the connection of communication control line is correct, the communication line is too long or has been interrupted;

Check whether the control equipment is invalid, check whether the serial access signal amplifier is invalid;

Check whether the communication line is too long or other equipment interferes with each other;

Optimize wiring, shorten the length of control signal lines, high voltage and low voltage lines separate wiring

Add signal amplifiers;

Signal line using high-quality shielded twisted pair wire;

Connect the signal terminal resistor (120 ohm) at the end of the lamp.

3. Luminaire does not start

Check that the power supply parameters are consistent with the lamp;

Check the poor contact caused by extrusion deformation, vibration and moisture of internal parts in the long distance transportation process or fall off.

Please check whether the internal wire integration connector of the lamp has fallen off or loosened.

Check whether the electronic components of the lamp (such as electronic transformer, PCB board, motor control board, etc.) are loose, short circuit and burned out.

4. When working, the action of the X or Y axis of the lamp is not normal
Follow the previous step to check them one by one;

Check whether the transmission belt corresponding to the X and Y axis directions in the lamp falls off and breaks;

Check whether the data feedback receiver (optocoupler)

corresponding to the X and Y directions in the lamp is damaged;

Restart the machine and reset it once.

Setup:

Options	Instructions
Running Mode	DMX	Slave state: Receives DMX signals from the console or mainframe
	Bootstrapping	Host state: Self-actuated and sends DMX signal to slave
	Voice Control	Host state: Self-actuated and sends DMX signal to slave
DMX Address	1-512	Press "OK" to enter editing mode.At this point, the hundreds digit is selected, and press the "up" and "down" keys to change the address code.Press the "OK" key again to select the tens edit.Press "OK" once more to select the ones edit.Press again to exit the editing state
Motor Reset	off
Motor Reset	on	Light fixture reset
Channel mode	24CH	24 channel mode
Language	Chinese	Set to the Chinese interface
Language	English	Set to the English interface
Screen Flip	off	Front display
Screen Flip	on	Screen reverse display
X Inversion	off
X Inversion	on
Y-reverse	off
Y-reverse	on
XY Swap	off
XY Swap	on	Channel for switching XY axes (including trims)
XY Encoder	on	Use an encoder (optocoupler) to judge out of step and automatically correct the position
XY Encoder	off	Correct the position without using an encoder (optocoupler)
DMX Signal	Hold	Continue running in its original state
DMX Signal	Clear Zero	Turn the motor back and stop running
The color wheel changes linearly	on	The color wheel changes linearly
The color wheel changes linearly	off	Color wheel nonlinear change, half color change
Restore Default Settings		When you see the confirmation dialog after pressing "OK", press "OK" again to restore the default Settings

Installation:

Light fixtures can be placed horizontally, slanted, and hung upside down. Be sure to pay attention to the installation method when hanging diagonally and upside down.

As shown in Figure 2, before positioning the lamp, it is necessary to ensure the stability of the installation site. When installing the reverse hanging, it is necessary to ensure that the lamp does not fall down on the support frame. It is necessary to use the safety rope through the support frame and the lamp handle for auxiliary hanging to ensure safety. Prevent the

luminaire from falling and sliding.

When installing and debugging the lamps, it is forbidden for pedestrians to pass under them. Regularly check whether the safety rope is worn and whether the hook screws are loose.

Our company does not assume any responsibility for all consequences caused by the fall of the lamp due to the unstable installation of the hanging.

CONTROL PANEL

The following takes "Modify DMX address code" as an example to describe the use of keys:

1. If the current is not the main interface, press the "left" key (one or more times) to return to

the main interface

2. In the home screen, press the "up" key or "down" key to select the "Settings" button

3. Press the "OK" key to enter the "Settings" interface

4. In the "Settings" interface, press the "up" key or "down" key to select "DMX address"

5. Press the "OK" key to enter the editing state

6. Press the "up" key or "down" key to modify the DMX address code

7. Press the "OK" key to exit the editing state

Applications:

Moving head lights are versatile lighting fixtures used in stage productions, concerts, nightclubs, and other entertainment events. They consist of motorized heads that can move horizontally and vertically to direct light beams. They are used to illuminate performers, create dynamic lighting effects, and enhance visual displays.

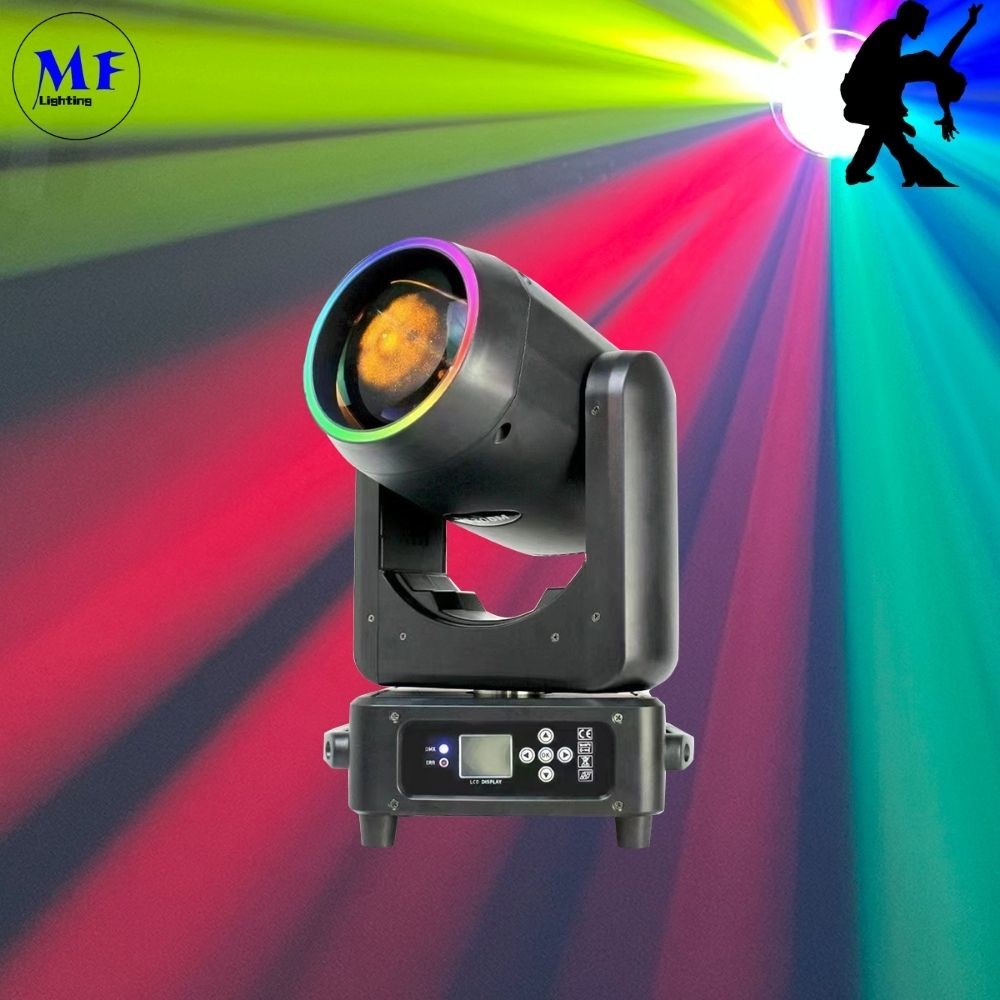

Overheat Protection DMX512 200W IP20 Sharpy Beam Stage Lighting LED Moving Head Light 2

Packing:

Product Name	Quantity
Moving Head Light	1 PCS
Power-line	1 BASE
User Manual	1 PCS

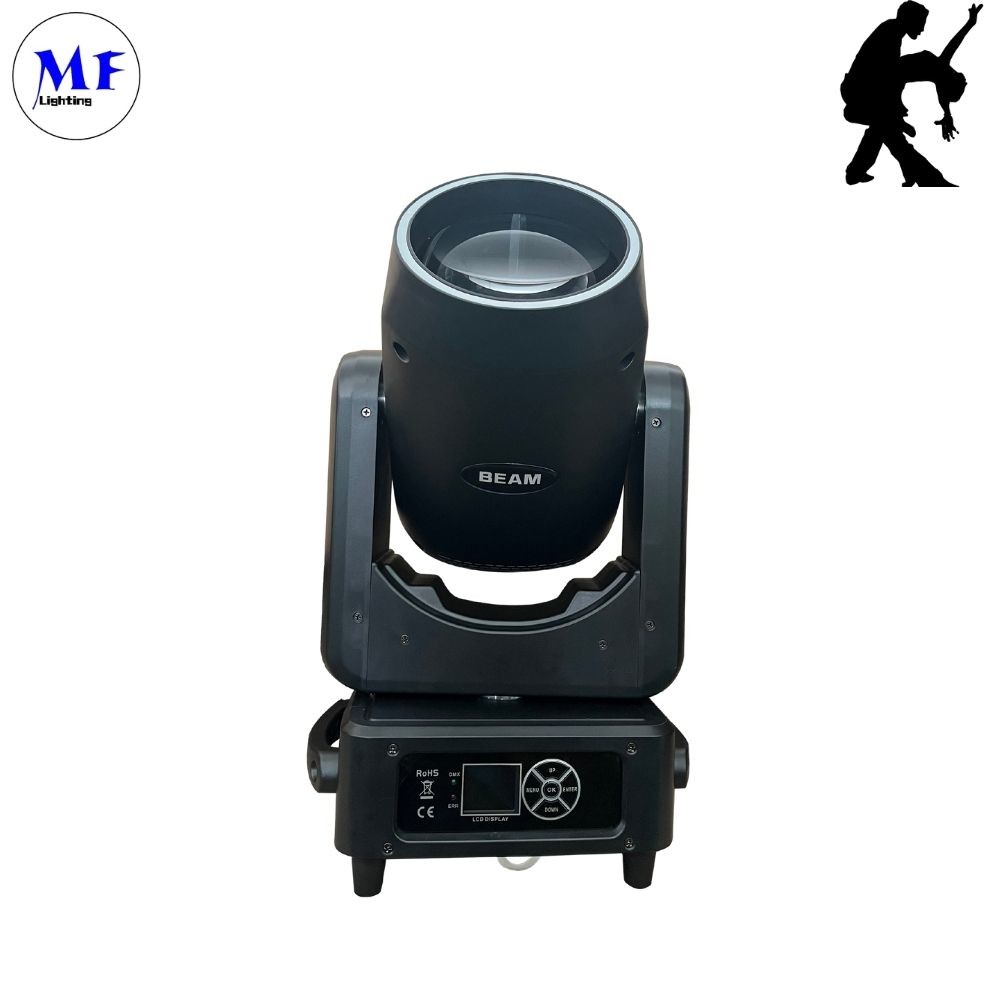

Overheat Protection DMX512 200W IP20 Sharpy Beam Stage Lighting LED Moving Head Light 3

FAQ:

Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
