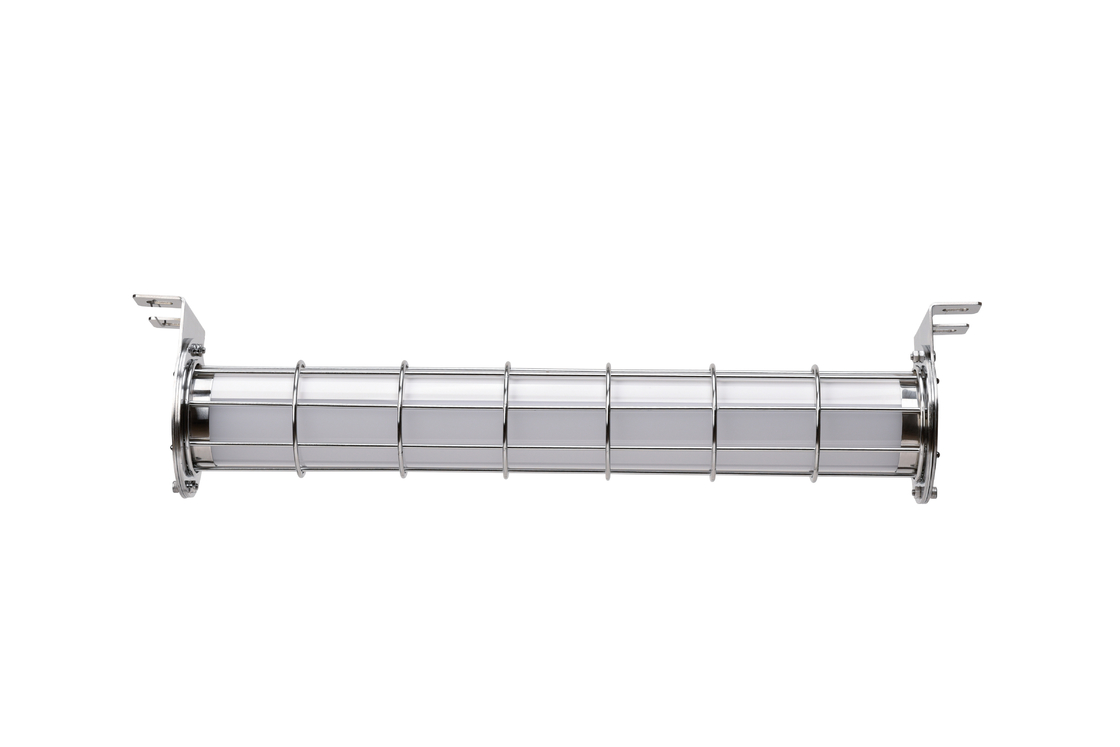

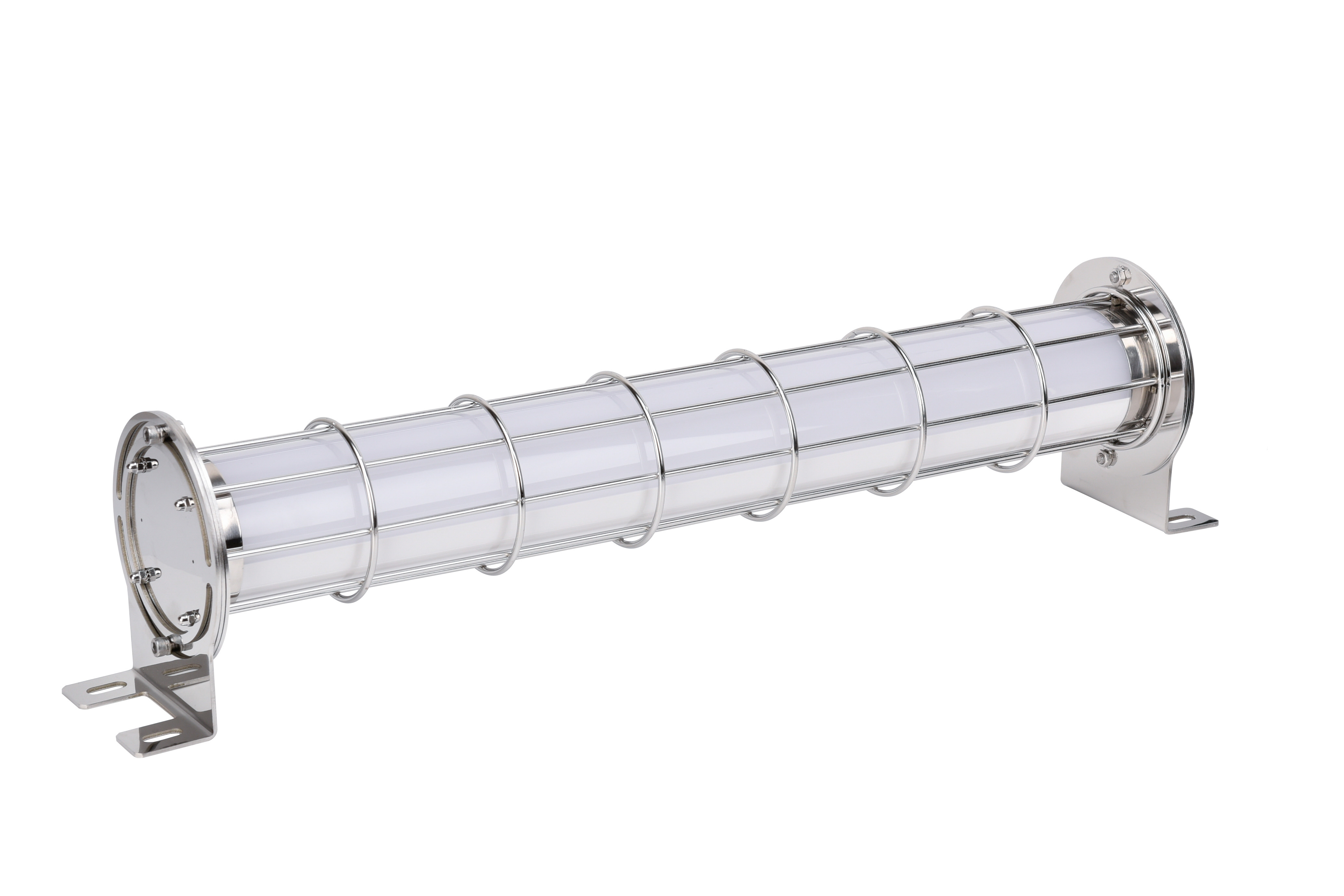

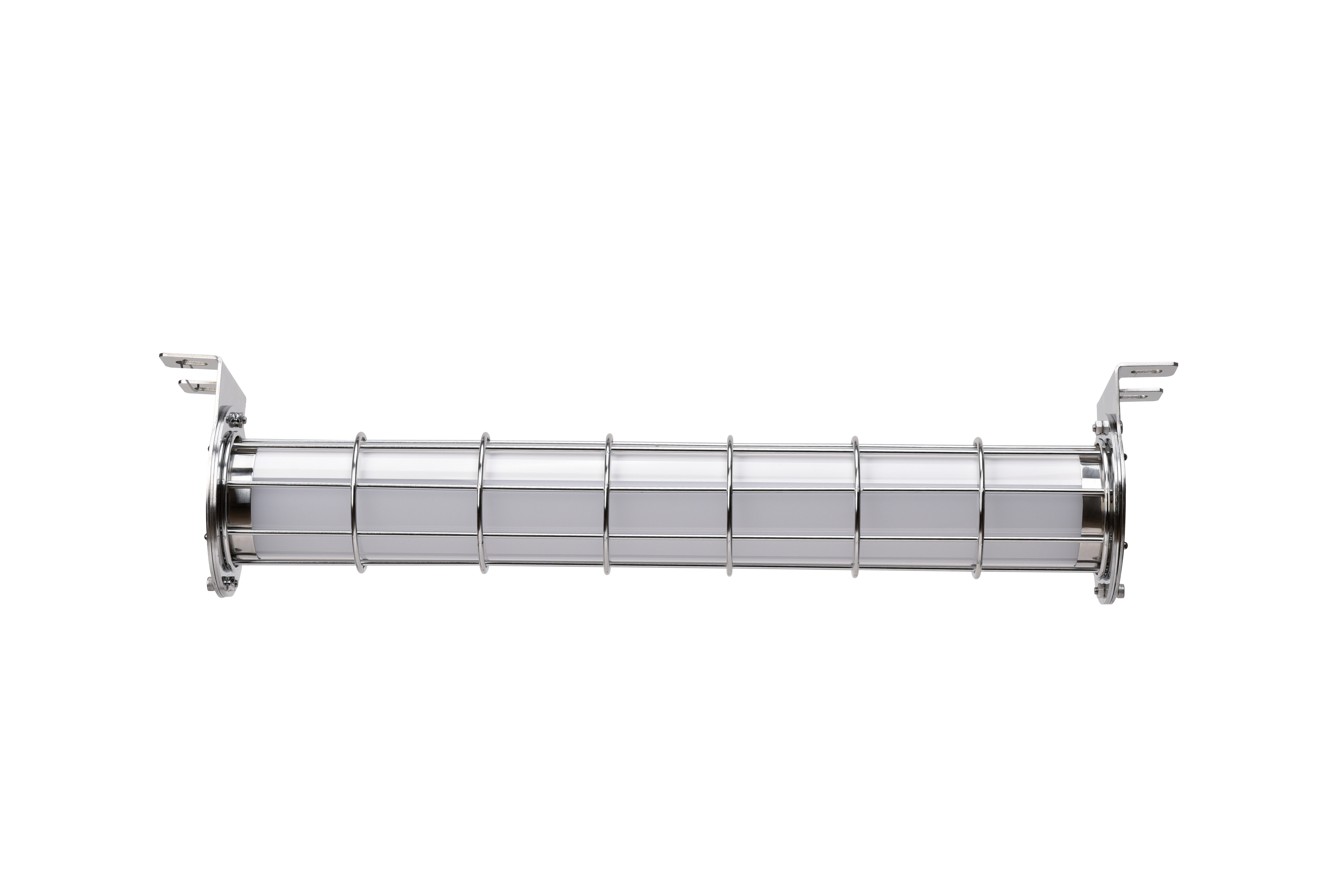

Zone 2 Atex LED Explosion-Proof Light Gas Station Industrial Platform Lighting
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
| Minimum Order Quantity : | 100PCS | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 39.5*39.5*20.8cm/1pcs, G.W: 9.5Kg | Delivery Time : | Depends on orders |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 5,000pcs/Month |
| Place of Origin: | China | Brand Name: | MF |
|---|---|---|---|
| Certification: | CE,RoHS,UL,DLC | Model Number: | MF-ESO1 |
|
Detail Information |
|||
| System Power: | 160±5W | Input Voltage: | 120-277Vac,50/60Hz |
|---|---|---|---|
| Efficiency: | 120lm/w | CRI: | >80 |
| PF: | >0.90 | IP Grade: | IP67 |
| Mounted Style: | Recessed /Surface/Pendant | THD: | <15% |
| Impact Protection: | IK10 | Explosion Proof: | Yes |
| High Light: | CE LED Explosion Proof Lighting,40W Explosion Proof Lamps |
||
Product Description
● Anti-surge & lightning strikes up to 2KV, and withstand 3.5KV high voltage
● Luminous Efficiency:120LM/W
● LED Type: Samsung, High lumen efficacy SMD2835 led chips
●Beam Angle:180°
● LED Driver: JUSIN, 88% efficiency,flicker free,THD<15
● LED Driver Output: DC36-42V
● Function: Non-Dimmable
● Input voltage 120-277v AC universal voltage, 1.5m power cord with 3-pin plug
● CRI:80Ra
● IP67 & IK10
● Working Temperature:-30~50℃
● 5 years warrant
Product Description:
Specifications:
|
Item |
MF-ES01 |
|
Input voltage |
120-277Vac 50Hz/60Hz |
|
LED Power |
20W/40W |
|
Luminaire Efficiency |
120lm/W |
|
Delivered Flux(Tj80°c) |
17600 lm |
|
IP Rating |
IP66 |
|
LED QTY |
120 pcs |
|
Color temperature |
3000K-6500K |
|
Function |
Non-Dimmable |
|
LED Driver |
Meanwell |
|
Color Rendering Index |
Ra>80 |
|
Power Factor |
>0.94 |
|
Lifespan |
≥50,000hrs |
|
Operation Environment |
Temperature:-30°C~50°C/Humidity:10%~95% |
|
Material |
Aluminum Alloy |
|
Product Size(mm) |
685(L)*130(W)*155(H)/ 1285(L)*130(W)*155(H) |
|
Net Weight |
3Kg/4.3Kg |
|
Certificate |
CE/RoHS |
|
Warranty Period |
5 years |
Dimensions(mm)&Parameters:
Installation:
Step 1: Drill 4 holes according to the hole of the light holder.
Step 2: Install expansion screw into mounting hole.
Step 3: Lock nut to fix the light.
Step 4: Adjust the angle of light, fix the rotating bracket (Screw torque:2.5N/m) and plug in.
Package:
Applications:
LED explosion-proof lights are suitable for applications in hazardous environments, such as oil refineries, chemical plants, and offshore drilling rigs. They are specifically designed to withstand explosive gases, dust, and flammable liquids, making them an essential safety measure in these areas. The high-quality LED bulbs provide bright and long-lasting illumination, reducing the need for frequent maintenance and replacement. LED explosion-proof lights are an excellent choice for ensuring the safety of workers and equipment in high-risk locations.
