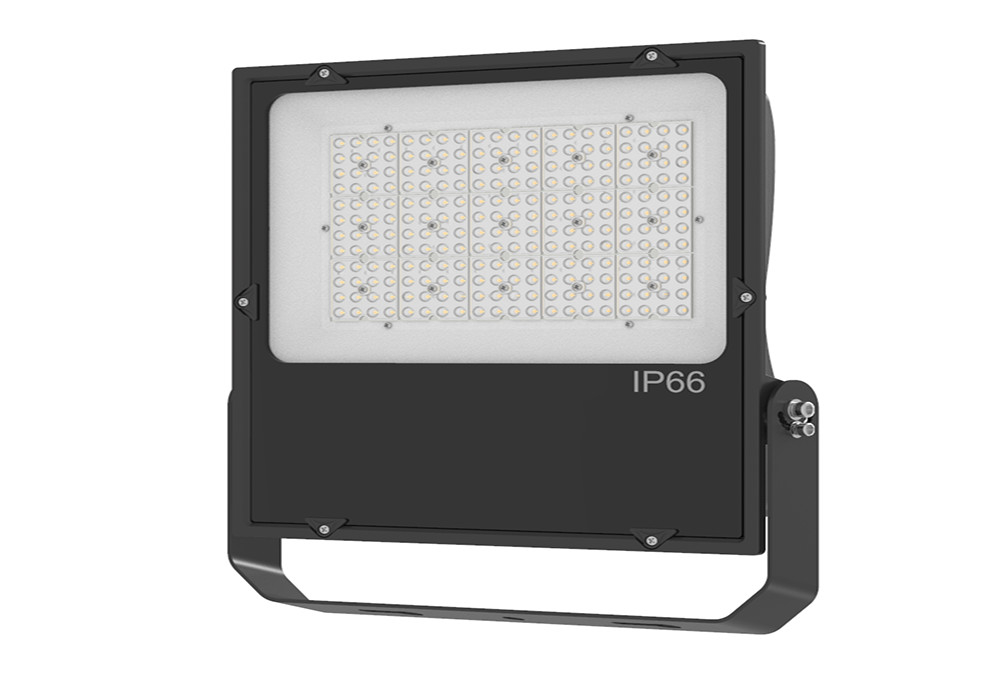

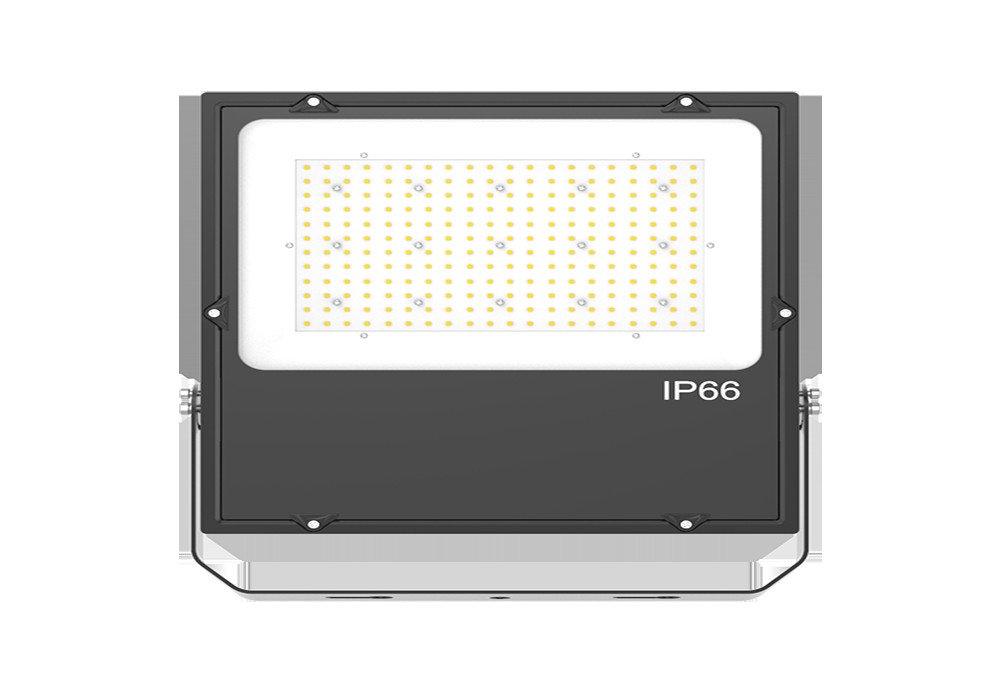

6500K 80Ra Led Flood Lights Outdoor High Power Ip66 Ik08 Warehouses 130LM/W

Contact Now

6500K 80Ra Led Flood Lights Outdoor High Power Ip66 Ik08 Warehouses 130LM/W

Minimum Order Quantity :	1pcs	Price :	Ex-work/FOB price
Packaging Details :	485(L)X 450(W)X 170(H)/1PCS/CTN , N.W: 7.4Kg ,G.W: 8.2KG	Delivery Time :	2 weeks
Payment Terms :	T/T, Western Union, Paypal	Supply Ability :	1000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE,RoHS	Model Number:	MF-FLA-YWTXX

Detail Information
Input Voltage:	AC100-277V	Power:	20W - 400W Available
Luminous Efficiency:	130LM/W	IP Rating:	IP66
CCT:	3000K/4000K/5000K/6500K	Beam Angel:	30 °/30*90°/ 60 °/90°/120°/Type-Ⅲ
Driver:	Mean Well	LED Origin:	Lumileds 3030
Body Color:	Black	Housing:	Powder Coated Aluminium Alloy
High Light:	Aluminium Alloy High Power Floodlights , High Power Ip66 Led Flood Lights , High Power Floodlights 130LM/W

Product Description

80Ra Led Flood Lights Outdoor High Power Ip66 Ik08 Long Life Span Manufacture Warehouses

Specification :

Product Name	MF-FLA-YWTXX
Power	20W - 400W available
Input Voltage	AC100-277V 50/60Hz
IP Rating	IP66
Luminous Flux	130LM/W
CCT	3000K/4000K/5000K/6500K
CRI	Ra=/>80
Body color	Black
Beam Angle	30 °/30*90°/ 60 °/90°/120°/Type-Ⅲ
Fixture Material	Powder Coated Aluminium Alloy
Surge Protection	4KV/10KV
Dimmable Options	0-10v, Dali, Sensor, LoRa, Zhaga
Power Supply	Mean Well
LED Type	Lumileds 3030
Operating Temperature	-40°C to 50°C
Lifespan	>50,000
System Efficiency	>90%
THD	<8%
Weight	0.8-10.8kg
Warranty	5 years

Main Feature :

IP66 waterproof/dust proof/explosion proof/IK08
Pure Aluminum shape good at heat dissipation
Angle Bracket,easy to install by drill
Easy replacement and installation
100,000 times switching cycle before failure
Total harmonic distortion(THD)<15%

6500K 80Ra Led Flood Lights Outdoor High Power Ip66 Ik08 Warehouses 130LM/W 0

Product Dimension

6500K 80Ra Led Flood Lights Outdoor High Power Ip66 Ik08 Warehouses 130LM/W 2

Mounting hole size

6500K 80Ra Led Flood Lights Outdoor High Power Ip66 Ik08 Warehouses 130LM/W 4
Installation

For Example

6500K 80Ra Led Flood Lights Outdoor High Power Ip66 Ik08 Warehouses 130LM/W 7

6500K 80Ra Led Flood Lights Outdoor High Power Ip66 Ik08 Warehouses 130LM/W 8

A. Place the lamp in the corresponding mountin

position, align the mounting hole, insert the screw, B. Tighten the screw with a wrench and adjust the lighting angle

C.Connect input cord and keep waterproof.

D. When finish above A, B, and C , pls turn on for test, 6500K 80Ra Led Flood Lights Outdoor High Power Ip66 Ik08 Warehouses 130LM/W 10

If light isn’t turn on, pls check the related wiring .

If it is still not resolved, contact your local sales agent.

Packaging:

6500K 80Ra Led Flood Lights Outdoor High Power Ip66 Ik08 Warehouses 130LM/W 11

Applications :
• Indoor & outdoor flood, security and task lighting including heavy industry, mining, coolrooms, storage areas, loading bays, yards,perimeters,sporting fields, and carparks;
• Architectural illumination, museums;
• Advertising billboards and signage on walls.
