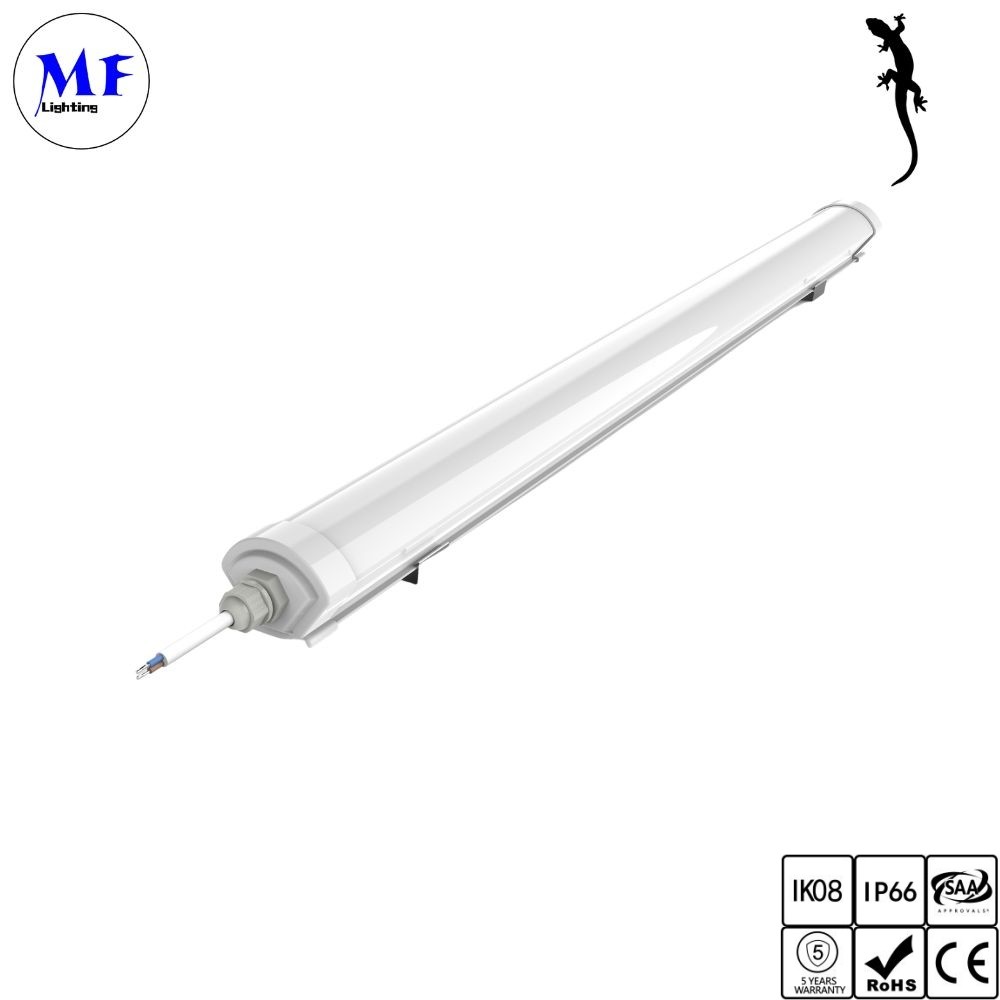

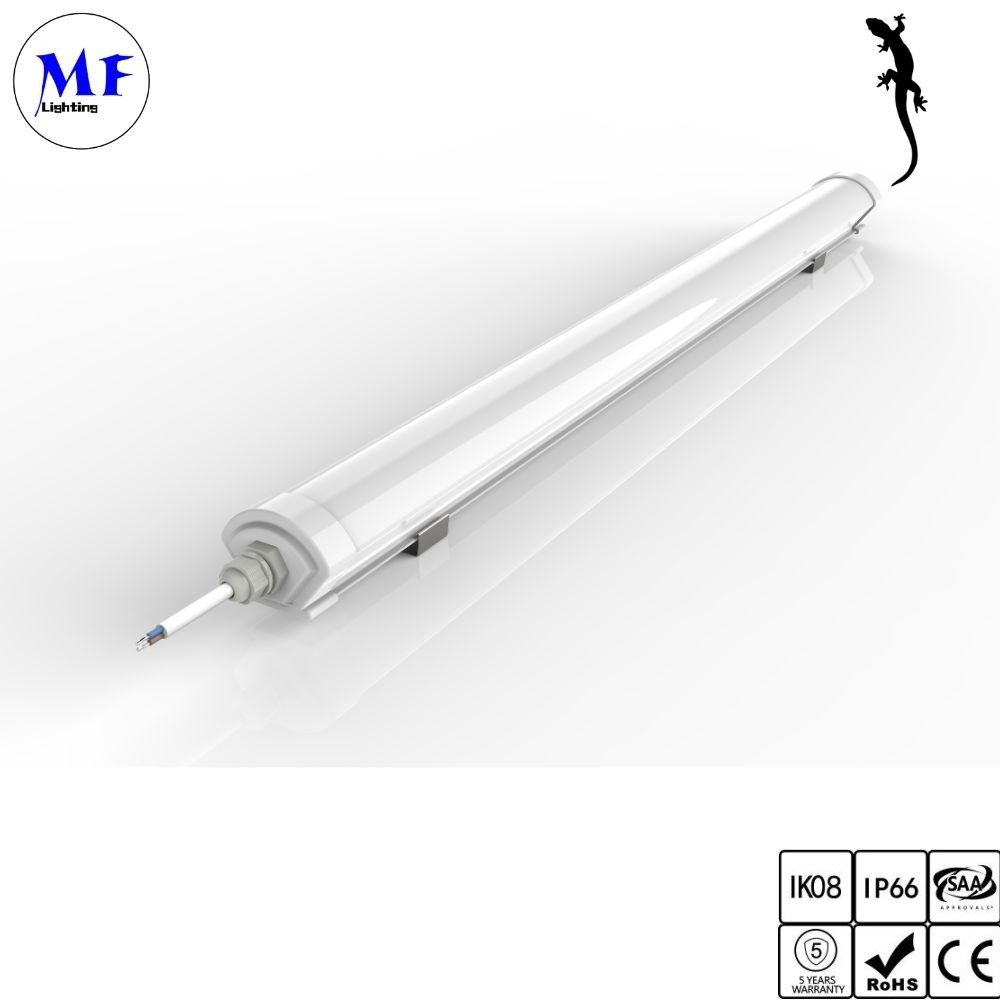

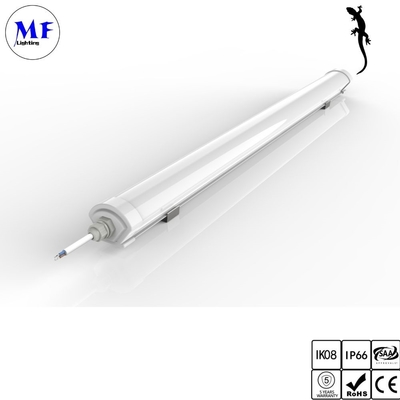

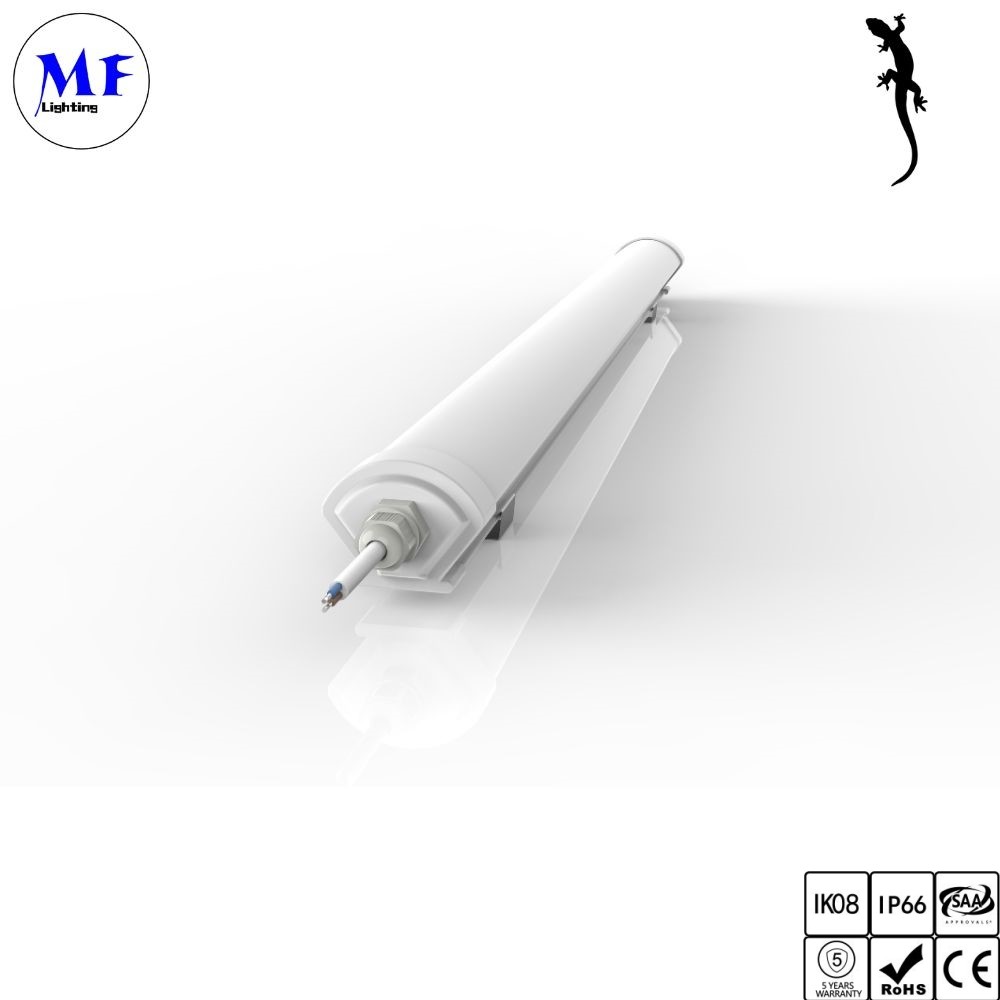

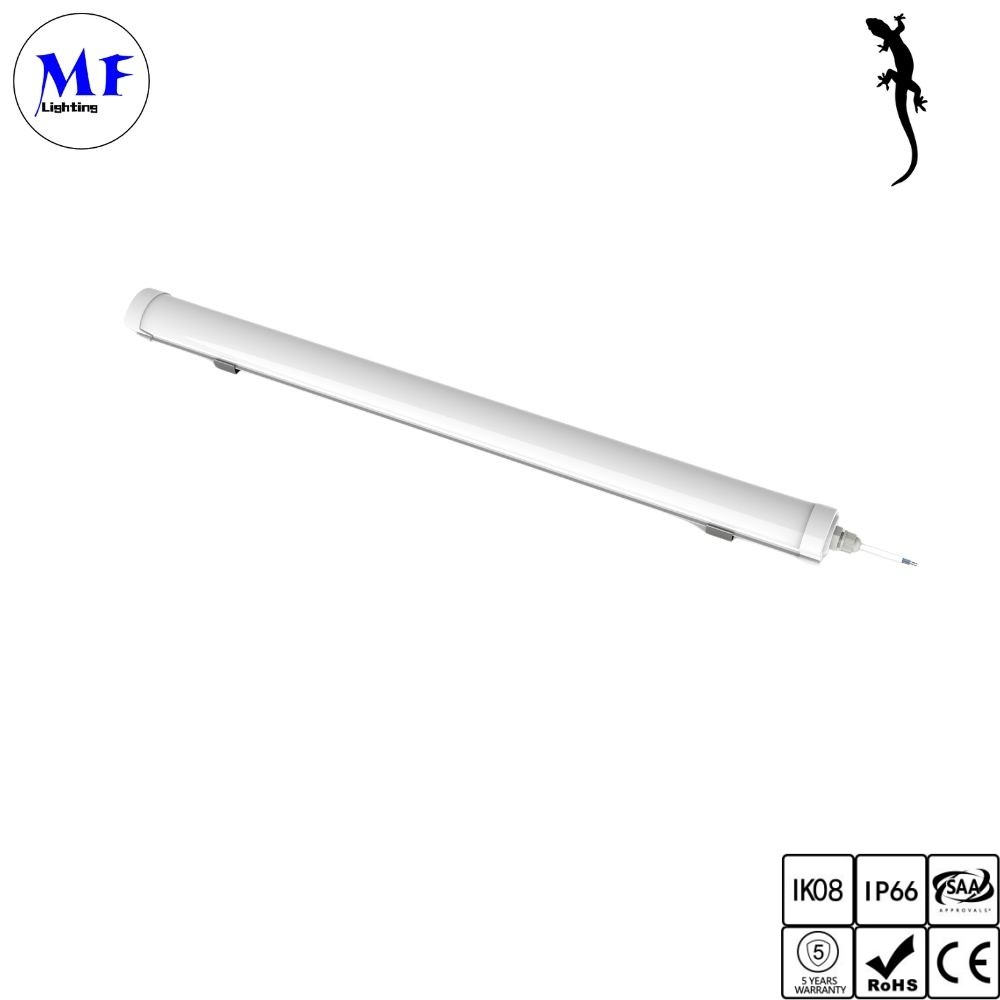

High Lumen LED Tri Proof Light 2FT 4FT 5FT AC100-277V For Shopping Mall

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA Model Number: MF-Gecco 2

Detail Information

Lenth: 2FT/4FT/5FT Input: AC100-277V
Power: 18W/36W/50W CCT: 3000K/4000K/5000K/6000K
Switch: CCT&Power Warranty: 5years
Operating Temperature: -20~+40°C Storage Temperature: -40~+85°C
PF: >0.9 Power Efficiency: 0.9
Lumen Efficiency: 180lm/W-200lm/W
High Light:

High Lumen LED Tri Proof Light

,

5FT Tri Proof LED Light

,

AC100V Tri Proof LED Light

Product Description

High Lumen LED Tri Proof Light 180lm/W 2FT 4FT 5FT AC100-277V For Supermarket Store Shopping Mall
High Lumen LED Tri Proof Light 2FT 4FT 5FT AC100-277V For Shopping Mall 0



  1. The appearance is simple and generous, light, small size, large luminous surface..
  2. It is made of import fireproof PC material, which is more safe and reliable
  3. High thermal conductivity aluminum pcb, small size, high power.
  4. The standard configuration is 2*.05 square wires, which can be used safely without worrying about the problem of excessive current
  5. It can be installed on the ceiling and is suitable for different environments
  6. Pass the EMC driver ,Waterproof IP66



High Lumen LED Tri Proof Light 2FT 4FT 5FT AC100-277V For Shopping Mall 1Temperature Characteristics T-ambient 25 C
Temperature
Operating -20~+40 ºC
Storage -40~+85 ºC

Electrical Characteristics
Input Voltage: AC100~277V 50/60Hz
PF:≥0.9 Color Temperature 3000K-6500K(3 CCT adjustable)
Power Efficiency:≥0.9

High Lumen LED Tri Proof Light 2FT 4FT 5FT AC100-277V For Shopping Mall 2
High Lumen LED Tri Proof Light 2FT 4FT 5FT AC100-277V For Shopping Mall 3

Part Number Power(w) Light Source LED QTY (pcs) Lm/W CRI Beam Angle
MF-LIO6H18W-GC2 18 2835 120 130 >80 180
MF-LI12H36W-GC2 36 2835 240 150
MF-LI15H50W-GC2 50 2835 336 180




High Lumen LED Tri Proof Light 2FT 4FT 5FT AC100-277V For Shopping Mall 4





Model A (mm) B(mm) c(mm) D(mm) Tolerance
MF-LI06H18W-GC2 600 47 38 300 ±3
MF-LI12H36W-GC2 1200 ±3
MF-LI15H50W-GC2 1500 ±3




High Lumen LED Tri Proof Light 2FT 4FT 5FT AC100-277V For Shopping Mall 5

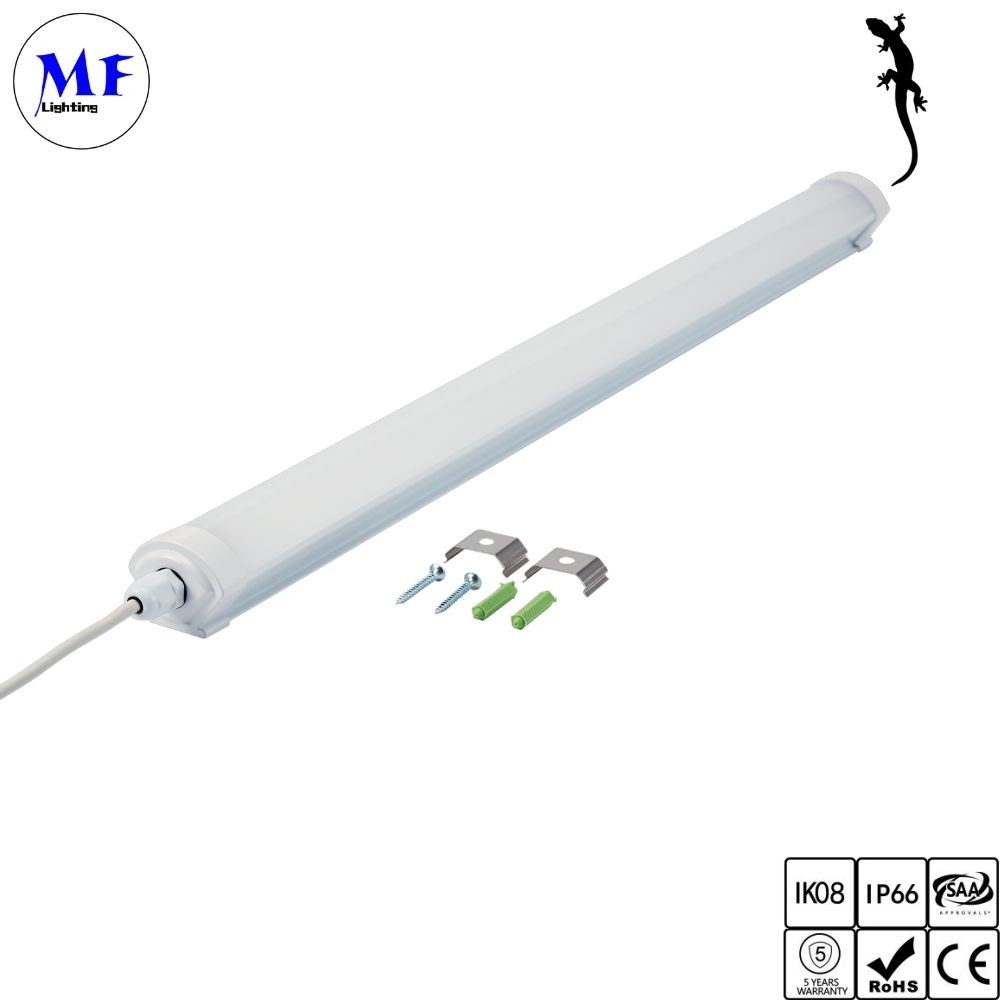

Installation:



A:Make a right position and screw hole
B:Screw the clip on the ceiling tightly
C:Install the lamp into the clips
D:Connection AC diagram after installed

High Lumen LED Tri Proof Light 2FT 4FT 5FT AC100-277V For Shopping Mall 6

High Lumen LED Tri Proof Light 2FT 4FT 5FT AC100-277V For Shopping Mall 7

LED Tri Proof Light is a versatile lighting solution that can be used in a wide range of applications. Its durable construction and resistance to water, dust, and shock make it an ideal choice for outdoor environments such as parking lots, warehouses, and loading docks. It can also be used in indoor environments such as garages, workshops, and industrial plants. LED Tri Proof Light can be customized to meet specific lighting needs, providing high-quality lighting that is bright, even, and flicker-free. Its energy efficiency and long lifespan make it a cost-effective lighting solution that can help reduce energy bills and maintenance costs. With its advanced features and versatile applications, LED Tri Proof Light is an excellent choice for businesses and individuals looking for reliable and high-quality lighting solutions

High Lumen LED Tri Proof Light 2FT 4FT 5FT AC100-277V For Shopping Mall 8

LED Tri-proof Lights are versatile lighting fixtures that find widespread application in various industrial and commercial environments. These durable and water-resistant lights are specifically designed to withstand challenging conditions such as dust, humidity, and water splashes. Their robust construction and reliable performance make them ideal for use in warehouses, parking garages, manufacturing facilities, and food processing plants. LED Tri-proof Lights provide bright and uniform illumination, ensuring excellent visibility and enhancing safety in areas where moisture, dust, or vibrations are present. Their energy efficiency and long lifespan make them a cost-effective lighting solution, reducing maintenance and replacement expenses. Furthermore, these lights offer flexible installation options, including surface mounting, suspension, or recessed installation, allowing for seamless integration into different settings. With their superior durability, efficiency, and versatility, LED Tri-proof Lights are an excellent choice for demanding environments that require reliable and high-quality lighting solutions.

High Lumen LED Tri Proof Light 2FT 4FT 5FT AC100-277V For Shopping Mall 9



Packing:



Model lnner box Size(mm) Carton Size(mm) Qty/CTN G.W/CTN
MF-LIO6H18W-GC2 680*53*45 700*330*295mm 35piece/Carton 8.5kg
MF-LI12H36W-GC2 1280*53*45 1300*330*295mm 35piece/Carton 18.5kg
MF-Ll15H50W-GC2 1580*53*45 1600*330*295mm 35piece/Carton 22kg

High Lumen LED Tri Proof Light 2FT 4FT 5FT AC100-277V For Shopping Mall 10

About us:





Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
