Product Description

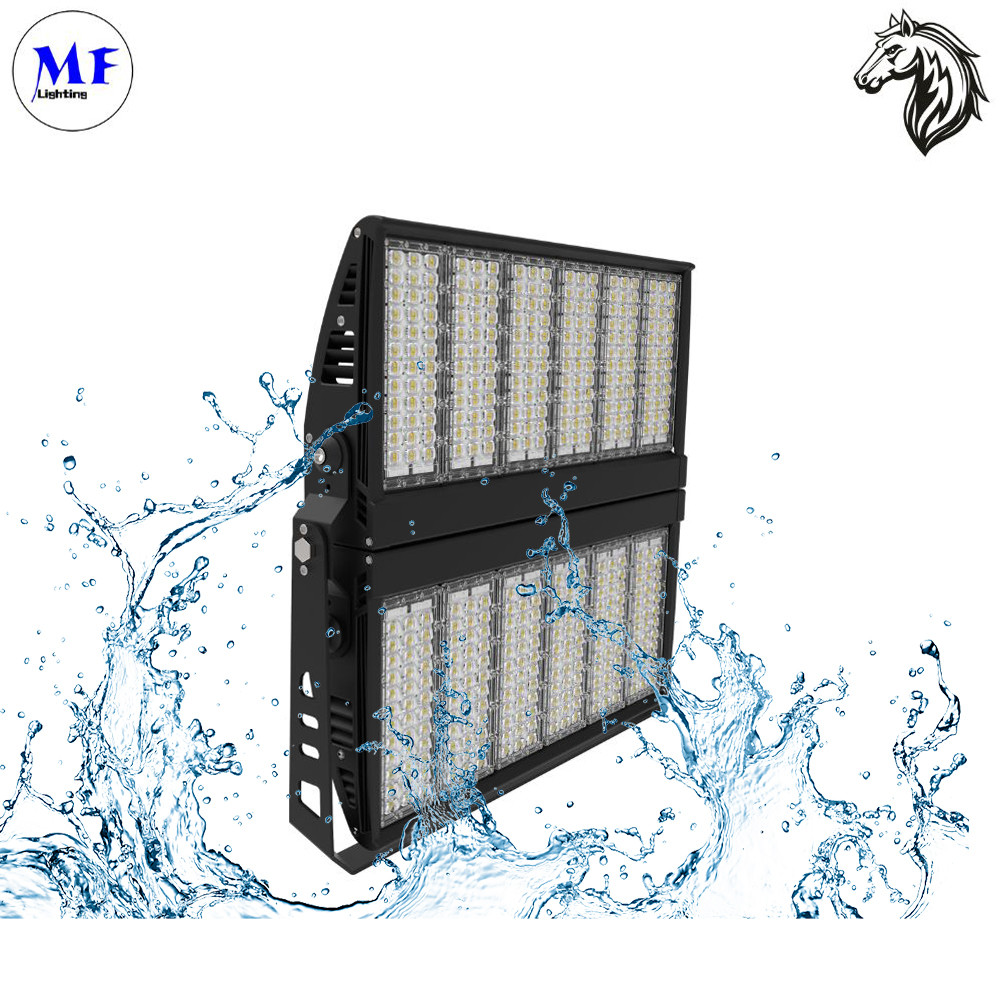

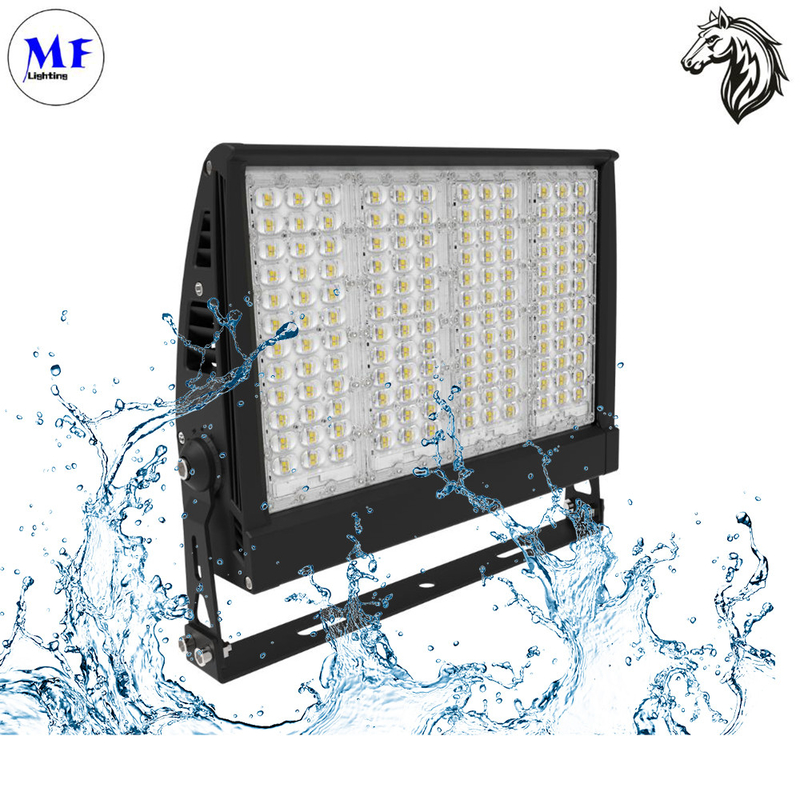

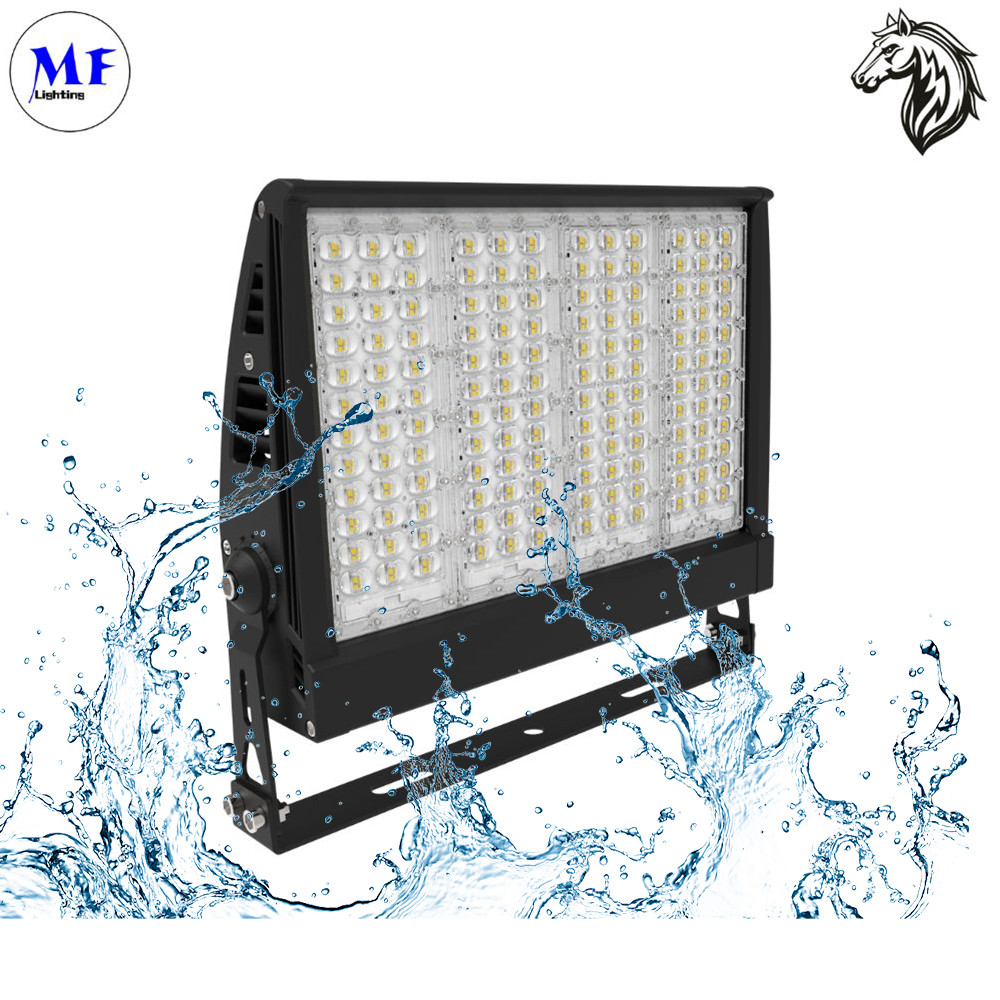

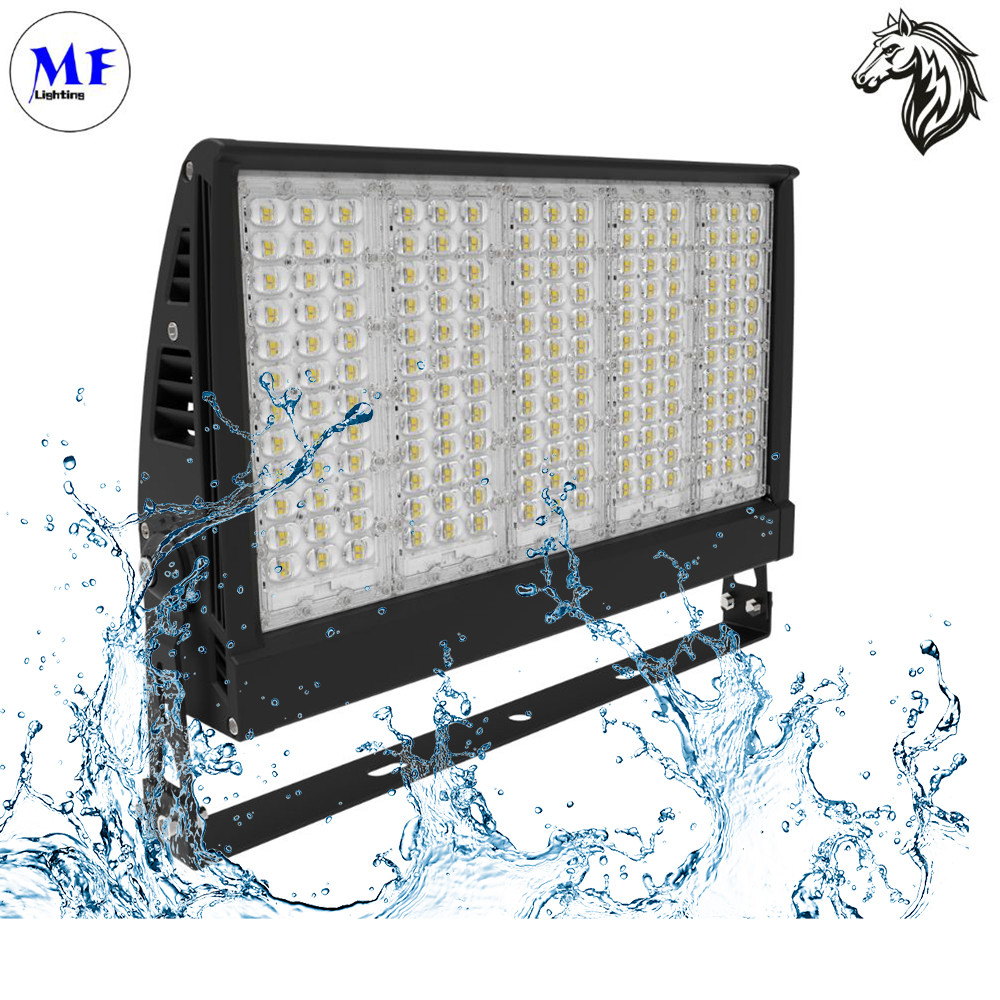

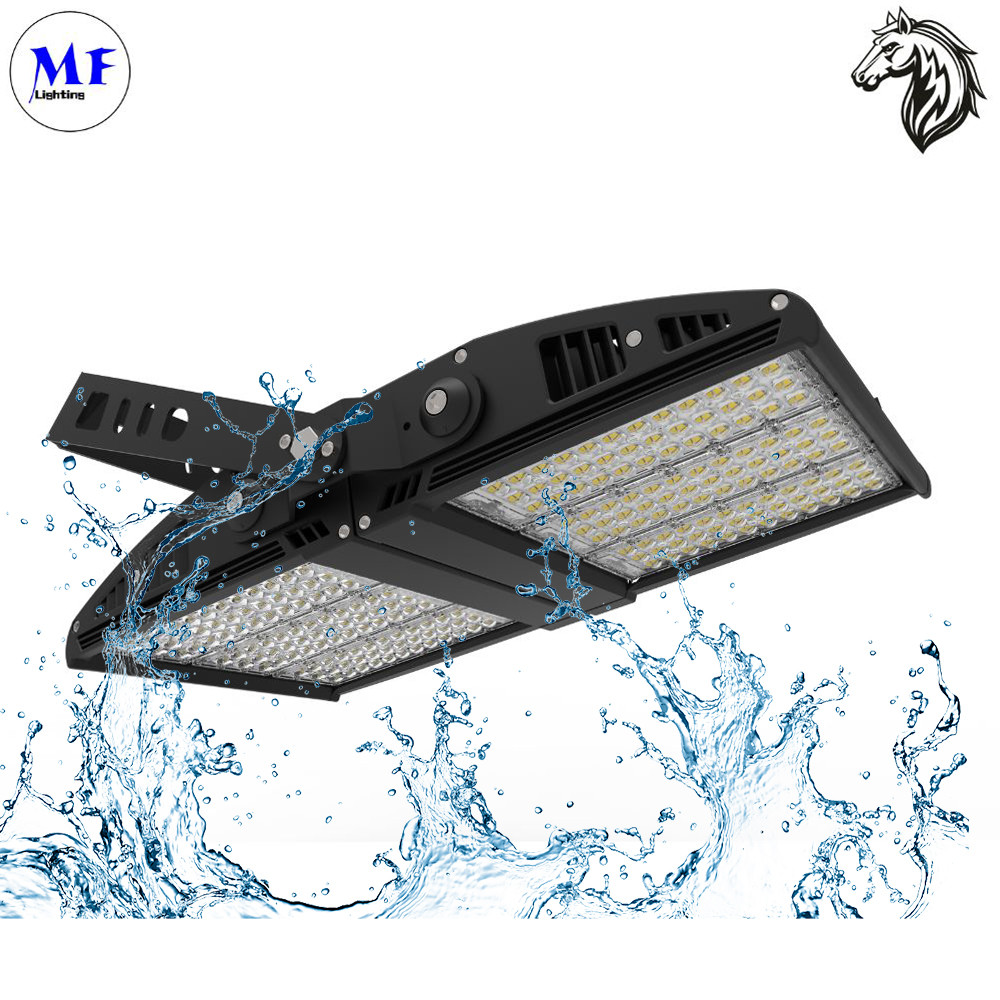

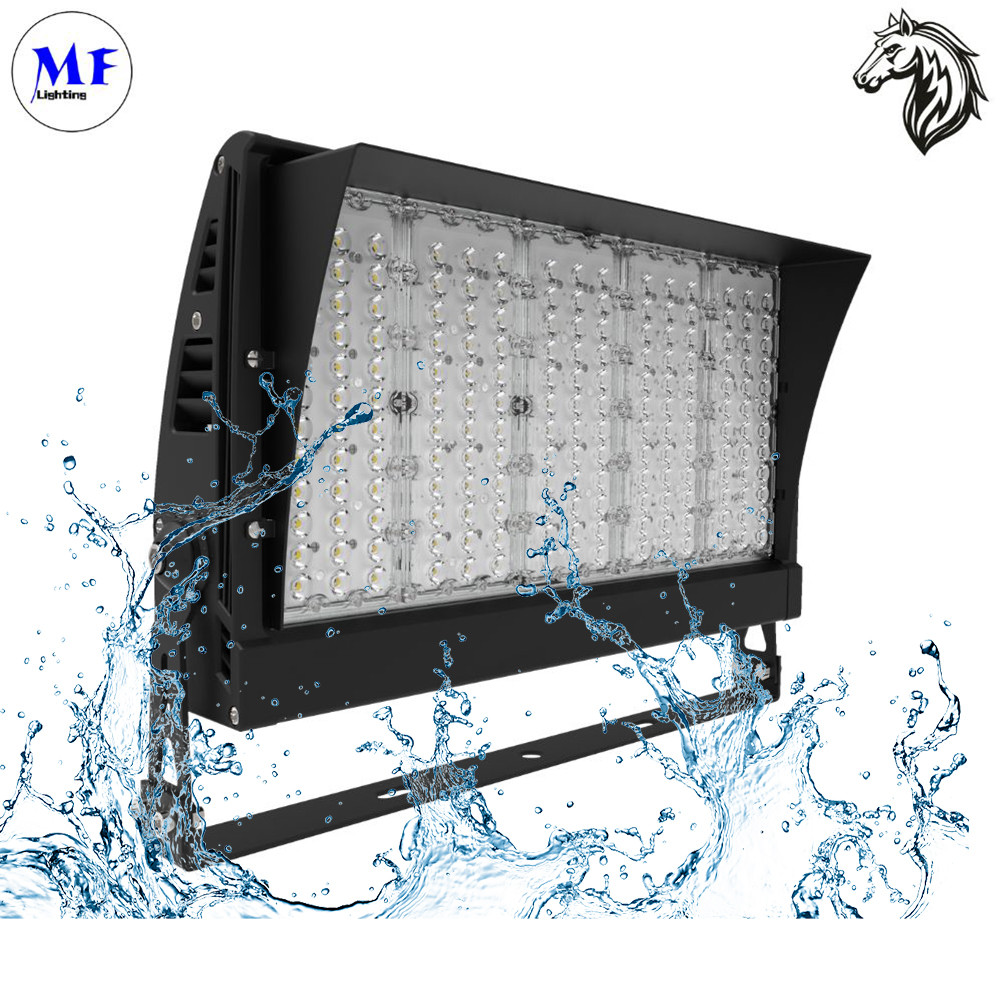

IP67 5 years warranty, free replacement. Outdoor Waterproof 1200W LED Flood Light for Arena Tennis Basebal Field Court Golf Course

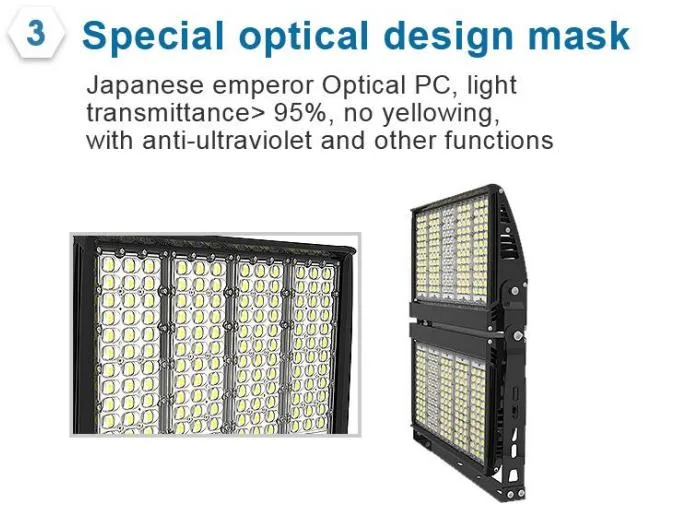

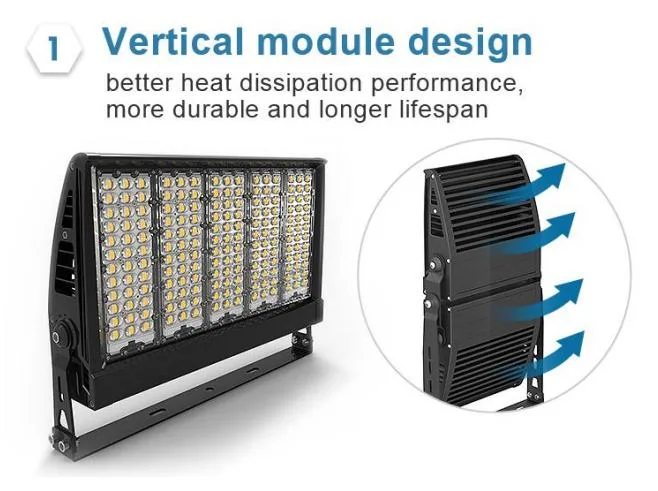

• Vertical module design, better heat dissipation performance, more durable and longer lifespan.

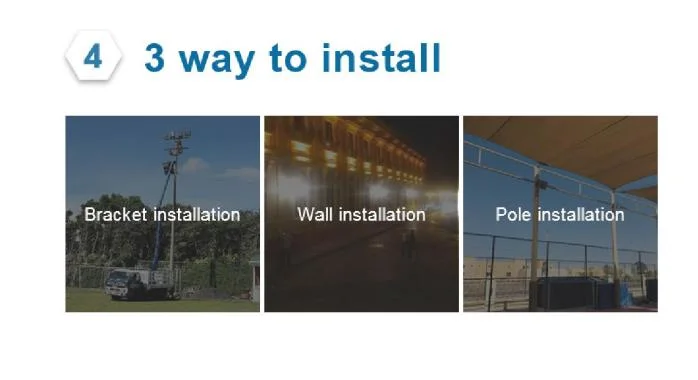

• 3 way to install : bracket installation /Pole installation / Wall installation for option.

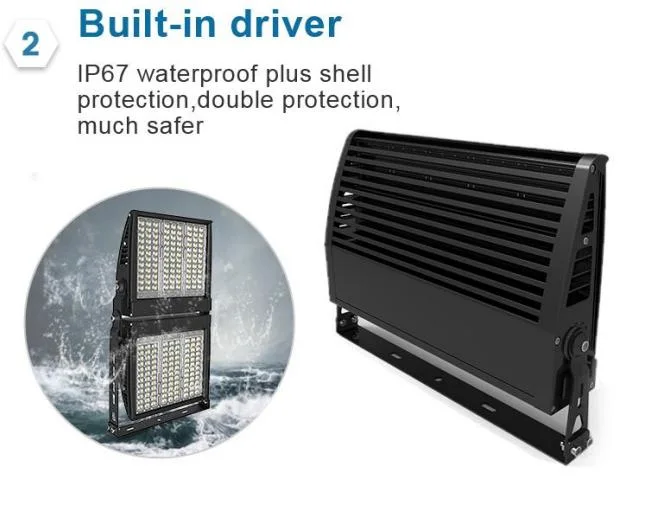

• Built-in driver, lP67 waterproof plus shell protection, double protection, much safer.

• Light uniformity, high quality No Light pollution, 1- 10V/PWM/ Triac dimming.

• Zigabee WIRELESS control is available

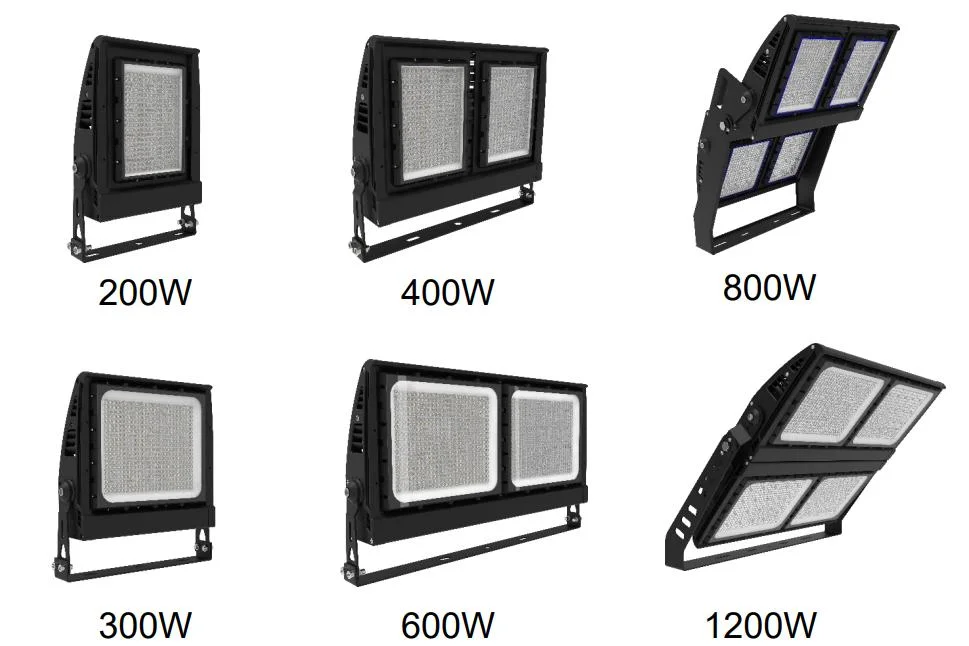

Items#	MF-S03A 200BT	MF-S03A 300BT	MF-S03A 400BT	MF-S03A 500BT	MF-S03A 600BT	MF-S03A 800BT	MF-S03A 1000BT
Wattage	200W	300W	400W	500W	600W	800W	1000W
Lumen Output LED Brand	28000LM	42000LM	56000LM	70000LM	84000LM	112000LM	140000LM

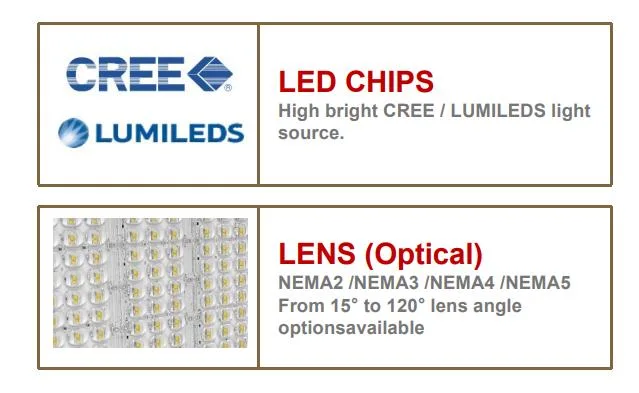

LED Brand	Lu-mileds
LED Driver	SOSEN MEAN-WELL INVENTRONICS
Luminous Efficacy	140LM/W
Beam Angle	TYPEll,TYPE I,TYPEIV,TYPE V,NEMA4,NEMA6
Color Temperature	3000K,4000K,5000K,6000K, CCT etc
Input Voltage	100-277V
CRI	70/80
Life Hours	50000H
Surge Voltage	10KV
Operation Temperature	Ta=40
IP Rating	IP65
Warranty	5years

Characteristic

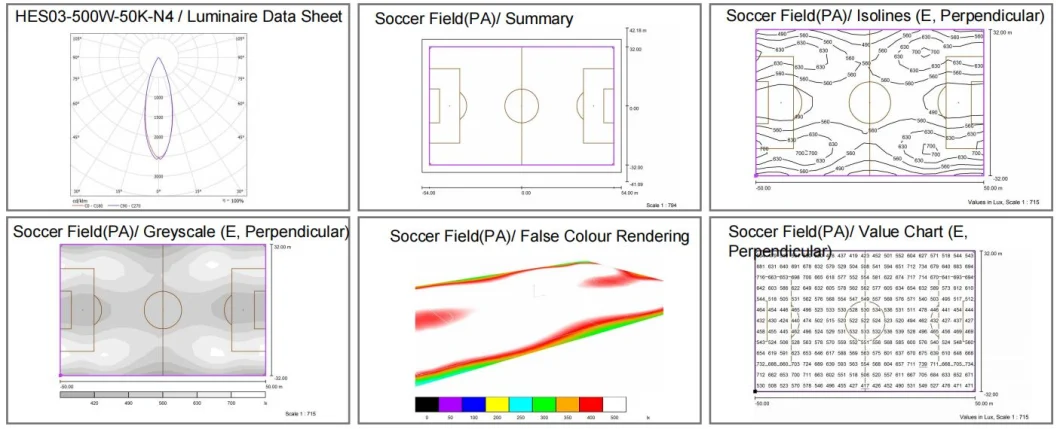

Free Dialux Lighting Design

Our experienced lighting designers can provide you professional DIAlux simulations and constructive LED lighting solutions. We know lighting standards of all applications well and we care about all of your projects. Not matter your case is big or small, we will always provide you solutions.

1.Free OEM/ODM
2.Free DIALux testing service.
3.8 years of engineering experience, for your project escort.
4.Complete certificate, CE, RoHS, ETL, FCC etc.
5.Provide a complete test report.
6.First sample test, provide complete test report and product picture before delivery
7.5 years warranty, free replacement.

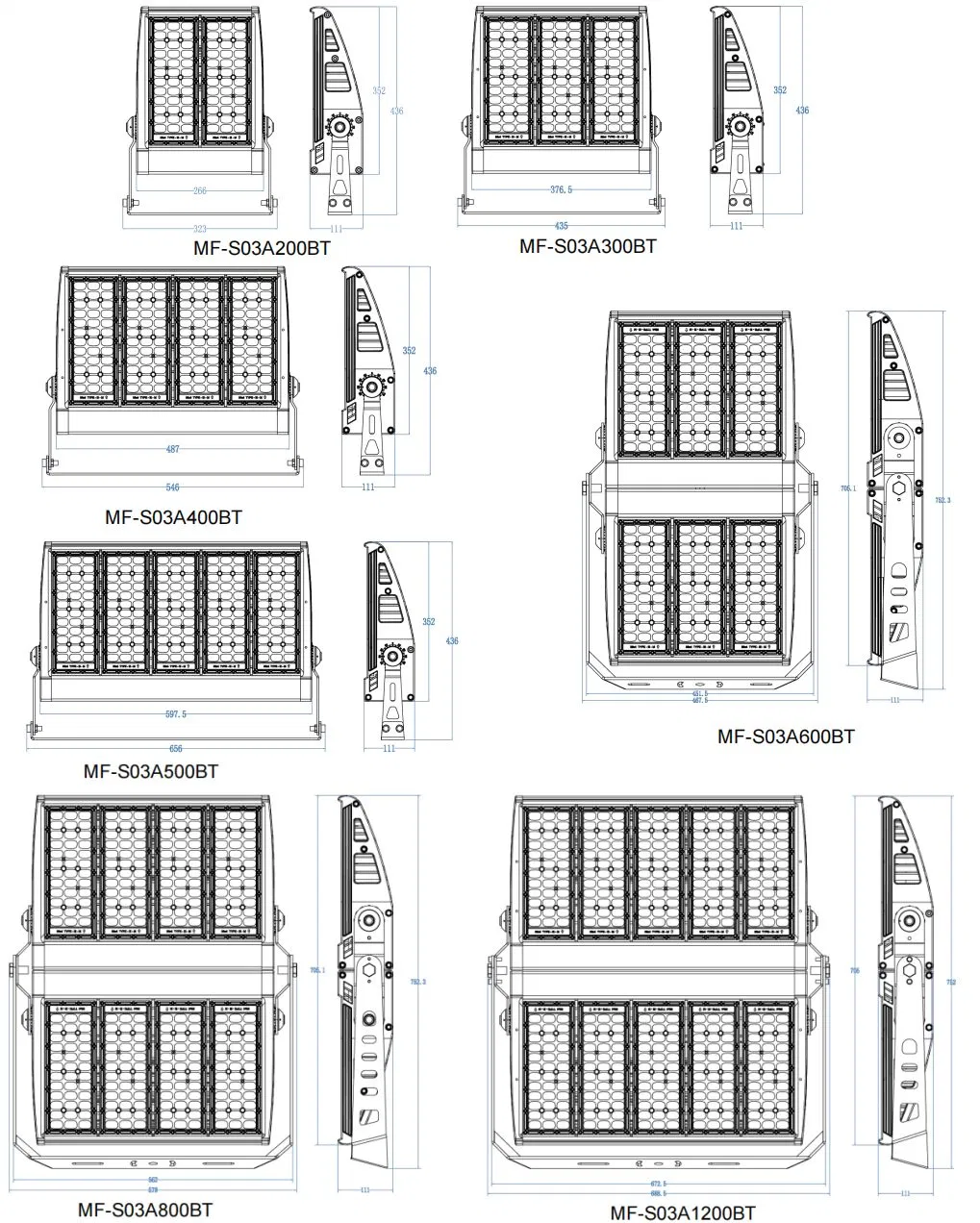

Dimension

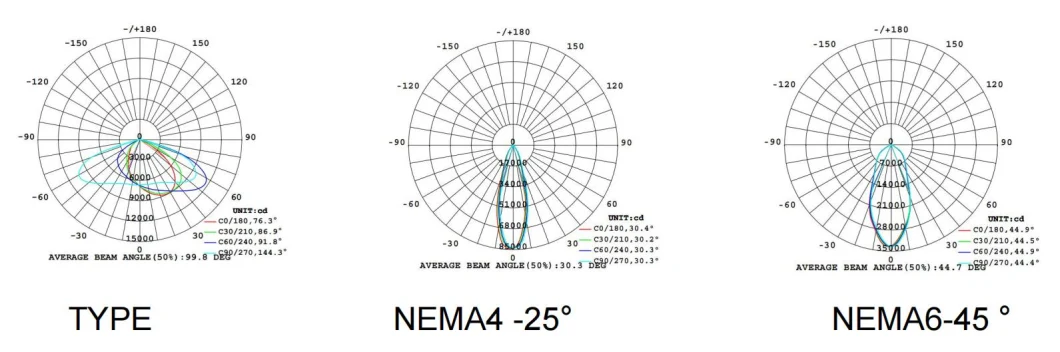

Photometry

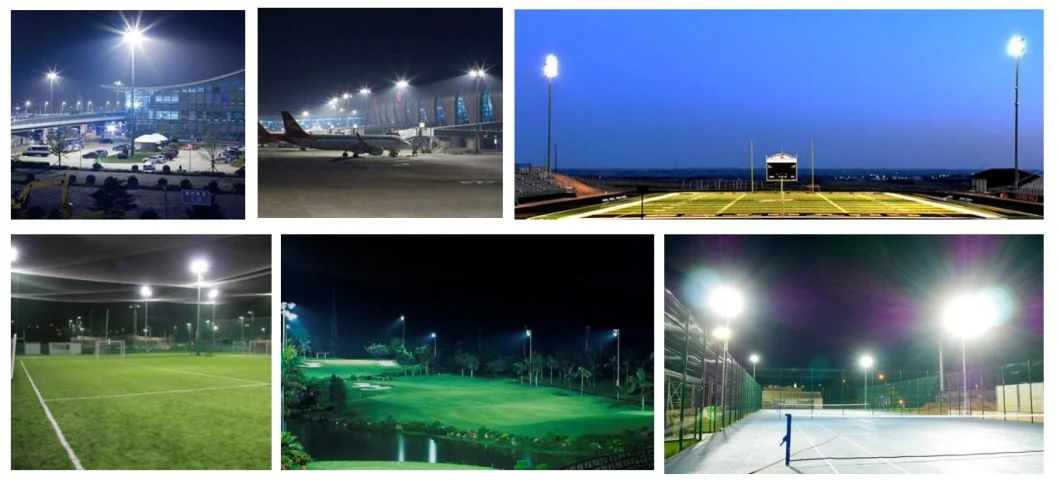

Application

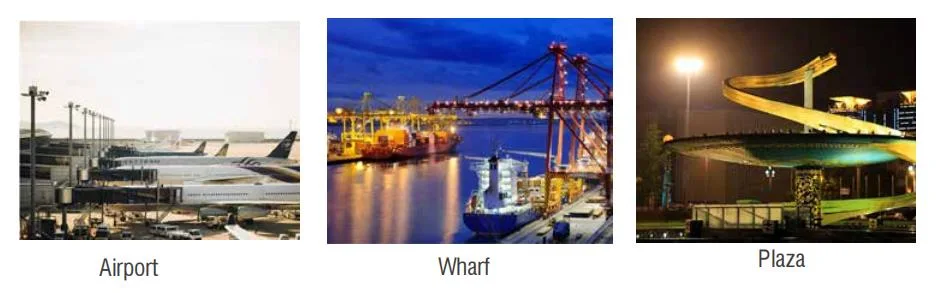

Ideal for football pitches, sports fields, airport hangers, Wharfs, Tower Cranes, Golf Course, stadium etc.







Accessory

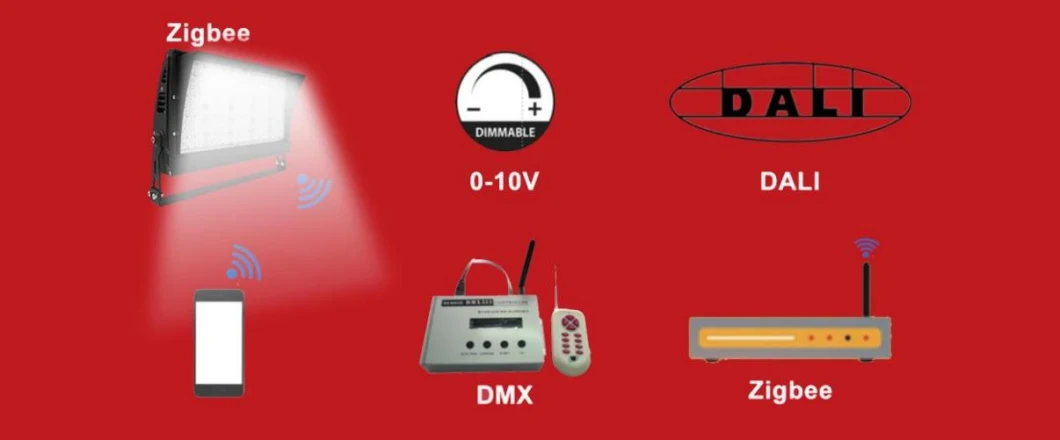

0-10V, DMX and DALI dimming modes optional

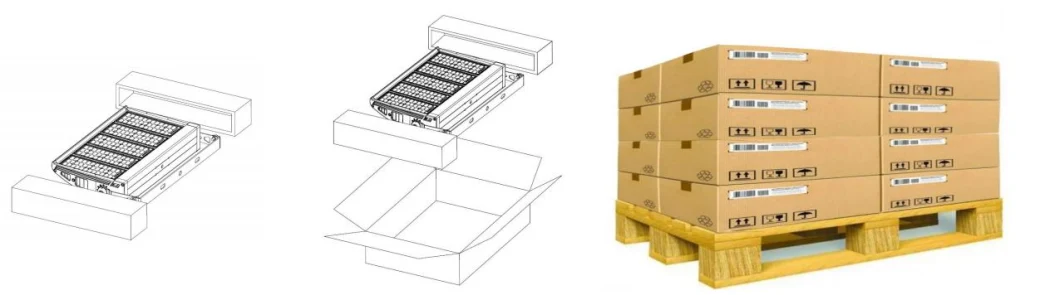

Packaging & Shipping

ltem#	MF-SO3A 200BT	MF-S03A 300BT	MF-S03A 400BT	MF-S03A 500BT	MF-S03A 600BB	MF-S03A 800BB	MF-S03A 1000BB
Watts	200w	300w	400W	500W	600w	800w	1000w
aty	1
N.w.	6.85kg 15.1lb	9.42kg 20.8lb	12.3kg 27.1lb	14.8kg 32.6lb	19.2kg 42.3Ib	24.7kg 54.4lb	30kg 66.1lb
G.w.	7.53kg 16.6lb	10.5kg 23.1lb	13.5kg 29.8lb	16.2kg 35.7lb	21kg 46.3lb	27kg 59.5lb	32.5kg 71.6lb
Carton Size	360*475*160 mm 14.1*18.7*6.3 inch	470*475*160m m 18.5*18.76.3 inch	580*475*160 mm 22.8*18.7*6.3 inch	690*475*160 mm 27.1*18.7*6.3 inch	510*795*160 mm 20.1*31.3*6.3 inch	620"795*160 mm 24.4*31.3*6.3 inch	730*795*160 mm 28.731.3*6.3 inch

FAQ:

Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.

Q2: Can I order a sample of the LED High Mast Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

Q3: What is the lead time for the LED High Mast Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED High Mast Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.

Q6: How do I proceed with an order for the LED High Mast Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.

Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
