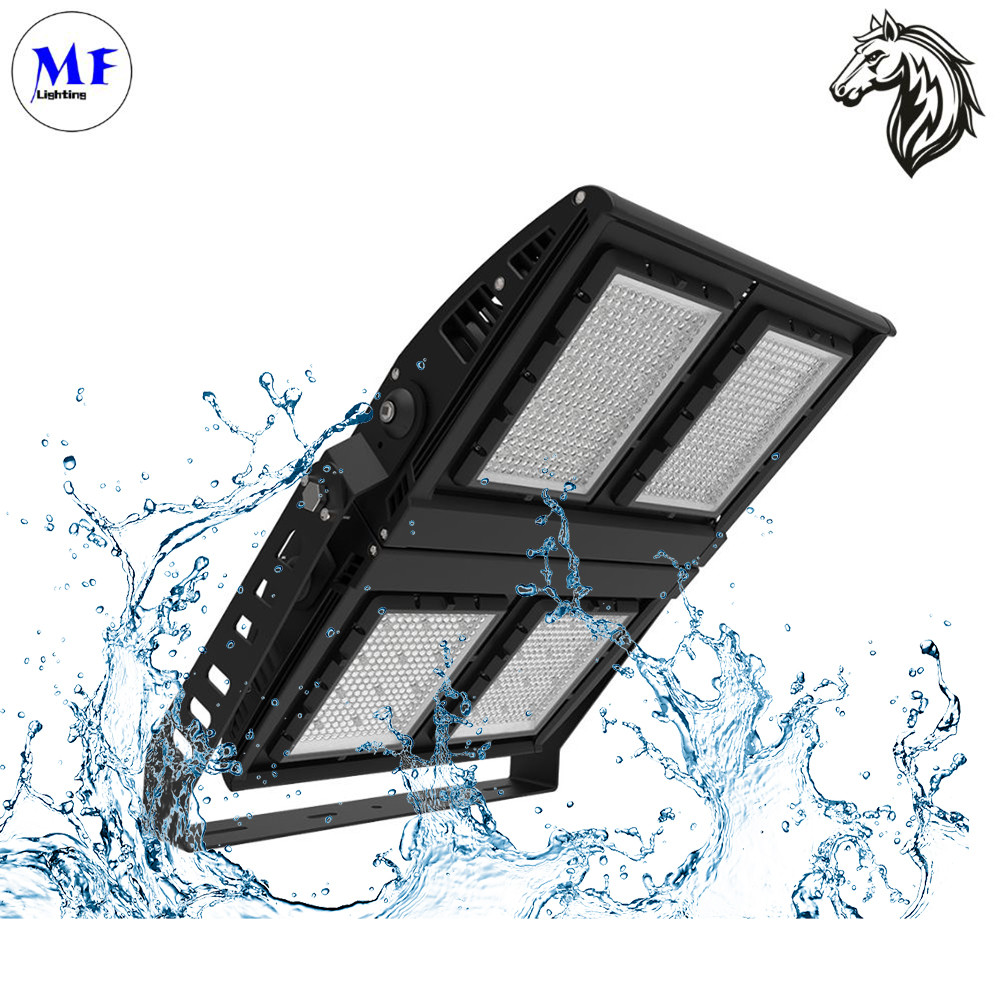

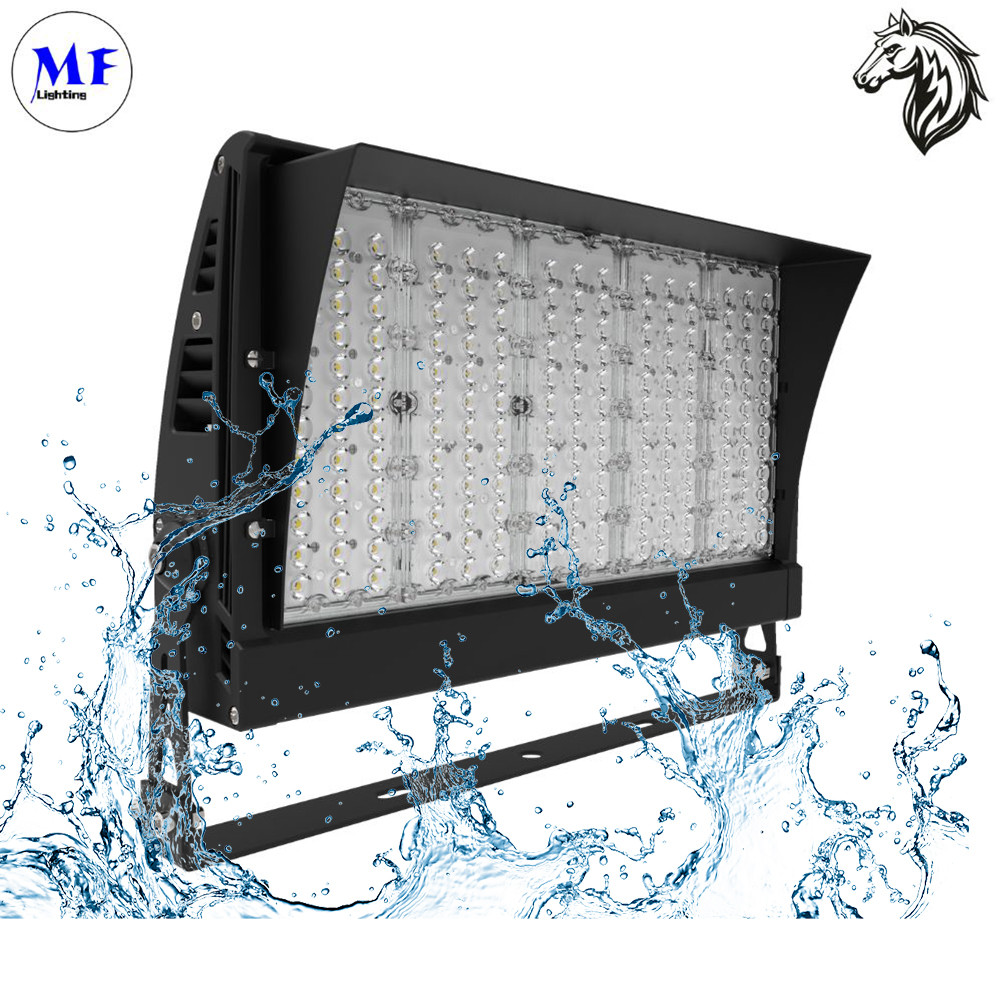

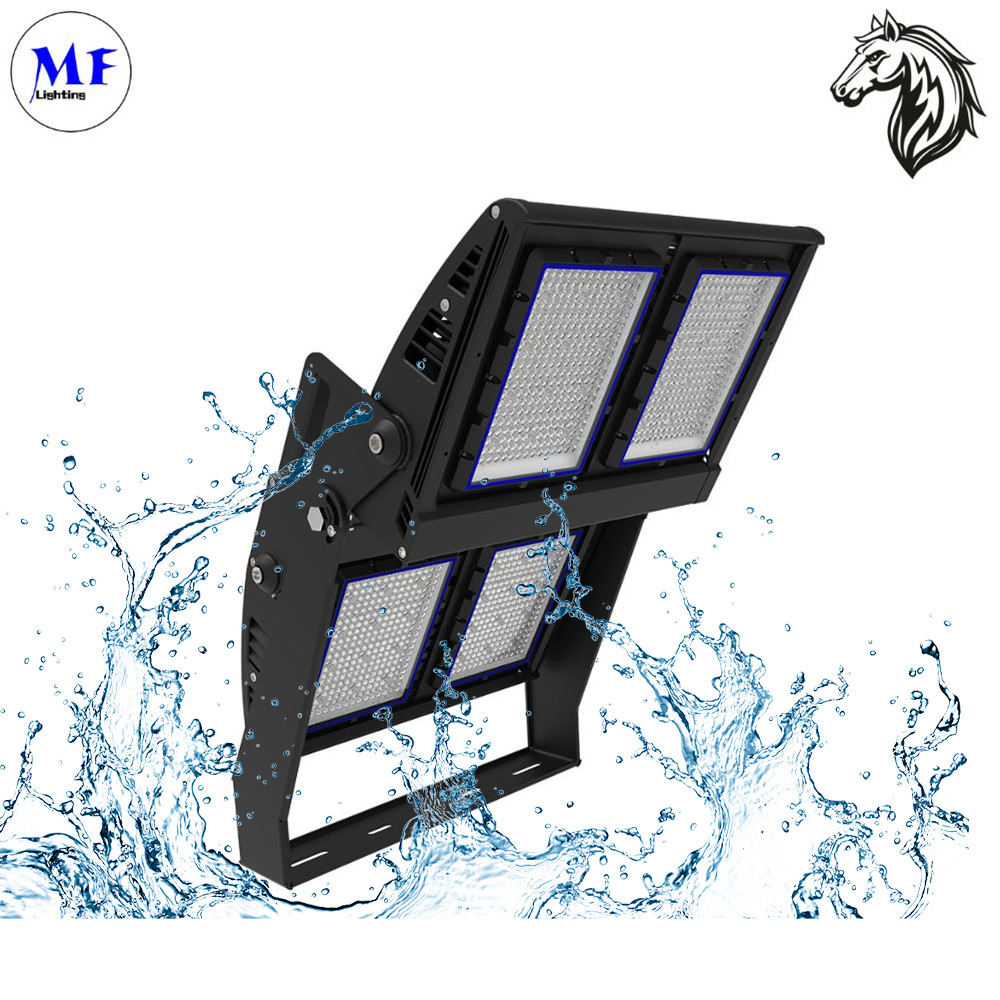

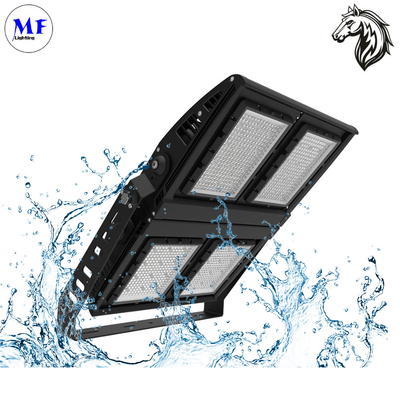

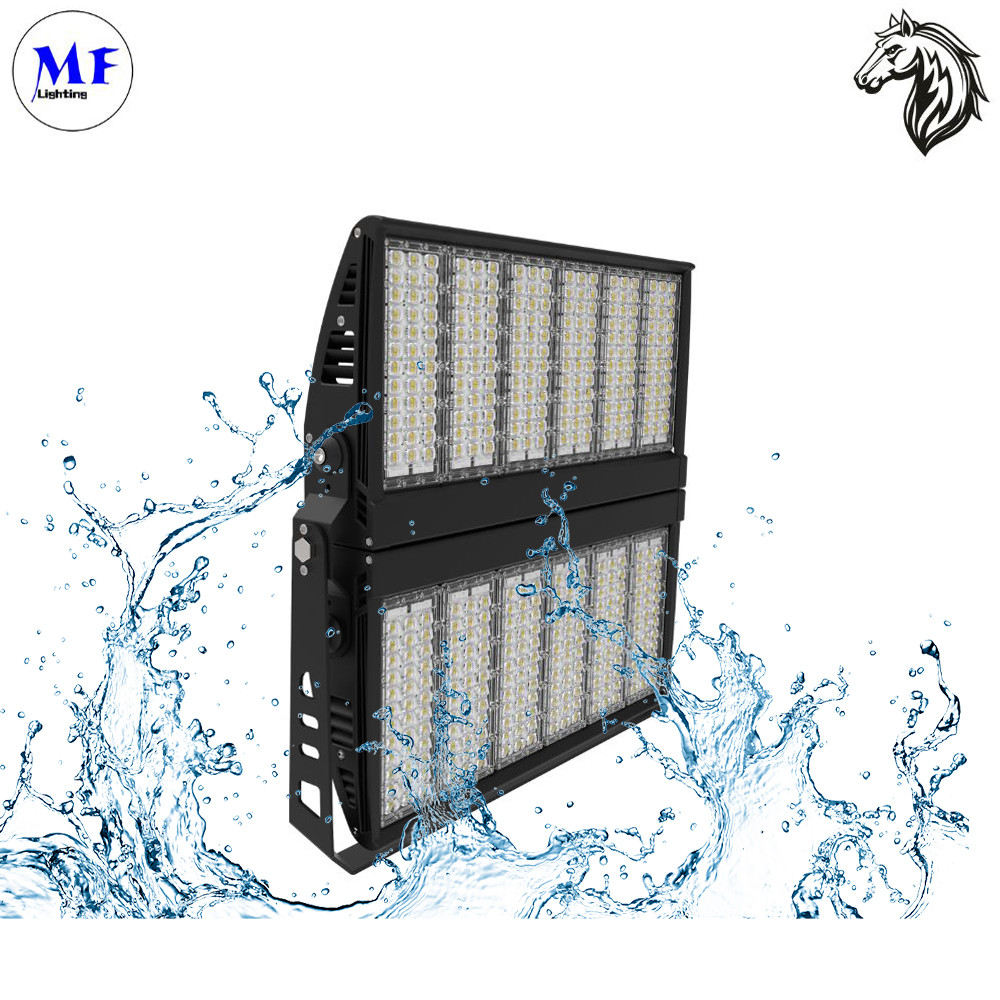

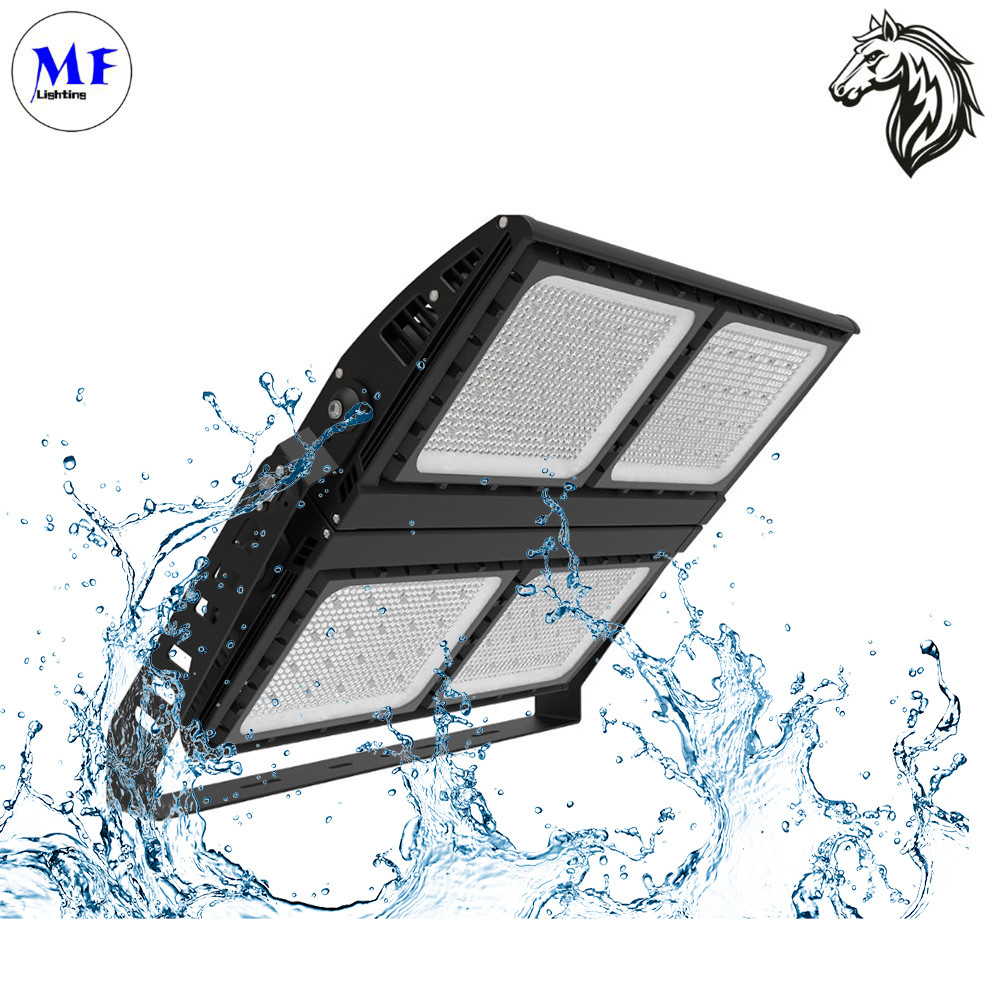

IP67 LED Flood Light High Power Mast Light High Quality For Stadium Construction Site Tower Crane

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA Model Number: MF Stadium Light Horse-3A

Detail Information

CCT: 3000K,4000K,5000K,6000K, CCT Etc Material: PC, Aluminum Alloy, Tempered Glass
Power: 200W/300W/400W/500W/600W/800W/1000W/1200W IP Rate: IP66
Driver: Sosen/MeanWell/Inventronics Luminous Efficacy: 140lm/W
CRI(Ra): 70+/80+ Beam Angle: Type II/Type III/Type IV/Type V/NEMA4/NEMA6
Ik Rate: Ik10 Installation: Bracket Installation/Wall Installation/Pole Instal
Surge Voltage: 10kv Life Span: >50, 000hrs
Operation Temperature: Ta=40 LED Brand: LuMileds 5050/3030
Power Factor: >0.95
High Light:

140lm/W High Power Mast Light

,

IP67 High Power Mast Light

,

6000K LED Flood Light

Product Description

IP67 LED Flood Light High Power Mast Light High Quality For Stadium Construction Site Tower Crane



1.Vertical module design
better heat dissipation performancemore durable and longer lifespan
2.Built-in driver
IP67 waterproof plus shellprotection,double protection.much safer
3.Special optical design mask
Japanese emperor Optical PC.lighttransmittance> 95%no vellowing,with anti-ultraviolet and other functions
4.3 way to install



IP67 LED Flood Light High Power Mast Light High Quality For Stadium Construction Site Tower Crane 0




IP67 LED Flood Light High Power Mast Light High Quality For Stadium Construction Site Tower Crane 1

Items# MF-S03A MF-S03A MF-S03A MF-S03A MF-S03A MF-S03A MF-S03A
200BT 300BT 400BT 500BT 600BT 800BT 1000BT
Wattage 200W 300W 400W 500W 600W 800W 1000W
Lumen Output 28000LM 42000LM 56000LM 70000LM 84000LM 112000LM 140000LM
LED Brand
LED Brand Lumileds
LED Driver SOSEN
MEAN-WELL
INVENTRONICS
Luminous Efficacy 140LM/W
Beam Angle TYPEll,TYPE I,TYPEIV,TYPE V,NEMA4,NEMA6
Color Temperature 3000K,4000K,5000K,6000K, CCT etc
Input Voltage 100-277V
CRI 70/80
Life Hours 50000H
Surge Voltage 10KV
Operation Temperature Ta=40
IP Rating IP65
Warranty 5years
IP67 LED Flood Light High Power Mast Light High Quality For Stadium Construction Site Tower Crane 2

Free Dialux Lighting Design:

Our experienced lighting designers can provide you professional DIAlux simulations and constructive LED lighting solutions. We know lighting standards of all applications well and we care about all of your projects. Not matter your case is big or small, we will always provide you solutions.

1.Free OEM/ODM
2.Free DIALux testing service.
3.8 years of engineering experience, for your project escort.
4.Complete certificate, CE, RoHS, ETL, FCC etc.
5.Provide a complete test report.
6.First sample test, provide complete test report and product picture before delivery
7.5 years warranty, free replacement.

IP67 LED Flood Light High Power Mast Light High Quality For Stadium Construction Site Tower Crane 3





IP67 LED Flood Light High Power Mast Light High Quality For Stadium Construction Site Tower Crane 4



IP67 LED Flood Light High Power Mast Light High Quality For Stadium Construction Site Tower Crane 5


IP67 LED Flood Light High Power Mast Light High Quality For Stadium Construction Site Tower Crane 6

High mast lights are tall lighting structures typically used in large outdoor areas that require extensive illumination. They are commonly found in various applications, including



Sports Stadiums: High mast lights are installed in stadiums and sports arenas to provide sufficient lighting for sporting events, allowing players and spectators to have optimal visibility.



Airports: High mast lights are crucial in airport settings to ensure proper lighting for runways, taxiways, and aircraft parking areas, enhancing safety during takeoff, landing, and ground operations.



Ports and Harbors: High mast lights are used in port areas to illuminate docking areas, container yards, and shipping terminals, facilitating efficient loading and unloading operations.



Industrial Facilities: High mast lights are installed in industrial areas such as manufacturing plants, warehouses, and construction sites, providing bright and uniform illumination for improved productivity, safety, and security.



Highways and Interchanges: High mast lights are strategically positioned along highways, interchanges, and major roadways to ensure clear visibility and enhance safety for drivers during nighttime travel. Public Spaces: High mast lights are utilized in public spaces such as parks,



plazas, and parking lots, illuminating large areas and enhancing security for pedestrians and vehicles.



Military Bases: High mast lights play a vital role in military installations, providing enhanced visibility for training exercises, aircraft operations, and general security purposes.



Railway Yards: High mast lights are deployed in railway yards to illuminate tracks, platforms, and maintenance areas, enabling efficient train operations and ensuring the safety of personnel.



These are just a few examples of the applications where high mast lights are commonly used. The specific requirements and configurations of high mast lighting systems can vary depending on the intended purpose and location.

IP67 LED Flood Light High Power Mast Light High Quality For Stadium Construction Site Tower Crane 7











Accessory:



IP67 LED Flood Light High Power Mast Light High Quality For Stadium Construction Site Tower Crane 8







Packing:



ltem MF-SO3A
200BT
MF-S03A
300BT
MF-S03A
400BT
MF-S03A
500BT
MF-S03A
600BB
MF-S03A
800BB
MF-S03A
1000BB
Watts 200w 300w 400W 500W 600w 800w 1000w
aty 1
N.w. 6.85kg
15.1lb
9.42kg
20.8lb
12.3kg
27.1lb
14.8kg
32.6lb
19.2kg
42.3Ib
24.7kg
54.4lb
30kg
66.1lb
G.w. 7.53kg
16.6lb
10.5kg
23.1lb
13.5kg
29.8lb
16.2kg
35.7lb
21kg
46.3lb
27kg
59.5lb
32.5kg
71.6lb
Carton Size 360*475*160
mm
14.1*18.7*6.3
inch
470*475*160m
m
18.5*18.76.3
inch
580*475*160
mm
22.8*18.7*6.3
inch
690*475*160
mm
27.1*18.7*6.3
inch
510*795*160
mm
20.1*31.3*6.3
inch
620"795*160
mm
24.4*31.3*6.3
inch
730*795*160
mm
28.731.3*6.3
inch



IP67 LED Flood Light High Power Mast Light High Quality For Stadium Construction Site Tower Crane 9



IP67 LED Flood Light High Power Mast Light High Quality For Stadium Construction Site Tower Crane 10

FAQ:

Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.

Q2: Can I order a sample of the LED High Mast Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

Q3: What is the lead time for the LED High Mast Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED High Mast Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.

Q6: How do I proceed with an order for the LED High Mast Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.

Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
