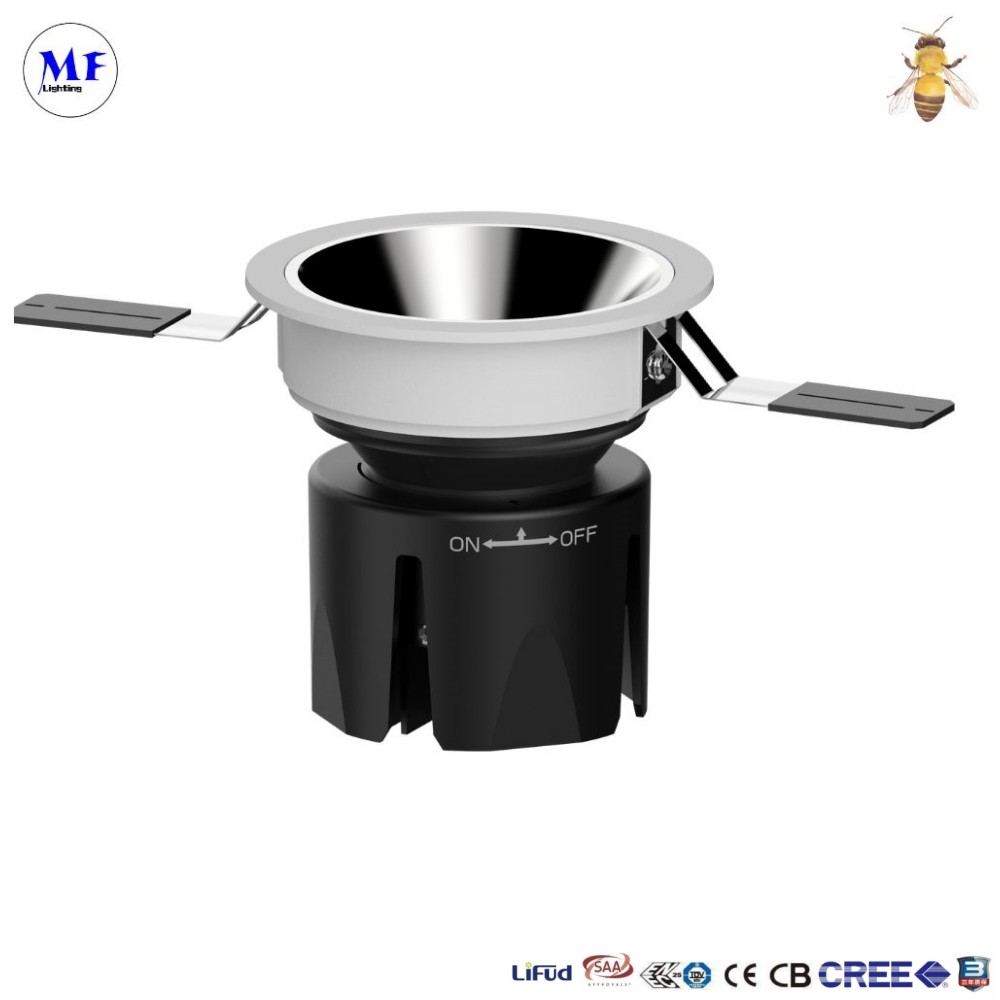

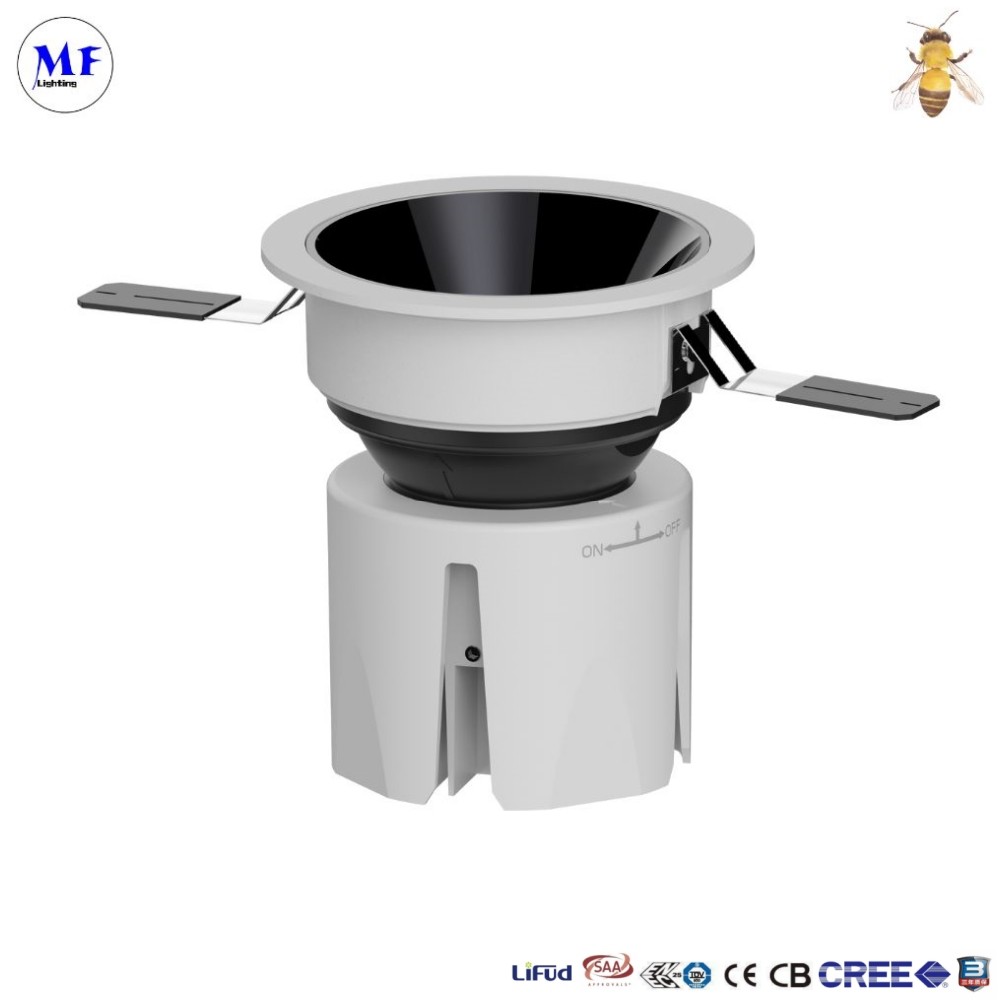

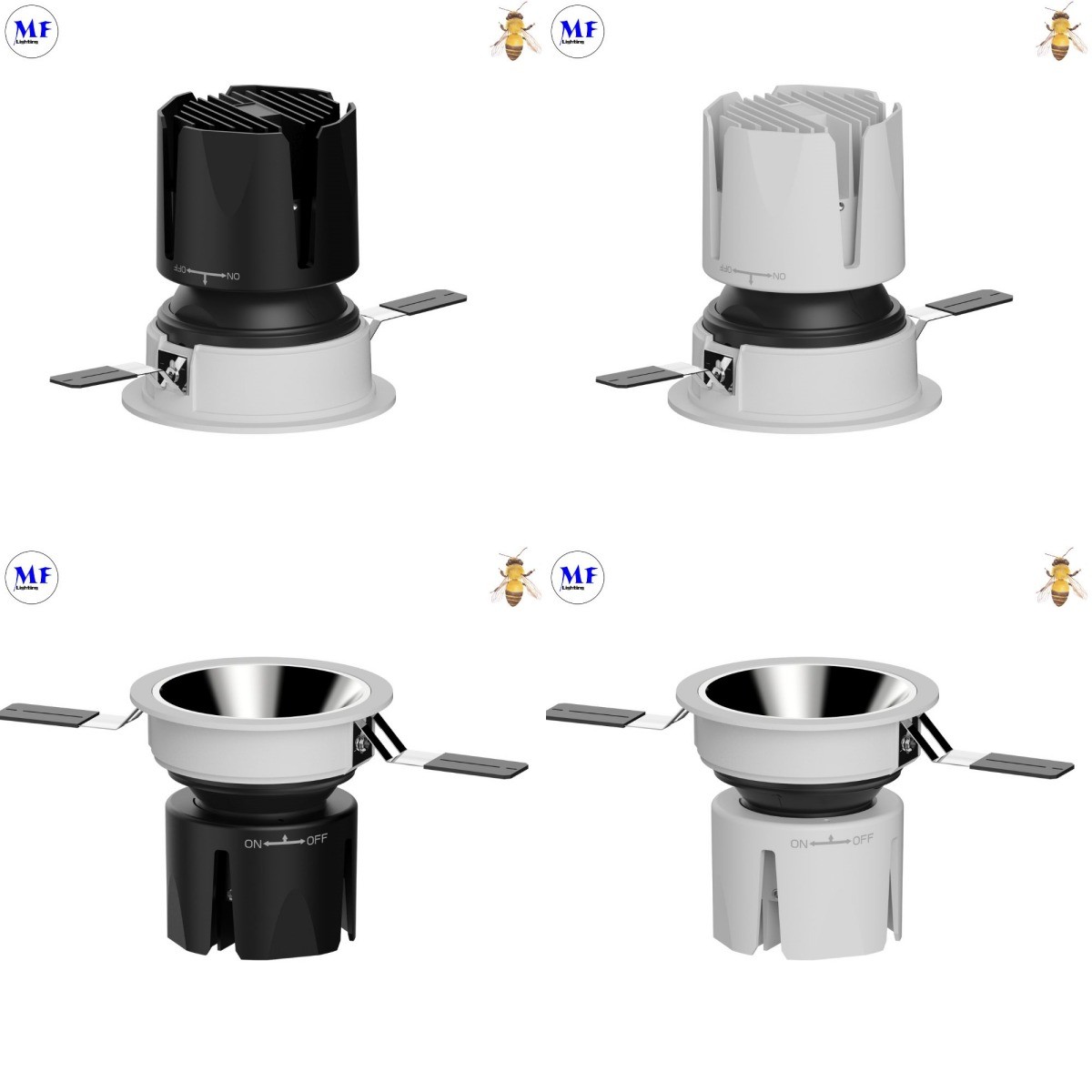

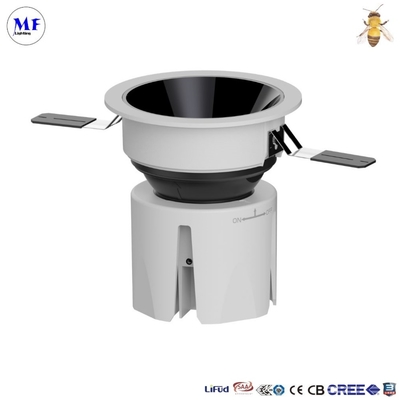

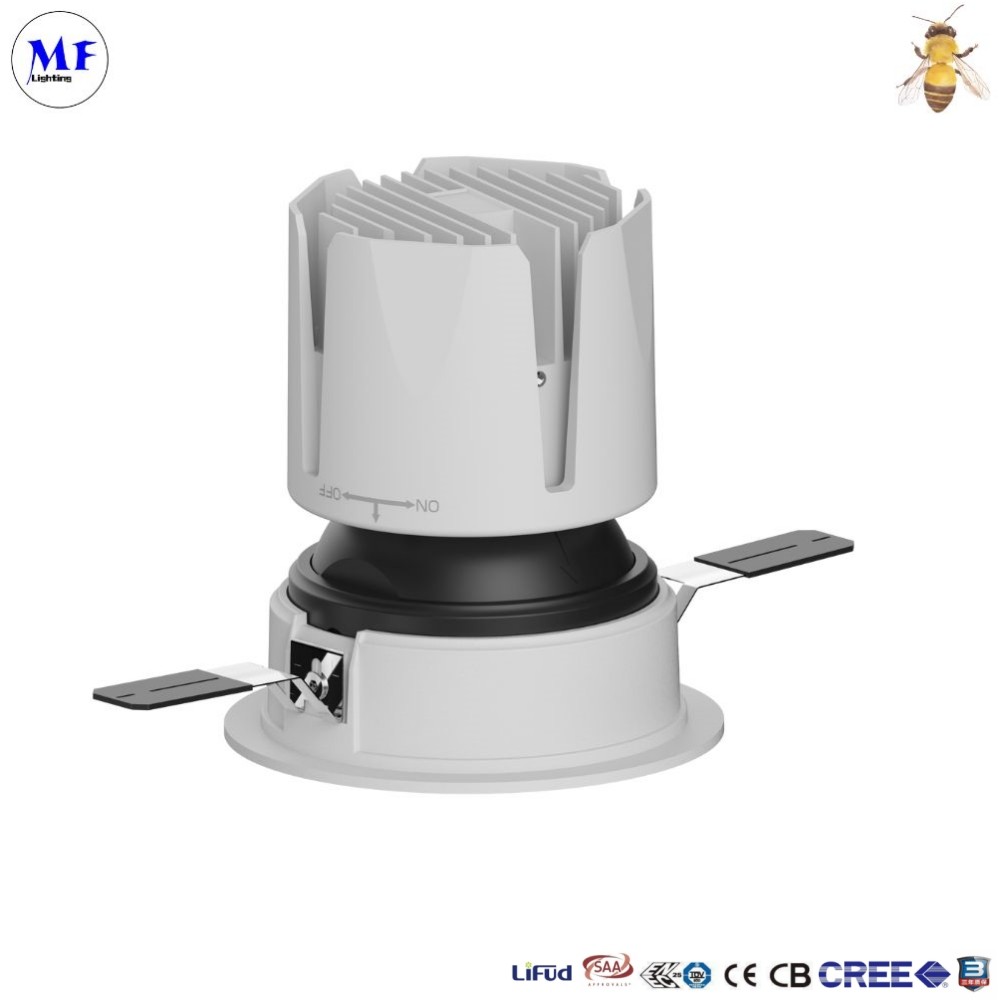

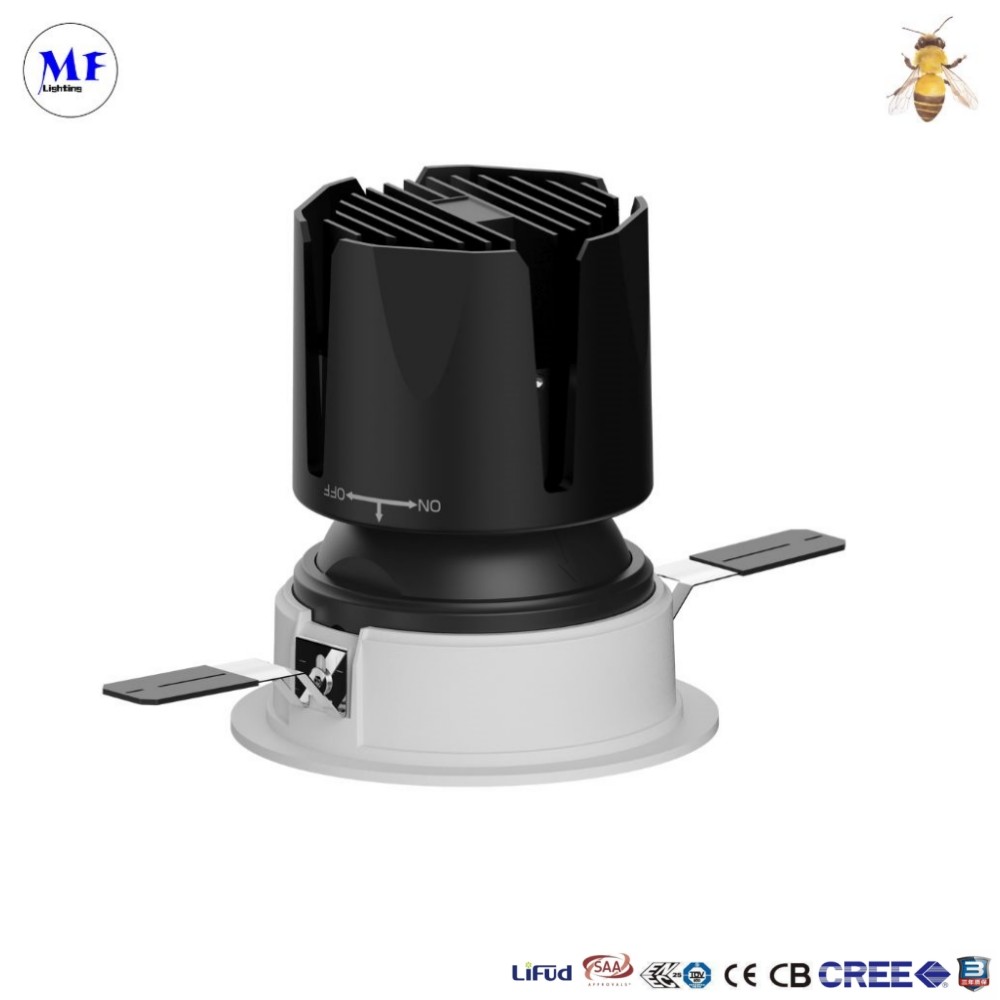

LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA,TUV,CB,ETL,UL Model Number: MF-BEE 4

Detail Information

Beam Angle: 15°/24°/36° Input Voltage: AC 100-240V
Power: 7W/10W CCT: 2700K,3000K, 4000K, 5000K
Material: Aluminum+PC Installation: Recessed
Warranty: 3 Years IP Rate: IP40
Mounting Location: Ceiling Lifespan L70/B50 At 25°C: 30000 H
Luminous Efficacy: 100 Lm/W/Higher Nominal Current: 350.000 Ma
Protection Class: Class I Dimmable: 1~10V Dim/Dali As Options
Angle Adjustable: 355° Horizontal/0~20° Vertical Life Span: 7 Years At 12 Hours/Day
High Light:

Recessed LED Spot Down Lamp

,

3 Inch LED Spot Down Lamp

,

Dali Dimmable LED Spot Down Lamp

Product Description

AC 100-240V Indoor Office Lighting LED Spot LED Down Light Lamp Fixture 5W-30W 2inch 3inch 4inch Ceiling RecessedLED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 0



  1. − High luminous efficacy
  2. − Direct replacement for compact fluorescent lamp downlights
  3. − Energy savings up to 60 % (compared to luminaires that use CFL lamps)
  4. − Very homogenous light
  5. − Functional design
  6. − Easy installation with fast connection
  7. − 3 years guarantee
  8. − Type of protection:IP65 Waterproof Dustproof
  9. − Diameter of required ceiling cut-out:
  10. Φ75mm


LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 1

LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 2




LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 3





Nominal wattage 7W/10W
Nominal voltage 100-240 V
Mains frequency 50-60 Hz
Nominal current 350.000 mA
Power factor 0.9
Protection class I
Installation Method Recessed Mount
Dimmable 1~10V Dim/DALi as options
Luminous efficacy 100 Im/W
Color temperature 3000 K 4500 K 6000 K
Fixture Color White ring, grey housing
Color rendering index Ra Ra80/ Ra90
Beam angle 15°/24°/36°



LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 4

Item size:Φ 85*H82mm

LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 5

Recessed Mouting

LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 6

Shrapnel mounting

LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 7



LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 8



LED downlights are versatile lighting fixtures that find wide application in various settings.With their sleek design and energy-efficient performance, LED downlights are commonly used in residential, commercial, and hospitality environments.

In residential settings, LED downlights are often installed in kitchens, living rooms, and bedrooms to provide ambient or task lighting. They offer a modern and stylish lighting solution while consuming less energy compared to traditional lighting options. LED downlights can create a warm and inviting atmosphere, enhancing the overall aesthetic appeal of the space.

In commercial spaces such as offices, retail stores, and showrooms, LED downlights are utilized to illuminate the area effectively. These downlights offer a focused and uniform light distribution, making them ideal for highlighting specific areas or products. LED technology ensures long-lasting performance, reducing maintenance costs and providing consistent lighting quality.

Hospitality venues, including hotels, restaurants, and bars, benefit from LED downlights to create a welcoming and visually appealing ambiance. These downlights can be used for general lighting, accenting architectural features, or accentuating artwork and displays. Additionally, the dimmable feature of LED downlights allows for flexible lighting control, enabling the adjustment of light levels to create different moods and atmospheres.




LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 9




Overall, LED downlights are widely used due to their energy efficiency, long lifespan, and versatility. They offer excellent lighting performance, enhance aesthetics, and contribute to energy savings, making them a popular choice for a range of applications in both residential and commercial settings.

Hospitality: LED downlights are commonly used in hotels, resorts, and spas to create a soothing and luxurious atmosphere in lobbies, corridors, guest rooms, and common areas. They provide soft, warm illumination that enhances the guest experience and adds a touch of elegance to the space.
Museums and Galleries: LED downlights are preferred in art galleries and museums to illuminate exhibits and artwork with precision and accuracy. Their directional lighting helps to highlight the details and colors of the art pieces while minimizing heat and UV emissions that could
potentially damage the artwork.
Showrooms: LED downlights are ideal for showcasing products in retail showrooms, car dealerships, and jewelry stores. Their focused beam and adjustable angles allow for effective accent lighting, drawing attention to specific merchandise and creating a visually appealing display.

Offices and Workspaces: LED downlights are widely used in office environments to provide bright, glare-free illumination for workstations, conference rooms, and common areas. They offer a comfortable working environment, reduce eye strain, and contribute to better productivity.
Educational Institutions: LED downlights are employed in schools, universities, and libraries to create conducive learning environments. They provide uniform lighting in classrooms, libraries, and study areas, enhancing concentration and visual comfort for students and teachers.
Healthcare Facilities: LED downlights are utilized in hospitals, clinics, and healthcare facilities for general lighting in corridors, waiting areas, and patient rooms. They offer a clean and bright light source, promoting a sense of well-being and aiding in accurate medical examinations. Outdoor Spaces: LED downlights with suitable IP ratings can be used for outdoor applications such as building facades, pathways, gardens, and parking areas. They provide efficient and durable lighting solutions that enhance safety and security while reducing energy consumption.

LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 10

Packing and Production:



The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit

LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 11

LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 12

LED Spot Down Lamp Aluminum Recessed 7W 10W 3 Inch White With 1-10V Dali Dimmable For Indoor 13



About us:





Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
