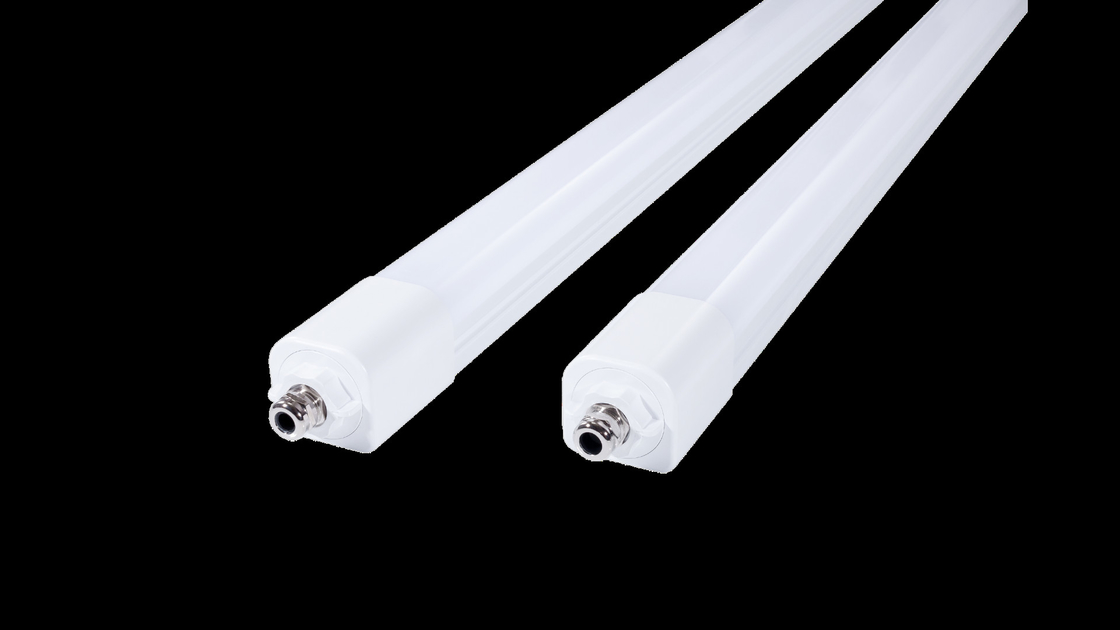

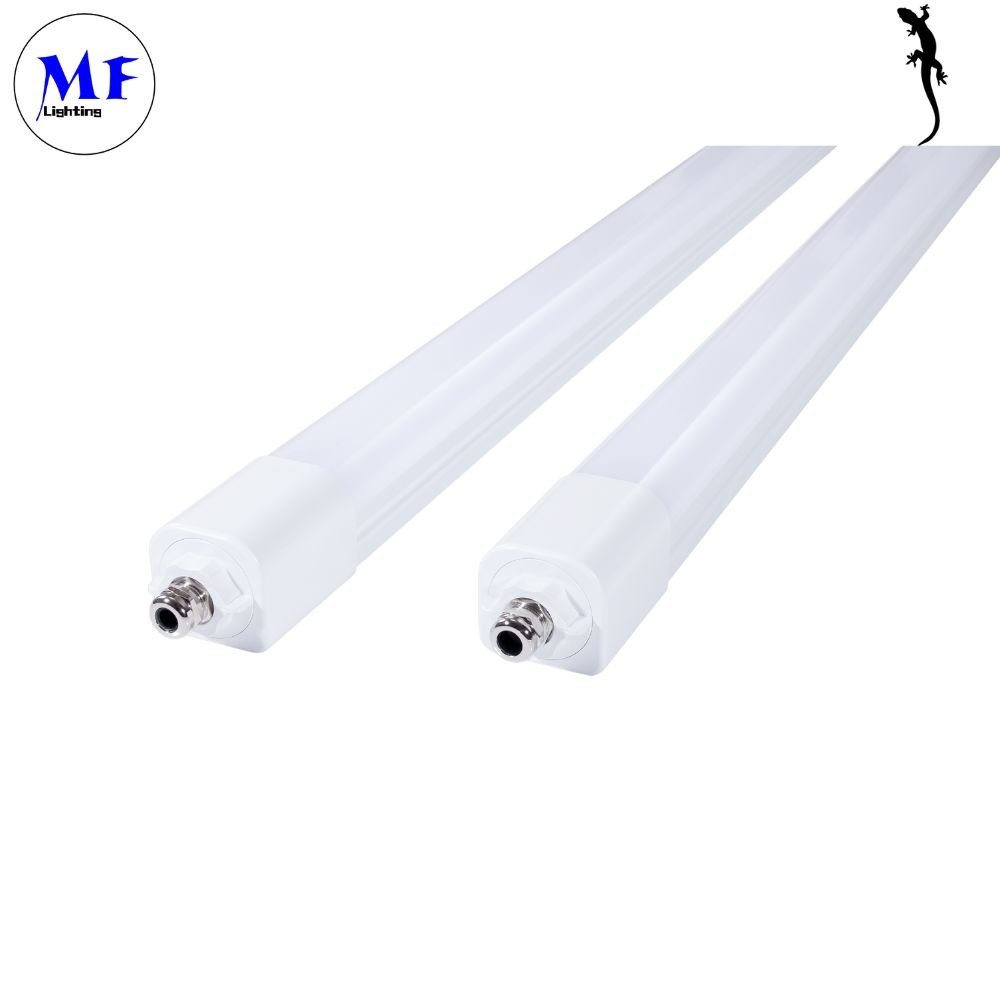

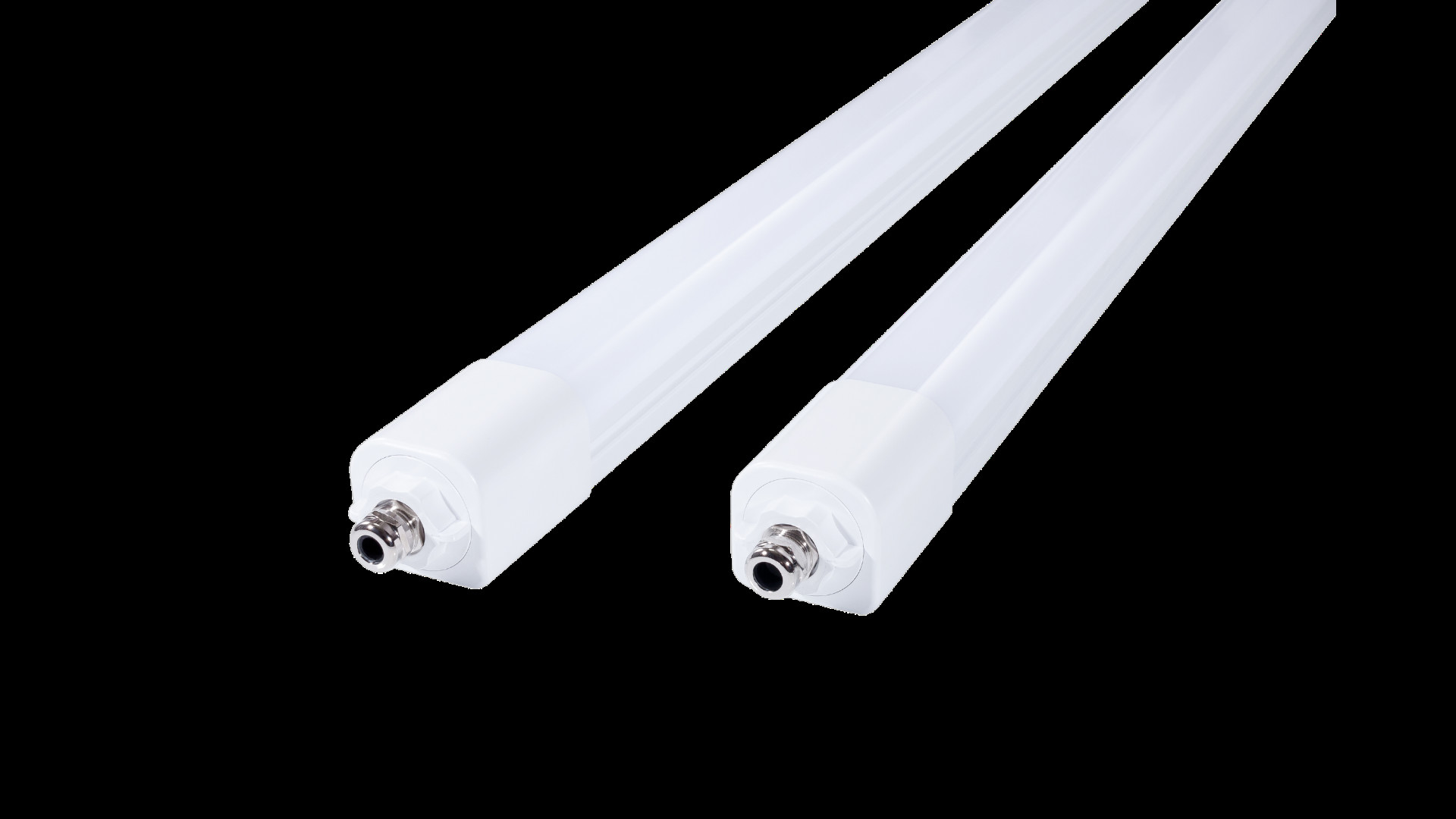

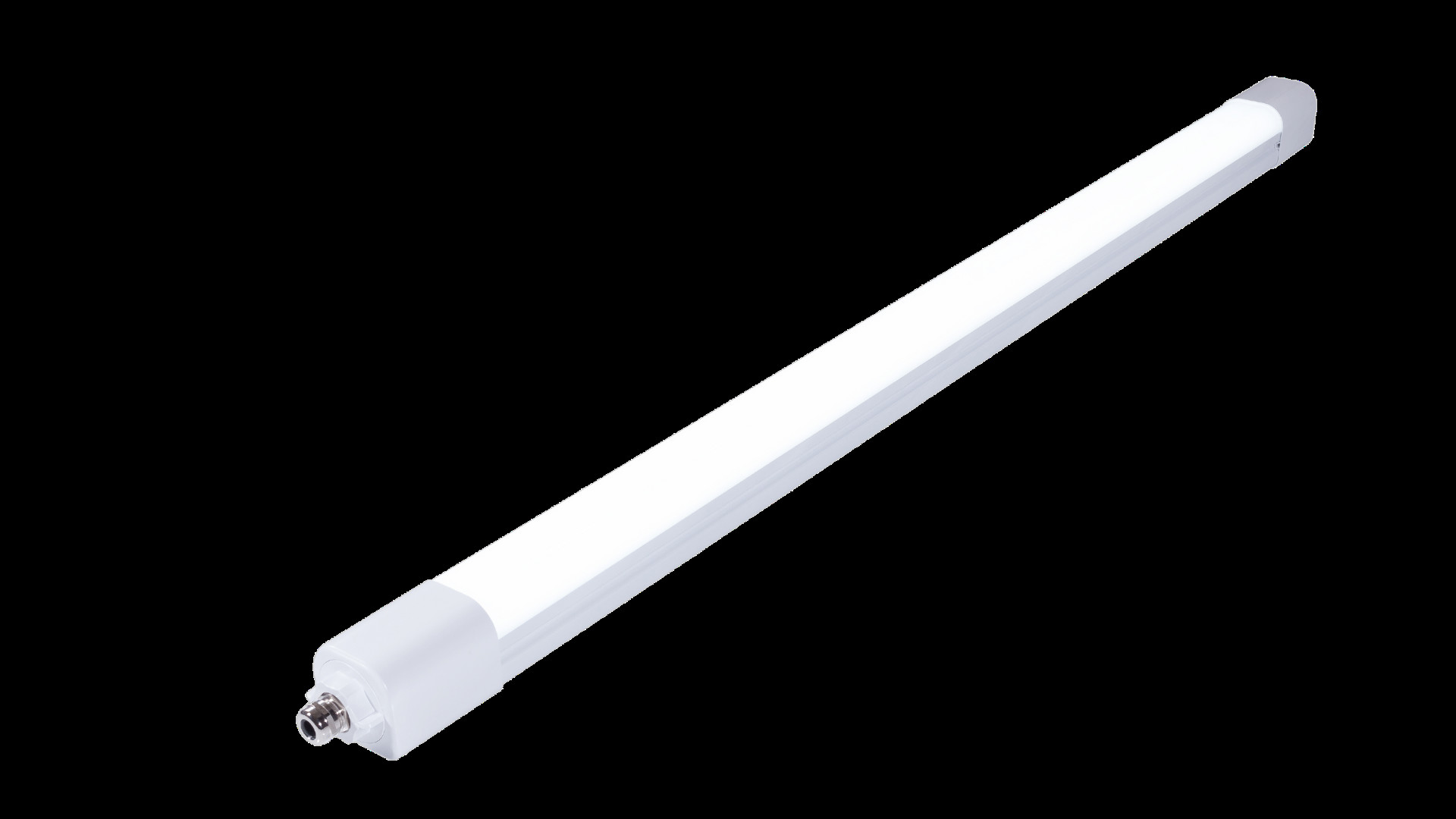

36W LED Tri-Proof Light CCT Adjustable Available Outdoor IP66 Waterproof Plastic Model

Product Description

36W LED Tri-Proof Light CCT Adjustable Available Outdoor IP66 Waterproof Plastic Model



Features:



1.Elegant appearance and patent design(only WINSTAR have), obtained pratical patents certificate.



2. To adapt in different enviroment, we providing two models for potion, one is Plastic, another is PMMA+Aluminum.



3. The Plastic model comply with IP69K, IK10, IP66. The PMMA+ALU mode is IK08, IP66.



4.Using diamond-shaped optical design, so the overall light is uniform and no dark areas.

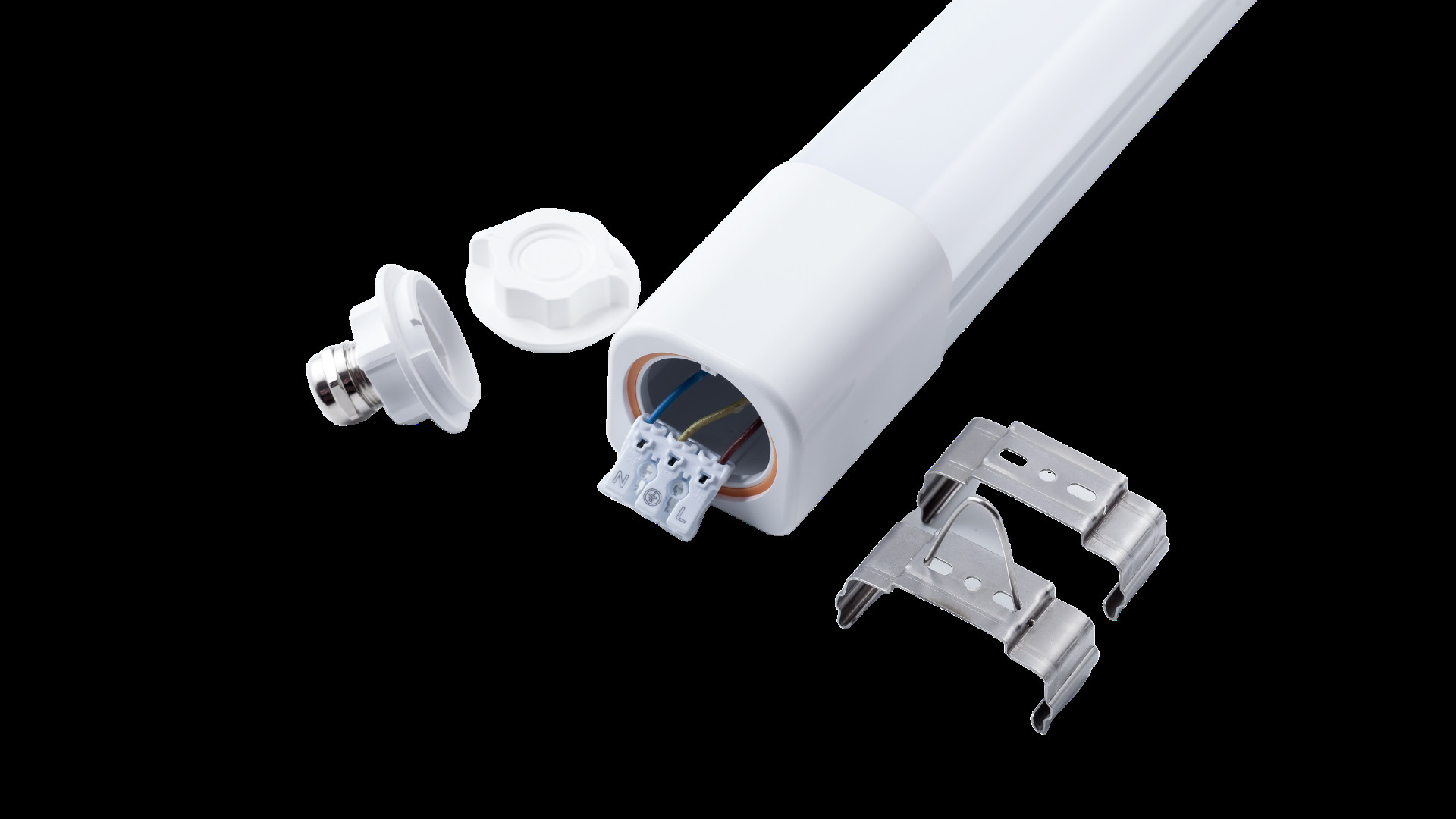

5.Rotating end cover + terminal design, easy to wiring, convenient and time-saving.



6.The installation clip is reversed hook design. Product can easily directly lock into the clip (without any screws). Fast easy installation to save cost and time.



7.Multi-functions : built-in microwave sensor, 1-10V/DALI dimmable, Emergency battery,CCT adjustbale and other function is available.



8.Suspended installation,Empended installation, Surface Celling installation for options, Linkable and non-linkable can be provided.



9.Plastic models can be used in other harsh environments such as food plants, aluminum+PMMA models can be used in farms and other occasions containing ammonia.





Technical Paramaters
Item	Power	LED QTY	Item	Power	LED QTY
MF-LI06S18W-GC3	12/14/16/18W	153PCS	MF-LI06B18W-GC3	17/20/25/30W	216PCS
MF-LI12S36W-GC3	20/25/30/36W	288PCS	MF-LI12B36W-GC3	30/37/45/50W	384PCS
MF-LI15S50W-GC3	35/40/50/56W	378PCS	MF-LI15B50W-GC3	46/52/65/70W	504PCS
Input Voltage		AC200-240V
Efficacy		130LM/W 150LM/W 170LM/W
Color Temperature		3000K 4000K 5000K 6000K
Power Factor		≥0.95
Low THD		<15%
CRI		≥80
Life span		50000H
Operating temperature		-20°C ~ +45°C
Warranty		5 years
Certificates		CE/RoHS/TUV







CCT Adjustable--Plastic model
Item	Power	LED QTY
MF-LI06S18W-GC3	18W	234PCS
MF-LI12S36W-GC3	36W	468PCS
MF-LI15S50W-GC3	50W	702PCS
Input Voltage		AC200-240V
Efficacy		130LM/W 150LM/W 170LM/W
Color Temperature		3000K 4000K 6000K Adjustable
Power Factor		≥0.95
Low THD		<15%
CRI		≥80
Life span		50000H
Operating temperature		-20°C ~ +45°C
Warranty		5 years
Certificates		CE/RoHS/TUV









The Tri-Proof Light from Ming Feng Lighting is a high-performance and durable lighting solution designed for industrial and commercial applications. With an IP66 rating, this light is resistant to dust and water, making it an excellent choice for harsh environments where reliable lighting is essential.

This light operates on an input voltage range of AC100-277V or 200-240Vac at 50Hz-60Hz, ensuring compatibility with a wide range of power supply systems. The Tri-Proof Light has a wide beam angle of 120°, providing even and uniform lighting across the area.

This light has a color temperature of 3000K-6500K, providing warm and comfortable lighting. Its high power factor of >0.9 ensures high efficiency and reduces energy consumption. With a lifespan of over 50,000 hours, this light offers long-lasting and reliable lighting.

Overall, the Tri-Proof Light from Ming Feng Lighting is a durable and high-performance lighting solution that provides efficient and reliable lighting in harsh environments. Its adjustable design, wide beam angle, and long lifespan make it a cost-effective and versatile choice for various industrial and commercial applications.









1.For 0/1-10V dimmable, we using high-precision power supply, so a dimmer can control multiple lamps at the same time, the brightness is synchronized



2.We using DALI2 power supply to achived DALI dimmable . And the driver also complys with DALI2 protocol certification. No need to worry about system compatibility's problem.



3.Microwave Sensor is divided into switch and dimmable function.

3.1 For the switch function, maximum installation height is 6 meters, and the remote control distance is 14 meters.

3.2 The dimming sensor (with daylight sensor) has a maximum installation height of 15 meters and a sensor diameter of 14 meters. It can be equipped with a remote control according to different needs.



4.Built-in emergency function adopts high temperature resistant lithium battery, the emergency time is unified to 2 hours, 10W.



5.The lamp can be equipped with CCT adjustment built-in device, and the color temperature can be adjusted through the code switch, which are 3000K, 4000K and 6000K



Life curve:



Production Dimension:

Model	A	B	C	D	E	F	Tolerance
MF-LI06S18W-GC3	65.2	61.2	65.6	664	644	600	±3
MF-LI12S36W-GC3				1264	1244	1200	±3
MF-LI15S50W-GC3				1564	1544	1500	±3







Packaging:

Model	Inner Box Size (mm)	N.W	Carton Size (mm)	Qty/CTN	G.W/CTN
MF-LI06S18W-GC3	670*80*70	0.58kg	700*355*240	12	10kg
MF-LI12S36W-GC3	1270*80*70	0.92kg	1300*355*240	12	15.7kg
MF-LI15S50W-GC3	1570*80*70	1.04kg	1600*355*240	12	18.5kg





Installation:



Installation steps:
1. Drill Φ4mm holes on the surface.
2. Put the expansion tube into the drilled hole
3. Using screws to lock the hole into the expansion tube.
4. Align the lamp with the hook and lock it.






The IP66 tri-proof light is a tough and energy-efficient lighting solution that can be used in many different applications, such as factories, outdoor areas, retail stores, food processing facilities, and sports facilities. It's waterproof, dustproof, and impact-resistant, making it durable and reliable in harsh environments.
