AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry

Minimum Order Quantity : 1 Price : Negotiable
Delivery Time : Depends on orders Payment Terms : T/T, Western Union, Paypal
Supply Ability : 20,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-LHB

Detail Information

CCT: 2700K-6500K Luminous: 130lm/w
IP Rate: 65 Driver Efficiency: 92%
CRI: >80 Warranty: 5 Years
Lifespan: 50000hrs IK: IK08
THD: <20% Power: 70W~300W
Input Voltage: AC85~265V Bean Angle: 75°
High Light:

AC100~277V LED High Bay Light

,

Warranty 5 LED High Bay Light

,

Mine Industry LED High Bay Light

Product Description

Factory High Power Waterproof IP65 75W 100W 150W 200W Warehouse Sport Gym. Mine LED High Bay Light



AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 0


AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 1

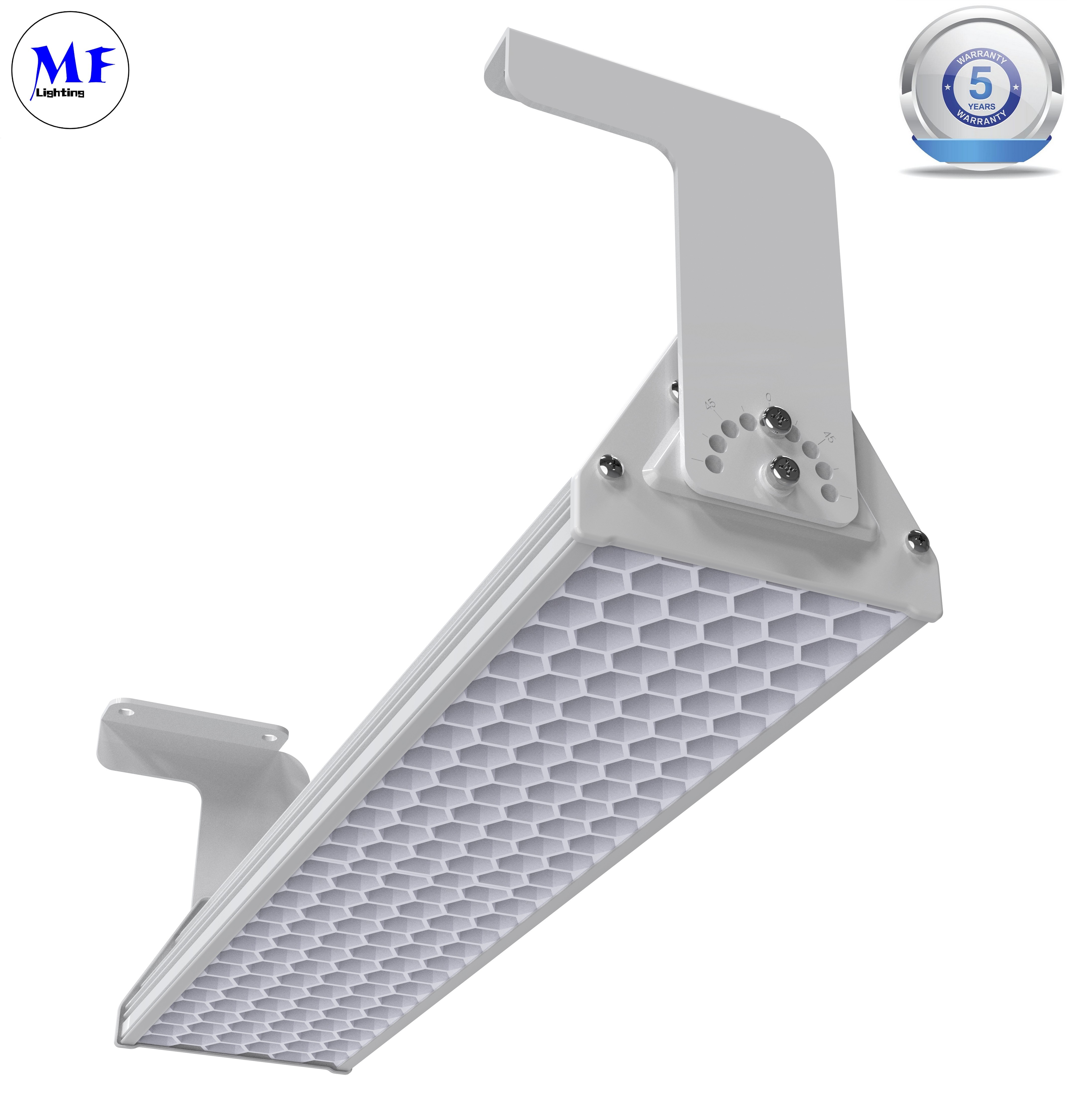

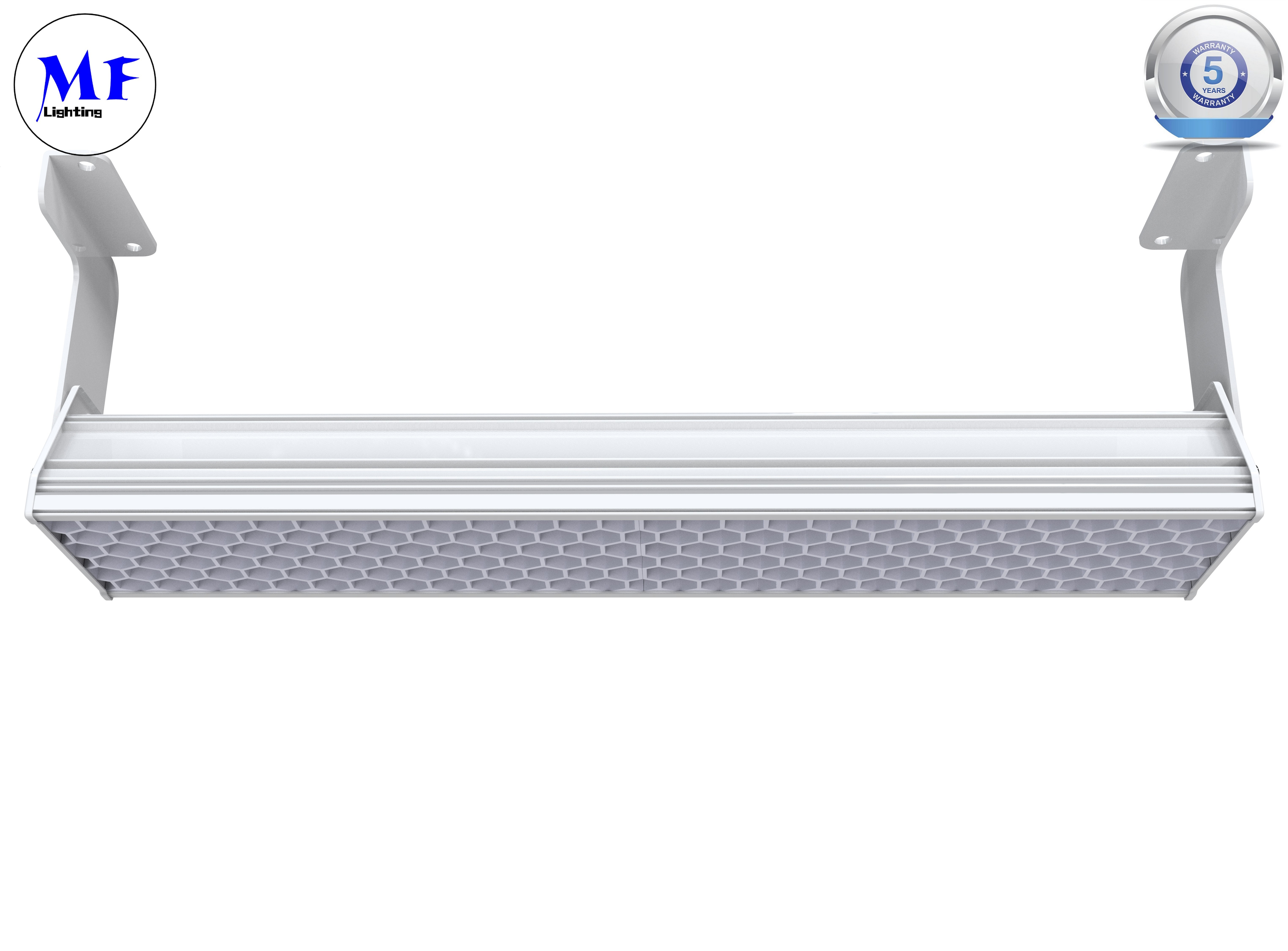

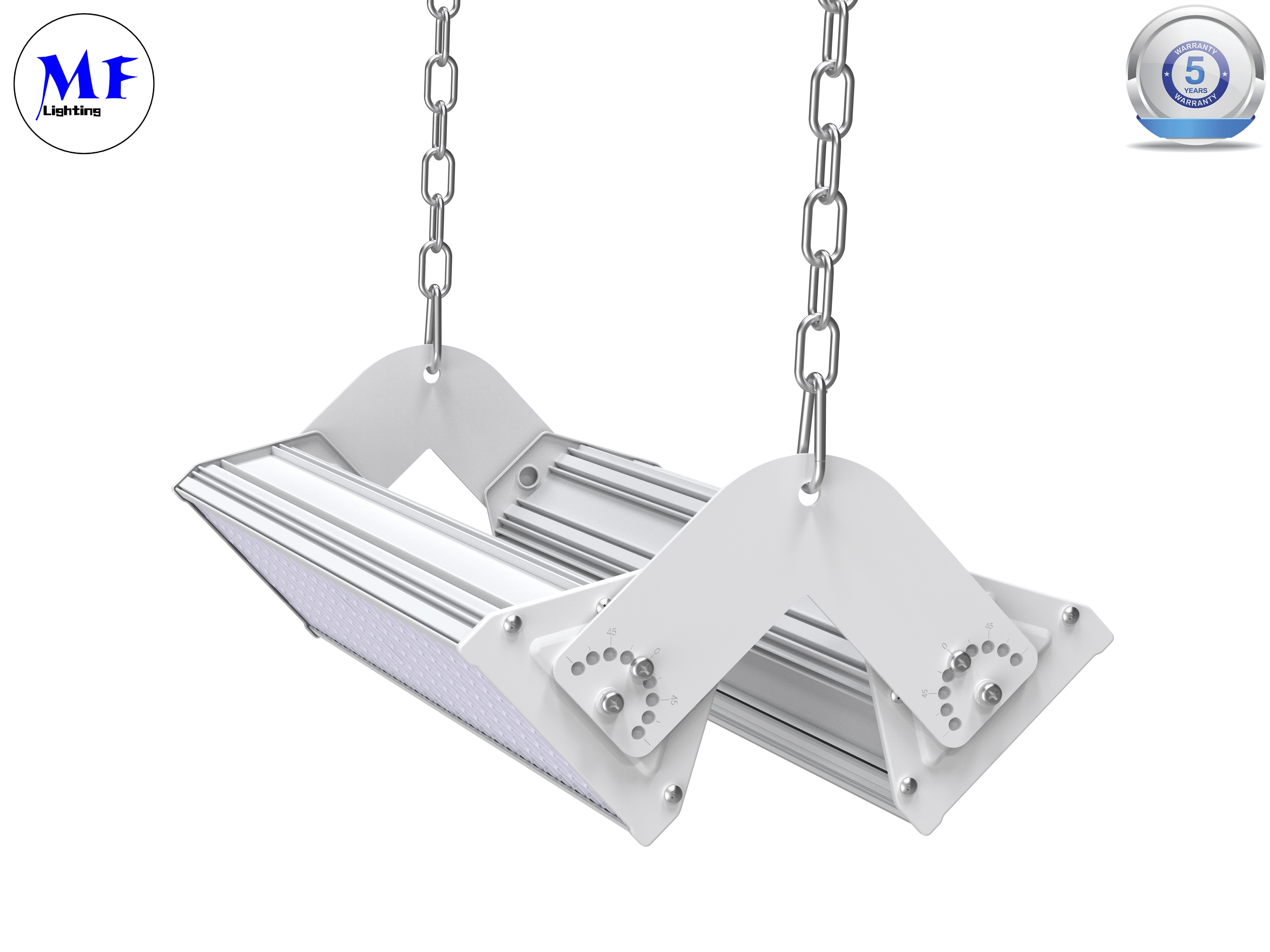

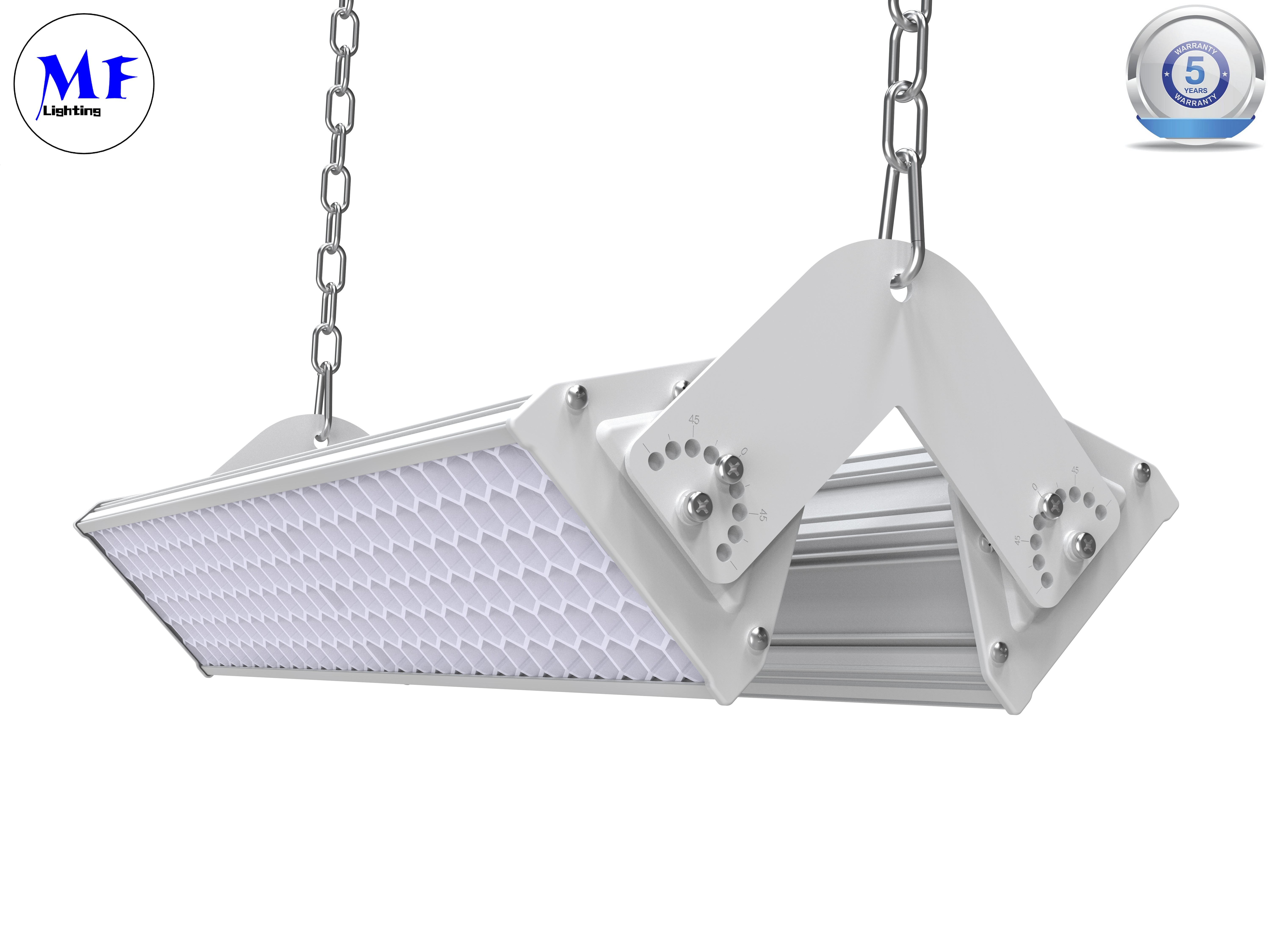

The product is an LED Linear High Bay Light produced by Ming Feng Lighting Co., Ltd., with power ranging from 75W to 300W to meet the lighting needs of various places. It uses an AC85-265V input constant voltage and constant current drive power supply to ensure stable operation of the product and has multiple protection functions, including short circuit, overvoltage, overcurrent, and over-temperature protection. The product adopts a multi-module 3D stereo heat dissipation design, with a color temperature of 2700-6500K, a color rendering index ≥80Ra, and an illumination efficiency of up to 84lm/W. The luminous flux is 12600lm, with an IP40 protection rating and an IK08 impact protection rating. The product is made of aluminum + PC material, and the lamp body is treated with oxide powder spraying, providing good corrosion resistance. The product dimensions are 581/864/1147mm181.5mm152mm, with a net weight of 3.8-7.6kg. The product has a service life of ≥50,000 hours, providing users with a lasting and stable lighting experience.

Features



AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 2




AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 3
1.Energy Efficiency: High-performance LED chips are used, providing high light output and reducing energy consumption for environmental protection.

2.Excellent Heat Dissipation: The 3D stereo heat dissipation design improves heat dissipation efficiency and extends product life.

3.Anti-glare: The anti-glare design provides soft and comfortable lighting, protecting eyes and reducing glare.

4.Flexibility: Multi-angle adjustment allows for the adjustment of lighting direction based on actual needs, improving lighting effectiveness.

5.Waterproof and Dustproof: IP65 waterproof and dustproof design, suitable for various environments, such as humid and dusty locations.

AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 4



AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 5



1.Industrial Factory Lighting: Provides a high-brightness lighting environment for factories, improving work efficiency, and ensuring production safety.
2.Workshop Lighting: Protects workers' eyesight, prevents glare, and provides a comfortable working environment.
3.Mall Lighting: Provides uniform and comfortable lighting for malls, enhancing the shopping experience.
4.Sports Stadium Lighting: Offers large-scale uniform lighting to meet the lighting needs of sports stadiums.
5.Garage Lighting: Provides a bright and comfortable lighting environment for garages, improving parking safety.



AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 6AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 7



AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 8

Item One module One module One module Two module Two module Two module
75W 100W 150W 150W 200W 300W
Power 75W 100W 150W 150W 200W 300W
Efficacy 130lm/W
CCT 2700-6500K
CRI ≥80Ra
LED San'an/SMD 3030
PF >0.97
Input voltage AC100-277V
THD 15%<THD<20%
N.G 2.4kg 3.1kg 3.8kg 4.8kg 6.2kg 7.6kg
Size(mm) 581*181.5*152 864*181.5*152 1147*181.5*152 581*303*138 864*303*138 1147*303*138
Beam Angle 75°
Work Temp -20~+40ºC
Humidity 15%~90%RH,no condensing
Surface Sprayed with outdoor special powder
Life span ≥50,000 Hrs (LM70@35ºC)
1P Grade IP65
IK Grade IK08
Product Material
Power Wire Body material Electronic security leve
Cable(3*0.75mm²)L=1.5m Aluminum+PC Class



AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 9

AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 10AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 11

AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 12AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 13



Product Size

AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 14AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 15



AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 16



AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 17





AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 18  AC100~277V LED High Bay Light Warranty 5 For Warehouse Sport Gym Mine Industry 19
