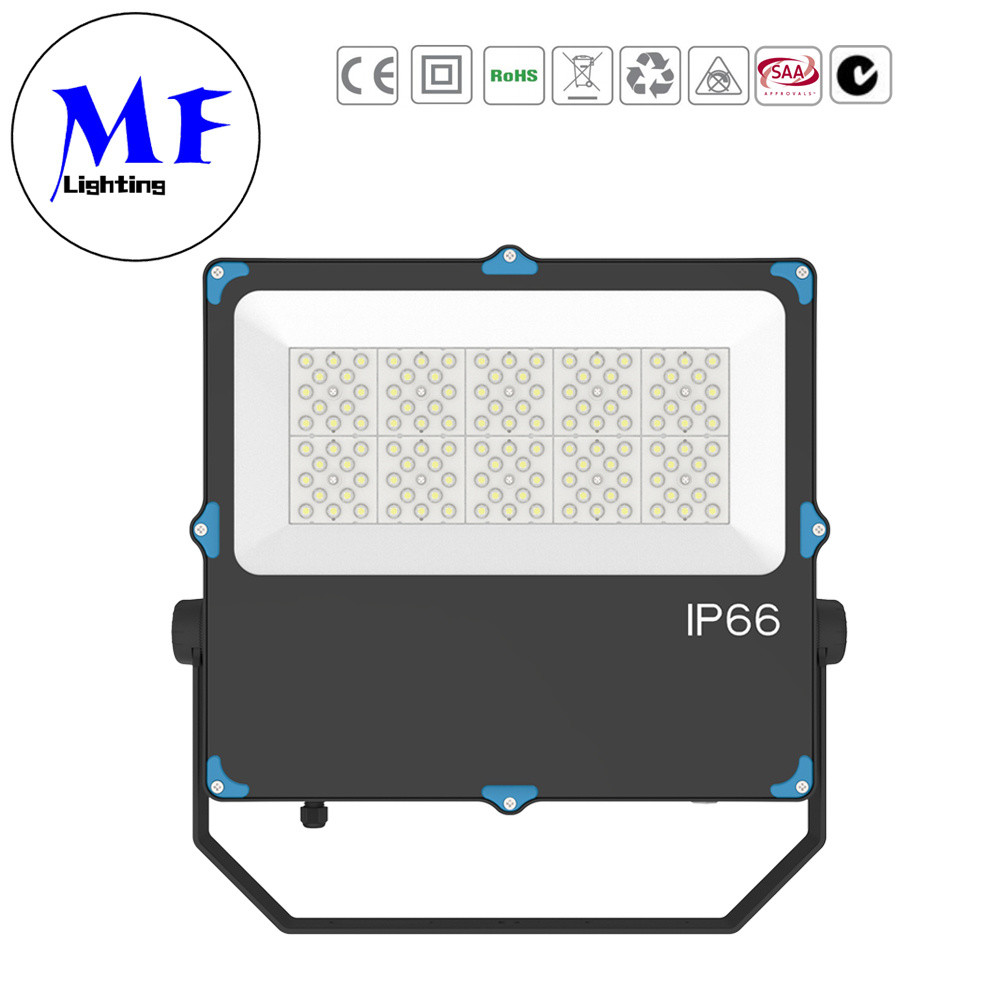

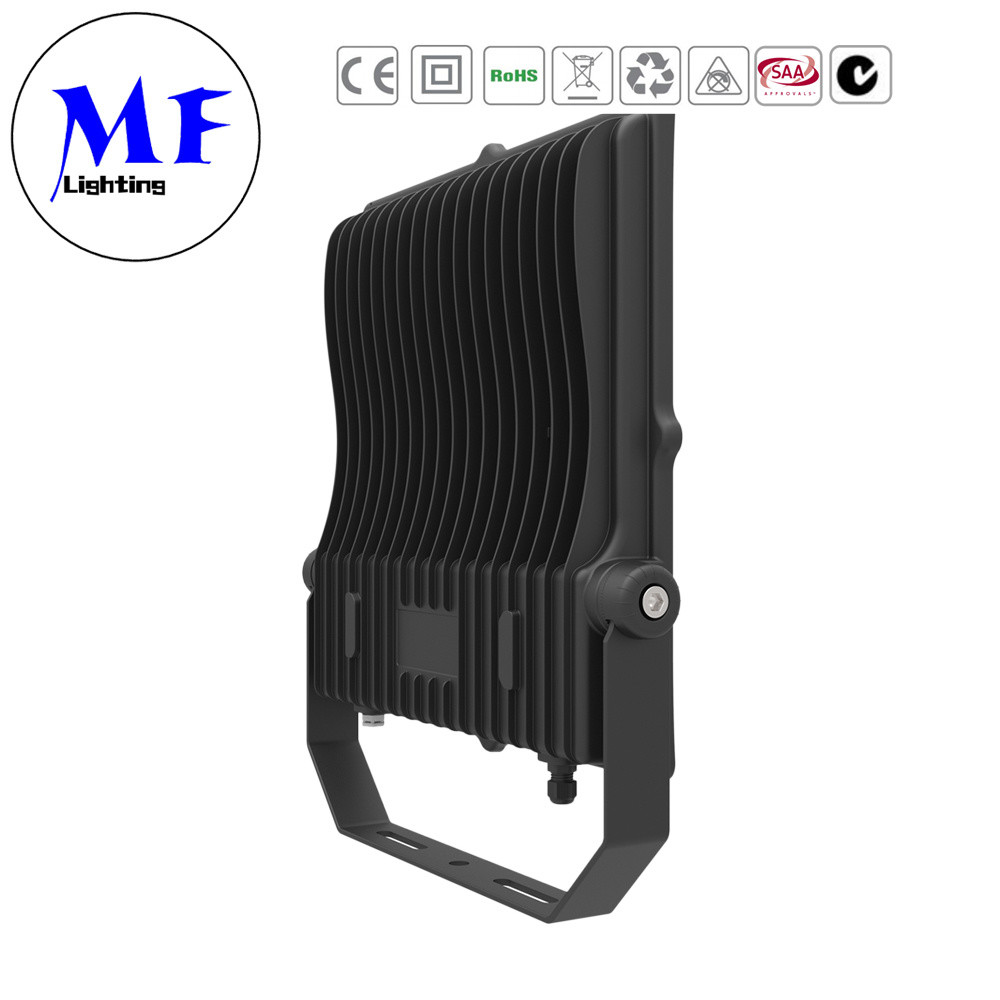

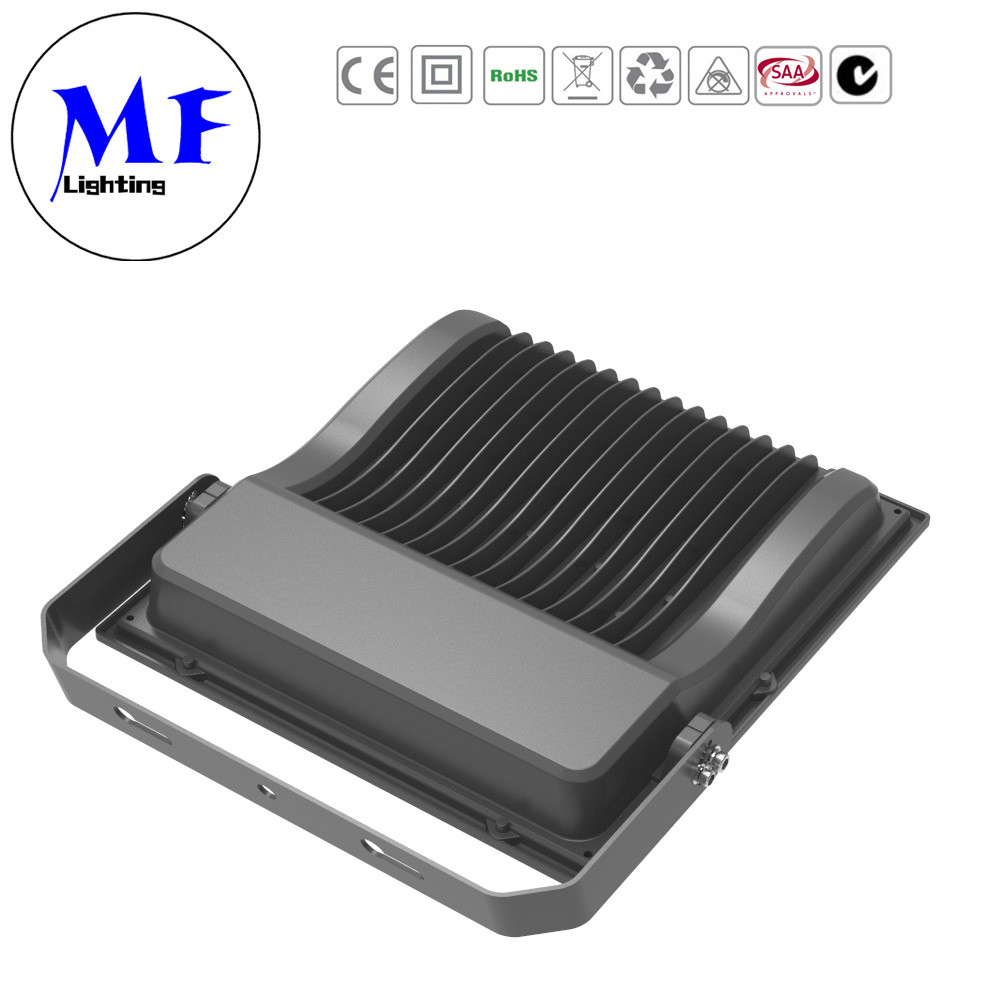

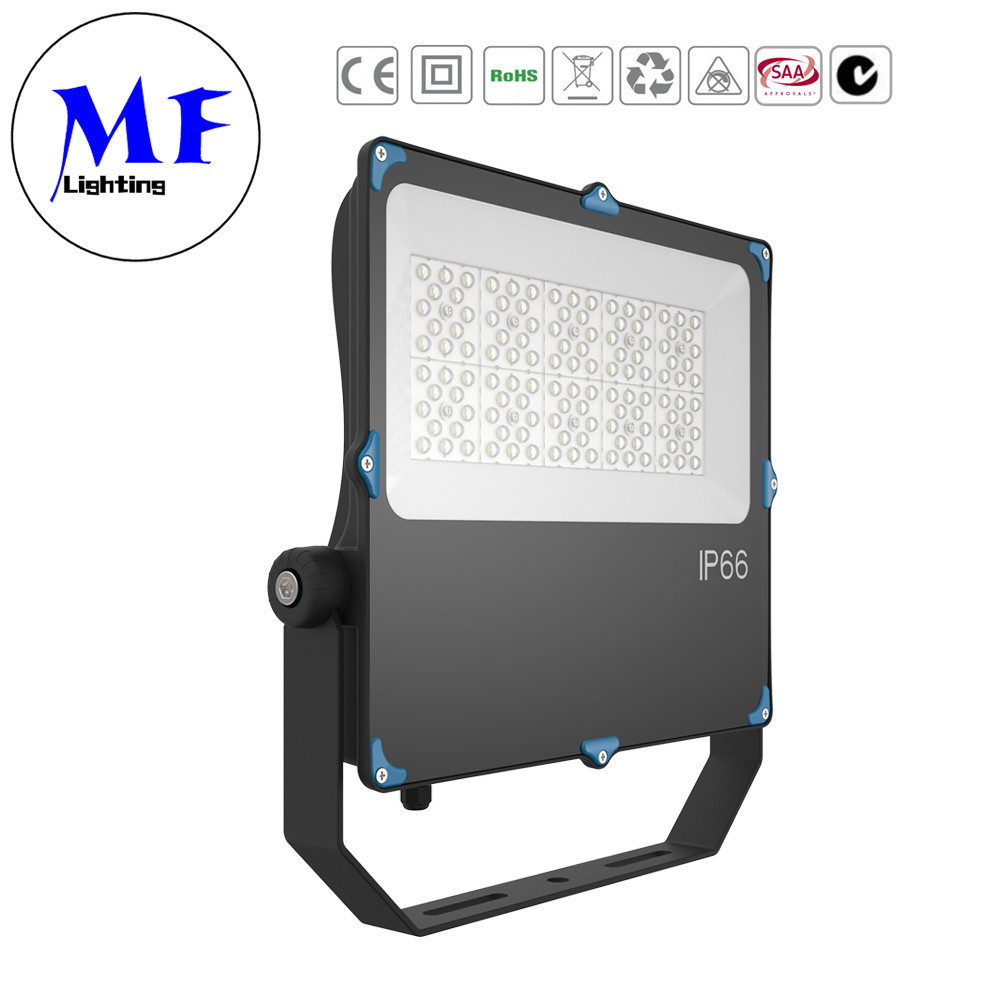

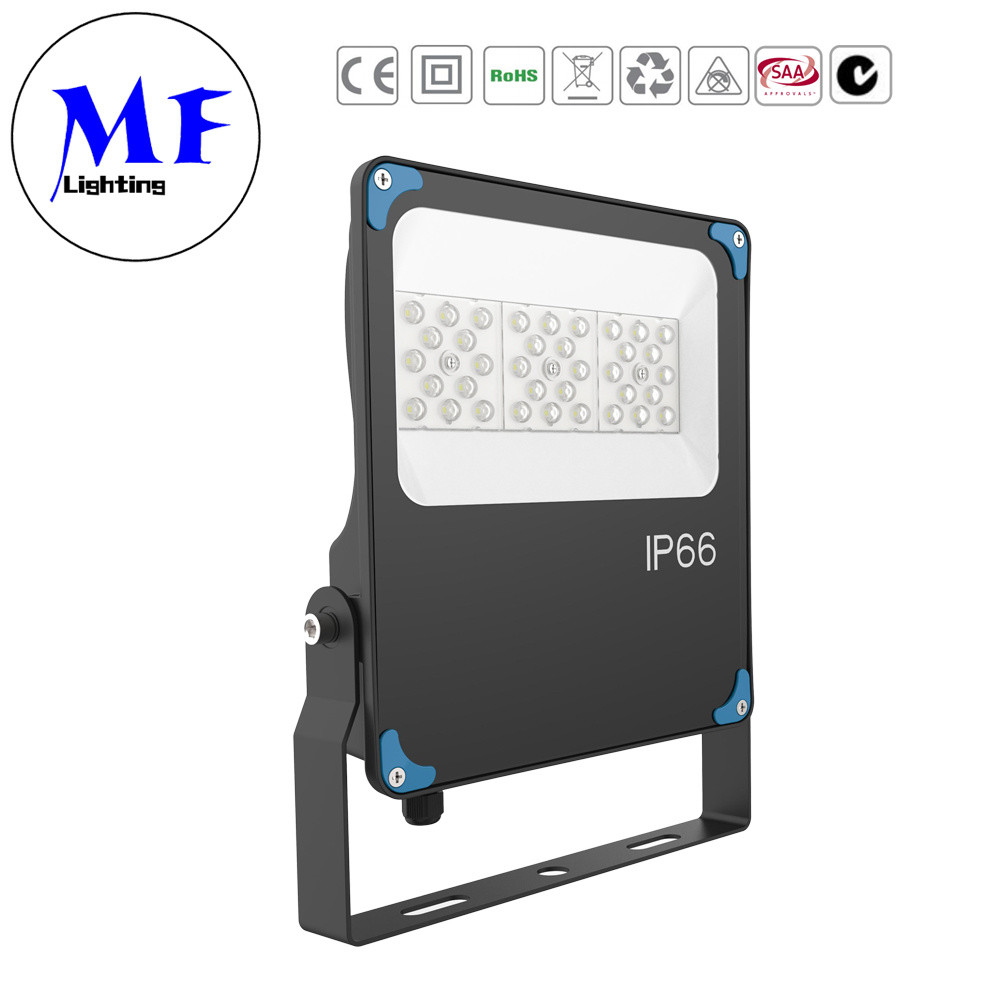

300W LED Flood Light IP66 Slim Led Flood Light High Lumen Led Flood Light Outdoor Flood Light Fixtures Waterp
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Detail Information |
|||
POWER: | 20-400W | CCT Range: | 4000K |
---|---|---|---|
Voltage Range: | 100-277V | Warranty: | 5Years |
IP: | IP66 | Operation Temperature: | Ta=40 |
Life Hours: | 50000H | LED Driver: | Meanwell/Sosen |
Efficiency: | 130lm/W | LED Brand: | Lumileds |
Brackrt Material: | Galvanized Iron | CRI: | >70/80 |
THD: | <15% | Starting Time: | <0.5S |
Switching Cycle Before Failure: | >100,000times | ||
High Light: | 20-400W LED Flood Light,IK08 LED Flood Light,LED Flood Light with angle bracket |
Product Description
FEATURES
Matters needing attention
1.Before installing the lighting fixtures,please read this instruction manual carefully.
2.The lighting fixtures should be intalled,connected and tested by certified electrician based on the local regulations
3.Lamps should always be installed or replaced carefully
4.Please check the local voltage in accordance with the product requirements before installation
5.Revamping only can be done when the power is off and the lamp is completely cooled down
6.When clean the lamp,make the power off and let it cool down completely,clean the fixture with a soft colth and a standard PH neutral detergent,stainless steel should be maintained regularly.
7.Don't cover the fixtures with flameable materials
8.Replace shouldbe made by the manufaturer or his service agent or certified electrician in order to avoid a hazard
Temperature Characteristics t-ambient 25ºC.
Model NO. | Power(W) | Light Source | LED QTY(pcs) | CCT(K) | Lumen(lm/w) | CRI | Beam Angle |
20W | 20 | 3030 | 16 | 4000K |
|
>70/80 |
120° |
30W | 30 | 32 | |||||
50W | 50 | 48 | |||||
100W | 100 | 96 | |||||
150W | 150 | 160 | |||||
200W | 200 | 240 | |||||
250W | 250 | 240 | |||||
300W | 300 | 320 | |||||
400W | 400 | 510 |
