2ft 4ft 5ft 140lm/W IP66 LED Tri Proof Light 90min Emergency With Motion Sensor
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
| Minimum Order Quantity : | 10PCS | Price : | USD28.5-39.5/PCS |
|---|---|---|---|
| Packaging Details : | Standard brown carton box packing, 66*35*33cm/6pcs, N.W:7.2KG, G.W:8.0KG | Delivery Time : | 2 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 5000pcs/Month |
| Place of Origin: | China | Brand Name: | MF |
|---|---|---|---|
| Certification: | CE, RoHS | Model Number: | MF-LTP20G-2FT Sensor |
|
Detail Information |
|||
| Power: | 20W/25W/40W/50W/60W | Length: | 2ft/4ft |
|---|---|---|---|
| Input Voltage: | AC100-277V, 50/60Hz | PF: | >0.9 |
| CRI: | 80Ra+ | Beam Anle: | 120 Deg |
| IP Rating: | IP65 | Lumen Efficiency: | 130LM/W |
| Dimmable: | 0-10V | Sensor: | Microware Sensor(On/off Version) |
| CCT Selectable: | 3000K,4000K,5000K | ||
| High Light: | IP65 LED Triproof Light 600mm,IP65 LED Triproof Light 1200mm,Watt Adjustable LED Triproof Lights |
||
Product Description

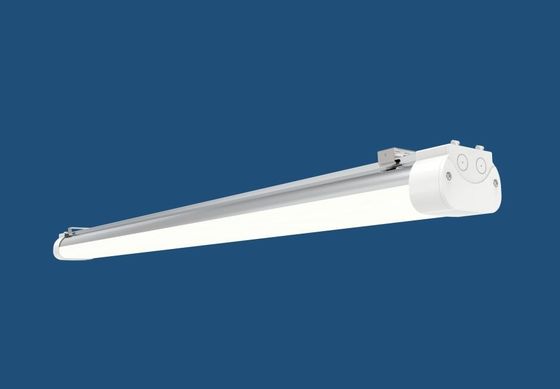

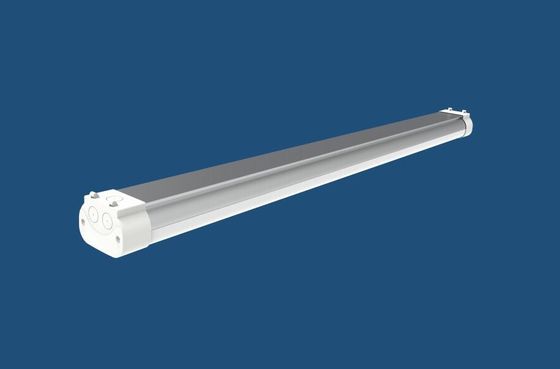

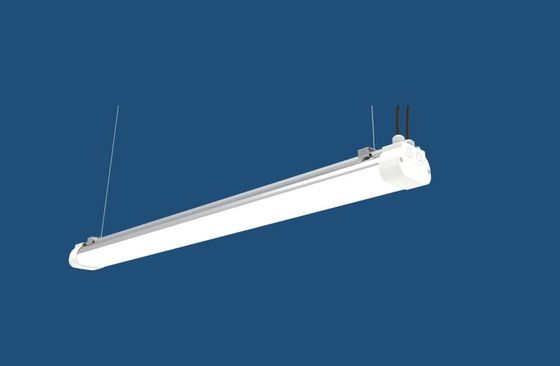

Microwave Sensor LED Tri proof lights, CCT & Watt adjustable, IP65 600mm,1200mm
Main Features:
Optical Details:
Light Efficiency: 130LPW
CCT: 30K, 40K, 50K
Beam Angle: 120°
CRI: 80Ra+
Electrial Details:
Input Voltage; 100-277Vac
PF: ≧0.95
Dimmable: 0-10V
Power Efficancy: ≧92%
Other Details:
Ingress Protection:IP65
Lifespan: 50,000Hrs+
Storage Temperature: -40℃∽80℃
Operating Temperature: -40℃∽45℃
Ordering Information:
CCT & Watt Selectable -Microwave Sensor Version
| Model No | Power | Length | Lumens | CCT | Remark | Size |
|
MF-LTP20G-2FT |
20W | 2ft | 130lm/w | 3000k/4000K/5000K |
Microwave Sensor |
600*100.7*77mm |
|
MF-LTP40G-4FT |
25W |
4ft | 130lm/w | 1200*100.7*77mm | ||
|
MF-LTP60G-4FT |
40W |
4ft | 130lm/w | 1200*100.7*77mm |
Microwave Sensor Information:
| Sesor Parameters | Operaton Frequency | 5.8GHz7±5MHz,ISM Band. |
| Transmitting Power | 0.5mW Max. | |
| Hold time | 5s/30s/1min/3min/5min/10min/20min/30min | |
| Stand-by Dim Level | 10%(1.4-1.6V),20%(1.9-2.1V), 30%(2.9-3.1V), 50%(4.9-5.1V) | |
| Twilight Time | 0S/10S/1min/3min/5min/10min/20min/30min/+ | |
| Detection Area | 25%/50%/755/100% | |
| Daylight Sensor |
5lux/15lux/30lux/50lux/100lux/150lux/Disable |
|
| Detecting Radius | ≧4m(Mounting height 3m, moving speed 0.3m/s) | |
| Mounting Height | 6m Max | |
| Detecting Angle | 150° |
Packing Information:
| Item | QTY/CTN | N.W | G.W | Carton size | CBM |
| MF-LTP20-2FT | 6 | 7.2KG | 8.0KG | 66*35*33cm | 0.075 |
| MF-LTP40-2FT | 6 | 11.8KG | 13.8KG | 126*35*33cm | 0.143 |
| MF-LTP60-2FT | 6 | 12.6KG | 14.6KG | 126*35*33cm | 0.143 |
Application:
Factory lighting: Workshop, warehouse, storage rack.
Sports Center:Gymnasium,swimming pool, locker room.
Service Area: Subway, kitchen, bathroom, canteen, walkways,garage, airport service area.
