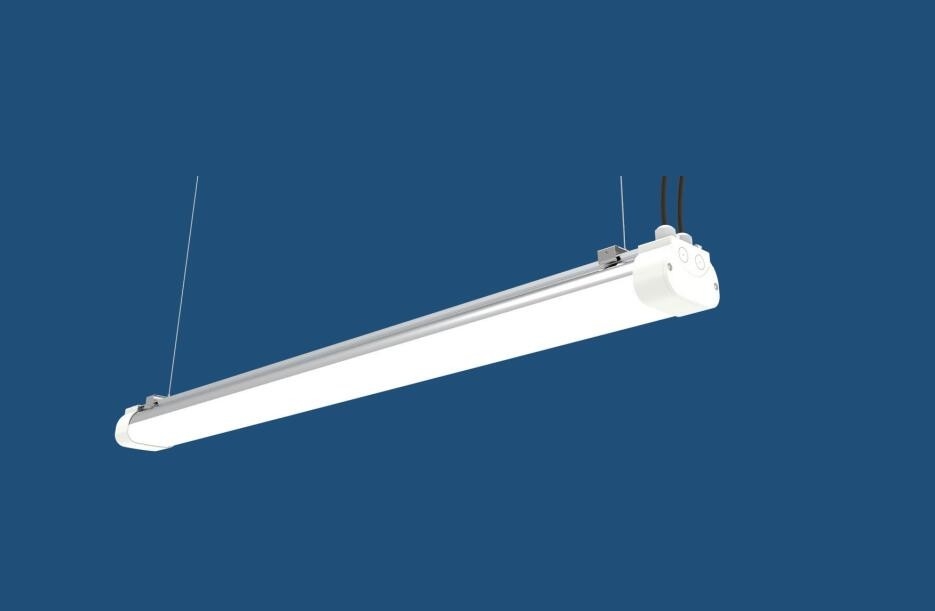

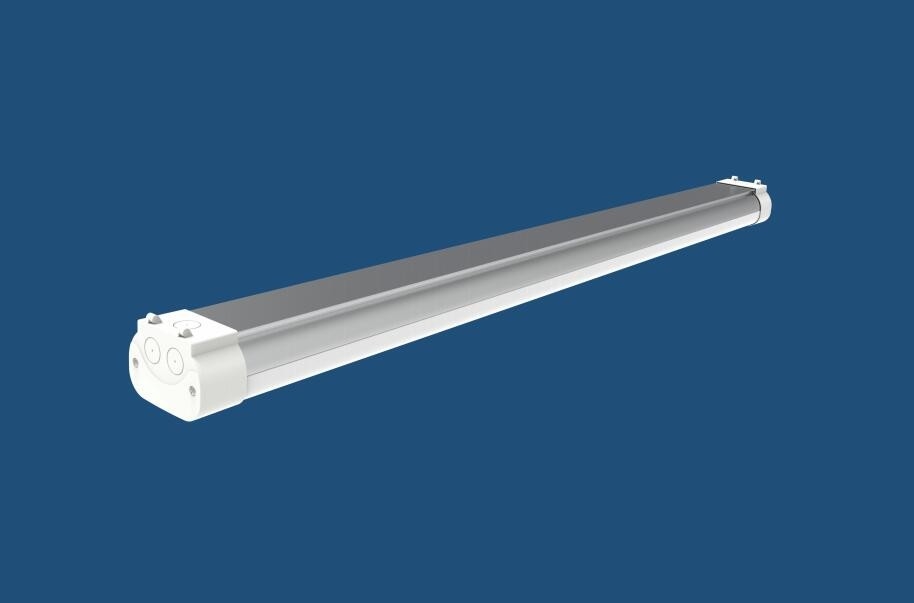

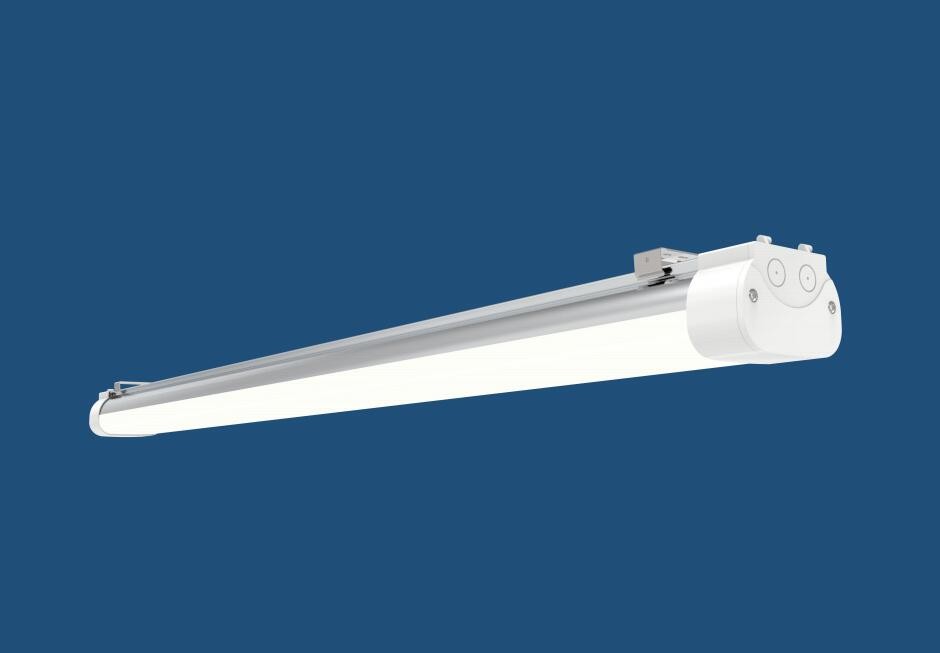

Name: Microwave Sensor IP65 LED Triproof Light 600mm 1200mm CCT And Watt Adjustable
Brand: Ming Feng Lighting Co.,Ltd.
SKU: MF-LTP20G-2FT Sensor
Price: 33.50 USD
Availability: InStock

Detail Information
Power:	20W/25W/40W/50W/60W	Length:	2ft/4ft
Input Voltage:	AC100-277V, 50/60Hz	PF:	>0.9
CRI:	80Ra+	Beam Anle:	120 Deg
IP Rating:	IP65	Lumen Efficiency:	130LM/W
Dimmable:	0-10V	Sensor:	Microware Sensor(On/off Version)
CCT Selectable:	3000K,4000K,5000K
Highlight:	IP65 LED Triproof Light 600mm , IP65 LED Triproof Light 1200mm , Watt Adjustable LED Triproof Lights

Product Description

Microwave Sensor LED Tri proof lights, CCT & Watt adjustable, IP65 600mm,1200mm

Main Features:
Optical Details:

Light Efficiency: 130LPW

CCT: 30K, 40K, 50K

Beam Angle: 120°

CRI: 80Ra+

Electrial Details:

Input Voltage; 100-277Vac

PF: ≧0.95

Dimmable: 0-10V

Power Efficancy: ≧92%

Other Details:

Ingress Protection:IP65

Lifespan: 50,000Hrs+

Storage Temperature: -40℃∽80℃

Operating Temperature: -40℃∽45℃
Microwave Sensor IP65 LED Triproof Light 600mm 1200mm CCT And Watt Adjustable 0
Ordering Information:
CCT & Watt Selectable -Microwave Sensor Version

Model No	Power	Length	Lumens	CCT	Remark	Size
MF-LTP20G-2FT Sensor	20W	2ft	130lm/w	3000k/4000K/5000K	Microwave Sensor on/off Version 0-10V Dimming	600100.777mm
MF-LTP40G-4FT Sensor	25W 30W 40W	4ft	130lm/w			1200100.777mm
MF-LTP60G-4FT Sensor	40W 50W 60W	4ft	130lm/w			1200100.777mm

Microwave Sensor Information:

Sesor Parameters	Operaton Frequency	5.8GHz7±5MHz,ISM Band.
	Transmitting Power	0.5mW Max.
	Hold time	5s/30s/1min/3min/5min/10min/20min/30min
	Stand-by Dim Level	10%(1.4-1.6V),20%(1.9-2.1V), 30%(2.9-3.1V), 50%(4.9-5.1V)
	Twilight Time	0S/10S/1min/3min/5min/10min/20min/30min/+
	Detection Area	25%/50%/755/100%
	Daylight Sensor	5lux/15lux/30lux/50lux/100lux/150lux/Disable Daylight Priority; ON/OFF value (5lux/15lux/30lux/50lux)/150lux 100lux/200lux 150lux/300lux
	Detecting Radius	≧4m(Mounting height 3m, moving speed 0.3m/s)
	Mounting Height	6m Max
	Detecting Angle	150°

Packing Information:

Item	QTY/CTN	N.W	G.W	Carton size	CBM
MF-LTP20-2FT	6	7.2KG	8.0KG	663533cm	0.075
MF-LTP40-2FT	6	11.8KG	13.8KG	1263533cm	0.143
MF-LTP60-2FT	6	12.6KG	14.6KG	1263533cm	0.143

Application:
Factory lighting: Workshop, warehouse, storage rack.
Sports Center:Gymnasium,swimming pool, locker room.
Service Area: Subway, kitchen, bathroom, canteen, walkways,garage, airport service area.

Tag:

Your best partner in LED Tri-proof Lights, LED Down Lights, LED Flood Light, LED Sport Light,LED Stadium Light, LED High Bay Light, LED Explosion proof Light ，LED Aviation Obstruction Light in China, OEM and ODM are welcome .

Product Details:
Place of Origin:	China
Brand Name:	MF
Certification:	CE, RoHS
Model Number:	MF-LTP20G-2FT Sensor
Payment & Shipping Terms:
Minimum Order Quantity:	10PCS
Price:	USD28.5-39.5/PCS
Packaging Details:	Standard brown carton box packing, 663533cm/6pcs, N.W:7.2KG, G.W:8.0KG
Delivery Time:	2 weeks
Payment Terms:	L/C, T/T
Supply Ability:	5000pcs/Month
