IP65 Dimmable led cabinet lights, Round shape, 3W surface mounted mini downlights

Certification
China Ming Feng Lighting Co.,Ltd. certification
China Ming Feng Lighting Co.,Ltd. certification
Customer Reviews
I have been working with MF-Claire for the past 6 months,Miss Claire have shown full cooperation and professional action all over this period, and we are so happy for dealing with her and MF company.

—— Ing. Ibrahim Amer-Spain

Hi Claire that's perfect thanks again, I will spread your name far and wide among the UK growing community! You've been a lot of help.

—— Tom Strichen---UK

It was a great experience having an opportunity to work with such a professional supplier like MF and having received finest services from you.

—— Shashi

I need more your 60pcs 200W Pionner led grow lights , This lamp work good for my flowers

—— Richard

MF is a reliable supplier of LED lighting products. I have known her and buy from the factory since 2009.

—— David Hale--USA

Professinonal across the MING FENG LIGHTING CO,.LTD company featured with best people such as Allen. I'm impressed!

—— Florian--UK

I must thanks a lot for MING FENG team, without their great support, especial the EXCELLENT DIALUX SIMULATION we can't win the parking lot project.

—— Ricardo--Brazil

I really would like to work with MING FENG, their professional service on the lighting solution and reliable products help me win much market!

—— Thierry Baron--UK

I'm Online Chat Now

IP65 Dimmable led cabinet lights, Round shape, 3W surface mounted mini downlights

IP65 Dimmable led cabinet lights, Round shape, 3W surface mounted mini downlights
IP65 Dimmable led cabinet lights, Round shape, 3W surface mounted mini downlights IP65 Dimmable led cabinet lights, Round shape, 3W surface mounted mini downlights IP65 Dimmable led cabinet lights, Round shape, 3W surface mounted mini downlights IP65 Dimmable led cabinet lights, Round shape, 3W surface mounted mini downlights

Large Image :  IP65 Dimmable led cabinet lights, Round shape, 3W surface mounted mini downlights

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE, RoHS, TUV,GS,FCC,SAA
Model Number: MF-MZCG-3W-A
Payment & Shipping Terms:
Minimum Order Quantity: 20PCS
Price: Negotiable
Packaging Details: 22*22*14cm/20pcs/inner box , 3.0KG/inner box 42*42*26cm/8 inner box/carton, 24KG/carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 10,000pcs/Month

IP65 Dimmable led cabinet lights, Round shape, 3W surface mounted mini downlights

Description
Name: IP65 Dimmable Led Cabinet Lights Power: 3watt
Input Voltage: 95-120Vac, 195-240Vac LED Brand: COB EPISTAR
Luminous Flux: 295lm CRI(Ra): ≥80
Beam Angle: 100 ° CCT: WW(2700-3000K)/ NW(4000-4500K)/ CW(6000-6500K)
Lifespan: >35000Hrs Material: Aluminum Alloy
High Light:

dimmable led downlights

,

cob led downlights


IP65 Dimmable led cabinet lights, Round shape, 3W recessed & surface mounted downlights

Description:

Ming Feng lighting as a prominent China dimmable led downlight manufactory come out IP44 dimmable led cabinet lights since 2016, it's usd 3Watt Epistar COB chip, input voltage AC95-120V or AC195-240V for options, light adjustableand prodtction class is IP44 and IP65 avaiable for bathroom application. light body material is 6063 aluminum, lifespan more than 35000 hours.


Use tips: Please Cut off power before install.Pay attention to the positive and negative pole, not reversed.
lifespan please don't install around heat or corrosive place.Please ensure the installation base can bear 10 times weight of the product before installing.Indoor use only. The place that on no shock,no swing,no fire,Do not drop it from high place,avoid crashing.


Specifications:

Model No:

MF-MZCG-3W-A

Input voltage

95-120Vac,195-240Vac

Power(watt)

3W

Dimension

Ф58×H14mm

Color temperature

WW(2700-3000K) NW(4000-4500K) CW(6000-6500K)

LED Chip

Epistar COB

PF

>0.92

Luminous Flux (lm)

295LM

CRI(Ra)

≥80

Lifespan

≥35000hrs

Beam Angle

100°

Material

Aluminum Alloy

Operating Temperature

-200C ~450C

Dimmable

Y

IP

IP44 and IP65

Product dimension

Ф58×H14mm

Dimension Single Package

2*22*14cm/20pcs

Weight Single Package

3.0kg

Certificate

CE/RoHS/FCC/SAA

Warranty Period

3 years



Features:

  1. Use wafer AC COB chip, AC input and dimmable led cabinet/ down lights
  2. Independent research and development, private-mode products, uncompromising attention to, light compact ultra-thin, flexible wide range of applications.
  3. Light color rich options, warm white, pure white, cool white.
  4. lamp housing color have white, silver, black for your choose.
  5. Protection class can both IP44 and IP65, dustproof and waterproof, this led cabinet lights can be used in outdoor environments, such as balcony, riding the floor.
  6. AC95-120V and AC195-240V input can be directly connected , no external transformers, and alos available for global countries useage.
  7. Can be recessed and surface mounted as cabinet light and mini down lights.
  8. Quality aluminum material and milky cover.
  9. Long lifespan over 35000 hours.

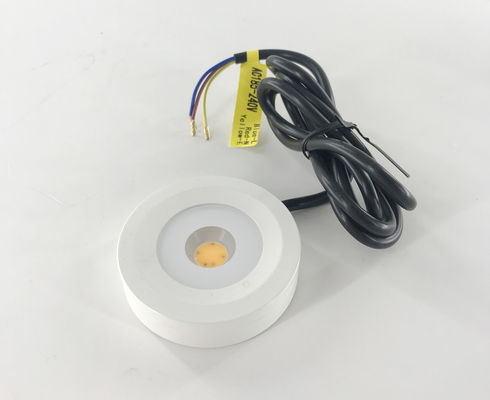

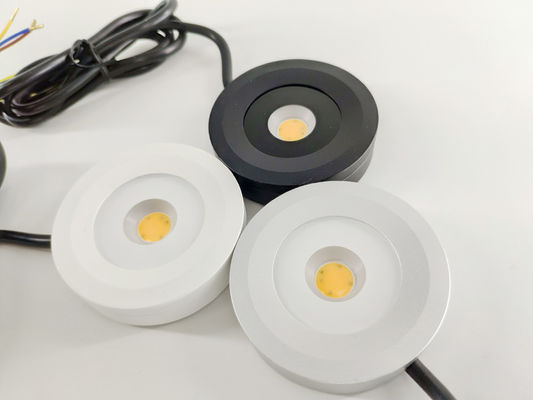

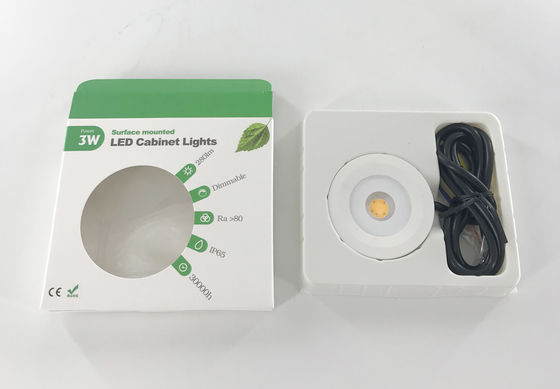

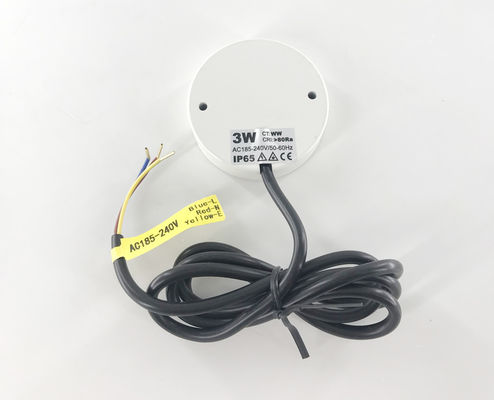

IP65 Dimmable led cabinet lights details:

IP65 Dimmable led cabinet lights, Round shape, 3W surface mounted mini downlights 0
IP65 Dimmable led cabinet lights, Round shape, 3W surface mounted mini downlights 1

IP65 Dimmable led cabinet lights, Round shape, 3W surface mounted mini downlights 2

IP65 Dimmable led cabinet lights, Round shape, 3W surface mounted mini downlights 3
