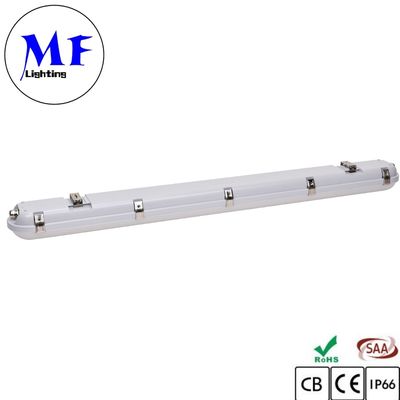

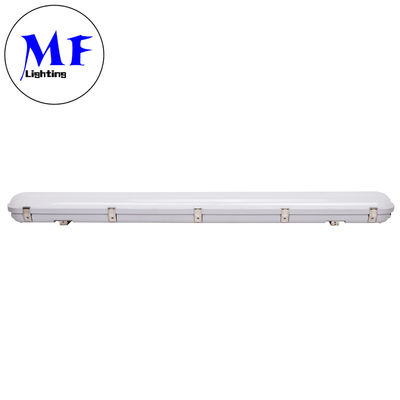

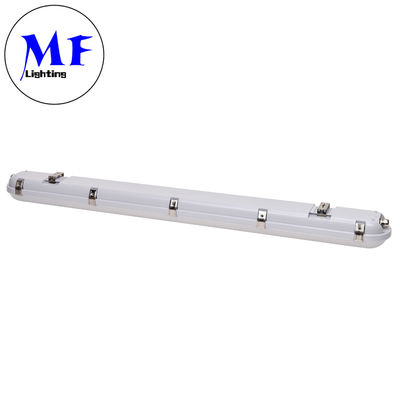

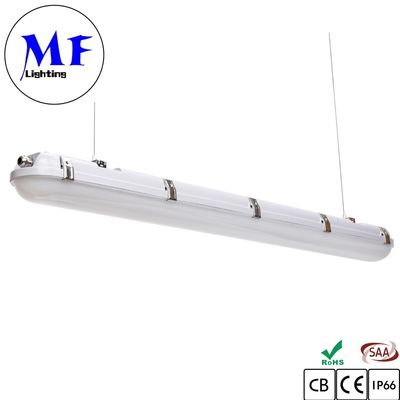

LED Tunnel Light IP66 Tri Proof Light With Motion Sensor And Emergency Back Up

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 2450*130*105mm, 5.2kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal Supply Ability : 20,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-T218-EM/MF-T236-EM/MF-T258-EM

Detail Information

Product Code: MF-T218-EM/MF-T236-EM/MF-T258-EM Power: 20W/40W/60W/80W
LED Type: SMD2835 LED Chip: SAMSUNG
Luminous: 130lm/w Beam Angle: 120°
IP Rate: IP66 IK Rate: IK08
Application: WAREHOUSE/Parking Lot Luminous Flux: 3120/6240/7020
High Light:

RoHS LED Light Fixture

,

130lm/w LED Light Fixture

,

Waterproof IK65 LED Triproof Light

Product Description

LED Tunnel Light IP66 Tri Proof Light 3Ft 4Ft Parking Lot Lighting With Motion Sensor And Emergency Back Up




LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 0



  1. IP65 Tri-proof LED Light Fixture
  2. Input: AC 100-277V, 50/60Hz
  3. Luminous Flux: 140lm/w±10%
  4. CRI: >85
  5. PF: >0.95
  6. Lifespan: ≧50000Hrs
  7. IP rate: IP65
  8. IK rate: IK08



LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 1

  • The slotted iron board design ensures excellent heat dissipation, promoting long-lasting performance.
  • Driver options, including reputable brands such as Meanwell, as well as other high-quality Chinese brands, are available.
  • Our lights meet rigorous standards, including IP65/IP66, IK08, and 850 degrees glow wire testing, making them ideal for outdoor and wet location lighting applications.
  • Equipped with features such as microwave and PIR sensors, emergency kits, and more, our lights offer easy installation and added convenience.
  • Our modular installation design reduces labor costs and facilitates seamless installation.
  • Our lights are well-suited for a diverse range of applications, including in supermarkets, warehouses, underground parking lots, garages, and production plants.



LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 2

Model No MF-T218/MF-T236/MF-T258/MF-T270
Input voltage AC100-277Vac 50hz/60hz
Power(watt) 20W/40W/60W/80W
Product size(mm) 2ft(600mm)/4ft(1200mm)/5ft(1500mm)/6ft(1800mm)
Color temperature Warm White(3000K-4500K), Pure White(5000K-5500K), Cold White(6000K-6500K)
LED Chip SAMSUNG
Luminous Flux (lm) 140LM/W±10%
CRI(Ra) >85
Lifespan ≥50000hrs
Beam Angle 120°
Material Aluminum + PC
Operating Temperature -20°C ~40°C
IP IP65
IK IK08
Certificate CE/RoHS
Warranty Period 5 years




LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 7

LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 8



LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 9LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 10LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 11





LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 12



Product Code Dimentions(LxWxH)(mm) Q'ty/ctn Clips LF(mm) Inner Box(mm) Outer Box(mm) G.W./CTN N.W./CTN
MF-T218 600x125x88 6 6 260-300 660*130*95 680*280*310 8.5kg 1.3kg
MF-T236 1200x125x88 6 10 800-860 1260*130*95 1280*280*310 14.6kg 2.16kg
MF-T258 1500x125x88 6 12 1080-1150 1560*130*95 1580*280*310 17kg 2.5kg
MF-T270 1800x125x88 4 16 860-1050 1860*130*95 1860*280*210 14kg 3.2kg




LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 17

LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 18



LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 19

LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 20 LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 21 LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 22 LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 23 LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 24

LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 25

LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 26

LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 27
LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 28LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 29LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 30
LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 31
                                                         LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 32
LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 33
Suitable for supermarket, park, warehouse, underground parking place, garage, productionplant, suitable for outdoor and wet location lighting application.
                                                    LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 34LED Tunnel Light IP66 Tri Proof Light  With Motion Sensor And Emergency Back Up 35


FAQ



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q3. How to proceed an order for led light?

A: First make an inquiry about the products and provide your requirements

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

  Fourthly We arrange the production.

Q4. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.
