IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE,RoHS
Model Number: MF-SDD-B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Ex-work/FOB price
Packaging Details: Depends on each model
Delivery Time: 2 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000pcs/Month

Detail Information

Input Voltage: 85V-277V Power: 50W-500W
Luminous Efficiency: 140~150lm/W IP Rating: IP66
CCT: 27K-30K/40K-50K/57K-65K Beam Angel: 30°, 45°, 60°, 90°, 150°*80°/120°*90°
Driver: Meanwell/Sosen Body Color: Black
Housing: Powder Coated Aluminium Alloy Chips: Lumileds
Dimming: 1-10V, Dali2.0 Precision Aiming Device: MF
IK: IK08 CRI: 70+/80+
High Light:

Football Stadium Flood Light Lamp

,

Asymmetric Beam Angle Flood Light Lamp

,

IP66 High Power Flood Light

Product Description

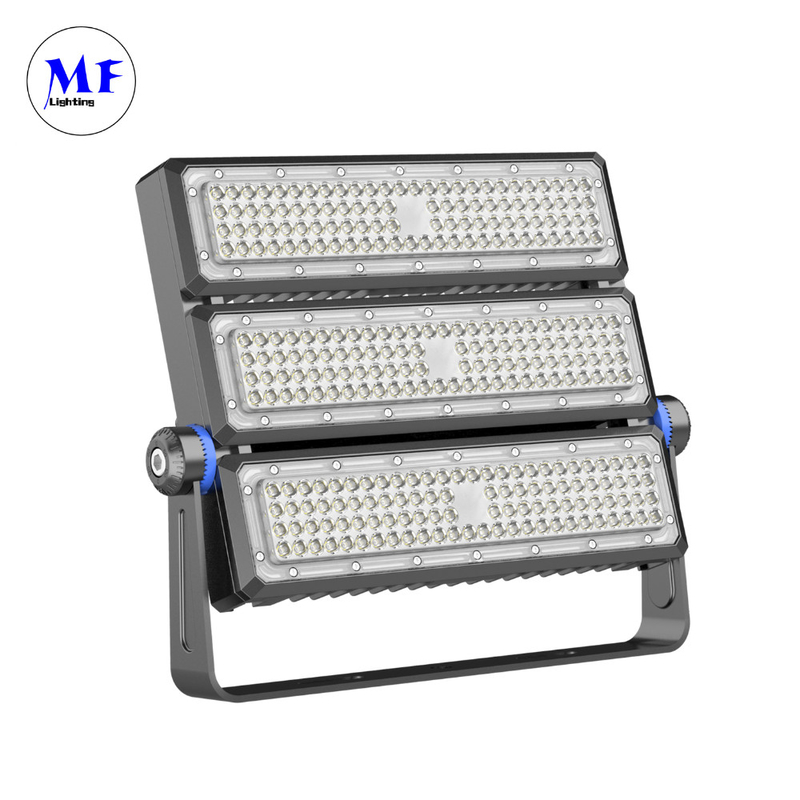

IP66 Sport Court Football Stadium Light Flood Lamp Asymmetric Beam Angle Wind Resistant High-Power LED Projector Light


IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power 0

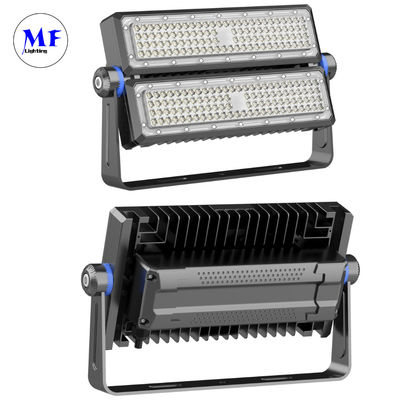

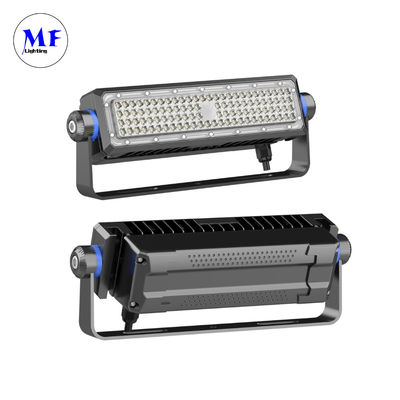

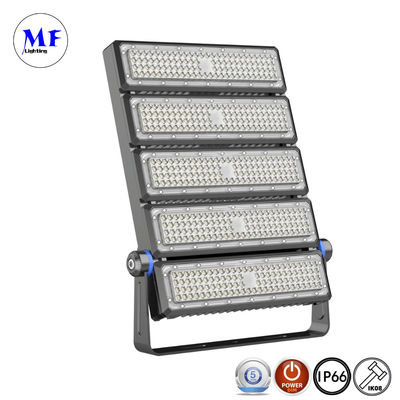

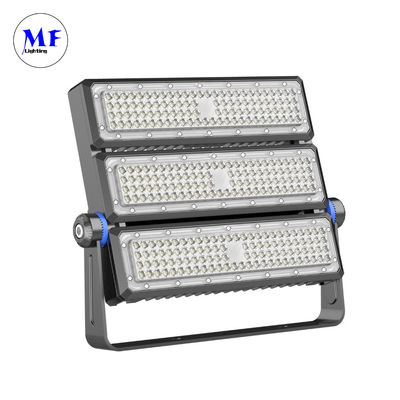

MF LED floodlight is equipped with a die-casting heat sink that provides excellent thermal management and a compact structure. It features a single module that ranges from 50W to 60W, and up to five modules can be combined into a powerful 300W unit. The high-strength polycarbonate lens ensures superior light transmission and is rated IK08, while the optional tempered glass cover makes it suitable for harsh conditions. The embedded cable raceway optimizes cable layout for a neat and tidy appearance. With a racked angle that allows for precise installation up to 270°, this floodlight can be easily adjusted to suit any situation. The 4mm thickness L shape bracket provides excellent wind resistance with a rate of 17. The photometry options include symmetrical beams of 30°, 45°, 60°, and 90°, as well as asymmetric beams of 150°*80°/120°*90°, making it a versatile solution for a wide range of outdoor lighting applications.



Electrical Data
Driver
Meanwell/Sosen
Input Voltage
AC100-277V,50-60Hz
Power Factor
>0.95
Output Voltage
DC45V
Total Harmonic Distortion
<15%
Driver Eciency
92%
IP Rating
IP66
Lifespan
60,000Hrs
Housing
ADC12
Lens Material
Polycarbonate
Fixture Size
L486xW372xH97mm (250W/300W)
Carton Size
432*546*148mm(250W/300W)
Net Weight
5.5KG(250W/300W)
Gross Weight
6KG (250W/300W)
Optical Data
Power
50W/60W/100W/120W/150W/180W
200W/240W/250W/300W
LED Chips
O-SRAM
Luminous efficiency
140~150lm/W
Luminous Flux
Refer to IES
CCT
3000K~6500K
Beam Angle
25/45/60/90/80*150/90*120°
CRI(RA)
70+/80+


IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power 1



* Die Casting Heat Sink: Excellent Thermal Management & Compact Structure

* Single Module 50W/60WUp To 5 Modules Can Be Combined Into 300W

* Hiah Strenath Polvcarbonate lens: Realize In lk08
* Tempered Glass Cover Option: To Apply In Harsh Conditions

* Embedded Cable Raceway:Optimize Cable Layout

* Racked Angle: Allows For Precise Installation, Up To 270°

* "4mm Thickness L Shape Bracket: Wind Resistant Rate 17

* Photometry: Symmetrical 30°/45°/60°/90°
                        Asymmetric 150°*80°/120°*90°

IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power 2


IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power 3IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power 4

50W 60W 100W 120W 150W 180W
IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power 5IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power 6IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power 7



200W 240W 250W 300W

IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power 8         IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power 9
IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power 10

                 Vertical                                              Horizontal                                              Suspended
IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power 11

Spill Shield
 IP66 Football Stadium Flood Light Lamp Asymmetric Beam Angle Wind Resistant High Power 12

Roads and highways / Parking lots / Sports stadiums / Railroad yards / Shipyards / Warehouses / Truck stops and rest areas /
Outdoor parks and recreation areas / Playgrounds / Storage facilities
Any Outdoor place,Etc
