IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CCC,CE,CQC,ETL,RoHs,SAA,ETL
Model Number: EX-xxWFL3YZDA
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Delivery Time: depends on order
Supply Ability: 5000pcs/months

Detail Information

Lens: Tempered Glass Housing: Copper-free Aluminum
POWER: 20-300W Mounting Bracke: Stainless Steel
CCT Range: 2000K-7000K Voltage Range: 100V~227V
Warranty: 5Years IP: IP66
IK: IK10 Working Temp: -40°~+60
LED Driver: IEC Certified Efficiency: 140lm/w
Chip Matching: Cree·lumen·atmospherics LED Brand: SMT
High Light:

Heavy Industry Explosion Proof Flood Light

,

Paper Mills Explosion Proof Flood Light

,

IK10 Explosion Proof Flood Light

Product Description

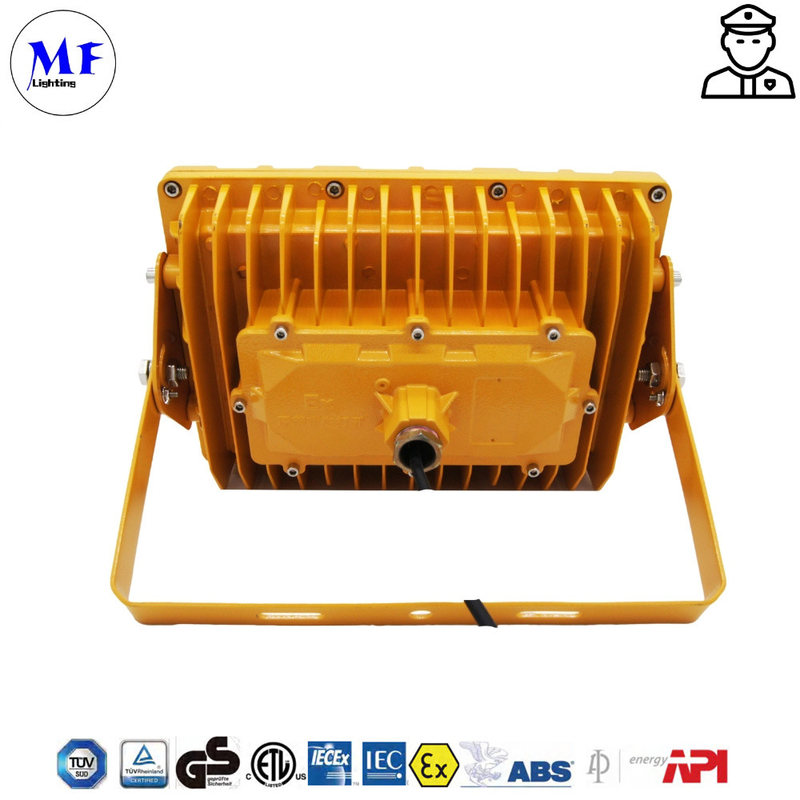

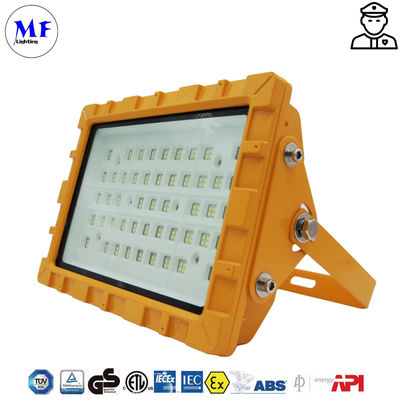

IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 0

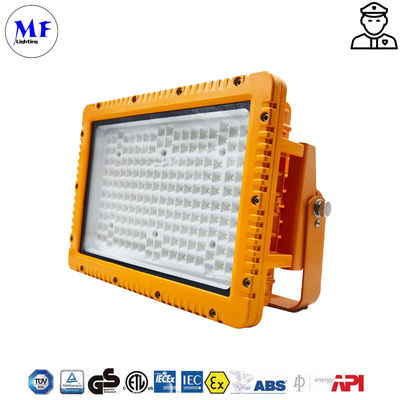

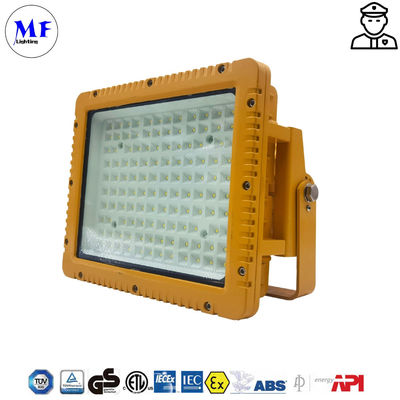

IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 1

>FEATURES

•Working Temperature: -40°C ~ +55°C.
•High quality SMT LED
•Heavy-duty and high impact resistance.
•Replaceable LED board and drivers.
•Integrated junction box for driver .
•Dimmable and battery back up function available.
•Marine rating powder coated finish treatment.
•Up to 5 years warranty .
•Various installation ways for different applications.
•Glass lens or polycarbonate lens to make different beam angles.



>SPECIFICATION

Product Number Wattage ColorTemperature Voltage Lumens Warranty CRI Emergency Time
EX-30WFL3YZDA 30W 2200K-7000K AC200-250V/DC12-48V 4200 5YEARS 70 3Hours
EX-50WFL3YZDA 50W 6000
EX-60WFL3YZDA 60W 8400
EX-80WFL3YZDA 80W 11200
EX-100WFL3YZDA 100W 14000
EX-150WFL3YZDA 150W AC200-250V/DC36-48V 21000
EX-180WFL3YZDA 180W 25200
EX-200WFL3YZDA 200W 28000
EX-240WFL3YZDA 240W 33600



"A,A3,A4"=Product code."Y"=D or N D:Dimmable or N: non-dimmable "Z"=CCT, from 2200-7000k, 22 for 2200k...70 for 7000K."D"
=Beam angle, D40 for 40°, D60 for 60°, D90 for 90°, D120 for 120°.
"A"=glass type. blank for flat glass, C for spherical glass.

>EXPLOSION PROTECTION

Marking Atex
II 2 G Ex nr IIC T6 GC
Il 2 D Ex tb IIIC T80 Db Ip66

Marking IECEX
Ex nr IIC T6 GC
Ex tb IIIC T80 Db Ip66

Marking UL844 (NorthAmerican)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking
UL 1598, UL1598A
ABS
Other Rating
IP 66
>MATERIALS
• Housing: Copper-free aluminum
• Lens: Tempered Glass
• Mounting Bracket: Stainless steel
• Hardware: Stainless steel
>ACCESSORIES

IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 2



IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 3

IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 4

IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 5

IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 6



IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 7

IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 8

IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 9





IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 10

IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 11



IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 12

Explosion-proof street lights are specifically designed to provide illumination in hazardous locations where there is a risk of explosions due to the presence of flammable gases, vapors, or combustible dust. These lights are built to withstand and contain any explosion that might occur within their housing, preventing it from spreading to the surrounding environment.
Petrochemical Plants:
Petrochemical facilities deal with volatile substances and gases, making explosion-proof lighting essential to ensure safety in areas where flammable materials are present.
Oil Refineries:
Refineries involve various processes that produce flammable vapors and gases. Explosion-proof street lights are used in outdoor environments, such as storage areas, loading docks, and walkways, to provide reliable lighting without posing a risk.
Chemical Plants:
Chemical processing plants often handle hazardous materials and operate in environments with potential explosion risks. Street lights with explosion-proof features are employed in outdoor locations to maintain visibility while minimizing the danger of ignition.

IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 13

IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 14





IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 15

IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills 16
