15 W 2/3/4 Wires 1700lm Low Voltage Led Track Lighting , LED COB Track Light

Product Details:
Place of Origin: China
Brand Name: MF
Certification: TUV SAA CB CE(Driver)
Model Number: MF-TL9
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 54.5*51*25.2cm/12PCS/CTN
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5,000pcs/Month

Detail Information

Power: 15W /20W Track: 2 / 3 / 4 Wires
Voltage: AC 200-240V 50/60HZ CRI: >90Ra Or >80Ra
LED Chip: CREE COB Or EPISTAR COB For Option Housing Color: Black, White Are Available
Lamp Luminous Flux(lm): 1200lm/1700lm Beam Angle: 15°,24°
Warranty: CREE:5 Years ;EPISTAR:3 Years CCT: 2700K/3000K/4000K/ 5000K/6500K
High Light:

led track spotlights

,

led tracking lights

Product Description

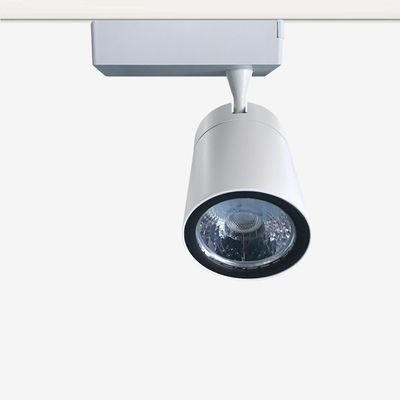

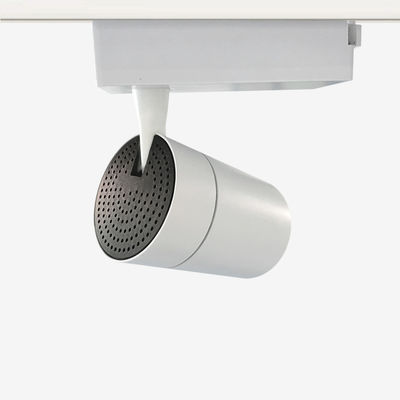

15 W 2/3/4 Wires 1700lm Low Voltage Led Track Lighting , LED COB Track Light





Quick Detail



15 W 2/3/4 Wires 1700lm Low Voltage Led Track Lighting , LED COB Track Light 0



Track wire:  2wire/ 3wire/ 4wire

Driver Brand: PF>0.97    AC 200-240V    50/60 HZ    Dimmable/ Non-dimmable

COB Chip brand: CREE & EPISTAR    Ra>85 or Ra>90

Finished color: White/ Black

Anti-glare Reflector Beam angle: 15°,24°

3/5 years warranty options   CE & RoHS





Description



Ming Feng Lighting Company is a factory has been producing LED lamps for more than 10 years. We have great confidence in keeping the best balance between cost/performance ratio so our products are competitive on both price and quality.



MF-TL9-15C/E,MF-TL9-20C/E can be choose in 15W 1200lm and 20W 1700lm.All the model can design in 2,3 or 4 wire, so it could be a great convenient option. Our this track light use CREE COB or EPISTAR COB LED chip with CRI >90 Ra or >80Ra.The CCT can be 2700K/3000k/4000k/5000k.High quality aluminum makes track light has a good look. At the same time we offer 5 years warranty for CREE chip and 3 years waranty for EPISTAR chip.







Specifications



Model :   MF-TL9-15C/E, MF-TL9-20C/E

Normal Voltage :   AC 200-240V 50/60HZ

Power :   15W, 20W

Dimension (D*H)(mm) :   D80*H125, D80*H125

Lumens (lm) :   1200lm, 1700lm

LED chip :   CREE COB or EPISTAR COB for option

CRI :   >90Ra or >80Ra

CCT :   2700K/3000K/4000K/ 5000K/6500K

Color Temperature :   white and Black for option

Beam Angle :   15°,24°

Adaptor :   2wire, 3wire, 4wire

Lamp Body Material :   Aluminum

Lifespan :   30000hours

Certificate :   TUV SAA CB CE(Driver)

Warranty :   CREE:5 years ;EPISTAR:3 years



2 wire/ 3 wire/ 4 wire adapter, Black or White housing optional

AC200~240V, for NON-dimmble type; AC200~240V for dimmable type, TRIAC silicon controlled AC tangent mode.



Product features



Lamps and lanterns of the shell is made of high quality aluminum, light body heat plate thick aluminum machine, excellent heat dissipation, ensure lamps and lanterns of longer life.



Low energy efficient import light source, high luminous flux and color rendering, service life can reach 50000 hours,



Pieces of lamps and lanters design cabinet and delicate, can be arbitrary adjust direction, product variety models for different aesthetic view of the customer to choose.



Commonly used color: warm white, is white, cold white, can according to customer needs to prvide such as red, green, blue, yellow, colorful coler.





More Details



15 W 2/3/4 Wires 1700lm Low Voltage Led Track Lighting , LED COB Track Light 1



15 W 2/3/4 Wires 1700lm Low Voltage Led Track Lighting , LED COB Track Light 2

Installation instructions



15 W 2/3/4 Wires 1700lm Low Voltage Led Track Lighting , LED COB Track Light 3





Applications



Widely used commodity display, such as car shows, jewelry display, brand clothing display, hotel, upscale clubs, Heritage Hall, chain stores, band stores, boutique windows, lighting and other key backdrop.



Package



Package( carton) K3K kraMF paper box



MF-TL9-15C/E : 12pcs  9KG/ CTN  54.5*51*25.2cm  Single weight 0.65Kg

MF-TL9-20C/E : 12pcs  9.3KG/ CTN  54.5*51*25.2cm  Single weight 0.68Kg
