15W / 20W / 25W Mini COB LED Down Light With CREE / Epistar Chip For Furniture Stores

China 15W / 20W / 25W Mini COB LED Down Light With CREE / Epistar Chip For Furniture Stores supplier
15W / 20W / 25W Mini COB LED Down Light With CREE / Epistar Chip For Furniture Stores supplier 15W / 20W / 25W Mini COB LED Down Light With CREE / Epistar Chip For Furniture Stores supplier

Large Image :  15W / 20W / 25W Mini COB LED Down Light With CREE / Epistar Chip For Furniture Stores

Product Details:

Place of Origin: China
Brand Name: MF
Certification: CE, RoHS
Model Number: MF-HCSL-15C/20C/25C

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 8pcs (13kg/CTN) 45.5*45.5*32cm
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 10,000pcs/Month
Contact Now
Detailed Product Description
Power: 15W/20W/25W Luminous Flux: 1275 Lm - 2250 Lm
Beam Angle: 24° CRI: >83 And >90
Warranty: 3 Or 5 Years Optional LED Brand: CREE/EPISTAR
Cut Out :: ¢115-120MM ¢115-120MM ¢150-160MM ¢150-160MM Normal Voltage :: AC 200-240V





15W / 20W / 25W Mini COB LED Down Light With CREE / Epistar Chip For Furniture Stores



Quick Detail:



  1. COB LED Down Light
  2. Input: AC 200V-240V, 50/60Hz
  3. Luminous Flux: 1275-1350lm 1600-1800 lm  2125-2250lm
  4. CRI: >80 and >90
  5. Beam Angle: 24°
  6. Lifespan: ≧40000Hrs
  7. IP: 44
  8. Dimmable: Yes
  9. Cut out : ¢115-120MM ¢115-120MM ¢150-160MM ¢150-160MM



Description:



Our main market is in European, South American and North American. Our factory locates in Dongguan city, Guangdong province. It is convenient to visit our factory and deliver the container to all around the world based on Shenzhen port. Ming Feng Lighting factory are providing the OEM and ODM service for all the partners all around the world, our LED light is in high quality standard at reasonable and competitive price, our designer and engineer cook our LED light in tasteful design and excellent performance.


MingFeng COB led downlights and spot lights are the most comprehensive architectural LED downlights in the market to replace CFL downlight, Cut out is ¢70MM , power are 6W/8W/10W/12W, Luminous Flux efficiency up to 100lm/w, Also CRI>90 is available, the whole series provide a collection of intelligent led lighting solutions.



 A reliable heat management and different optical systems based on the size of the lamps help exploit at the best characteristics of every luminaires, COB LED DOWN LIGHT maximize efficacy with minimum maintenance,making surroundings more dynamic. Advanced optic design precisely control the beam angle to achieve an ideal lighting effect. Anti-glare strcuture brings pleasant and comfortable visual experience.


Specifications:


Model No

MF-HCSL-15C/20C/25C

Input voltage

200-240Vac/220Vac, 50hz/60hz

Power(watt)

15W/20W/25W

Dimension

D138*H73 D170*H80 D170*H80

Color temperature

2700/3000/4000/ 5000K

LED Chip

CREE/EPISTAR

PF

>0.90

Housing Color

Matt White(RAL9003)

Luminous Flux (lm)

1275-1350lm  1600-1800lm  2125-2250lm

CRI(Ra)

≥80 and >90

Lifespan

≥40000hrs

Beam Angle

24°

Material

Die-casting Aluminum

Operating Temperature

-200C ~400C

Dimmable

Y

IP

44

Protection Against Shock

IK01

Certificate

CE/RoHS

Warranty Period

3 /5 years




Competitive Advantage:



  1. Die-casting aluminum heatsink, advanced cooling system.
  2. High output CREE or EPISTAR COB LED Chips.
  3. Super high efficiency, up to 1275-1350lm 1600-1800lm 2125-2250lm
  4. Excellent reflector, complete visual comfort.
  5. IP44 design suitable for damp environment.
  6. Both CRI>80 and CRI>90 for option.
  7. Kn<10 driver, reliable performance.
  8. Smooth dimming on most dimmers.
  9. Life to 70% lumen maintenance, 45,000 hours.
  10. High power factor > 0.92.
  11. Three or Five years Warranty.

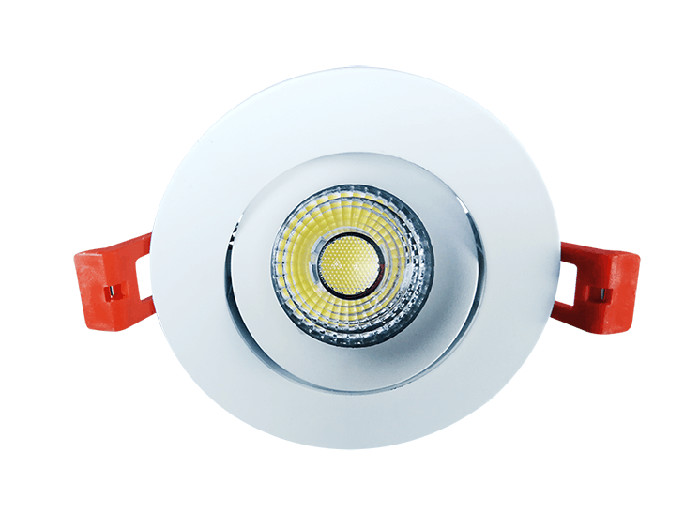

COB LED DOWN LIGHT SHOW:



15W / 20W / 25W Mini COB LED Down Light With CREE / Epistar Chip For Furniture Stores

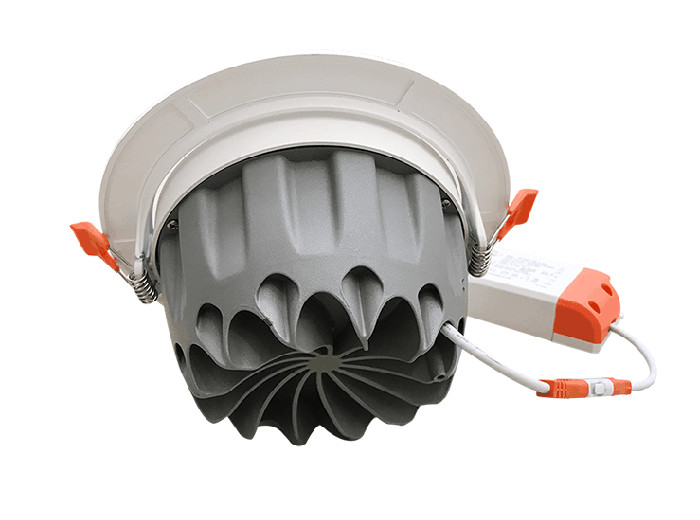

COB LED DOWNLIGHTS:



15W / 20W / 25W Mini COB LED Down Light With CREE / Epistar Chip For Furniture Stores


Applications:


1.Residential Buildings, Home


2.Office, Meeting Room


3.School, Library


4.Factory, Warehouse


5 .Hotel, Casino


6.Parking Garage


7.Hospital


8.Commercial Center


9.Supermarket, Shopping mall,anywhere you want
