3W*9PCS Dimmable mini LED spot Lights, star light Input 220-240Vac

Minimum Order Quantity :	100PCS	Price :	Negotiable
Packaging Details :	22422cm/9pcs/inner box 0.55KG/inner box , 503544cm/32 inner box/carton 19KG/carton	Delivery Time :	Depends on orders
Payment Terms :	T/T, Western Union, L/C, Paypal	Supply Ability :	10,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS	Model Number:	MF-TY3W-9P

Detail Information
Model No:	MF-TY3W-9P	Power:	3W*9pcs
LED Chip:	CREE-XTE LED	Input Voltage:	220-240Vac
IP Gregee:	IP44	Working Temperature:	-200C ~450C
Beam Angle:	25 °/ 60°	PF:	>0.92
CRI:	>80	Warranty:	3 Years
Highlight:	dimmable led downlights , recessed led downlights

Product Description

3W*9PCS Dimmable mini LED Down Lights, CREE-XTE LED, 250LM, Input 220-240Vac

Quick Detail:

3W*9pcs / set Dimmable mini LED Down Lights
Input: 85-277Vac, 95-120Vac,195-240Vac
Luminous Flux: 250Lm*9PCS
CRI: >80
Beam Angle: 90°
LED chip: BRIDGELUX
IP: 44
Dimmable: Yes

Description:

As a professional LED lighting products manufacturer, MingFeng are specializing in providing energy saver led down lights. The 3W Dimmable LED Down lights and recessed led cabinet lights with 250LM, using brightness CREE-XTE LED,Input voltage DC3V, DC12-24V optional. beside Warm white, pure white, cool white, the RED, GREEN, BLUE color available too.

This 3W LED Down lights and recessed led cabinet lights with IP44, light body with high quality 6063 aluminum, lifetime more than 35000Hrs. Have two dimension for different cut out application. Two kinds of wiring installation, one is access to constant current power transformer in-line mode, another is access to constant voltage power transformer parallel connection. With color box package, nine pieces lamp each one package.

Use tips: Please Cut off power before install.Pay attention to the positive and negative pole, not reversed.
lifespan please don't install around heat or corrosive place.Please ensure the installation base can bear 10 times weight of the product before installing.Indoor use only. The place that on no shock,no swing,no fire,Do not drop it from high place,avoid crashing.

Specifications:

Model No:	MF-TY3W-9P
Input voltage	85-277Vac, 95-120Vac,195-240Vac
Power(watt)	3W*9pcs/set
Dimension	Ф35×H25mm Cutting hole size: 30mm Ф35×H35mm Cutting hole size: 30mm
Color temperature	Warm White,Pure White,Cool White,
LED Chip	CREE-XTE
PF	>0.92
Luminous Flux (lm)	250LM*9PCS
CRI(Ra)	≥80
Lifespan	≥35000hrs
Beam Angle	25 °/ 60°
Material	Aluminum Alloy
Operating Temperature	-20⁰C ~45⁰C
Dimmable	Y
IP	IP44
Certificate	CE/RoHS
Warranty Period	3 years

Competitive Advantage:

Use original USA CREE-XTE LED, light sense of authentic, high color rendering, effective reduction was illuminated by color.
Independent research and development, private-mode products, uncompromising attention to, light compact ultra-thin, flexible wide range of applications.
Light color rich options, warm white, pure white, cool white.
Protection class can IP44, available for bathroom, washroom application.
Input voltage DC3V, DC12-24V optional
Have two dimension for different cut out application. Two kinds of wiring installation, one is access to constant current power transformer in-line mode, another is access to constant voltage power transformer parallel connection
Quality aluminum material and milky cover.
Long lifespan over 35000 hours.

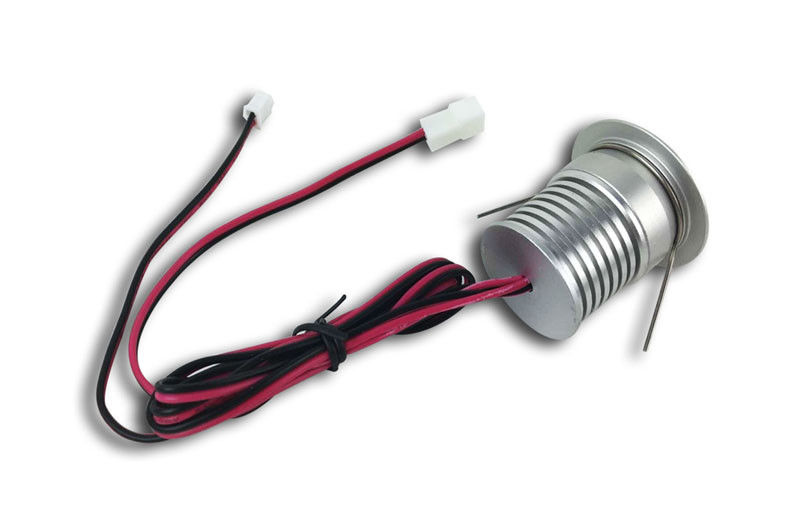

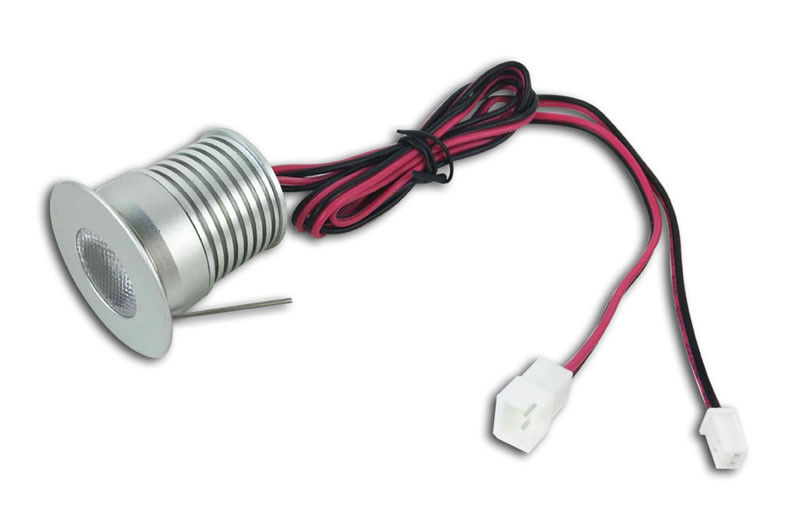

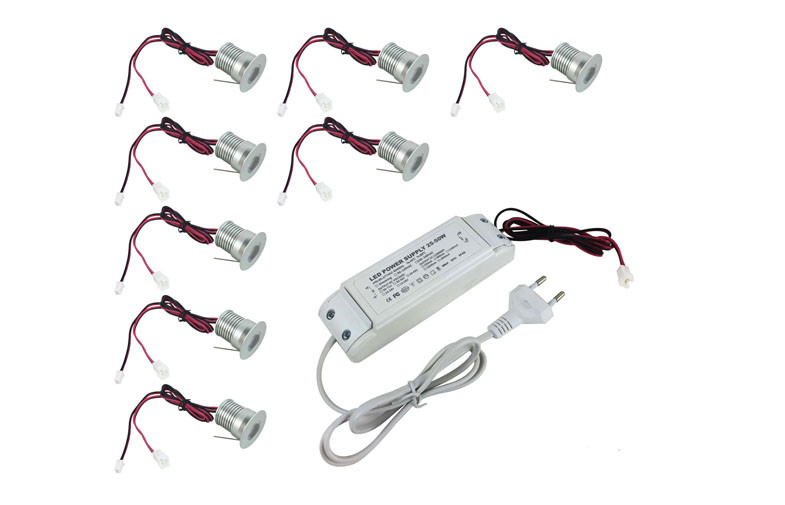

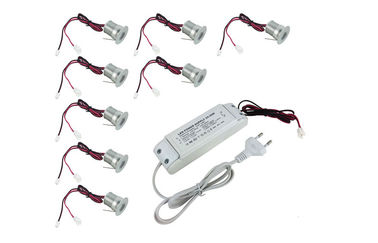

3W*9PCS Dimmable mini LED Down Lights Details:
