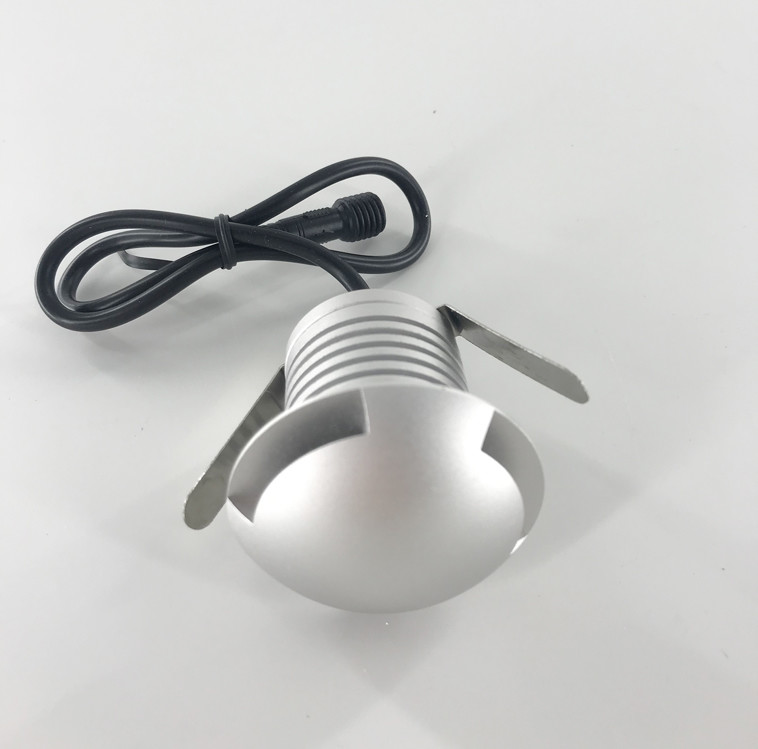

3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights

Certification
China Ming Feng Lighting Co.,Ltd. certifications
China Ming Feng Lighting Co.,Ltd. certifications
Customer Reviews
I have been working with MF-Claire for the past 6 months,Miss Claire have shown full cooperation and professional action all over this period, and we are so happy for dealing with her and MF company.

—— Ing. Ibrahim Amer-Spain

Hi Claire that's perfect thanks again, I will spread your name far and wide among the UK growing community! You've been a lot of help.

—— Tom Strichen---UK

It was a great experience having an opportunity to work with such a professional supplier like MF and having received finest services from you.

—— Shashi

I need more your 60pcs 200W Pionner led grow lights , This lamp work good for my flowers

—— Richard

MF is a reliable supplier of LED lighting products. I have known her and buy from the factory since 2009.

—— David Hale--USA

Professinonal across the MING FENG LIGHTING CO,.LTD company featured with best people such as Allen. I'm impressed!

—— Florian--UK

I must thanks a lot for MING FENG team, without their great support, especial the EXCELLENT DIALUX SIMULATION we can't win the parking lot project.

—— Ricardo--Brazil

I really would like to work with MING FENG, their professional service on the lighting solution and reliable products help me win much market!

—— Thierry Baron--UK

I'm Online Chat Now

3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights

3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights
3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights
3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights

Large Image :  3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE, RoHS
Model Number: MF-3WQ3
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Ex-work
Packaging Details: 17*17*14cm/18pcs/inner box, 2.52KG/inner box,36*36*56cm/12 inner box/carton,30.2KG/carton
Delivery Time: 2 weeks
Payment Terms: T/T, Western Union, Paypal,L/C
Supply Ability: 10,000pcs/Month

3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights

Description
Name: LED Underground Light Lumens: 280lm
Color Temperature: 3000K/4000K/5000K Width/diameter: Dia50mm
Length/depth: 38mm Cutout: 35-45mm
IP Rating: IP67 Voltage: 12/24Vdc
Wattage(Max): 3W Materials: 6063 Aluminum
High Light:

led deck lights

,

outdoor led floor lights



3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights

3W LED underground Lights Description:

LED underground lights also called led inground light, led deck light, led path light, led stair light,led buried light, led recessed light ,led driveway light, led sidewalk light, led up light, led walkover light, led recessed wall light, RGB led buried light, waterproof RGB floor lamp, RGB led plaza light, stainless LED RGB inground light, led step light, led terra light. Led underground lighting, LED Underground Lamps, LED Uplights spotlights ,etc.

All led underground lights have CE, RoHS, SGS certifications. With 2 years warranty.

LED underground light with Cree & Edison high power led. The led underground light Working Voltage:AC/DC12V or DC24V, AC110V or 220V, Constant current driver, No flash, fast response to achieve over-current,use of safty. No waterproof glue to seal the light,IP67 waterproof structure. Easy maintain and replace freely.

To make sure of high quality for the led underground lights, we use rubble cable, Color box package.
 3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 0   3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 1

 Embedded parts available too.



3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 2 3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 3


Pecifications for 3W LED Underground Lights:



Name Underground lights
Input Voltage DC12V or 24V
Input Current 320-350mA
Output Power 3W
Luminous Flux Output 80-90LM/W
Rendering Index >80Ra
Body size D50*H38mm
Beam angle Q1/Q2/Q3(60degree) for options
Lens Transparent or Frosted
Light source CREE XTEL
Operating temperature -20~ +45 Degrees Celsius
Storage temperature -30~ +65 Degrees Celsius
Color optional 2700-3000K/4000-4500K/6000-6500K/ R/G/B
Housing material 6063 Aluminum body
LED’s Operating Life ≥45,000Hours
IP Grade IP67
Cable wire

2 core Rubber cable





Dimensions:



3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 4



Features of 3W LED Underground spotlights:

1. High efficiency light source, Cree XETL1W high power led.
2. Working Voltage:DC12V /24V, Constant Voltage driver, No flash, fast response to achieve over-current, use of safety.
3. High quality Alumimum lamp fixture/lamp, Beautiful appearance and reasonable structure.
4. Tempered glass as cover, heat-resisting and impact resistance.
5. Waterproof IP67, outdoor use.
6. Long life, up to 45,000 hours.
7. Beam angle: Three light-emitting port design, Q1 Q2 Q3 single port light 60 °  for your choose as below.


 3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 5

3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 6

3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 7      3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 8     3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 9
                  Q1                                                        Q2                                                Q3

Applications for 3W LED Underground spotlights:

Applicable to green belt, park landscape design, garden pedestrian street, parking area, square night view, bridge and building outdoor decoration, residential areas, road lighting, etc.

3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 10 3W LED underground lights, 12Vdc/24Vdc Low voltage, IP67 outdoor LED Deck Lights 11
