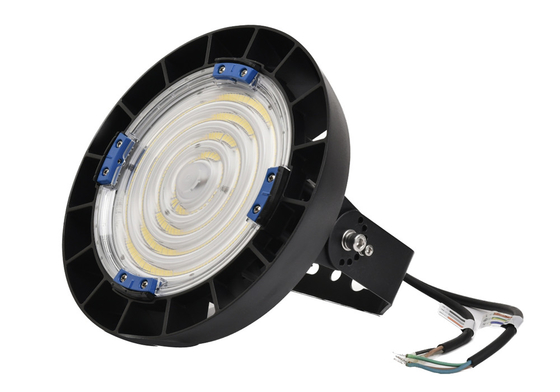

100W 150W 200W LED High Bay Lights, IP65, 0-10V/Dali dimmer , Sensor, Emergency kit
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 100PCS | Price : | EX-WORK/FOB |
---|---|---|---|
Packaging Details : | 305*305*205mm/pcs/carton, N.W: 3±0.2KG, G.W: 4.0±0.2KG | Delivery Time : | 1 week for sample order, 2 weeks for bulk order |
Payment Terms : | T/T, Western Union,L/C, Paypal | Supply Ability : | 5,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CE,RoHS,CB,TUV,ETL,DLC | Model Number: | MF-UFO02A |
Detail Information |
|||
LED Chip: | SAMSUNG | Power Supply: | LIFUD/MeanWell/ZhiHe |
---|---|---|---|
Lamp Power: | 100Watt/150Watt/200Watt | Input: | AC100-277V/220-240Vac, 50/60Hz |
Beam Angle: | 60°, 90°, 105° | Warranty: | 5 Years |
CRI: | Ra 80+ | System Efficiency: | 130LM/W Or 155LM/W For Options |
Highlight: | 200W LED High Bay Lights,LED High Bay Lights Zoomable,LED High Bay Lights IP65 |
Product Description
100W 150W 200W 240W LED High Bay Lights IP65 Beam Angle Zoomable Emergency Kit
Technical Parameter:
Product Name | 100W LED Industrial High Bay lights | 150W LED Industrial High Bay lights | 200W LED Industrial High Bay lights |
System Power | 100W±5W | 150W±5W | 200W±5W |
System Effiency | 155/130LM/W±5% | 155/130LM/W±5% | 155/130LM/W±5% |
Luminous Flux | 15500/13000LM±5% | 23250/19500LM±5% | 31000/26000LM±5% |
LED QTY | 294/168pcs | 420/224pcs | 532/294pcs |
LED Brand | SAMSUNG | ||
CCT | 3000K, 4000K,5000K, 5700K,6500K | ||
Beam Angle | 60°,90°, 105° | ||
CRI | ≥80Ra | ||
Power Supply | LIFUD/Meanwell/ZhiHe | ||
Input Voltage | AC100-277V/AC220-240V,50/60Hz | ||
Power Factor | ≥0.9 | ||
THD | <15% | ||
Material | Aluminum Alloy | ||
Ingress Protection | IP65 | ||
Certificate | CE,RoHS | ||
Operating Temp. | -30℃-45℃ | ||
Operating Humidity | 15%-90%RH | ||
Storage Temp. | -40℃-70℃, | ||
Storage Humidity | 10%-95%RH | ||
Warranty Period | 5 years |
Angle Zoomable UFO LED Industrial High Bay lights Dimensions:
100W, 150W Size 200W Size
Angle Zoomable UFO LED Industrial High Bay lights Special Characteristic:
1. Beam Angle adjustable : 60° to 90° to 105°
105° 90° 60°

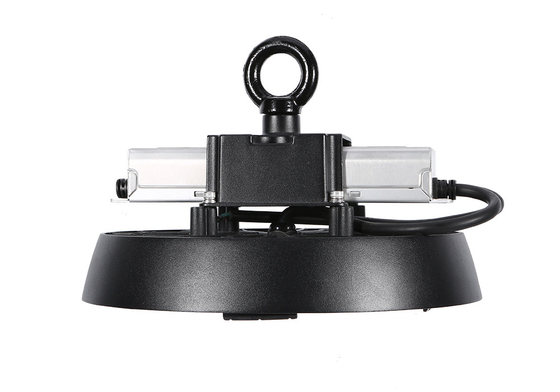

2. Two kinds Installation :
A.
B.
Package :
Item | Packing Size(mm) | N.W(KG) | G.W(KG) |
100W/150W | 305*305*205mm/pcs/carton | 3.0KG | 3.5KG |
200W | 305*305*205mm/pcs/carton | 3.5KG | 4.0KG |
Aging test:
Description:
Ming Feng Lighting Co., Ltd developed a new kind of UFO IP65 Zoomable LED high bay light, can Change different beam angle lens as 60° to 90° to105° , This beam angle adjustlabe industtrial high bay light apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required. With ADC12 Aluminum alloymaterials radiator, with air duct design principle of both inside and outside ventilation, and better heat dissipation performance. Varities of Joint, include ring, sling chain, U shapre bracket installation type. Unique design for Meanwell driver, to keep low temperature when operating. Beautiful appearance, own high light efficiency, can achieve more than155LM / Watt. Power 100W, 150W, 200W for your choice. Input voltage 100-277Vac, 200-240Vac suitable for both USA and EU market.
