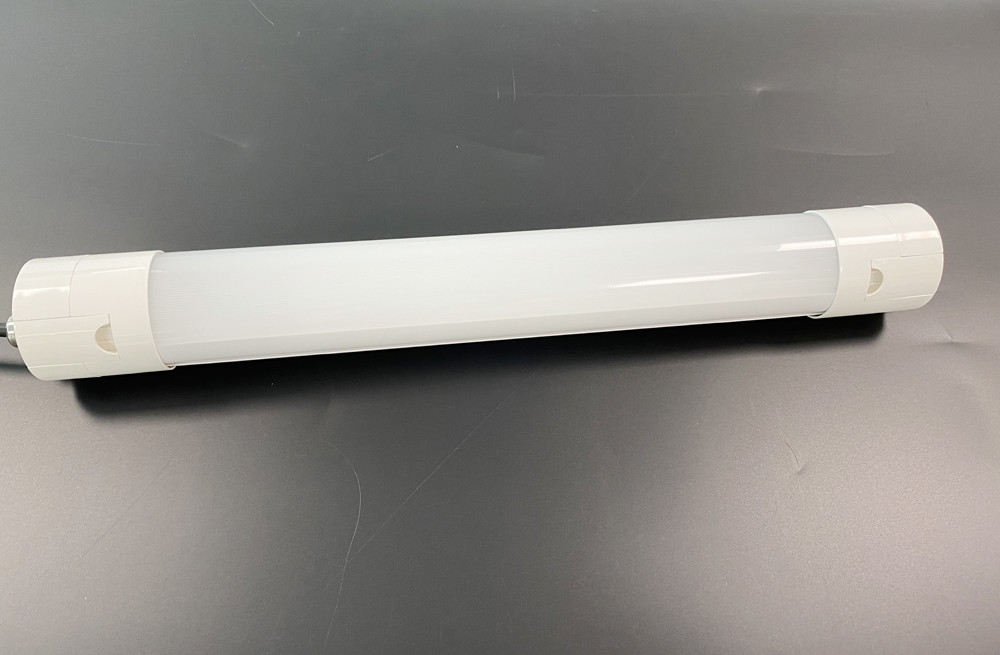

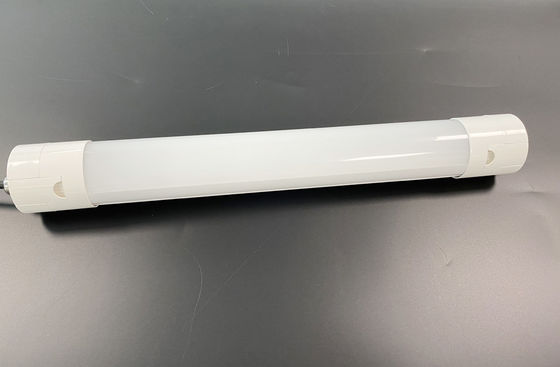

600mm 25 Watt IP65 LED Triproof Light With Suspending / Surface Mounted

Minimum Order Quantity : 10PCS Price : USD16-20/PCS
Packaging Details : 67*27*24cm/6pcs, G.W: 11.0KG/CTN Delivery Time : 2 weeks
Payment Terms : L/C, T/T Supply Ability : 5000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-626-25W

Detail Information

Power: 25Watt Dimensions: Dia68mm*L600mm
Input Voltage: AC220-240V, 50/60Hz PF: >0.95
LED Brand: Epistar2835 Power Supply: Meanwell/ CE Driver
CRI: 80-90 Beam Anle: 120 Deg
Main Material: Aluminum Housing+ PC Milky/Stripped Cover IP Rating: IP65
Warranty: 3/5 Years
High Light:

25 Watt IP65 LED Triproof Light

,

Suspending Mounted IP65 LED Triproof Light

,

600mm LED Tri Proof Lights

Product Description

600mm 25Watt IP65 waterpoof LED Tri proof Light, Suspending/ Surface mounted



Main Features:

1. Waterproof protection grade IP65.

2. High color rendering index 80-90Ra.

3. 600mm size can be 25W and 30W

4. Suspending or Surface mounted according to your application option.

5. Also can adjust the installation angle with the extra bracket.



Technical Spec:

Model No  MF-626-25W
Dimesnion  Dia68*600mm
Input Voltage  AC220-240V, 50/60Hz
Power  25W / 30W
PF  >0.95
Led Driver   Meanwell or CE Driver
LED Brand   Epistar 2835
Luminous efficiency  100lm/w+
CCT  3000K/4000K/5000K/6000K
CRI  80-90Ra
Beam Angle  120°
IP Rating    IP65
Main Material   Aluminum Housing + PC Milky/Stripped Cover
Operationg Temperature   -20℃~+50℃
Storage Temperature -40℃~+85℃
Approval    CE, RoHS
Warranty  5 years



Installation type:

A: Suspending Mounted



600mm 25 Watt IP65 LED Triproof Light With Suspending / Surface Mounted 0



B: Surface Mounted



600mm 25 Watt IP65 LED Triproof Light With Suspending / Surface Mounted 1

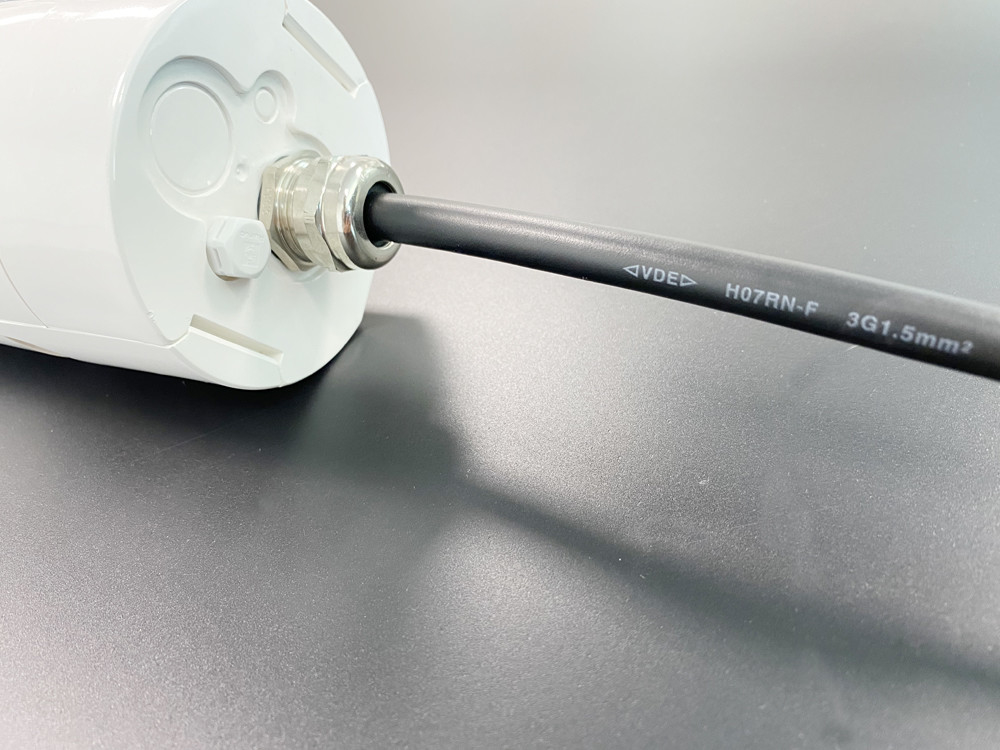

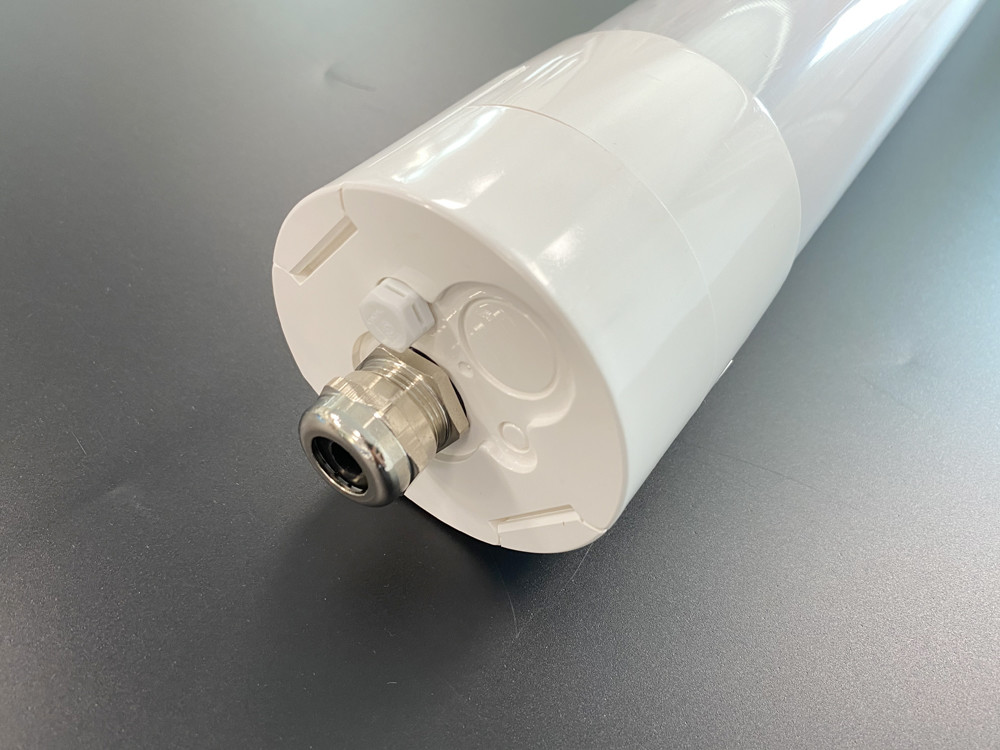

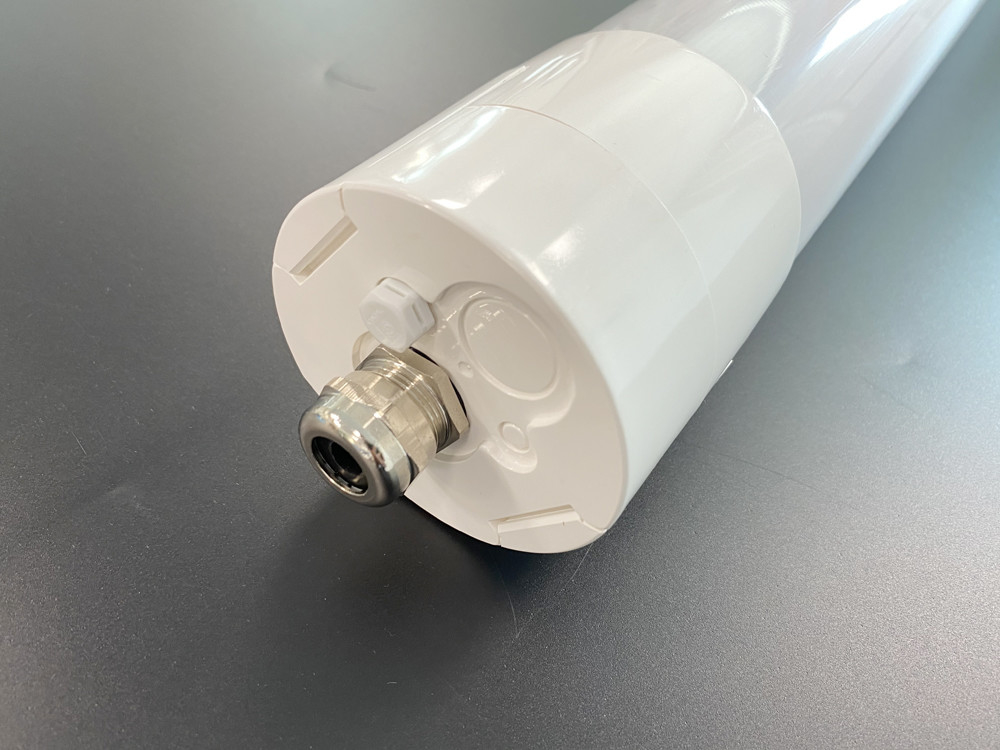

Connection Type:

1. Parallel Connection( With one side cable)                    2. Series Connection (With Two Sides cable or faster connector)



600mm 25 Watt IP65 LED Triproof Light With Suspending / Surface Mounted 2                600mm 25 Watt IP65 LED Triproof Light With Suspending / Surface Mounted 3
