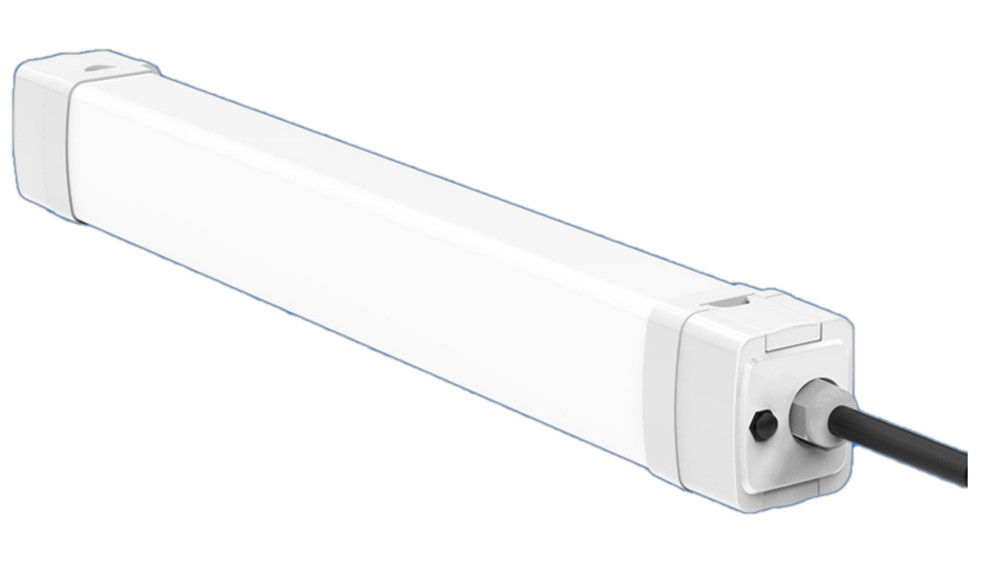

20W 35W 45W IP65 Triproof LED Light 2ft /4ft / 5ft

Minimum Order Quantity : 10PCS Price : USD16-20/PCS
Packaging Details : 60cm: 67*22*18cm/6pcs, G.W: 11.0KG/CTN; 120cm:127*22*18cm/4pcs, G.W: 13.0KG/CTN; 150cm: 157*22*18cm/4pcs, G.W: 16.0KG/CTN Delivery Time : 2 weeks
Payment Terms : L/C, T/T Supply Ability : 5000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-625-XXX

Detail Information

Power: 20Watt/35Watt/45Watt Dimensions: L600/1200/1500*W74*H60mm
Input Voltage: AC220-240V, 50/60Hz PF: >0.95
LED Brand: Epistar2835 Power Supply: Meanwell/ CE Driver
CRI: 80-90 Beam Anle: 120 Deg
Main Material: Aluminum Housing+ PC Milky/Stripped Cover IP Rating: IP65
Warranty: 3/5 Years
High Light:

45W IP65 Triproof LED Light


35W IP65 Triproof LED Light


LED Tri Proof Lights 2ft

Product Description

20W,35W,45W IP65 Tri proof LED Light, 2ft/4ft/5ft Car parks/car washes area lights


Technical Spec:

Model No  MF-625-20W MF-625-35W MF-625-45W
Dimesnion  L600*W74*H60mm L1200*W74*H60mm L1500*W74*H60mm
Power  20W/30W 35W/50W/60W 45W/60W/80W
Input Voltage AC220-240V, 50/60Hz
PF  >0.95
Led Driver   Meanwell or CE Driver
LED Brand   Epistar 2835
Luminous efficiency  100lm/w+
CCT  3000K/4000K/5000K/6000K
CRI  80-90Ra
Beam Angle  120°
IP Rating    IP65
Main Material   Aluminum Housing + PC Milky/Stripped Cover
Operationg Temperature   -20℃~+50℃
Storage Temperature -40℃~+85℃
Approval    CE, RoHS
Warranty  5 years


Main Features:

1. Waterproof protection grade IP65.

2. High color rendering index 80-90Ra.

3. Ceiling/hanging mounted according to your application option.

4. Can be parallel connection and series connection.

5. PC milky cover and stripped cover for your options.

6. 600mm, 1200mm, 1500m dimensions for your differenct application.

7. Application area: Car washes, car parks, meat process, poultry plants/Farm, Grocary stores, Dairies, food process, food workshop,low temperature storage.


Installation type:

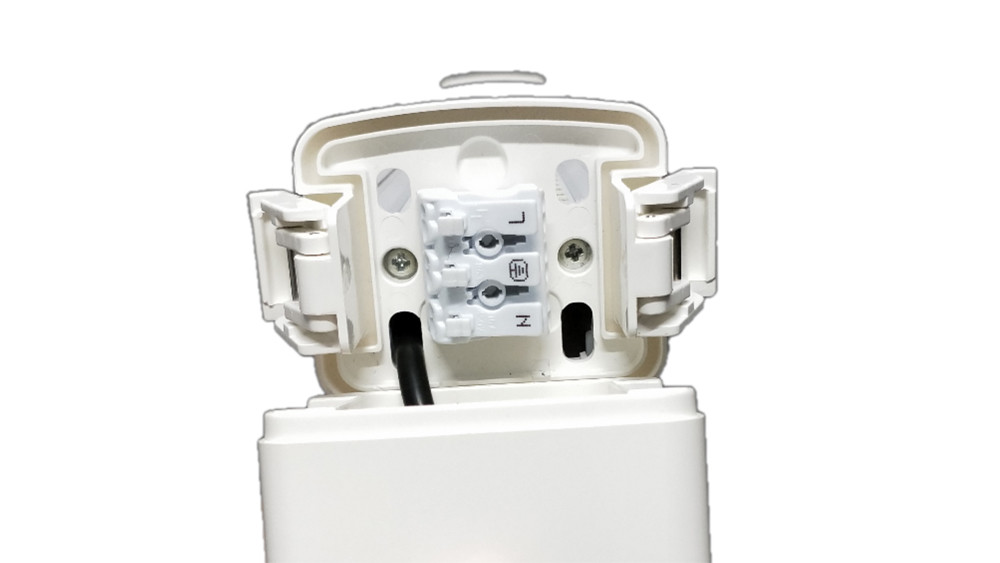

1.  Ceiling installatoin

20W 35W 45W IP65 Triproof LED Light 2ft /4ft / 5ft 0  20W 35W 45W IP65 Triproof LED Light 2ft /4ft / 5ft 1

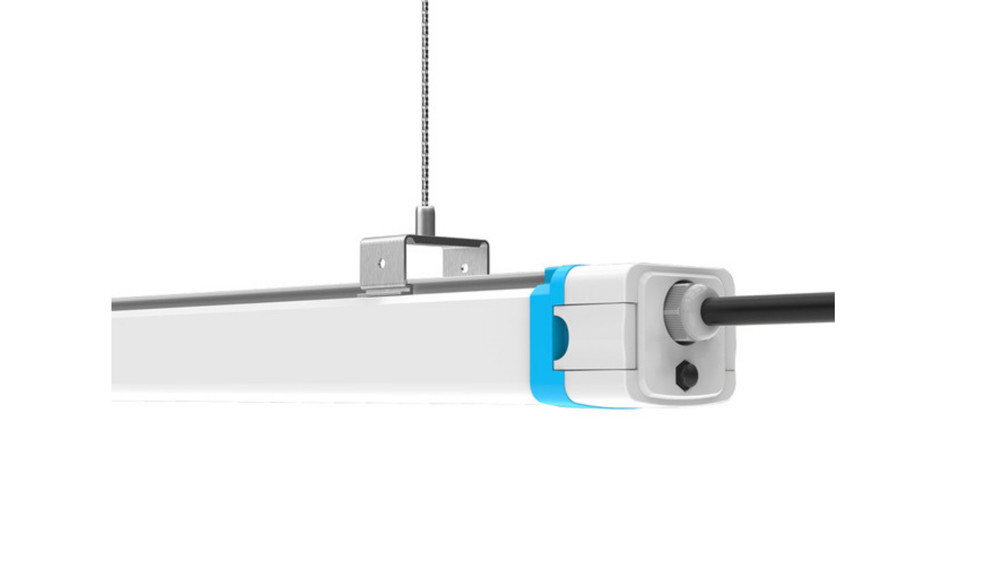

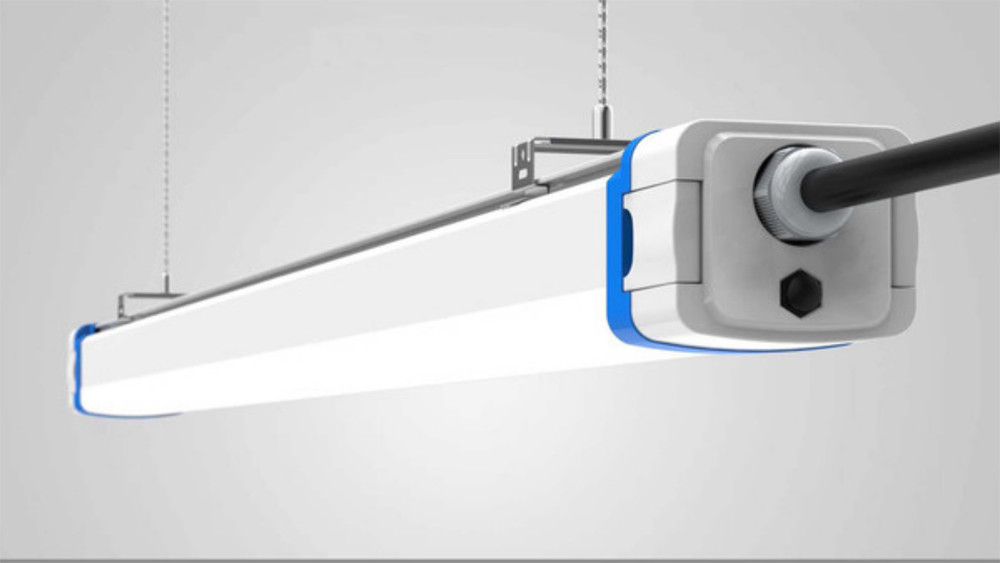

2. Hanging Installation

20W 35W 45W IP65 Triproof LED Light 2ft /4ft / 5ft 2 20W 35W 45W IP65 Triproof LED Light 2ft /4ft / 5ft 3


People asked:


Can we connect the tri proof light together?

-- Yes, you can try our one side cable version  to make parallel connection and with two sides cable or faster connector to make series connection.


Can It be ceiling mounted?

-- Yes, it can be ceiling mounted and hangling mounted also.
