Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming

Certification
China Ming Feng Lighting Co.,Ltd. certification
China Ming Feng Lighting Co.,Ltd. certification
Customer Reviews
I have been working with MF-Claire for the past 6 months,Miss Claire have shown full cooperation and professional action all over this period, and we are so happy for dealing with her and MF company.

—— Ing. Ibrahim Amer-Spain

Hi Claire that's perfect thanks again, I will spread your name far and wide among the UK growing community! You've been a lot of help.

—— Tom Strichen---UK

It was a great experience having an opportunity to work with such a professional supplier like MF and having received finest services from you.

—— Shashi

I need more your 60pcs 200W Pionner led grow lights , This lamp work good for my flowers

—— Richard

MF is a reliable supplier of LED lighting products. I have known her and buy from the factory since 2009.

—— David Hale--USA

Professinonal across the MING FENG LIGHTING CO,.LTD company featured with best people such as Allen. I'm impressed!

—— Florian--UK

I must thanks a lot for MING FENG team, without their great support, especial the EXCELLENT DIALUX SIMULATION we can't win the parking lot project.

—— Ricardo--Brazil

I really would like to work with MING FENG, their professional service on the lighting solution and reliable products help me win much market!

—— Thierry Baron--UK

I'm Online Chat Now

Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming

Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming
Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming
Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming

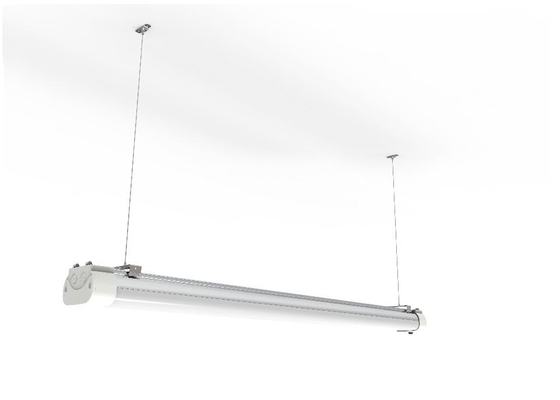

Large Image :  Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE, RoHS
Model Number: MF-LTP20A-2FTSensor
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: USD28.5-39.5/PCS
Packaging Details: Standard brown carton box packing, 66*35*33cm/6pcs, N.W:7.2KG, G.W:8.0KG
Delivery Time: 2 weeks
Payment Terms: L/C, T/T
Supply Ability: 5000pcs/Month

Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming

Description
Power: 20Watt/40Watt/60Watt Length: 2ft/4ft
Input Voltage: AC100-277V, 50/60Hz PF: >0.9
CRI: 80Ra+ Beam Anle: 120 Deg
IP Rating: IP65 Warranty: 3 Years
Lumen Efficiency: 130LM/W Dimmable: 0-10V
Sensor: Microware Sensor(On/off Version)
High Light:

LED Tri Proof Lights 20W

,

LED Tri Proof Lights 40W

,

Microwave Sensor IP65 Triproof LED Light

Microwave Sensor LED Tri proof lights, 20W/40W/60W,0-10V Dimming, IP65 Waterpoor

Main Features:
Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming 0

♦ Energy efficient alternative to traditional fluoresent tube.

♦ Easy installation design.

♦ Suit for damp/wet location.

♦ Water-proof, dust-proof, corrosion-proof, full polycarbonate LENS and non-corrosive polycarbonate body,can be used for food factory.

♦ The options of 3 CCT selection and 3 wattage selection to provide flexibity to cusomer.



Ordering Information:

 Microwave Sensor Version

Model No Power Length Lumens CCT Remark Size
MF-LTP20A-2FT Sensor 20W 2ft 130lm/w 3000k/4000K/5000K


Microwave Sensor

on/off Version

0-10V Dimming

600*100.7*77mm
MF-LTP40A-4FT Sensor 40W 4ft 130lm/w 1200*100.7*77mm
MF-LTP60A-4FT Sensor 60W 4ft 130lm/w 1200*100.7*77mm



CCT & Watt Selectable -Standard

Model No Power Length Lumens CCT Remark Size
MF-LTP20S-2FT  20W 2ft 130lm/w 3000k/4000K/5000K


No Flicker

0-10V Dimming

600*100.7*77mm
MF-LTP40S-4FT

25W

30W

40W

4ft 130lm/w 1200*100.7*77mm
MF-LTP60S-4FT

40W

50W

60W

4ft 130lm/w 1200*100.7*77mm




CCT & Watt Selectable -Microwave Sensor Version

Model No Power Length Lumens CCT Remark Size

MF-LTP20G-2FT

Sensor

20W 2ft 130lm/w 3000k/4000K/5000K


Microwave Sensor

on/off Version

0-10V Dimming



600*100.7*77mm

MF-LTP40G-4FT

Sensor

25W

30W

40W

4ft 130lm/w 1200*100.7*77mm

MF-LTP60G-4FT

Sensor

40W

50W

60W

4ft 130lm/w 1200*100.7*77mm


Microwave Sensor Information:

Sesor Parameters Operaton Frequency 5.8GHz7±5MHz,ISM Band.
Transmitting Power 0.5mW Max.
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Stand-by Dim Level 10%(1.4-1.6V),20%(1.9-2.1V), 30%(2.9-3.1V), 50%(4.9-5.1V)
Twilight Time 0S/10S/1min/3min/5min/10min/20min/30min/+
Detection Area 25%/50%/755/100%
Daylight Sensor

5lux/15lux/30lux/50lux/100lux/150lux/Disable

Daylight Priority; ON/OFF value

(5lux/15lux/30lux/50lux)/150lux

100lux/200lux

150lux/300lux

Detecting Radius ≧4m(Mounting height 3m, moving speed 0.3m/s)
Mounting Height 6m Max
Detecting Angle 150°


Application:

Factory lighting: Workshop, warehouse, storage rack.

Sports Center:Gymnasium,swimming pool, locker room.

Service Area: Subway, kitchen, bathroom, canteen, walkways,garage, airport service area.

Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming 1  Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming 2

Microwave Sensor IP65 LED Tri Proof Lights 20W 40W 60W 0 - 10V Dimming 3
